384227 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 384227

384227: DescriptionMesserleiste C/3 30 THR Clip; CategoryThe connector The connector; File Size46KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

384227 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	384227	-	-	View	Buy Now

384227 Overview

Messerleiste C/3 30 THR Clip

384227 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compli
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.437 inch
subject depth	0.712 inch
body length	1.504 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1400VAC V
Durability	400 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.9174 N
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED POLYAMIDE
MIL compliance	NO
Manufacturer's serial number	384227
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A,B,C
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	30

Preview

Download Datasheet

View All

2,5

-0,2

29,3

c10

+0,2

-0,1

+0,1

11,1 max.

Stecklänge / mating length

ESL

a10

2x2,54=5,08

8,7

38,1

33,02

9 x 2,54 (=22,86)

2,5

+0,1

±0,1

3,95

-0,4

0,6

E =

early mate, late break

/ voreilend

S = standard

L = late mate, early break / nacheilend

2,54

12,7

10,2

-0,2

6,4

-0,1

5,08

ERNI

Anforderungsstufe

class

Datum

date

Stecklänge

31,7

mating length

Bestückungsplan /

contact layout

10 9 8 7 6 5 4 3 2 1

S S S S S S S S S S

+0,1

XXXXXXX

RC 2

2,54

a b c

Leiterplatten- Lochbild / PCB drillhole pattern

±0,1

alle Löcher /

0,05

all holes

Proprietary notice pursuant to ISO 16016 to be observed.

THR /

through hole reflow

Bauart 4 / t

ype 4

Anforderungsstufe 2 = 400 Steckzyklen /

performance class 2 = 400 mating cycles

Fehlende Maße und Angaben nach IEC 60 603-2 / DIN EN 60 603-2

Missing information and dimensions per IEC 60 603-2 / DIN EN 60 603-2

2,8

+0,1

Information:

Tolerances

All Dimensions

in mm

Scale

2x 2,54 =5,08

10 9 8 7 6 5 4 3 2 1

2,54

9x 2,54 =22,86

33,02

5,3

±0,1

2:1

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

09.09.2013

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

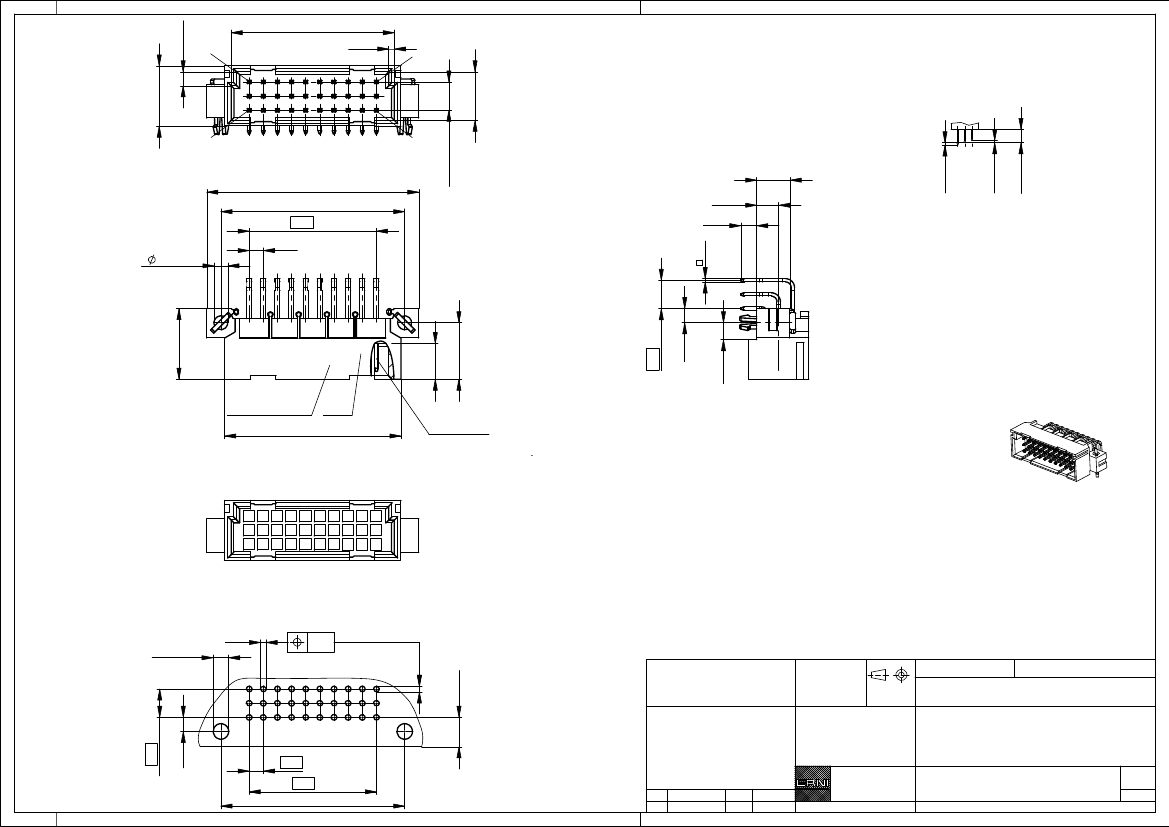

Messerleiste C/3 30 THR+Clip

Male Conn. C/3 30 THR+clip

www.ERNI.com

Class

384227

STVC/3

4,8

±0,2

0,8

±0,1

0,8

±0,1
