384659 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 384659

384659: Description48 CONTACT(S), MALE, STRAIGHT TWO PART EURO CONNECTOR, SOLDER; CategoryThe connector The connector; File Size42KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

384659 Overview

48 CONTACT(S), MALE, STRAIGHT TWO PART EURO CONNECTOR, SOLDER

384659 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.437 inch
subject depth	0.5 inch
body length	2.122 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.9174 N
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,B,C
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.472 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	48
Base Number Matches	1

Preview

Download Datasheet

View All

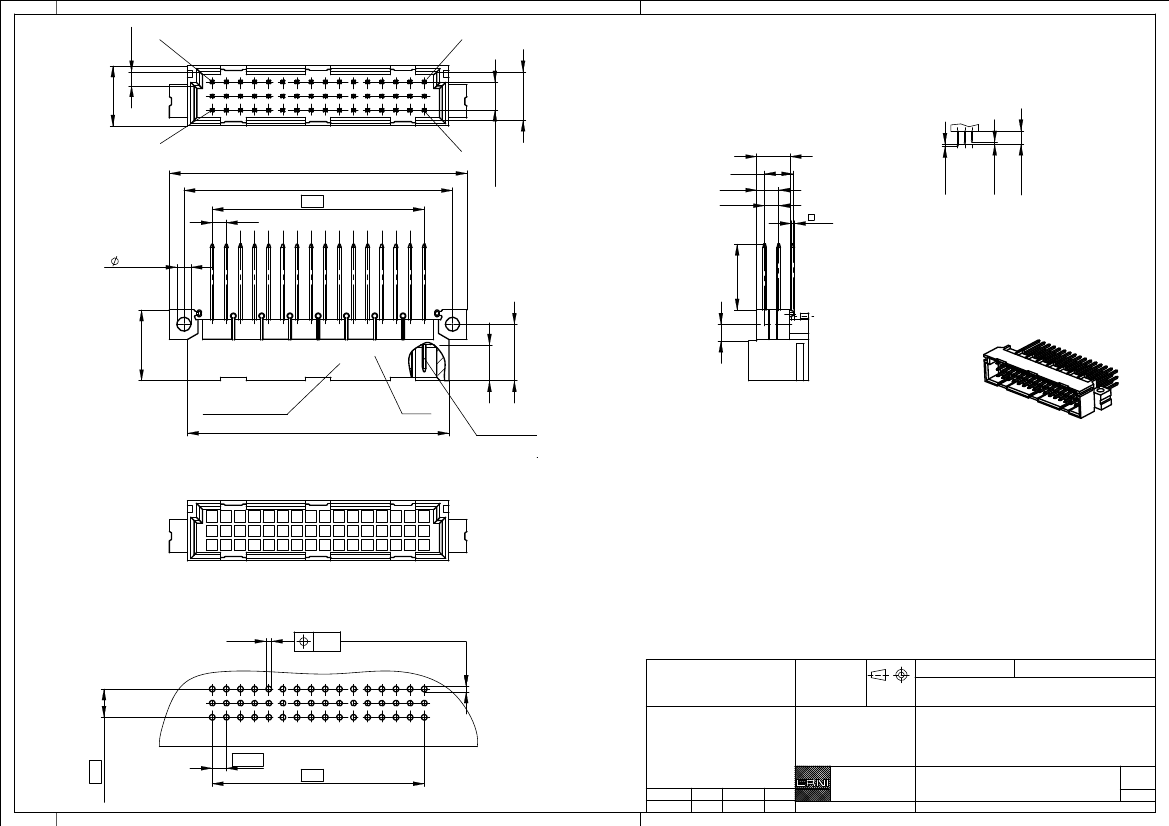

2,5

-0,2

c16

11,1 max.

8,7

+0,1

Stecklänge / mating length

ESL

±0,1

3,95

2,54

0,6

4,8

±0,2

0,8

±0,1

0,8

±0,1

2:1

5,08

a16

53,9 max.

48,26

15 x 2,54 (=38,1)

2,54

2x2,54=5,08

E =

early mate, late break

/ voreilend

S = standard

12,7

10,2

-0,2

+0,1

±0,2

2,5

+0,1

L = late mate, early break / nacheilend

Anforderungsstufe

class

Datum

date

Stecklänge

mating length

Bestückungsplan /

contact layout

16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

S S S S S S S S S S S S S S S S

Lötanschluss 0,6x0,6mm

/ solder terminal 0,6x0,6mm

Isolierwerkstoff

/ housing material : PBT GF 30

Bauart 4 / t

ype 4

Anforderungsstufe 1 = 500 Steckzyklen

/ performance class 1 = 500 mating cycles

Fehlende Maße und Angaben nach IEC 60 603-2 / DIN EN 60 603-2

6,4

-0,1

ERNI

XXXXXXX

RC 1

a b c

Missing information and dimensions per IEC 60 603-2 / DIN EN 60 603-2

Leiterplatten- Lochbild / PCB drillhole pattern

±0,1

alle Löcher /

Bedruckung siehe Zeichnung 294905

marking see drawing 294905

0,05

all holes

2 x 2,54 (=5,08)

16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

2,54

15 x 2,54 (=38,1)

Proprietary notice pursuant to ISO 16016 to be observed.

Information:

Tolerances

All Dimensions

in mm

Scale

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

07.10.2009

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

Messerleiste C/2 48 Löt

Male Con.C/2 48 solder

www.ERNI.com

Class

384659

STVC/2
