• Industry Standard Package
• Low voltage outputs to 0.96V
• Output Currents up to 70A
• Designed for telecom standards
• Output voltage adjustment
• Remote On / Off
Key Market Segments & Applications
Central Office:
Broadband:
Remote Electronics:
Customer Premise:
Industrial
ATM, Sonet, DSL, ISDN, Frame relay
Switching Equipment, Routers
Fixed Local Loop, Fiber Optic
Transmission, Microwave Transmission,
Wireless Local Loop
PBX, PABX, Datacomm, Voice Systems,
Video Conferencing
Systems, Video Conferencing, Distributed
Power Applications

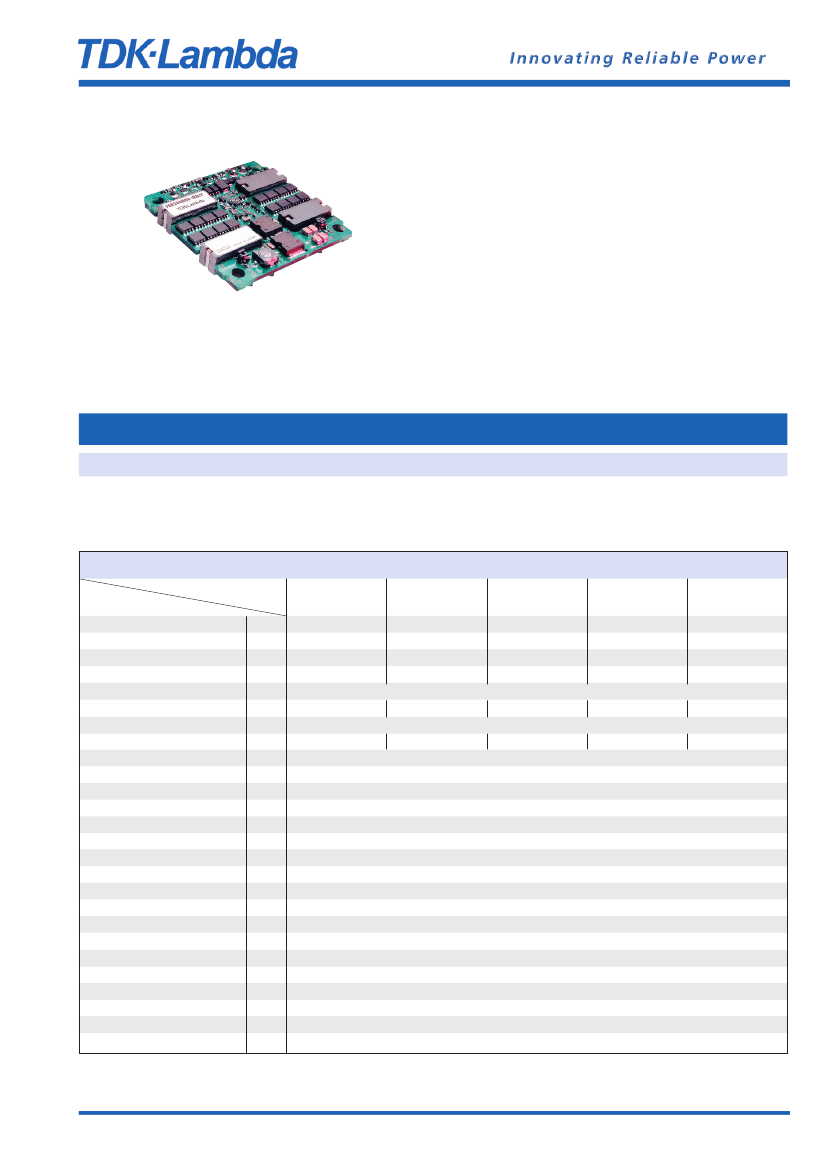

PAH200H Series
High Current Half Brick
DC-DC Converters
PAH200H Features and Benefits
Features
• High Efficiency
• Wide adjustment range
• ASIC Design
• No potting materials
Benefits
• Reduces System Heating
• Reduces need for custom modules
• Reduced component count, increased MTBF
• Lower weight
Specifications
MODELS
ITEM
Nominal Output Voltage
Output Current (Max)
Max Output Power
Efficiency (Typ)
Input Voltage range
Input Current (typ)
Output Voltage Accuracy
Output Voltage Adjustment
Max Ripple & Noise
Max Line Regulation
Max Load Regulation
Overcurrent Protection
Overvoltage Protection
Remote Sense
Remote On / Off
Operating Temperature
Operating Humidity
Storage Temperature
Cooling
Withstand Voltage
Vibration (non operating)
Shock
Safety Agency Approvals
Weight (Typ)
Size (WxHxD)
Warranty
VDC
A
W
%
VDC
A
%
V
mV
mV
mV
-
-
-
-
-
-
-
-
-
-
-
-
g
mm
-
PAH200H48-1R2
1.2
70
84
82
2.19
0.96-1.32
PAH200H48-1R5
1.5
70
105
84
PAH200H48-1R8
PAH200H48-2R5
PAH200H48-3R3
1.8
2.5
3.3
70
70
60
126
175
198
87
88
90
36-76V(100V for100ms)
2.67
3.08
4.23
4.68
±1
1.2-1.65
1.44 - 1.98
2.0 - 2.75
2.805-3.795
100
10
10
105 - 140% (See Options)
120 - 140% (See Options)
Yes
Yes (See options)
-40ºC to +85ºC (100ºC /B option) Baseplate temperature
5 - 95% Non condensing
-40ºC to +100ºC
Convection, or forced air
Input to Output 1500VAC for 1 min.
10~55Hz (1 minute), amplitude 0.825mm (49m/s
2
max), X, Y, Z 1 hr ea.
196.1 m/s
2
IEC60950-1, EN60950-1, UL/CSA60950-1
90
57.9 x 10.2* x 61 */B version 12.7
2 Years
Notes:
See Installation Manual for full details, test methods of parameters and application notes.
PAH200H Series
1

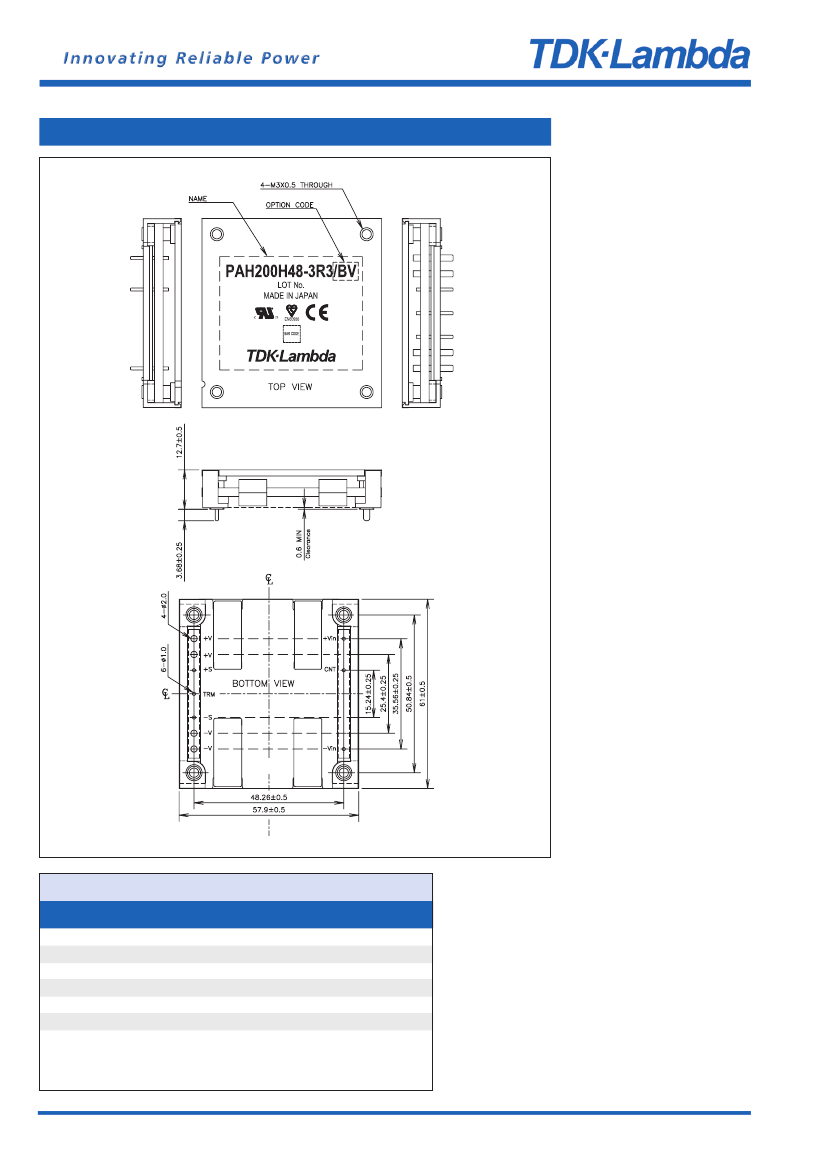

Outline Drawing PAH200H/B
Options
Suffix
Blank
/V*
/P
/PV*
/C**
/B
Note:
OCP / OVP
Manual Reset
Auto Reset
Manual Reset
Auto Reset
Single set of O/P pins
Baseplate Fitted
Remote On / Off
Negative, Short = On
Negative, Short = On
Positive, Open = On
Positive, Open = On
Suffix letter order: /C followed by /P followed by /V
Example: /CPV.
* Standard US Stock Item.
** See website for outline drawing—not available with /B option.
2
PAH200H Series

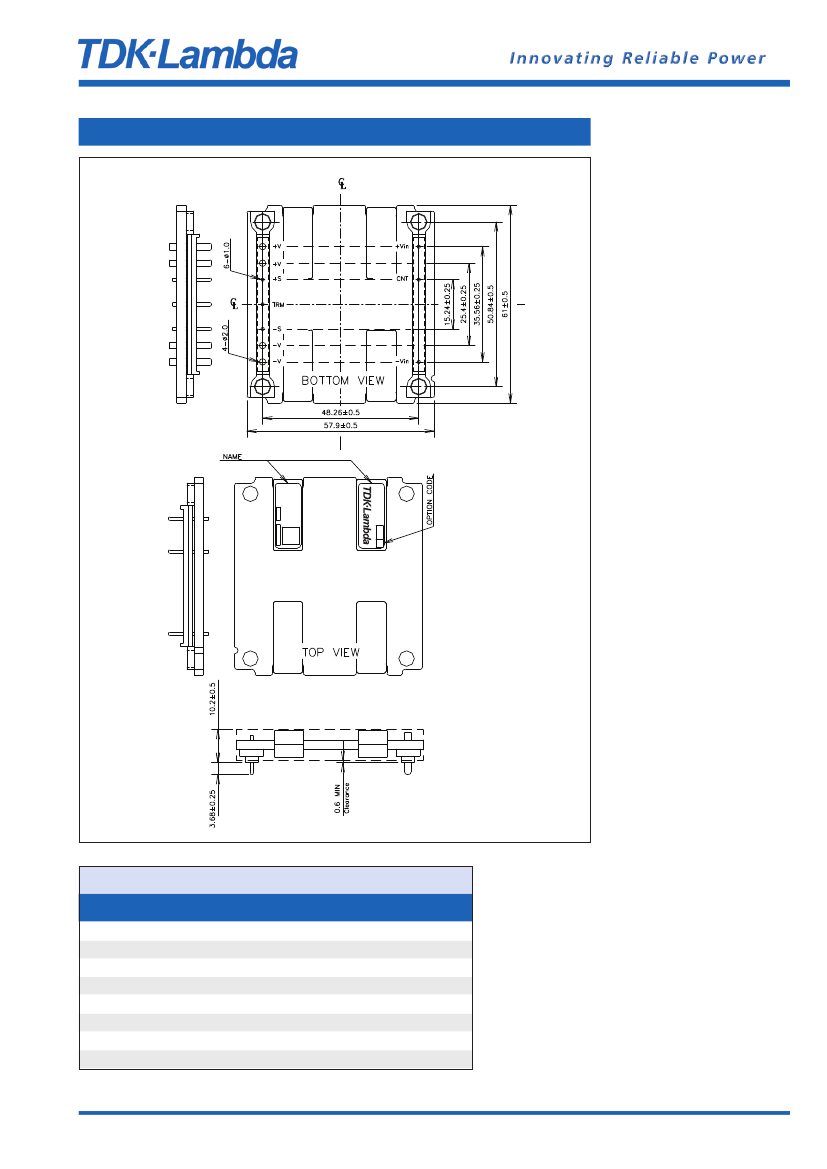

Outline Drawing PAH200H
PAH200H48-3R3/V
MADE IN JAPAN
LOT No.
BAR CODE
Pinout
Pin Description
-Vin
+Vin
CNT
+V
-V
TRIM
+S
-S
Function
Negative Input Terminal
Positive Input Terminal
On / Off Control terminal
Positive Output Terminal
Negative Output Terminal
Output adjustment Trim pin
Positive Remote sense
Negative Remote sense
PAH200H Series
3
