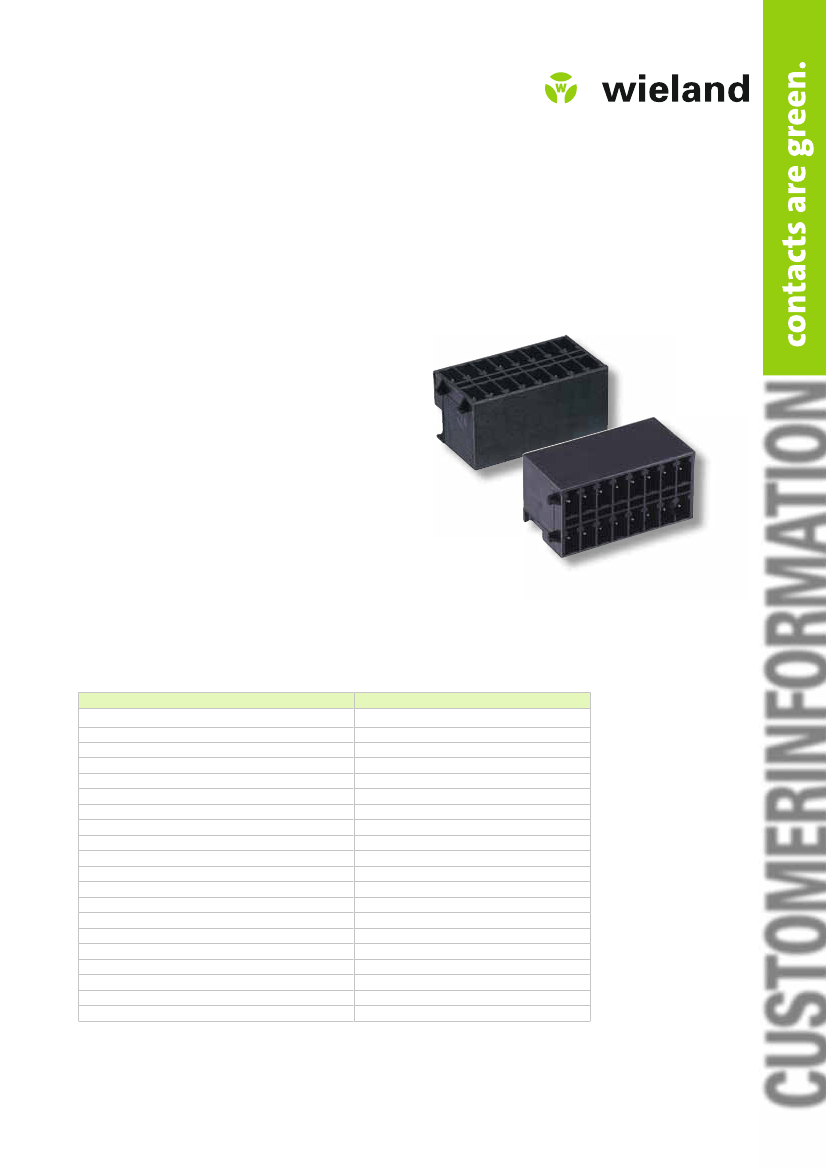

Type 8513 SEGN/...THR
PCB pin header for the reflow process
❑
Particularly suitable for the through-hole reflow process
of SMT technology
❑
High temperature stability acc. to EN 61760-1
❑
Highly accurate spacing that fits the PC board
and mating connector
❑
Ready for automatic placement
❑
Tray 2 pole to 16 pole per series
(max. 32 pole in total)
❑
Straight and angled versions
2 pole to 16 pole per series (max. 32 pole in total)
❑
Standard color black (similar to RAL 9005)
Advantages
❑
Applicable in the lead-free reflow process
❑
High solder pad distances due to 0.8 x 0.8 pins
❑
High CTI value
❑
Placement possible on both sides of the PCBs
❑
High contact density on the PC board
❑
Compact connection area
❑
With and without locking flange for mating connector
❑
No manual or wave soldering
Description
wiecon
Type 8513 SEGN/…G/W THR
PC board pin header
Spacing
Number of poles
Box
Tray
Rated current
Rated voltage
Rated peak voltage
Pin dimensions
Pin lengths
Pollution degree
Material
– CTI
– Halogen-free
– RoHS
Temperature range
– Dimensional stability at max. temperature
Flammability according to UL 94
Approvals
2 (4) – 16 (32)
available on request
8A
160 V (DIN EN 60664-1)
2.5 kV
0.8 x 0.8 mm
1.5 mm, double-side placement
3
PPA
> 600
yes
compliant
- 40° C – + 280° C
+ 280° C
V0
UL, CSA (pending)
3.5 mm
straight/angular
0143.2 E 07/08

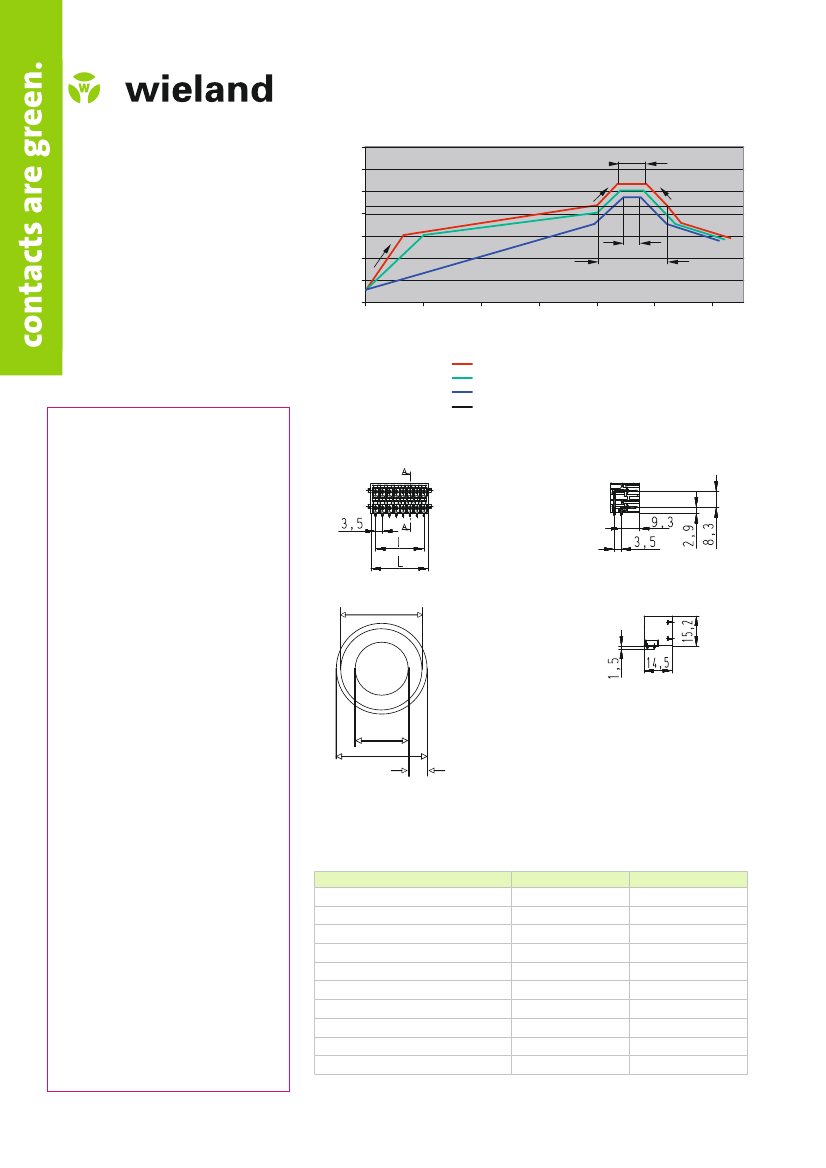

Technical information
Temperature profile
Headquarters:
Wieland Electric GmbH
Brennerstraße 10 – 14
D-96052 Bamberg
Temperaturr [°C]
Recommended temperature profile acc. to DIN 61760-1
350
25s bei 265°C
300
250
200
150
100
50
0
0,0
50,0
100,0
150,0
Time [°C]
max. Profil / maximum profile
empfohlenes Profil / recommended profile
min. Profil / minimum profile
Schmelzpunkt / Melting Point (M.P
.)
< 4°C/s
M.P (Sn Ag 3,5)
.
< 4°C/s
Sales- and
Marketing Center:
Wieland Electric GmbH
Benzstraße 9
D-96052 Bamberg
Phone +49 (951) 93 24-0
Fax
+49 (951) 93 24-198
www.wieland-electric.com
www.gesis.com
info@wieland-electric.com
217
< 4°C/s
15s bei 235°C
max. 60 s
200,0
250,0
300
Industrial technology
Solutions for the control cabinet
• DIN rail terminal blocks
– Screw, spring clamp or IDC connection
technology
– Wire cross sections up to 240 mm
2
– Numerous special functions
– Software solutions interfacing to CAE
systems
• Safety
– Safety sensors
– Safety relays
– Modular safety systems with fieldbus link
• PLC and fieldbus components
– Standard applications in IP 20
– Increased environmental conditions with
railroad and ship approvals
• Interface
– Coupling relays, semiconductor switches
– Measuring and monitoring relays
– Timer and switching relays
– Analog modules
– Passive interfaces
– Power supply units
– Overvoltage protection
Solutions for field applications
• Remote automation technology
– Power distribution
– Fieldbus interfaces and motor starters
• Connectors for industrial applications
– Square and round connectors
– Aluminum or plastic housings
– Degree of protection up to IP 68
– Current-carrying capacity up to 100 A
– Connectors for hazardous areas
– Modular, application specific technology
PC board terminals and connectors
– Screw or spring clamp connection technology
– Spacings: 3.5 mm to 10.16 mm
– Reflow or wave soldering process
Building and installation technology
• Building installation systems
– Main power supply connectors IP 20/IP 65 ...
IP 68
– Bus connectors
– Combined connectors
– Low-voltage connectors
– Power distribution system with flat cables
– Distribution systems
– Bus systems in KNX, LON and radio
technology
– DIN rail terminal blocks for electrical
installations
– Overvoltage protection
Dimensions/PCB layout
d
s
d
S
=
d
h
+ 2R - 0.1
d
S
=
Template of the hole diameter
d
h
=
Inner diameter of the drilled hole
d
p
=
Pad diameter
R
=
Remaining ring width
d
h
1,2
d
p
2,0
R
0,35 0,4
Type/Part No.
xx = no. of poles, ascending from 2-pole
Packaging: Box, Tray
Type
Without locking flange
8513 SEGN/2 G THR OB
8513 SEGN/XX G THR OB
8513 SEGN/2 W THR OB
8513 SEGN/XX W THR OB
With locking flange
8513 SEGN/2 G F2 THR OB
8513 SEGN/XX G F2 THR OB
8513 SEGN/2 W F2 THR OB
8513 SEGN/XX W F2 THR OB
25.656.6208.0
25.656.XX08.0
25.657.6208.0
25.657.XX08.0
On request
On request
On request
On request
25.656.0208.0
25.656.XX08.0
25.657.0208.0
25.657.XX08.0
On request
On request
On request
On request
Box
Tray
P r o d u c t
R a n g e
