QTE-080-03-C-D-LC datasheet, PDF

Datasheet> All Categories > The connector> The connector> QTE-080-03-C-D-LC

QTE-080-03-C-D-LC: DescriptionBoard Stacking Connector; CategoryThe connector The connector; File Size2MB，7 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

QTE-080-03-C-D-LC Overview

Board Stacking Connector

QTE-080-03-C-D-LC Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Reach Compliance Code	compliant
Connector type	BOARD STACKING CONNECTOR
Manufacturer's serial number	QTE

Preview

Download Datasheet

View All

REVISION CJ

DO NOT

SCALE FROM

THIS PRINT

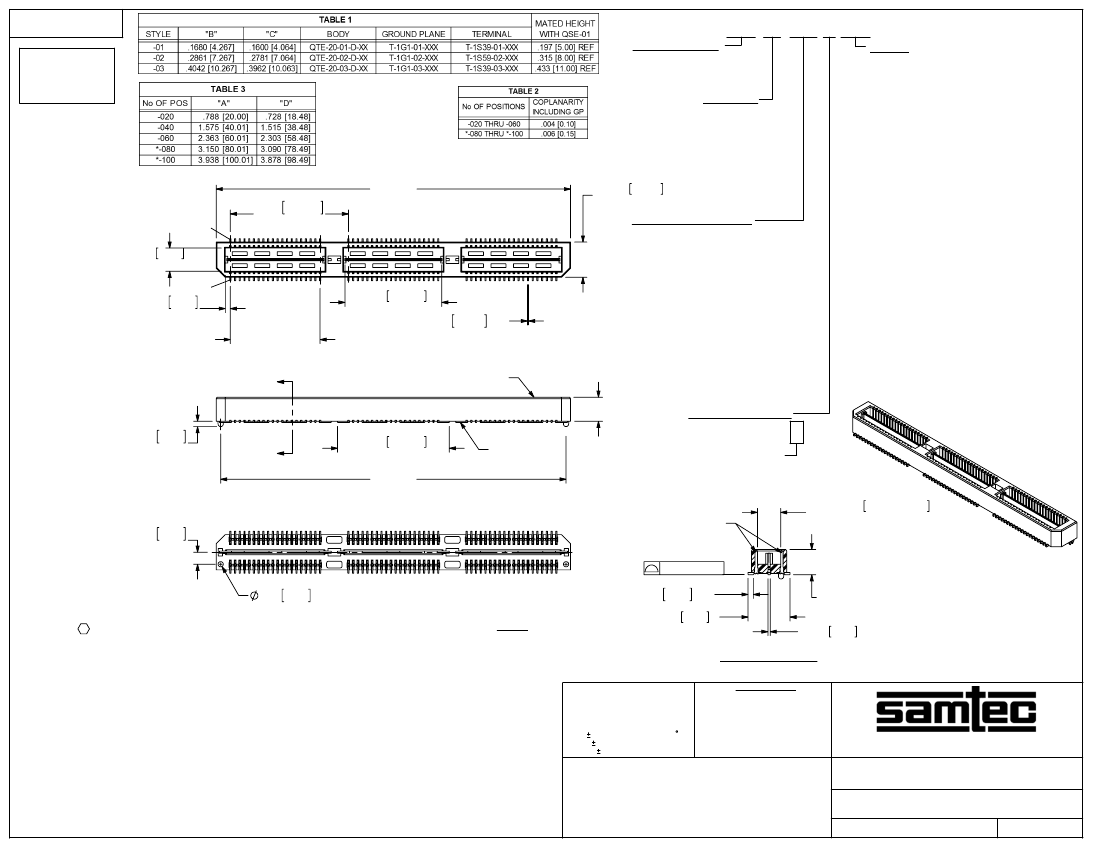

QTE-XXX-XX-XXX-D-XXX

No OF POSITIONS

-020, -040, -060,

*-080, *-100

(PER ROW)

* = (SEE NOTE 14 & 15)

LEAD STYLE

-01: .1680 [4.267]

-02: .2861 [7.267]

-03: .4042 [10.267]

-04: .6010 [15.265]

-05: .7190 [18.263]

-06: .8370 [21.260]

-07: .9540 [24.231]

-08: 1.1510 [29.260]

.2350 5.969

-09: .5220 [13.258]

REF

-10: .5606 [14.239]

PLATING SPECIFICATION

-F: 3µ" FLASH GOLD IN CONTACT AREA,

MATTE TIN ON TAIL

(USE T-1SXX-XX-F, T-1G1-XX-F) (SEE NOTE 07)

-L: 10µ" LIGHT GOLD IN CONTACT AREA,

MATTE TIN ON TAIL

(USE T-1SXX-XX-L, T-1G1-XX-L)

-H: 30µ" HEAVY GOLD IN CONTACT AREA,

3µ" GOLD ON TAIL

(USE T-1SXX-XX-H, T-1G1-XX-G)

-C: 50µ" ELECTRO-POLISHED SELECTIVE IN

CONTACT AREA, MATTE TIN ON TAIL

(USE T-1SXX-XX-C, T-1G1-XX-L)

-STL: 30µ" HEAVY SELECTIVE GOLD IN

CONTACT AREA, TIN LEAD ON TAIL

(USE T-1SXX-XX-STL, T-1G1-XX-STL)

-FTL: 3µ" FLASH SELECTIVE GOLD IN

CONTACT AREA, TIN LEAD ON TAIL

(USE T-1SXX-XX-FTL, T-1G1-XX-FTL)

* = (SEE NOTE 14)

.7875 20.003

(TYP)

"A" REF

.155 3.94 REF

(SEE NOTE 13)

.033 0.84

REF

19 EQ SPCS

@ .0315 [0.800]

=.599[15.20]

(TYP)

"A"

.6450 16.383

REF

.0080 0.203 REF

QTE-20-XX-D-XX-A

"C" REF

OPTION

-A: ALIGNMENT PINS

-LC: LOCKING CLIPS(SEE NOTE 12)

(USE LC-08-TM-01)

(SEE FIG 2, SHT 2)

-K: POLYIMIDE FILM

(USE K-DOT-.276-.375-.005, SEE FIG 3, SHT 2)

(N/A ON STYLE -07 & -08)

-TR: TAPE & REEL (SEE FIG 13, SHT 7)

(60 POS. MAX)

(40 POS. MAX FOR -GP OPTION)

(N/A ON STYLE -05, -06, -07, & -08)

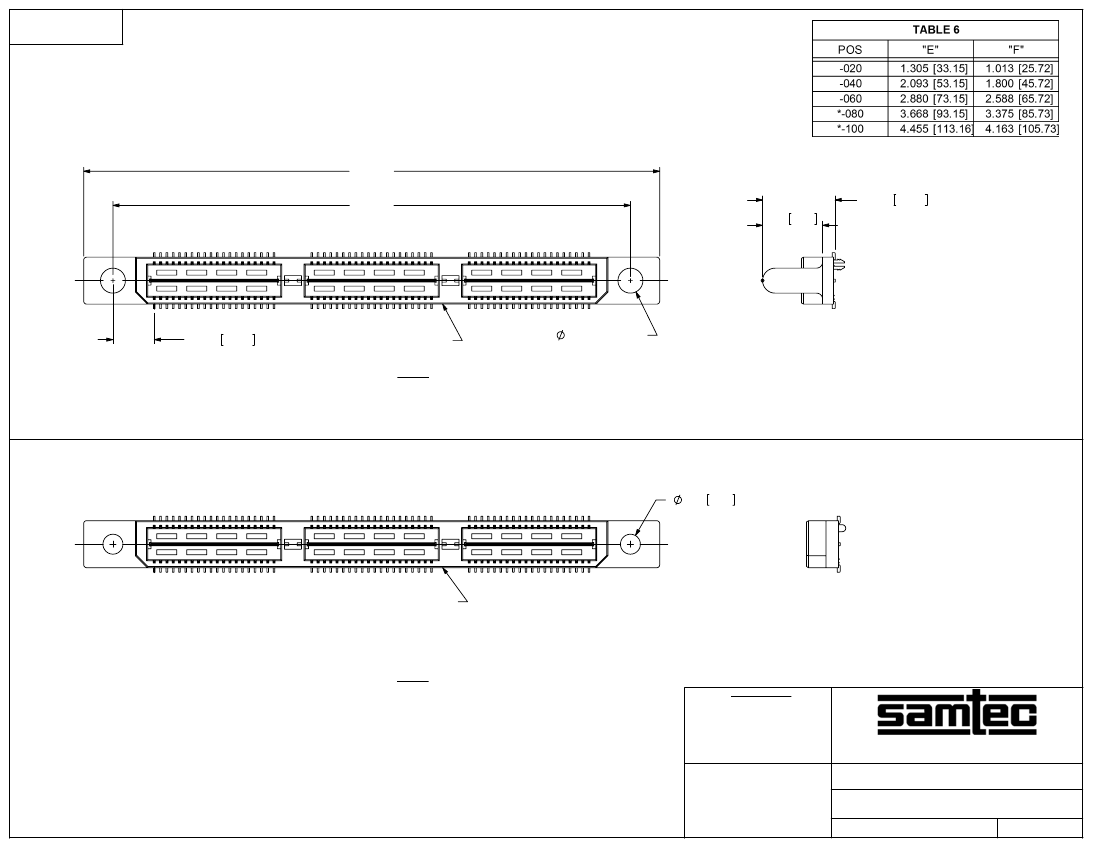

-GP: GUIDE POSTS (SEE FIG 4, SHT 3)

(AVAILABLE ON -01 ONLY)

(USE QTE-20-01-D-XX-GP)

(T & R PACK: 40 POS. MAX.)

-SD: SCREW DOWN (SEE FIG 5, SHT 3)

(AVAILABLE ON -01 ONLY)

(USE QTE-20-01-D-XX-SD)

-FL: FRICTION LOCKS (SEE FIG 9, SHT 5)

(ONLY AVAILABLE ON -01 & -02)

(NOT AVAILABLE WITH -GP, -SD)

-RT1: RETENTION OPTION (SEE FIG 11, SHT 6)

(ONLY AVAILABLE ON -01 LEAD STYLE)

(MUST USE -A OPTION)

(USE QTE-20-01-D-XX-A-RT1 & T-1R36-01-F)

(NOT AVAILABLE WITH -LC, -GP, -SD, OR -FL)

(NOT AVAILABLE ON -100 POS)

-L: LATCHING OPTION (40 POS. MAX.)

(SEE FIG 12, SHT 6) (MUST USE -A OPTION)

(AVAILABLE ON -01 ONLY)

(NOT AVAILABLE WITH -LC, -GP, -SD, -FL,

OR -RT1)

.036 0.91

REF

"A"

.7450 18.923

REF

"D" REF

T-1G1-XX-XXX

ROW SPECIFICATION

-D: DOUBLE (USE QTE-20-XX-D-XX

& QTEH-20-XX-D-XX)

No OF BANKS

.080 2.03

REF

T-1SXX-XX-XXX

(SEE TABLE 1)

.155±.005 3.937±0.127

(SEE NOTE 13)

SEE TABLE 2

NOTES:

.035 0.89 REF

.035 0.90 REF

"B"

- .001 [0.03]

(SEE NOTES 6 & 9)

+.003 [0.08]

.280 7.11

FIG 1

REPRESENTS A CRITICAL DIMENSION.

.015 0.38 REF

-A: ALIGNMENT PIN OPTION

2. MINIMUM TERMINAL RETENTION: 8 OZ.

(QTE-060-01-XXX-D-A SHOWN)

3. MINIMUM GROUND PLANE RETENTION: 1 LB.

SECTION "A"-"A"

(STYLE -01, -02 & -03 ONLY)

4. PARTS TO BE MOLDED TO POSITION.

5. MAXIMUM VARIANCE OF .002 [0.05].

6. DIMENSION APPLIES TO TERMINALS AND GROUND PLANE.

PROPRIETARY NOTE

7. T-1SXX-XX-L CAN BE SUBSTITUTED FOR T-1SXX-XX-F.

THIS DOCUMENT CONTAINS CONFIDENTIAL AND

UNLESS OTHERWISE SPECIFIED,

PROPRIETARY INFORMATION AND ALL DESIGN,

8. NOTE DELETED.

DIMENSIONS ARE IN INCHES.

MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS

TOLERANCES ARE:

9. GROUND PLANE PRESS HEIGHT MUST BE .003[0.08] LESS THAN THE MAX HEIGHT

AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,

INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE

DECIMALS

ANGLES

OR .001[0.03] GREATER THAN THE MINIMUM HEIGHT OF THE TERMINALS.

OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR

.XX: .01 [0.3]

520 PARK EAST BLVD, NEW ALBANY, IN 47150

10. T-1R36 RETENTION TO BODY TO BE 1.0 LBF.

REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY

.XXX: .005 [0.13]

PHONE: 812-944-6733

FAX: 812-948-5047

OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS

11. NOTE DELETED.

.XXXX: .0020 [0.051]

WRITTEN CONSENT OF SAMTEC, INC.

e-Mail info@SAMTEC.com

code 55322

12. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED, THE –LC OPTION IS

DO NOT SCALE DRAWING

SHEET SCALE: 1.5:1

MATERIAL:

DESCRIPTION:

NOT COMPATIBLE WITH AUTO PLACEMENT. SAMTEC RECOMMENDS MANUAL

PLACEMENT FOR ALL ASSEMBLIES WITH THE –LC OPTION.

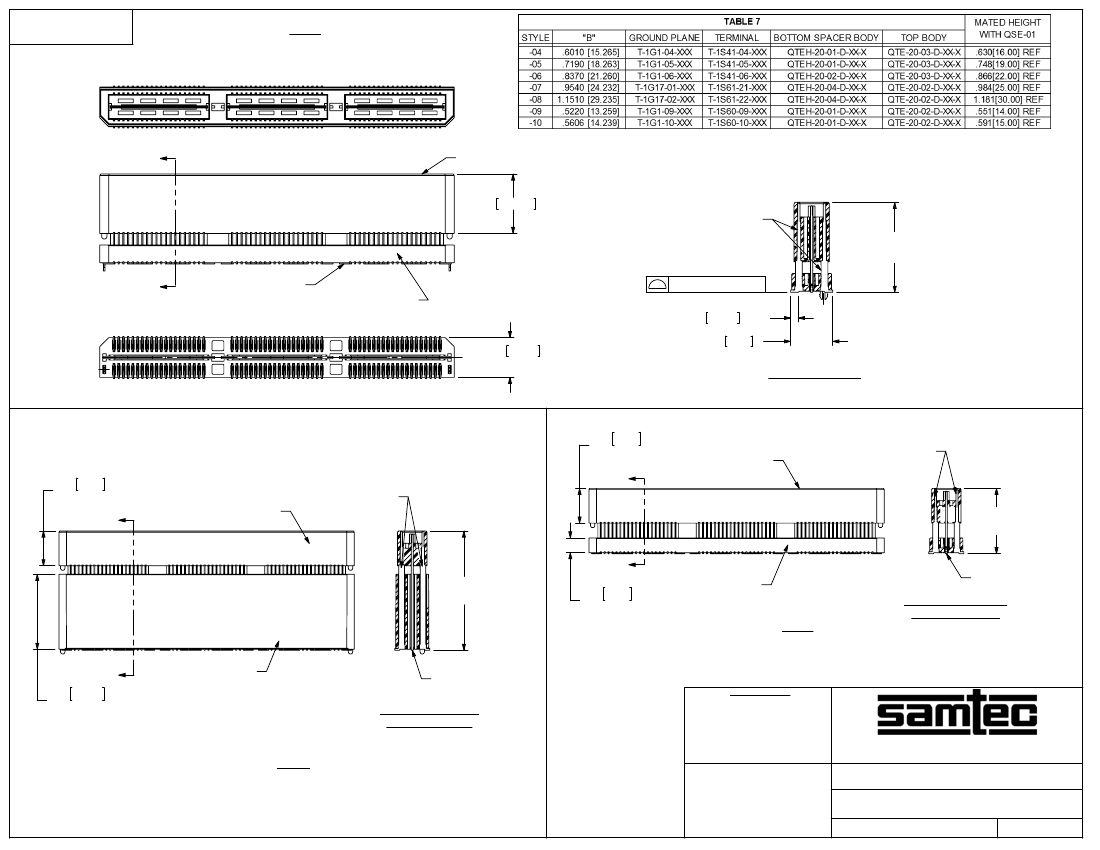

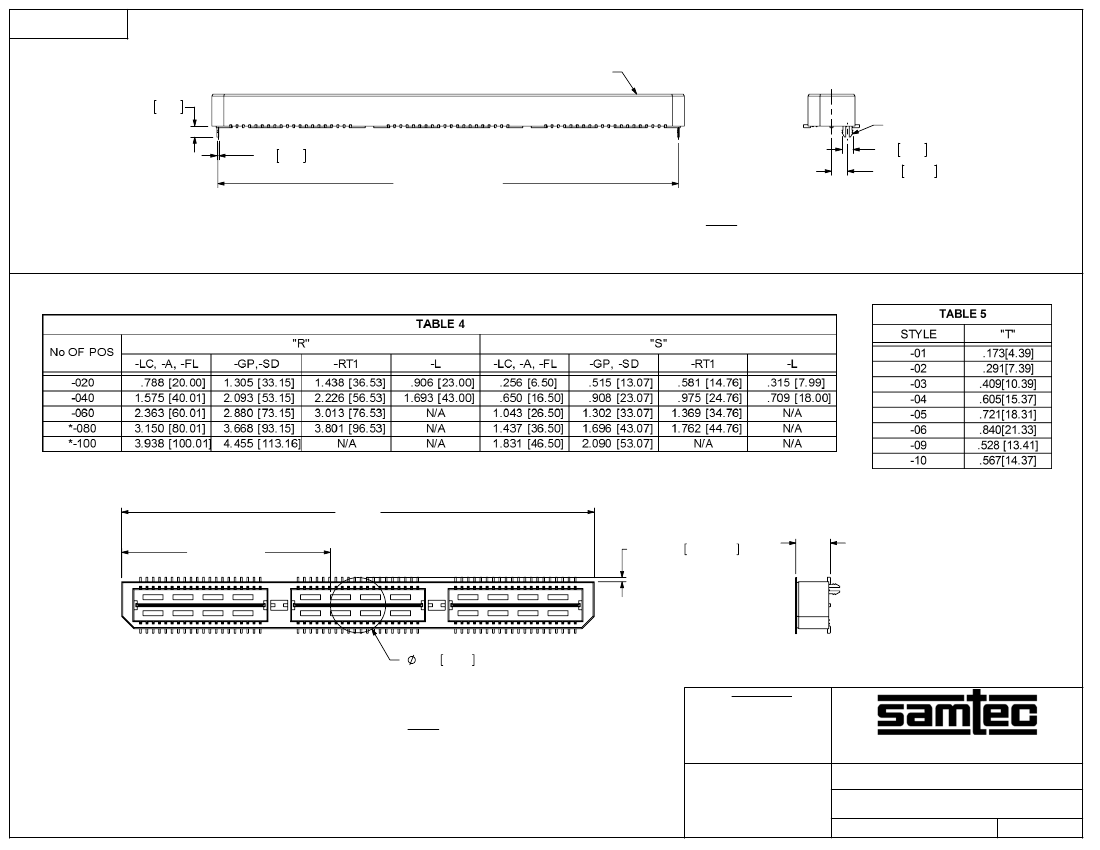

.8mm DOUBLE ROW HS TERMINAL ASSEMBLY

INSULATOR: LCP, UL94V-0; COLOR: BLACK

13. PIN CAN EXTEND PAST WALL .003[0.08] MAX.

TERMINAL: PHOS BRONZE

DWG. NO.

14. AVAILABLE FOR EXISTING CUSTOMERS ONLY.

GROUND PLANE: PHOS BRONZE

15. FOR NEW APPLICATIONS REQUIRING THESE POSITIONS, PLEASE CONTACT

SAMTEC INTERCONNECT PROCESSING GROUP.

09-14-2010

SHEET

BY:

DEAN P

F:\DWG\MISC\MKTG\QTE-XXX-XX-XXX-D-XXX-MKT.SLDDRW

QTE-XXX-XX-XXX-D-XXX
