35mm DIN-rail package, hot plug, thickness: 22.5mm, Plastic UL94-V0
IP20(IEC60529 / EN60529)
About 128g
CONNECTION
In intrinsic safety explosion protection systems, isolating barrier belongs to affiliated device. It is installed at safe area, as a connection between
intrinsic safety devices in the hazardous area and non-intrinsic safety devices in the safe area. By limiting the energy to a certain safe am ount, it
ensures the safety of in spot devices and people.
Selection regulations for intrinsic safety explosion protection system:
1． The explosion protection grade of the barrier must be equal to or higher than that of in spot intrinsic safety explosion protection device.
2． Take inconsideration of hazardous end output resistance and loop resistance, ake sure the barrier’s output voltage meets the minimum operation
voltage requirement of in spot intrinsic safety device.
3． The safety parameters of Barrier’s intrinsic safety end meets:
Uo
≤
UI, Io
≤
Iin, Po
≤
Pin
Co
≥
Cin, Lo
≥
Lin
4． Select suitable Safety barrier which matches the in spot intrinsic safety device for the power’s phase, signal type and transmission mode.
5． Apply necessary protections, avoid influence the in spot intrinsic safety device’s operation from leakage current that generated by safety barrier.
Operation notes:
1.
2.
3.
4.
Please read the user manual carefully before using. If any questions please contact our technical support department.
Please do not use this product in hazardous area.
The power supply of this product should be 24VDC power source. It is forbidden to use 220VAC power supply.
To avoid invalid explosion protection function, or any failure, users disassemble this product is forbidden.

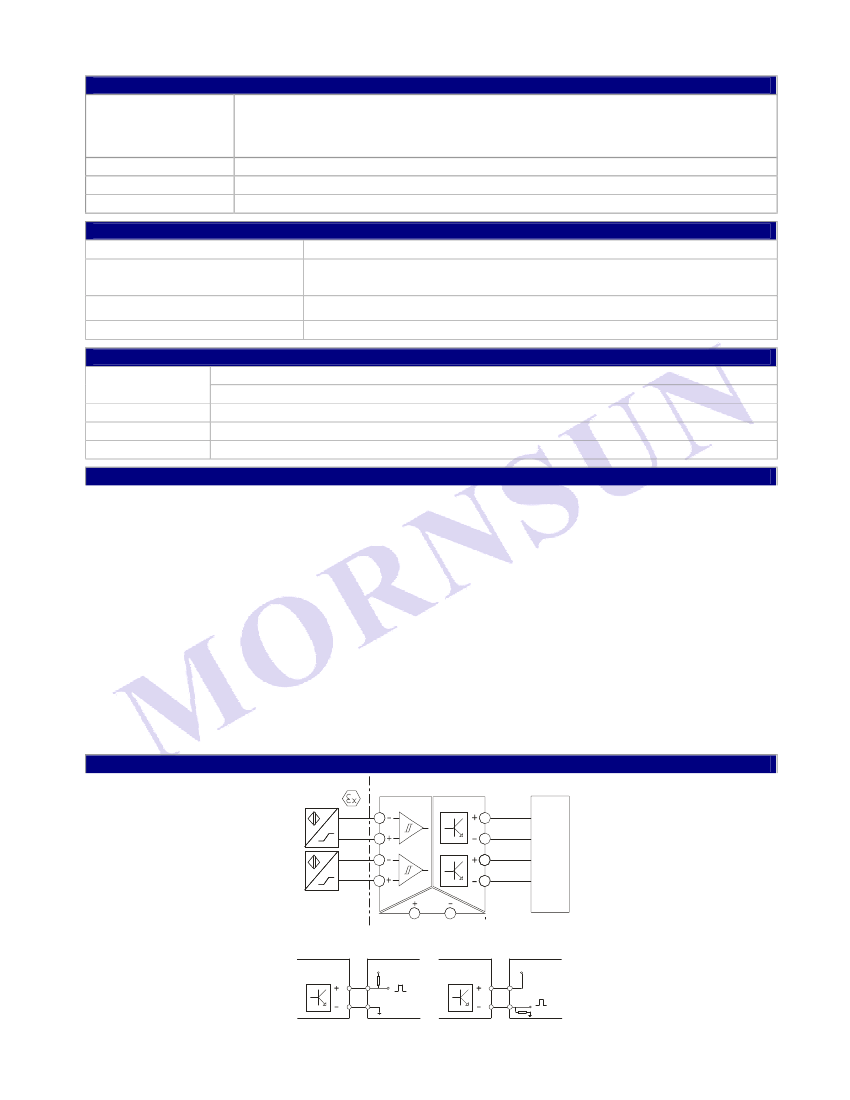

APPLICATION CIRCUIT DIAGRAM &
PIN DESCRIPTION
Hazardous area
Safe area
16
15
12
11
7
Channel1
8
3
DCS
Channel2
4
PLC
5
6
Power
Note:In single model channel2 is invaid
Transistor output mode and connections (safe area):
V CC
RL=2
½
20K
Ω
VCC
Passive pulse
Passive pulse
RL=2
½
20K
Ω
Transistor collector output
Transistor Emitter output
The copyright and authority for the interpretation of the products are reserved by
MORNSUN
TSX01-EX
2013.07.01-A/4
Page 2 of 3

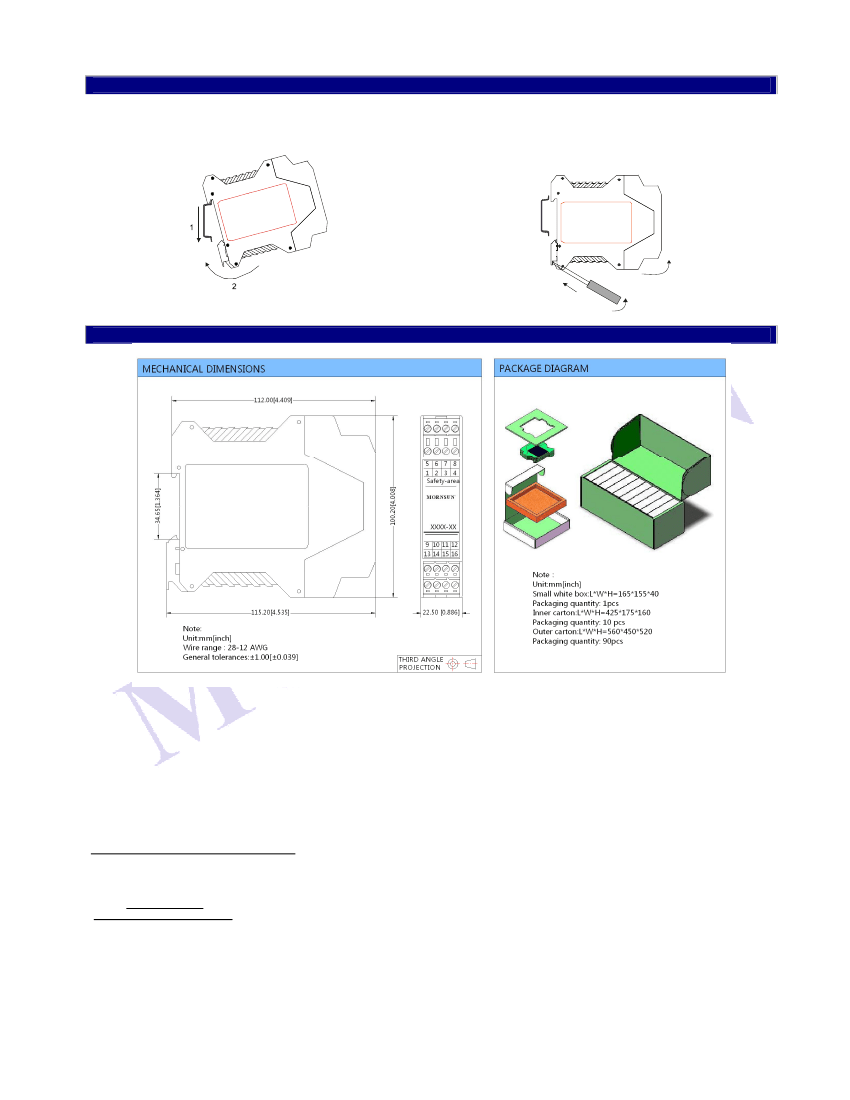

INSTALLATION & DISASSEMBLY
Installation
DIN35mm standard rail installation:
1.Insert the top of the instrument card in the rail;
2.Push the bottom of the instrument into the rail.
Disassembly
1. Use a screwdriver (Width of edge
≤
6mm), cut in the metal card lock
from the underside;
2. Boost up the screwdriver and pry the metal card lock downwards;
3. Pull the instrument out of the rail.
3
1
2
PACKAGING DIMENSION & PACKAGING DIAGRAM
Note:
1. All specifications are measured at Ta=25°C, humidity<75%, nominal input voltage and rated output load unless otherwise specified.
2. In this datasheet, all the test setup and methods are based on our corporate standards.
3. All characteristics are for listed models, and non-standard models may perform differently. Please contact our technical support for more details.
4. Please contact our technical support for any specific requirement.
5. Specifications of this product are subject to changes without prior notice.
