DB864H90-SX: DescriptionBase Station/Broadcast Transmission Antenna, 820MHz Min, 900MHz Max, 14.1dB Gain, 90deg 3dB Beamwidth; CategoryWireless rf/communication Radio frequency and microwave; File Size123KB，1 Pages; ManufacturerCommScope Inc

Download Datasheet Parametric Compare View All

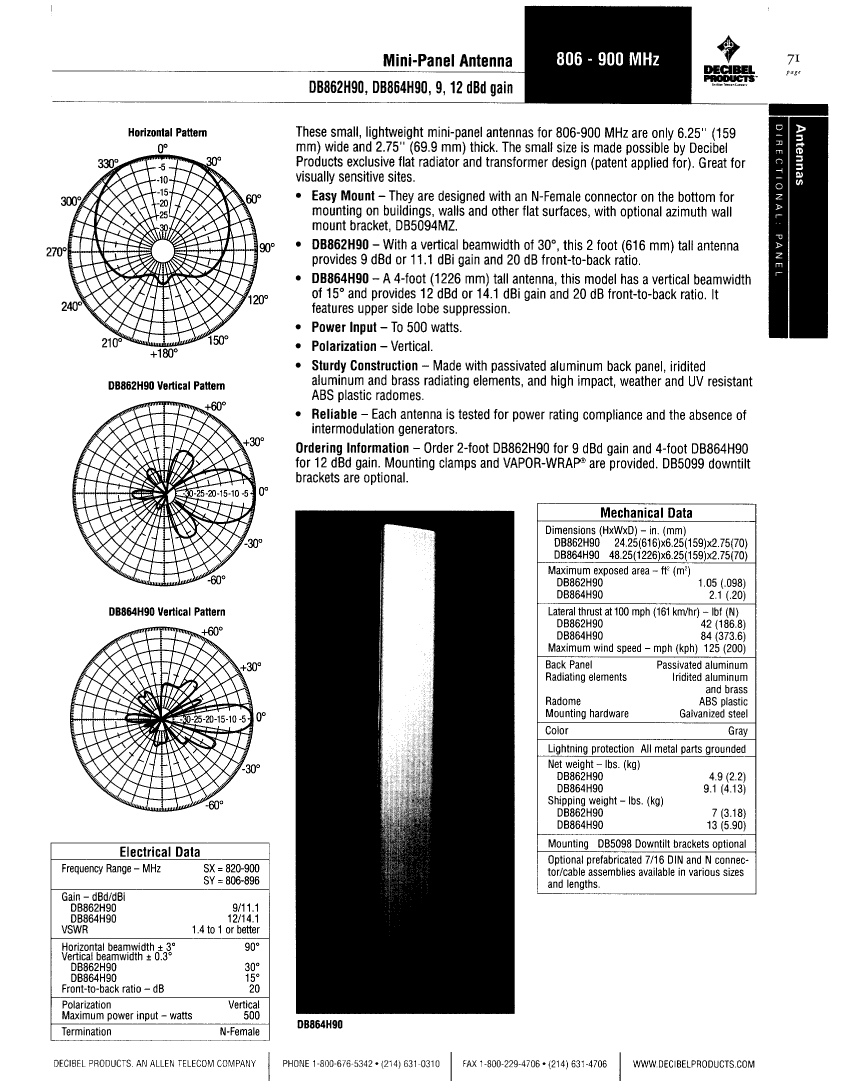

DB864H90-SX Overview

Base Station/Broadcast Transmission Antenna, 820MHz Min, 900MHz Max, 14.1dB Gain, 90deg 3dB Beamwidth

Parameter Name	Attribute value
Maker	CommScope Inc
Reach Compliance Code	unknown
Beam Width-E	15 deg
Beamwidth-H	90 deg
front to back ratio	20 dB
Gain	14.1 dB
Omnidirectional	NO
Maximum operating frequency	900 MHz
Minimum operating frequency	820 MHz
polarization	LINEAR VERTICAL
RF/Microwave Device Types	BASE STATION/BROADCAST TRANSMISSION ANTENNA
Maximum transmission power	500 W
Maximum voltage standing wave ratio	1.4
Commentary	125 mph

	DB864H90-SX	DB862H90-SY	DB862H90-SX	DB864H90-SY
Description	Base Station/Broadcast Transmission Antenna, 820MHz Min, 900MHz Max, 14.1dB Gain, 90deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 806MHz Min, 896MHz Max, 11.1dB Gain, 90deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 820MHz Min, 900MHz Max, 11.1dB Gain, 90deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 806MHz Min, 896MHz Max, 14.1dB Gain, 90deg 3dB Beamwidth
Reach Compliance Code	unknown	unknown	unknown	unknown
Beam Width-E	15 deg	30 deg	30 deg	15 deg
Beamwidth-H	90 deg	90 deg	90 deg	90 deg
front to back ratio	20 dB	20 dB	20 dB	20 dB
Gain	14.1 dB	11.1 dB	11.1 dB	14.1 dB
Omnidirectional	NO	NO	NO	NO
Maximum operating frequency	900 MHz	896 MHz	900 MHz	896 MHz
Minimum operating frequency	820 MHz	806 MHz	820 MHz	806 MHz
polarization	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR VERTICAL
RF/Microwave Device Types	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA
Maximum transmission power	500 W	500 W	500 W	500 W
Maximum voltage standing wave ratio	1.4	1.4	1.4	1.4
Commentary	125 mph	125 mph	125 mph	125 mph
Maker	CommScope Inc	CommScope Inc	-	CommScope Inc
