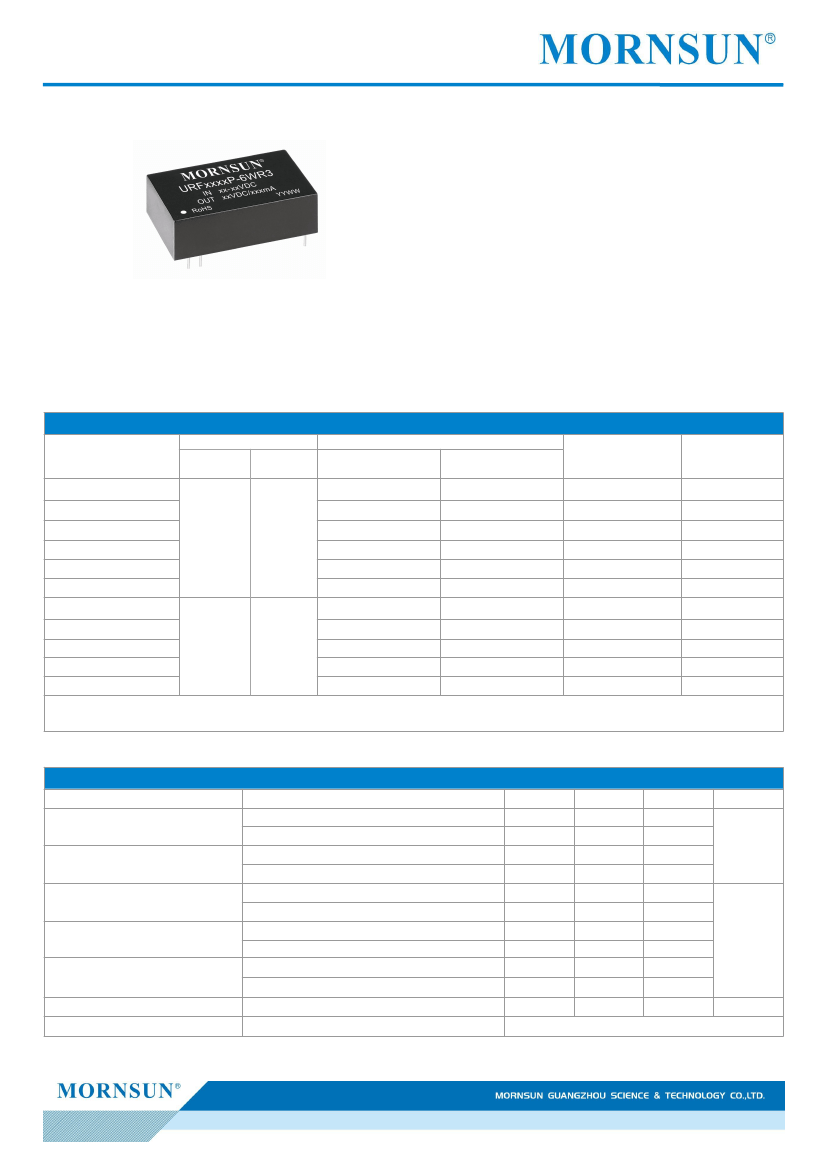

DC/DC Converter
URF_P-6WR3 Series
6W,Ultra wide input isolated & regulated single output ,
DIP package, DC/DC converter
FEATURES
l
l
l
l
l
l
l
l
Wide range of input voltage (4:1)
Efficiency up to 88%
No-load power consumption as low as 0.2W
Isolation voltage :3K VDC
Operating temperature range: -40℃ to +85℃
Input under-voltage protection, short circuit ,
over-voltage & Over-current protection output
Meet CISPR22/EN55022 CLASS A
International standard pin-out
Patent Protection
RoHS
URF_P-6WR3 series products are of 6W output power, extremely wide range of voltage input of 9-36VDC, 18-75VDC,isolation voltage of
3000VDC, output over-voltage protection and output short circuit protection with the bare component in compliance with
CISPR22/EN55022 CLASS A; these products are widely used in fields such as industrial control, electric power, instruments and
communication.
Selection Guide
Part No.
URF2403P-6WR3
URF2405P-6WR3
URF2409P-6WR3
URF2412P-6WR3
URF2415P-6WR3
URF2424P-6WR3
URF4803P-6WR3
URF4805P-6WR3
URF4812P-6WR3
URF4815P-6WR3
URF4824P-6WR3
48
(18-75)
80
24
(9-36)
40
Input Voltage (VDC)
Nominal
Max.
*
(Range)
Output
Output Current (mA)
Output Voltage (VDC)
(Max./Min.)
3.3
5
9
12
15
24
3.3
5
12
15
24
1500/75
1200/60
667/33
500/25
400/20
250/13
1500/75
1200/60
500/25
400/20
250/13
Efficiency
(%,Min./Typ.)
@ Full Load
77/79
81/83
85/87
86/88
86/88
85/87
77/79
81/83
86/88
86/88
85/87
Max. Capacitive
Load(µF)
2200
2200
1000
680
470
330
2200
2200
680
470
330
Note：
*Absolute maximum rating without damage on the converter, but it isn't recommended.
Input Specifications
Item
Input Current (full load / no-load)
Reflected Ripple Current
Input impulse Voltage (1sec. max.)
Starting Voltage
under-voltage turn-off
Starting Time
Input Filter
Operating Conditions
24VDC Input
48VDC Input
24VDC Input
48VDC Input
24VDC Input
48VDC Input
24VDC Input
48VDC Input
24VDC Input
48VDC Input
Nominal input& constant resistance load
Min.
--
--
--
--
-0.7
-0.7
--
--
5.5
14.0
--
Typ.
316/5
160/4
20
20
--
--
--
--
6.5
15.5
10
Pi filter
Max.
--
--
--
--
50
100
9
18
--
--
--
Unit
mA
VDC
ms
2014.07.21-A/0
Page 1 of 5
MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation
DC/DC Converter
URF_P-6WR3 Series
Output Specifications
Item
Output Voltage Accuracy
Line Regulation
Load Regulation
Transient Recovery Time
Transient Response Deviation
Temperature Drift Coefficient
Ripple&Noise*
Output Over-voltage Protection
Output Over-current Protection
Output Short circuit Protection
Input voltage range
Full load, the input voltage is from low voltage
to high voltage
5%-100% load
25% load step change
Full load
20MHz bandwidth
Operating Conditions
Min.
--
--
--
--
--
--
--
110
110
Typ.
±1
±0.2
±0.5
300
±3
--
85
--
140
Max.
±3
±0.5
±1
500
±5
±0.03
120
160
190
Unit
%
µs
%
%/℃
mV p-p
%Vo
%Io
Continuous, self-recovery
Note: * Ripple and noise tested with
“parallel
cable” method, please see
DC-DC Converter Application Notes
for specific operation methods.
General Specifications
Item
Isolation Voltage
Isolation Resistance
Isolation Capacitance
Operating Temperature
Storage Temperature
Storage Humidity
Max. Operating Temperature
for casing
Pin Welding Resistance
Temperature
Vibration
Switching Frequency
MTBF
Non-condensing
Within the operating temperature curve
Welding spot is 1.5mm away from the casing, 10
seconds
PWM mode
MIL-HDBK-217F@25℃
Operating Conditions
Input-output, with the test time of 1 minute and the
leak current lower than 1mA
Input-output, insulation voltage 500VDC
Input-output, 100KHz/0.1V
Derating if the temperature is
≥71℃(see
Fig. 1)
Min.
3000
1000
--
-40
-55
5
--
--
Typ.
--
--
1000
--
--
--
--
--
Max.
--
--
--
85
125
95
105
℃
300
10-55Hz, 10G, 30 Min. along X, Y and Z
--
1000
300
--
--
--
KHz
K hours
Unit
VDC
MΩ
pF
℃
%
Physical Specifications
Casing Material
Package Dimensions
Weight
Cooling method
Plastic (UL94-V0)
31.60*20.30*10.20 mm
13.00g(Typ.)
Free air convection
EMC Specifications
Conducted disturbance
EMI
Radiated emission
Electrostatic discharge
Radiation immunity
EFT
EMS
Surge immunity
Conducted disturbance immunity
Immunities of voltage dip,
drop and short interruption
CISPR22/EN55022 CLASS A (Bare component)/
CLASS B (see Fig.3-② for recommended circuit)
CISPR22/EN55022 CLASS A (Bare component)/
CLASS B (see Fig.3-② for recommended circuit)
IEC/EN61000-4-2
IEC/EN61000-4-3
IEC/EN61000-4-4
IEC/EN61000-4-5
IEC/EN61000-4-6
IEC/EN61000-4-29
Contact
±4KV
10V/m
±2KV
(see Fig.3-① for recommended circuit)
±2KV
(see Fig.3-①for recommended circuit)
3 Vr.m.s
0-70%
perf. Criteria B
perf. Criteria A
perf. Criteria B
perf. Criteria B
perf. Criteria A
perf. Criteria B
2014.07.21-A/0
Page 2 of 5
MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation
DC/DC Converter
URF_P-6WR3 Series

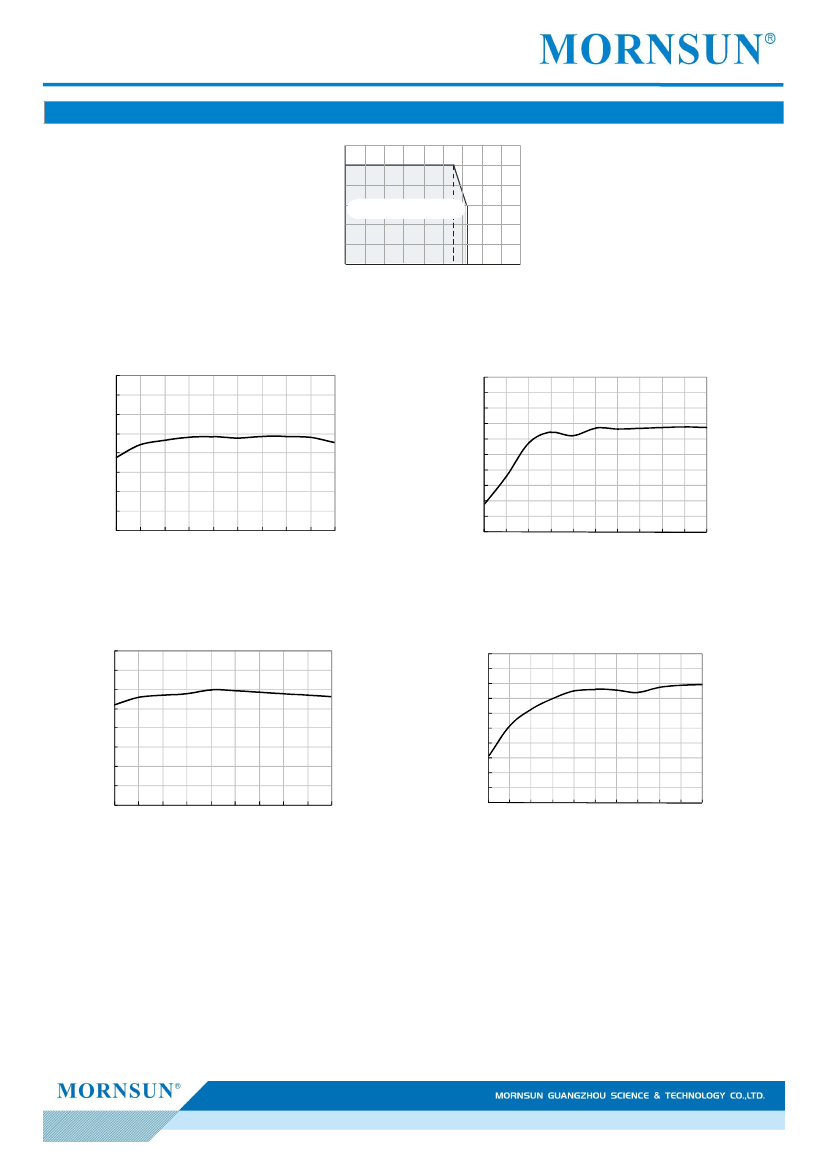

Product Characteristic Curve
Output Po we r Pe rc e ntage(%)
120
100
80
60
40
20
0
-40
0
40
71 85
120
Ope rat ing Temperat ure(
℃
)
Safe Operating Area
Temperature Derating C urve
Fig. 1
100
95
Efficiency Vs Input (Full Load)
Efficiency Vs Output Load(Vin=Vin-nominal)
100
95
90
85
80
75
70
65
60
55
50
5
10
20
30
40
50
60
70
80
90
100
URF2405P-
6WR3
Efficiency(%)
90
85
80
75
70
65
60
9
12
15
18
21
24
27
30
33
36
Efficiency(%)
URF2405P-
6WR3
Input Voltage (V)
Output Current Percentage (%)
100
95
Efficiency Vs Input (Full Load)
Efficiency Vs Output Load(Vin=Vin-nominal)
100
95
URF4815P-
6WR3
URF4815P-
6WR3
Efficiency(%)
90
85
80
75
70
65
60
18
24
30
36
42
48
54
60
66
75
90
Efficiency(%)
85
80
75
70
65
60
55
50
5
10
20
30
40
50
60
70
80
90
100
Input Voltage (V)
Output Current Percentage (%)
2014.07.21-A/0
Page 3 of 5
MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation
DC/DC Converter
URF_P-6WR3 Series

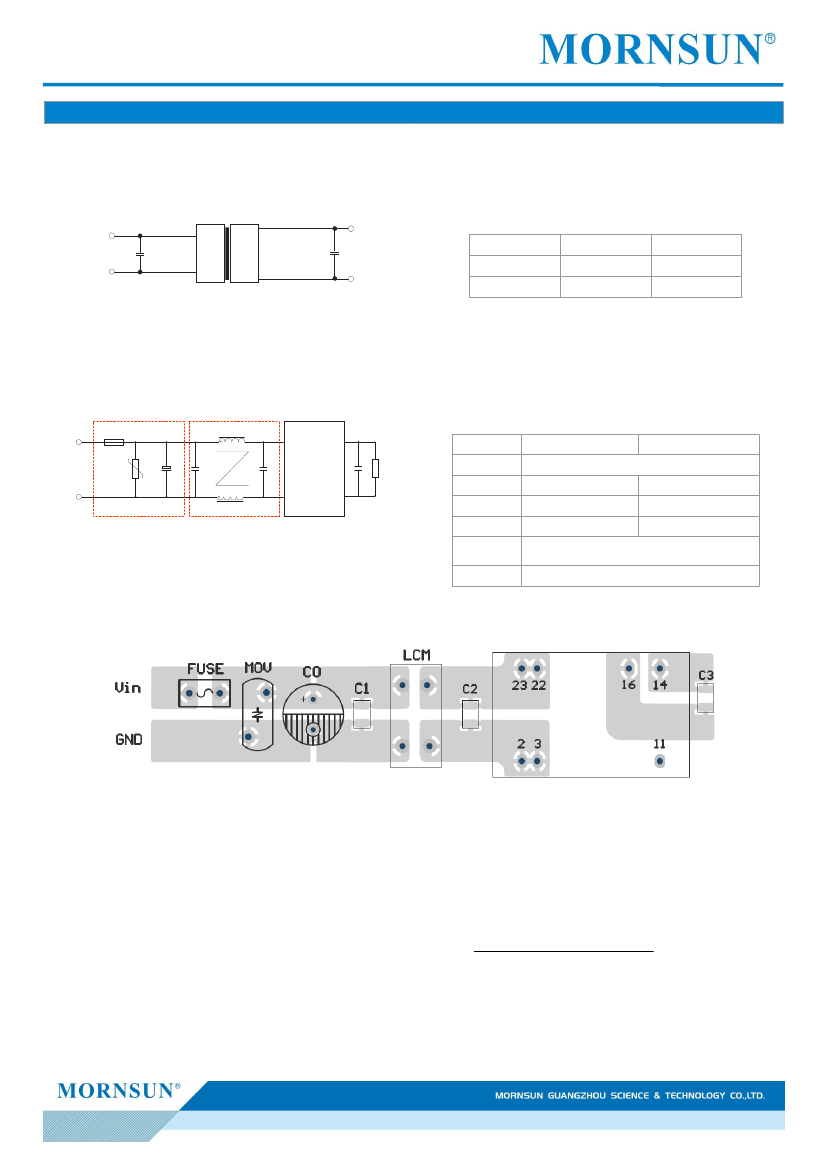

Design Reference
1. Typical application
All the DC/DC converters of this series are tested according to the recommended circuit (see Fig. 2) before delivery.
If it is required to further reduce input and output ripple, properly increase the input & output of additional capacitors Cin and Cout or
select capacitors of low equivalent impedance provided that the capacitance is no larger than the max. capacitive load of the product.
+Vo
Vin
Cin
GND
DC
DC
Cout
0V
Vin(VDC)
24
48
Cin(µF)
100
10~47
Cout(µF)
10
10
Fig. 2
2. EMC solution-recommended circuit
Parameter description
V in
FUSE
LCM
Vin
+Vo
LOAD
Model
C3
Vin:24V
S14K35
330µF/50V
2.2µF/50V
Vin:48V
S14K60
330µF/100V
2.2µF/100V
+
MOV
GND
C0
C1
C2
DC/D C
GND
0V
FUSE
MOV
C0
C1,C2
Choose according to actual input current
①
②
Fig. 3
Notes: Part
①
in the Fig. 3 is used for EMS test and part
②
for EMI filtering;
selected based on needs.
LCM
C3
2.2 mH, recommended to use MORNSUN’s
FL2D-30-222
Refer to the Cout in Fig.2
EMC solution-recommended circuit PCB layout
Fig. 4
3. The product does not support output in parallel with power per liter or hot-plug use
4. For more information please find the application notes on www.mornsun-power.com
2014.07.21-A/0
Page 4 of 5
MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation
DC/DC Converter
URF_P-6WR3 Series

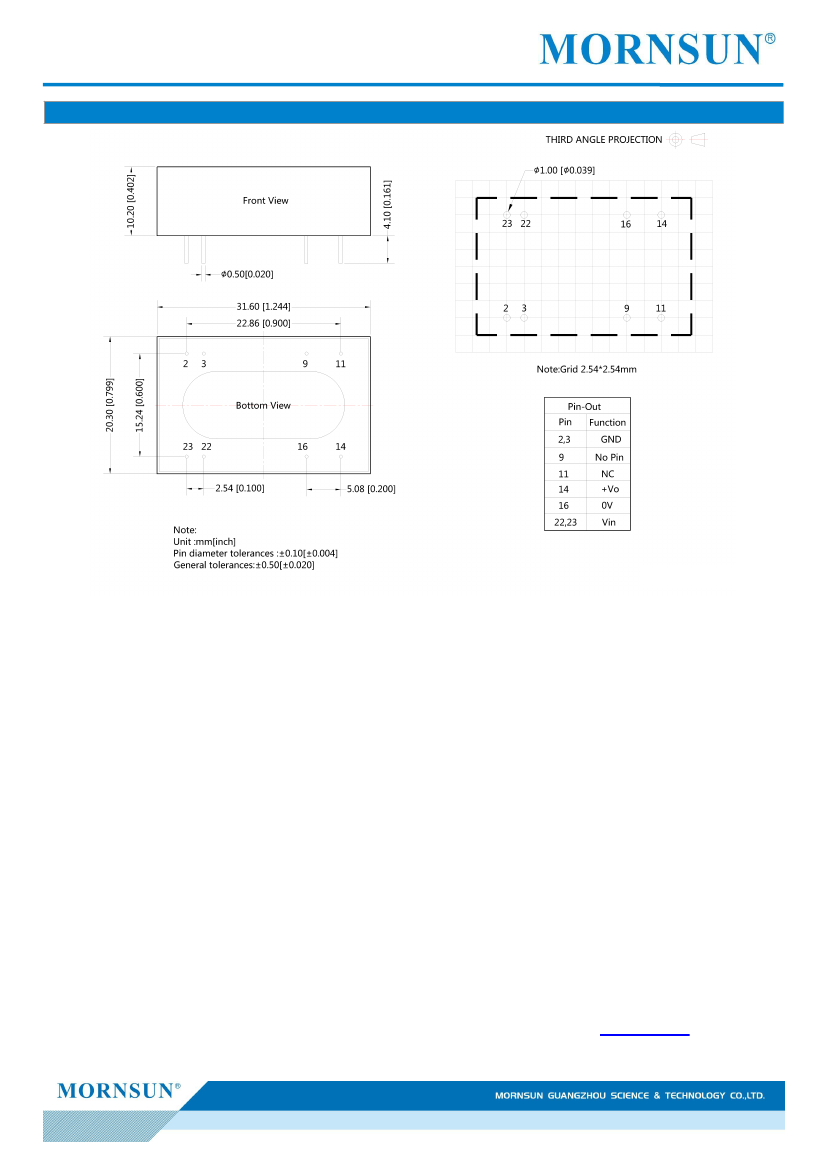

Dimensions and Recommended Layout
Note:
1. Packing Information please refer to 'Product Packing Information'. Packing bag number: 58210008;
2. Recommended used in more than 5% load, if the load is lower than 5%, then the ripple index of the product may exceed the
specification, but does not affect the reliability of the product;
3. The min. load shall be no lower than 5%, or the output ripple may increase rapidly; If the product is operated under the min. required
load, the product performance cannot be guaranteed to comply with all performance indexes in the Manual, but the reliability of the
product will not be influenced;
4. The max. capacitive load should be tested within the input voltage range and under full load conditions;
5. Unless otherwise specified, data in this datasheet should be tested under the conditions of Ta=25℃, humidity<75% when inputting
nominal voltage and outputting rated load;
6. All index testing methods in this datasheet are based on our Company’s corporate standards;
7. The performance indexes of the product models listed in this datasheet are as above, but some indexes of non-standard model
products will exceed the above-mentioned requirements, and please directly contact our technicians for specific information;
8. We can provide product customization service;
9. Specifications of this product are subject to changes without prior notice.
Mornsun Guangzhou Science & Technology Co., Ltd.
Address: No. 5, Kehui St. 1, Kehui Development Center, Science Ave., Guangzhou Science City, Luogang District, Guangzhou, P. R. China
Tel: 86-20-38601850-8801
Fax: 86-20-38601272
E-mail:
info@mornsun.cn
2014.07.21-A/0
Page 5 of 5
MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation
