Power Capacitors
Series/Type:
B25834
The following products presented in this data sheet are being withdrawn.
Ordering Code
B25834L7685K009
B25834L7475K009
B25834L6685K009
Substitute Product
Date of
Withdrawal
2014-08-14
2014-08-14
2014-08-14
Deadline Last
Orders
2015-03-31
2015-03-31
2015-03-31
Last Shipments
2016-09-30
2016-09-30
2016-09-30
Ordering Code
B25834L6475K009
B25834L6106K009
B25834L5686K009
B25834L5685K009
B25834L5156K009
B25834L5106K009
B25834L4156K009
B25834L4106K009
B25834L3336K009
B25834F6684M001
B25834F6474M001
B25834F6335K001
B25834F6334M001
B25834F6225K001
B25834F6224M001
B25834F6155K001
B25834F6154M001
B25834F6105K001
B25834F6104M001
B25834F5475K001
B25834F4685K001
B25834F4684M001
B25834F4475K001
B25834F4335K001
B25834F4225K001
B25834F4155K001
B25834F4105K001
B25834D7336K004
B25834D7226K004
B25834D7156K004
B25834D7106K004
B25834D6686K004
B25834D6476K004
B25834D6336K004
B25834D6226K009
B25834D6226K004
B25834D6156K009
B25834D6156K004
Substitute Product
Date of
Withdrawal
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
Deadline Last
Orders
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
Last Shipments
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
Ordering Code
B25834D5686K004
B25834D5476K004
B25834D5336K009
B25834D5336K004
B25834D5226K009
B25834D5226K004
B25834D5107K004
B25834D4686K004
B25834D4476K009
B25834D4476K004
B25834D4336K009
B25834D4336K004
B25834D4226K004
B25834D4157K004
B25834D4107K004
B25834D3686K004
B25834D3476K004
B25834D3227K004
B25834D3107K004
B25834D2685K004
B25834D2475K004
B25834D2335K004
B25834D2156K004
B25834D2106K004
B25834D1685K004
B25834D1475K004
B25834D1226K004
B25834D1156K004
B25834D1106K004
B25834D0685K004
B25834D0475K004
B25834D0226K004
B25834D0156K004
B25834D0106K004
Substitute Product
Date of
Withdrawal
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
2014-08-14
Deadline Last
Orders
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
2015-03-31
Last Shipments
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
2016-09-30
For further information please contact your nearest EPCOS sales office, which will also support you in selecting a suitable
substitute. The addresses of our worldwide sales network are presented at www.epcos.com/sales.

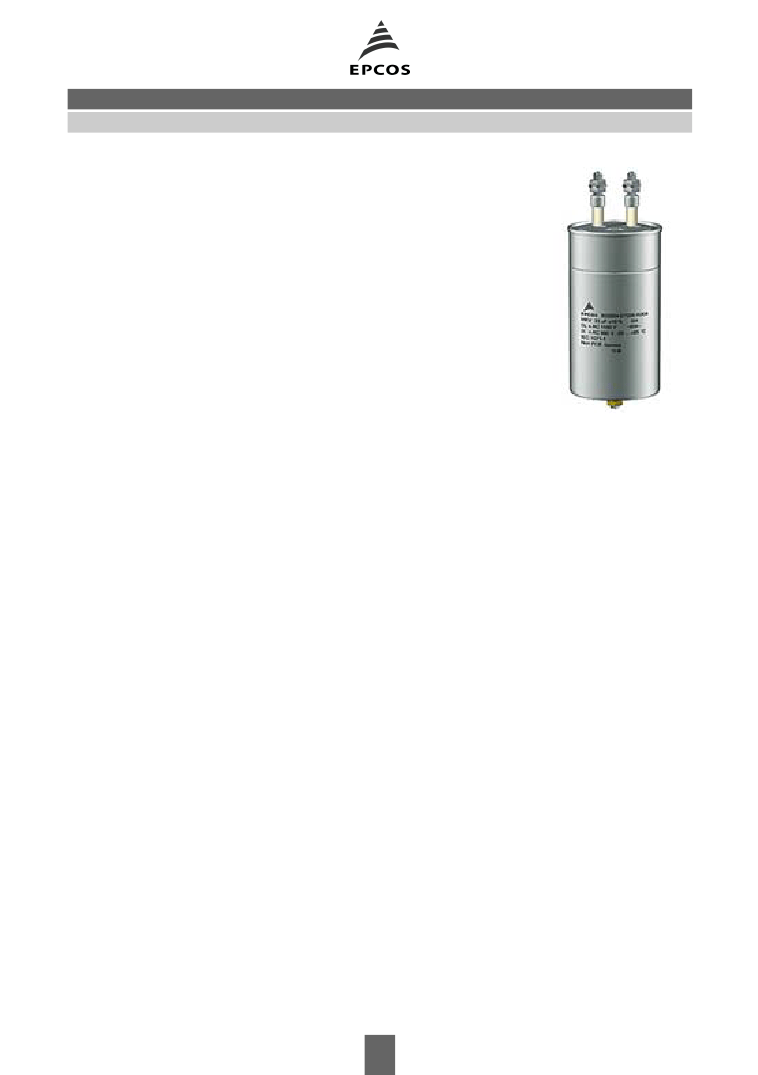

MKV AC Capacitors
Damping, Commutating
Features
■
High dielectric strength
■
High peak-current capability
B25834
Applications
■
For damping and commutating in
the medium frequency range
■
For general AC applications
Construction
■
■
■
■
■
■
■
Self-healing
Plastic dielectric
Oil-impregnated tubular windings (no PCB)
Metal-sprayed end faces ensure reliable contacting
Cylindrical aluminum case
Plastic or ceramic lead-throughs
Mounting bolts M8 or M12
Terminals
■
Screw terminals M10
■
Tab connectors 6.3 mm
■
Dual tab connectors 6.3 mm and 9.5 mm
Mounting
■
If the vibration stress is
≤
5
g
and the capacitors are
≤
60 mm
in diameter and
≤
160 mm in height, the bolt is used for mounting.
Grounding
■
Mounting bolts for grounding in accordance with VDE 0100
■
Grounding identification in accordance with DIN 40 011
Overpressure disconnector (mechanical)
When the overpressure disconnector responds,
the capacitor extends by up to 8 mm.
So leave sufficient space above the terminals when mounting the capacitor.
Individual data sheets
Individual data sheets contain detailed specification incl. thermal data.
Upon request, these data sheets are available for each capacitor type.
Please read
Cautions and warnings
and
Important notes
at the end of this document.
2
09/05
MKV AC Capacitors
Damping, Commutating
Technical data
Standards
IEC 1071-1/2
EN 61071-1/2
VDE 0560 part 120 and 121
tan
δ
0
2 x 10
–4
B25834
Dielectric dissipation factor
Capacitance tolerance
Max. repetitive rate
of voltage rise
Max. non-repetitive rate
of voltage rise
Climatic data:
Min. operating temperature
Max. operating temperature
Average relative humidity
Failure quota
Load duration
Storage temperature limit
IEC climatic category
(IEC 68-1 and 2)
Test A, cold
Test B, dry heat
Test Ca, damp heat, steady state
Values after test Ca:
Capacitance change
For C
N
<
1.0
μF ±
20 %, for C
N
≥
1.0
μF ±
10 %
(du/dt)
max
(du/dt)
s
T
min
T
max
î
---
-
C
I
S
---
-
C
– 25
°C
+ 85
°C
≤
95 % (screw terminals/dual tab 9.5 mm)
≤
75 % (dual tab 6.3 mm/tab 6.3 mm)
α
FQ(co)
t
LD(co)
T
stg
300 failures per 10
9
component hours
100 000 h
– 55/+ 85
°C
25/085/56
– 25
°C
+ 85
°C
56 days/40
°C/93
% rel. humidity
ΔC
/C
≤
1%
C
R
Screw terminals, Dual tab
dual tab 9.5 mm 6.3 mm
Tab
6.3 mm
Insulation resistance
Self-discharge time constant
Dissipation factor change
Test data:
AC test voltage
between terminals
between terminals and case
R
ins
≤
1
μF ≥
10 000 MΩ
τ
= R
ins
x C > 1
μF ≥
10 000 s
Δtan δ
≤
1 x 10
–4
≥
3000 MΩ
≥
1000 MΩ
≥
3000 s
≥
1000 s
≤
3 x 10
–4
≤
3 x 10
–4
V
TT
V
TC
1.25 x V
N
, 50 Hz, 10 s (or DC 1.75 x V
N
, 10 s)
2 x V
i
+ 1000 V, 50 Hz, 10 s
Insulating voltage V
i
= max. recurrent peak
ˆ
voltage
v
/
2
C
R
Screw terminals,
dual tab 9.5 mm
Dual tab 6.3 mm,
tab 6.3 mm
≥
3000 MΩ
≥
3000 s
Insulation resistance
Self-discharge time constant
Dissipation factor (50 Hz)
R
ins
≤
1
μF ≥
10 000 MΩ
τ
= R
ins
x C > 1
μF ≥
10 000 s
tan
δ
≤
3 x 10
–4
3
09/05
Please read
Cautions and warnings
and
Important notes
at the end of this document.
