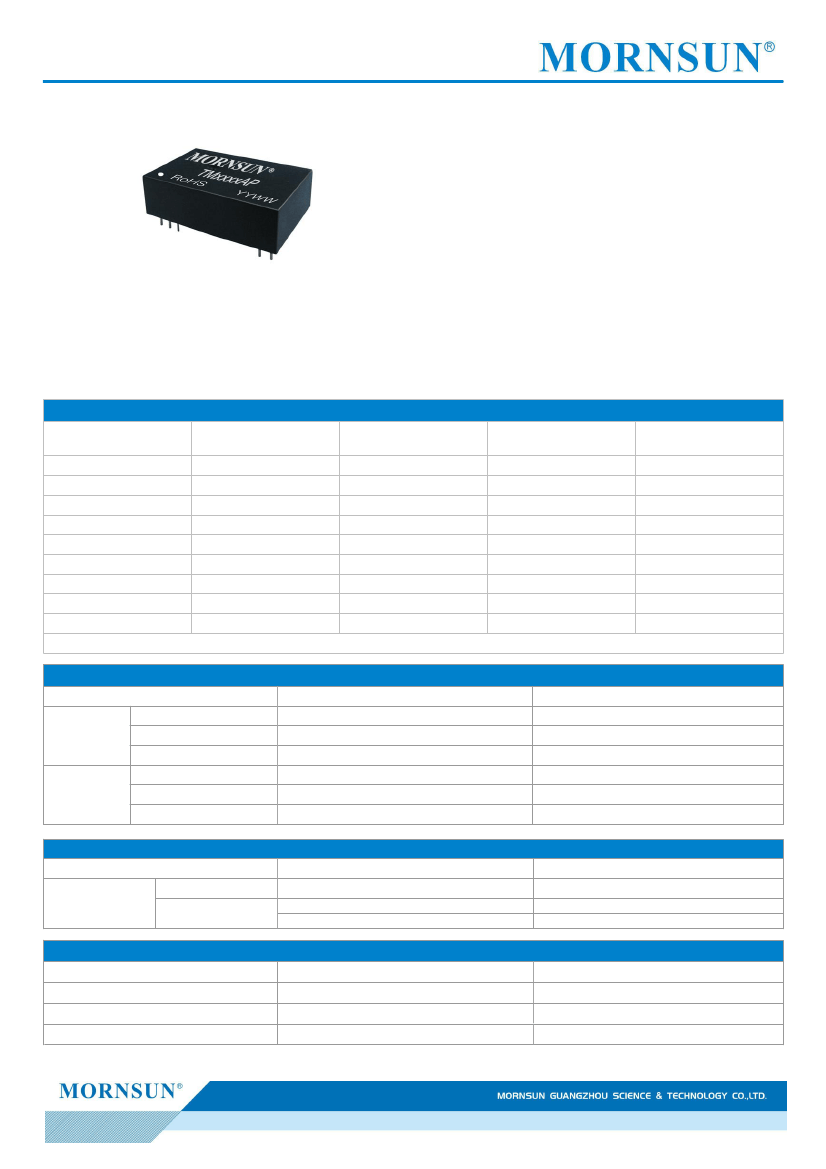

Isolated Transmitter
TMxxxxAP Series
Active high precision isolated transmitter
mV-level positive and negative signal input & positive signal output
FEATURES
l
Three-terminal isolation (signal input, signal output,
power supply)
l
High precision grade (0.1% F.S.)
l
High linearity (0.1% F.S.)
l
High isolation voltage(2.5kVDC/60s)
l
Extremely low temperature drift (50PPM/°C)
l
Industrial grade (range of operating temperature:
-25 to +71°C)
l
High reliability (MTBF >500,000 hours)
RoHS
The TMxxxxAP series isolation amplifier modules have a
mV-level
positive and negative signal input and positive signal output. These
modules, with a high efficiency micro-power source built-in, can provide power for signal processing circuit. In the three-wire and four-wire
transmitter applications, our products make customers
’
design simple and helpfully improve the room-using ratio of PCB. Adopting
electromagnetism isolation technology, it is available to keep higher accuracy and extremely lower temperature drift than photocoupler
isolation. These modules have three-port isolation (input, output and power supply),and the isolation voltage between them is up to
2.5kVDC.
Selection Guide
Part No.
TM2130AP
TM4130AP
TM1630AP
TM5630AP
TM6660AP
TM6S6AP-3
TM7530AP
TM6650AP
TM6S50AP-3.3
Power Supply input (VDC)
24V
24V
24V
24V
5V
5V
24V
12V
12V
Input Signal
±20mV
±50mV
±10mV
±75mV
±100mV
±100mV
±200mV
±100mV
±100mV
Output Signal
4~20mA
4~20mA
0~5V
0~5V
0~5V
0~3V
0~10V
0~5V
0~3.3V
Isolation Power
Output (VDC)
None
None
None
None
None
None
None
None
None
Notes: Customization products are available if required.
Input Specifications
Item
Input Power
Supply
Input voltage
Input power
Power supply protection
Input signal
Input
Input impedance
Overload
@max. input signal
Operating Conditions
Value
(Nominal value of power supply input)
±5%
≤1W
Reverse polarity protection
See selection guide
≥10MΩ
10V
Output Specifications
Item
Output signal
Output
Load capacity
Voltage output
Current output @20mA
Operating Conditions
Value
See selection guide
≥2KΩ
≤500Ω
Transmission Specifications
Item
Zero Offset
Precision
Temperature Drift
Operating temperature range of -25 to +71°C
Operating Conditions
Value
0.1%F.S.
0.1%F.S.
0.005%F.S./℃
2014.03.18-A/1
Page 1 of 3
MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation
Isolated Transmitter
TMxxxxAP Series
General Specifications
Item
Electric Isolation
Degree of Isolation
Insulation Resistance
Operating Temperature
Transportation and Storage
Temperature
Application Environment
testing for 1 minute, leakage
current <1mA, humidity <70%
Operating Conditions
Value
Three-terminal isolation (signal input, signal output, input power supply)
2.5KVDC
100MΩ, 500VDC (signal input terminal, signal output terminal, power
supply terminal)
-25℃~+71℃
-50℃~+105℃
The presence of dust, fierce vibration, impulsion and corrosive gas may
cause damage to the product
Physical Specifications
Casing Material
Package
Weight
Cooling Method
WH8100-F [1]
DIP24
10g(Typ.)
Natural cooling
Application Precautions
1.
2.
3.
4.
Please read the instructions carefully before use; contact our technical support if you have any problem.
Do not use the product in hazardous areas.
Use DC power supply for the product and 220V AC power supply is prohibited.
Do not dismount and assemble the product without permission to avoid failure or malfunction of equipment.
After-sales service
1. Ex-factory inspection and quality control have been strictly conducted for the product; if there occurs abnormal operation or possibility
of failure of internal module, please contact the local representative or our technical support.
2. The warranty period for the product is 3 years as calculated from the date of delivery. If any quality problem occurs under normal use
within the warranty period, the product can be repaired or changed for free.
Applied circuit
See
Application Notes for Isolated Transmitter
for details.
Design Reference

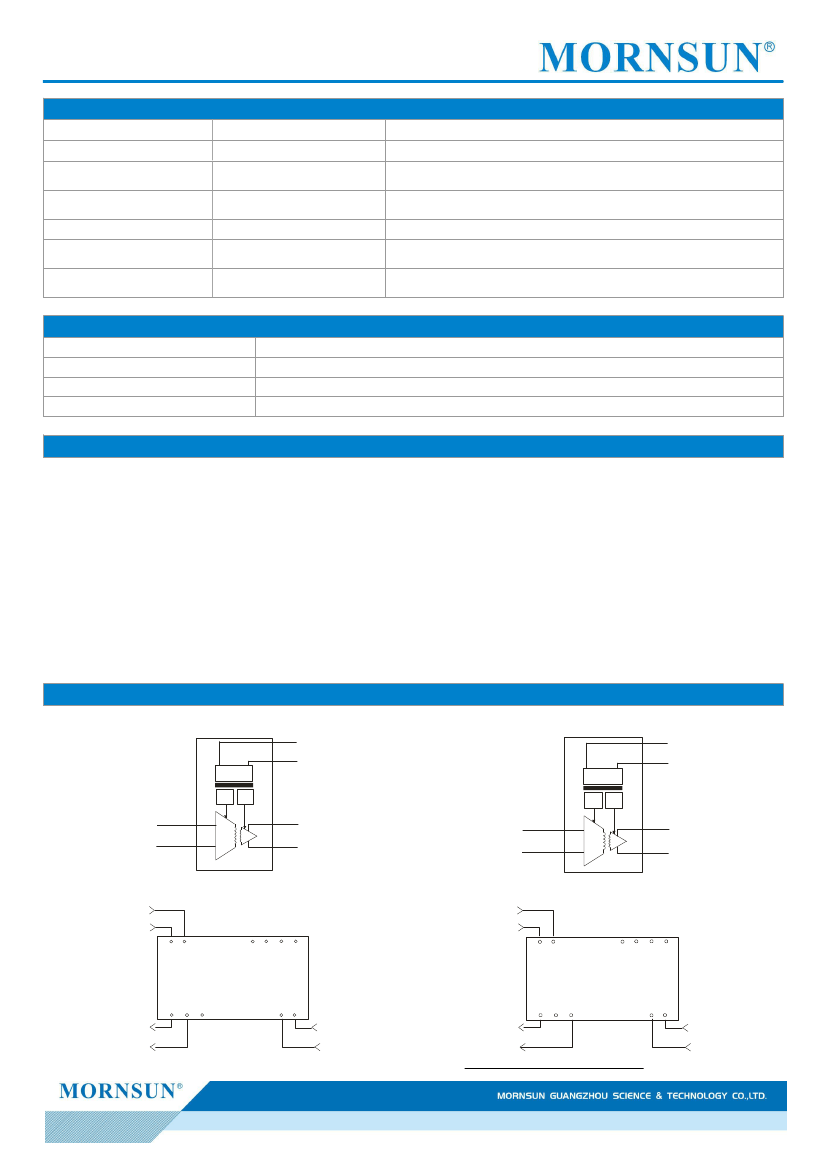

1. Schematic diagram
Current output
Voltage o utput
24-
Power supply
23+
24-
Powe r s upply
23+
12-
Signal input
11+
Sin-
Sout+
2+
Signal output
1-
12-
Sig nal input
11+
Sin-
Sout+
3+
Signal output
1-
Sin+
Sout-
Sin+
Sout-
2. Application circuit diagram
Current output
+
Power supply
Voltage output
Power supply
+
-
24 23
16 15 14 13
-
24 23
16 15 14 13
Pin+
Pin+
NC
NC
NC
NC
Sout+
3
NC
Sin+
Sout+
Sout-
Sin+
Sin-
Sout-
Pin-
Pin-
Signal output
Signal input
Signal output
+
3. For more information please find the application notes on www.mornsun-power.com
2014.03.18-A/1
MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation
-
-
-
+
1
2
3
11 12
-
1
2
11 12
Sin-
NC
NC
NC
NC
NC
Signal input
+
+
Page 2 of 3
Isolated Transmitter
TMxxxxAP Series

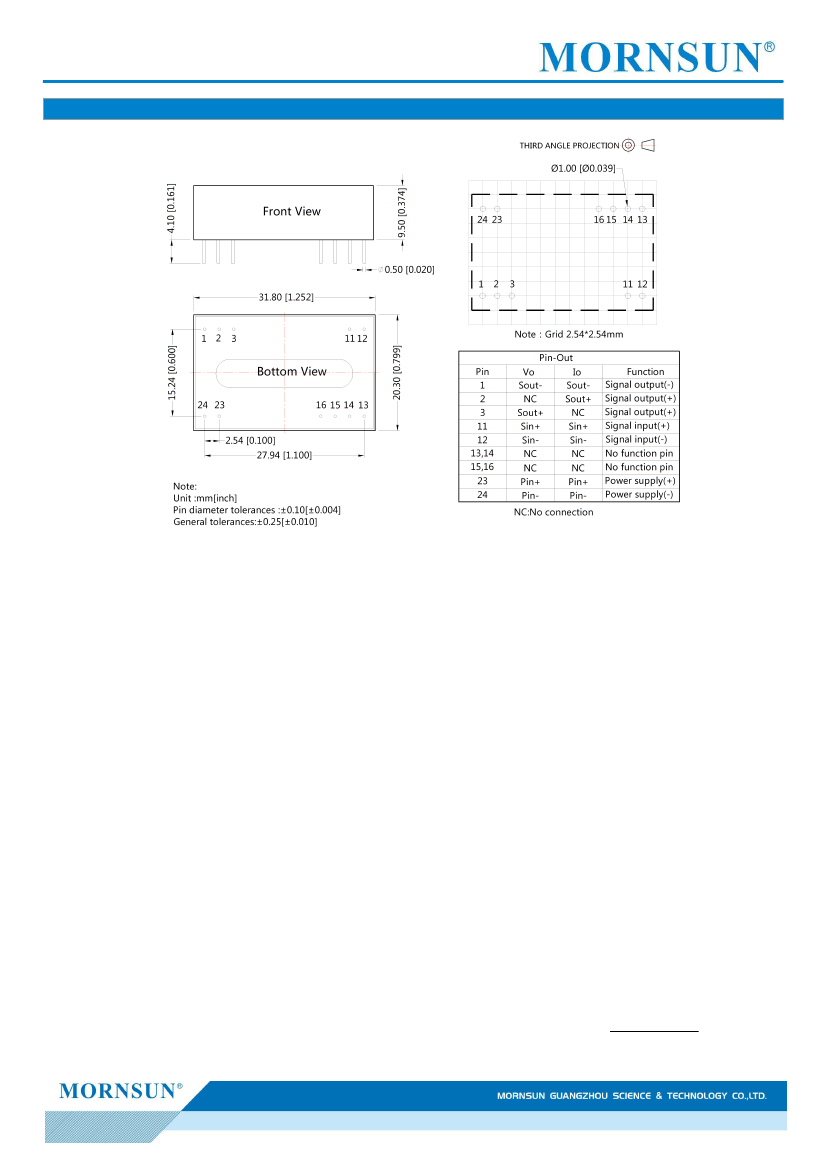

Dimensions and Recommended Layout
Notes:
1.
2.
3.
4.
5.
6.
Packing Information please refer to 'Product Packing Information'. Packing bag number: 58210008;
Unless otherwise specified, data in this datasheet should be tested under the conditions of Ta=25℃, humidity<75% when inputting
nominal voltage and outputting rated load;
All index testing methods in this datasheet are based on our Company’s corporate standards;
The performance indexes of the product models listed in this datasheet are as above, but some indexes of non-standard model
products will exceed the above-mentioned requirements, and please directly contact our technician for specific information;
We can provide product customization service;
Specifications of this product are subject to changes without prior notice.
Mornsun Guangzhou Science & Technology Co., Ltd.
Address: No. 5, Kehui St. 1, Kehui Development Center, Science Ave., Guangzhou Science City, Luogang District, Guangzhou, P. R. China
Tel: 86-20-38601850-8801
Fax: 86-20-38601272
E-mail: info@mornsun.cn
2014.03.18-A/1
Page 3 of 3
MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation
