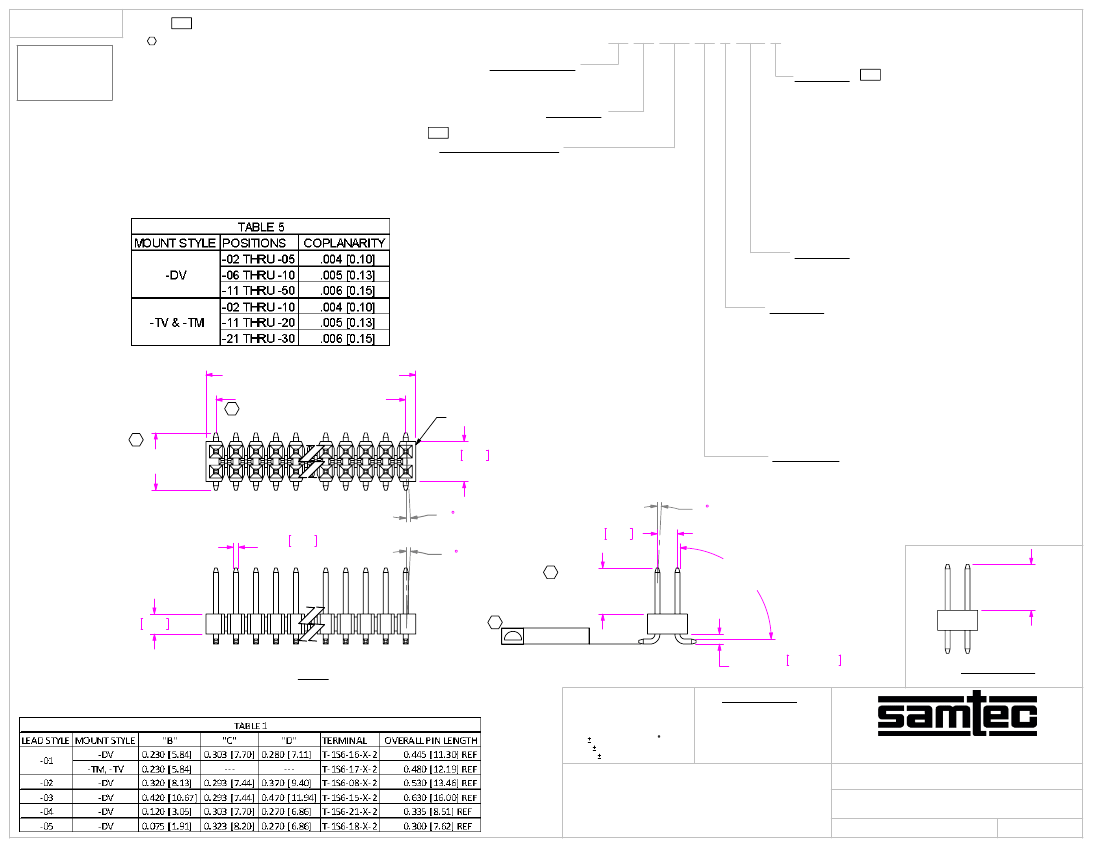

REVISION DB
DO NOT
SCALE FROM
THIS PRINT
NOTES:
DB
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MAXIMUM POST HEIGHT VARIATION: .005[0.13].
3. LOAD PARTS POS 1 IN SAME DIRECTION AS ARROW.
No OF POSITIONS
4. TUBE POSITIONS 03 THRU 50.
-02 THRU -50
5. TAPE & REEL AVAILABLE ON POSITION 02 THRU 28 ONLY.
LEADS MAY NOT BE VISIBLE FOR CUSTOMER'S VISUAL
INSPECTION ON SMALLER POSITIONED PARTS WHEN USED
WITH THE -P OR -M OPTIONS.
LEAD STYLE
6. MEASURE AT BEND RADIUS.
(SEE TABLE 1)
7. MINIMUM PUSHOUT FORCE: 3 LBS.
DB
8. FOR -TV USE T-31724-01.
PLATING SPECIFICATION
9. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED,
-T: MATTE TIN ON ENTIRE PIN.
THE -LC OPTION IS NOT COMPATIBLE WITH AUTO PLACEMENT.
-S: 30µ" SELECTIVE GOLD IN CONTACT AREA,
SAMTEC RECOMMENDS MANUAL PLACEMENT FOR ALL
MATTE TIN ON TAIL.
ASSEMBLIES WITH THE -LC OPTION.
-G: 10µ" SELECTIVE GOLD IN CONTACT AREA,
10. ONLY AVAILABLE ON -01-DV OPTION, MATES ONLY WITH
SSM, SSW, SSQ, BCS, ESW AND ESQ.
3µ" SELECTIVE GOLD ON TAIL.
11. MAXIMUM CUT FLASH: .005[0.13].
-L: 10µ" SELECTIVE GOLD IN CONTACT AREA,
TSM-1XX-XX-XXX-XX-X-XXX-X
OPTION #3
DB
(NOT AVAILABLE WITH -TV & -TM MOUNT STYLES)
-P: PICK AND PLACE PAD
(USE PPP-06, SEE FIG 4, SHT 2)
(AVAILABLE ON POS -04 THRU -36, -50)
(AVAILABLE ON POS -02 & -03 WITH -TR
OPTION ONLY, SEE NOTE 5)
-M: METAL PICK AND PLACE PAD
(USE LMP-01 OR MPP-01, SEE FIG 5, SHT 2)
(NOT RECOMMENDED WITH -T OR -TM PLATING)
(LEAD STYLES -01 & -04 ONLY)
(AVAILABLE ON POS 04 THRU 36)
(AVAILABLE ON POS 02 AND 03 WITH -TR
OPTION ONLY, SEE NOTE 5)
-TR: TAPE AND REEL (SEE FIG 8, SHT 3)
(02 THRU 28 POS)
OPTION #2
POLARIZED POSITION
SPECIFY OMITTED PIN
OPTION #1
(AVAILABLE FOR -DV MOUNT STYLE ONLY)
-LC: LOCKING CLIP (SEE FIG 2, SHT 2)
(USE LC-05-TM)
(-03 THRU -36 POS, USE 2 PER STRIP)
(-02 POS, USE 1 PER STRIP)
(USE RTSM-XX-DVU)
(SEE NOTE 9)
-A: ALIGNMENT PIN (SEE FIG 3, SHT 2)
(FOR MOLDED TO POSITION, USE RTSM-XX-DVU-XX BODY)
(FOR STAKED, USE RTSM-50-DVU BODY, 5 POS MIN)
(LEAVE BLANK FOR NO HOLD DOWN OPTION)
USE RTSM-50-DVU SEE FIG 1, CAN BE CUT TO POSITION)
(NO OF POS x .100[2.54])
-.015[0.38]
C
C
"C" MAX
(SEE TABLE 1)
02
(NO OF POS -1) x .100[2.54]
+.000[0.00]
MATTE TIN ON TAIL.
-TL: TIN/LEAD (90/10) ON ENTIRE PIN.
-STL: 30µ" SELECTIVE GOLD IN CONTACT AREA,
TIN/LEAD (90/10) ON TAIL.
-F: 3µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL.
-H: 30µ" SELECTIVE GOLD IN CONTACT AREA,
3µ" SELECTIVE GOLD ON TAIL.
-TM: MATTE TIN ON ENTIRE PIN.
-SM: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL.
-LM: 10µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL.
-FM: 3µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL.
-SS: 30µ" STRIPE SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL. (SEE NOTE 10)
RTSM-50-DVU
.200 5.08
REF
01 03
5 MAX SWAY
(EITHER DIRECTION)
.025 0.64 SQ
REF (TYP)
2 MAX SWAY
(EITHER DIRECTION)
.100 2.54
C
MOUNT STYLE
-DV: DOUBLE VERTICAL
-TV: TRIPLE VERTICAL (-02 THRU -30 ONLY)
(USE HTSW-50-T-LCP, SEE NOTE 8)
-TM: TRIPLE MIXED TECHNOLOGY (-02 THRU -30 ONLY)
2 MAX SWAY
(USE HTSW-50-T-LCP, AVAILABLE ON -01 LEAD STYLE ONLY)
(EITHER DIRECTION)
"B"
(SEE TABLE 1
& NOTE 2)
90°
- 0°
(TYP)
+5°
"B"
(SEE TABLE 1
& NOTE 2)
.100 2.54 REF
C
SEE TABLE 5
.050±.010 1.27±0.25 (TYP)
(SEE NOTE 6)
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
TSM-1XX-XX-XXX-DV SHOWN
FIG 1
-DV MOUNT STYLE
IN-PROCESS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
INSULATOR: LCP, UL94VO, COLOR: BLACK
TERMINAL: PHOS BRONZE
DOUBLE ROW GULLWING ASM
F:\DWG\MISC\MKTG\TSM-1XX-XX-XXX-XX-X-XXX-X-MKT.SLDDRW
BY:
BRYANT
TSM-1XX-XX-XXX-XX-X-XXX-X
04/24/1991
SHEET
1
OF
3
REVISION DB

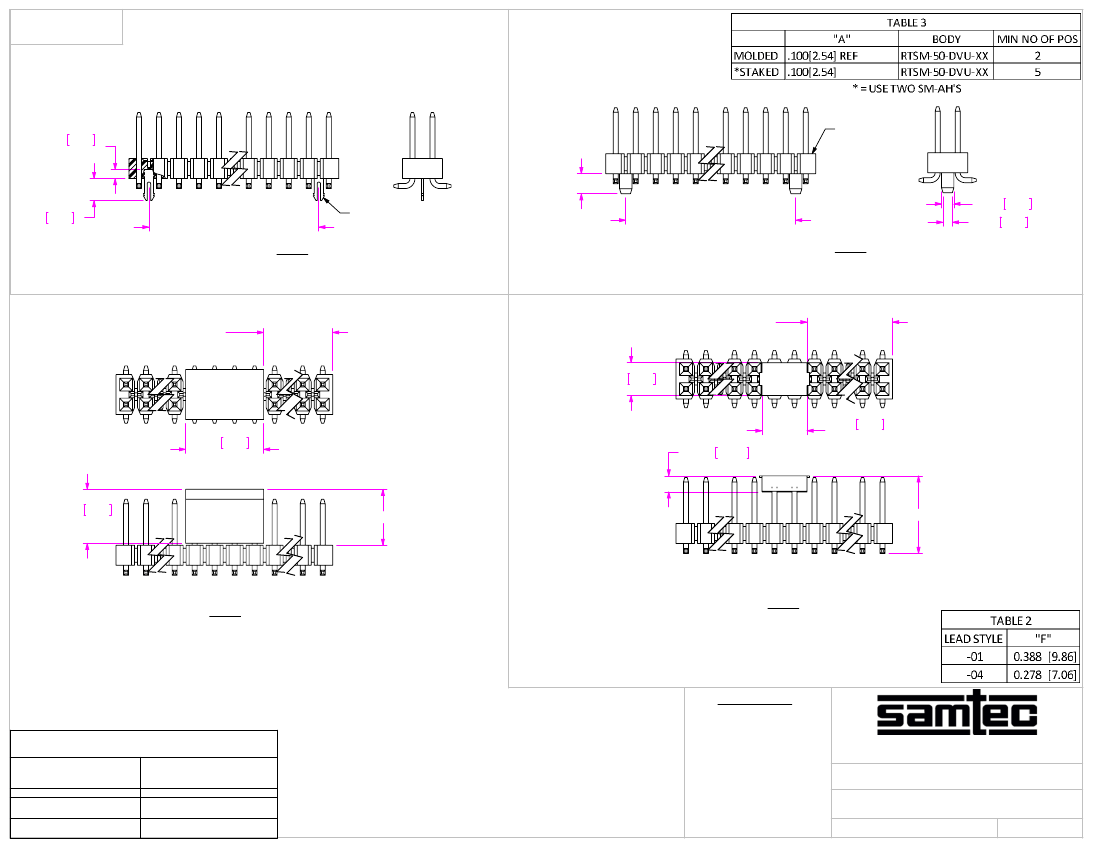

.045 1.14
REF
"A"
.110 2.79
LC-05-TM
(SEE TABLE 3)
.062 1.57 REF
(NO OF POS -2) x .100[2.54]
.047 1.19 REF
(NO OF POS -2) x .100[2.54]
-LC: LOCKING CLIP
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 2
-A: ALIGNMENT PIN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 3
"G"±.020[0.51]
"E"±.020[0.51]
.164 4.17
.390 9.91
REF
.225 5.72
REF
.0790 2.007
.270 6.86
REF
"D"±.010[0.13]
"F"
-P: PICK AND PLACE PAD
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
"G" = ((NO OF POS x .100[2.54]) - .390[9.91])/2
FIG 4
-M: METAL PICK AND PLACE PAD
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
"E" = ((NO OF POS x .100[2.54]) - .225[5.72])/2
NOTE:
HAND FILL USE MPP-01 AND/OR LMP-01
MACHINE FILL USE LMP-01
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
FIG 5
CRITICAL DIMENSION INSPECTION INSTRUCTION
TABLE
ASSEMBLY OPERATION
IN-PROCESS INSPECTION
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
DOUBLE ROW GULLWING ASM
FILL T-1S6-XX-XXX-2
FORM T-1S6-XX
C1
C2, C3, C4, C5
F:\DWG\MISC\MKTG\TSM-1XX-XX-XXX-XX-X-XXX-X-MKT.SLDDRW
BY:
BRYANT
TSM-1XX-XX-XXX-XX-X-XXX-X
04/24/1991
SHEET
2
OF
3
REVISION DB

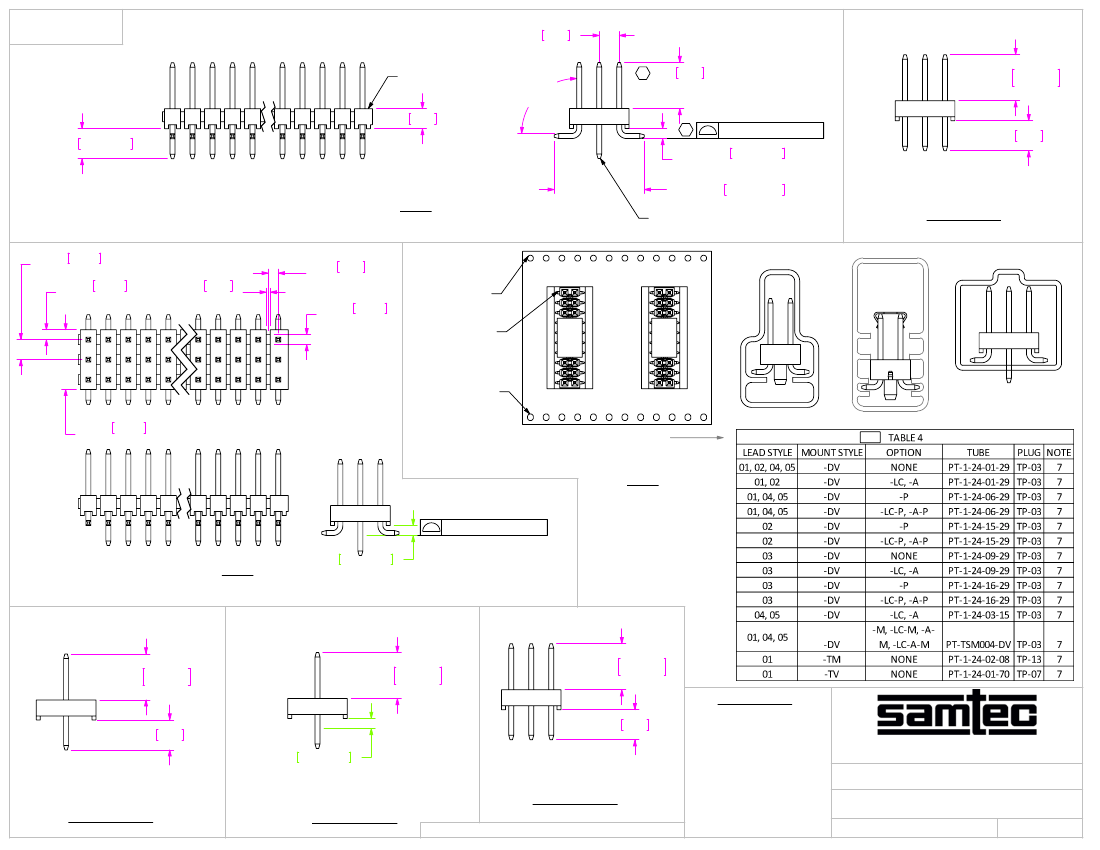

HTSW-50-T-LCP
.100 2.54
C
.230 5.84
(SEE TABLE 2)
(SEE NOTE 2)
C
(SEE TABLE 5, SHT 1)
+.000
0.00
90°±3°
(TYP)
.230
- .005
5.84
- 0.13
.100 2.54 REF
.150±.010 3.81±0.25
.150 3.81 REF
.050±.010 1.27±0.25 (TYP)
(SEE NOTE 6)
-TM: TRIPLE MIXED TECHNOLOGY
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
.1000 2.540
REF (TYP)
.0490 1.245
REF (TYP)
03
.050 1.27
REF (TYP)
.0500 1.270
REF (TYP)
FIG 6
.450±.015 11.43±0.38
T-1S6-17-XXX-2
-TM MOUNT STYLE
IN-PROCESS
.020 0.51
REF (TYP)
ROUND HOLES
PIN 1
01
.2980 7.569
REF (TYP)
OBLONG HOLES
USER DIRECTION OF UNREELING
POCKET NOT DETAILED
DB
PACKAGING VIEWS
(SEE TABLE 5, SHT 1)
FIG 8
-TV: TRIPLE VERTICAL
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 7
.050±.010 1.27±0.25
+.000
.230
- .005
0.00
5.84
- 0.13
.230
- .005
5.84
- 0.13
+.000
0.00
.230
- .005
5.84
- 0.13
PROPRIETARY NOTE
+.000
0.00
.150 3.81 REF
.050±.010 1.27±0.25
.150 3.81 REF
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
-TV MOUNT STYLE
IN-PROCESS 1
-TV MOUNT STYLE
IN-PROCESS 2
-TV MOUNT STYLE
F:\DWG\MISC\MKTG\TSM-1XX-XX-XXX-XX-X-XXX-X-MKT.SLDDRW
IN-PROCESS 3
DOUBLE ROW GULLWING ASM
SHEET SCALE: 2:1
BY:
BRYANT
TSM-1XX-XX-XXX-XX-X-XXX-X
04/24/1991
SHEET
3
OF
3
