Datasheet> All Categories > Power/power management> The power supply circuit> TK75001DBX

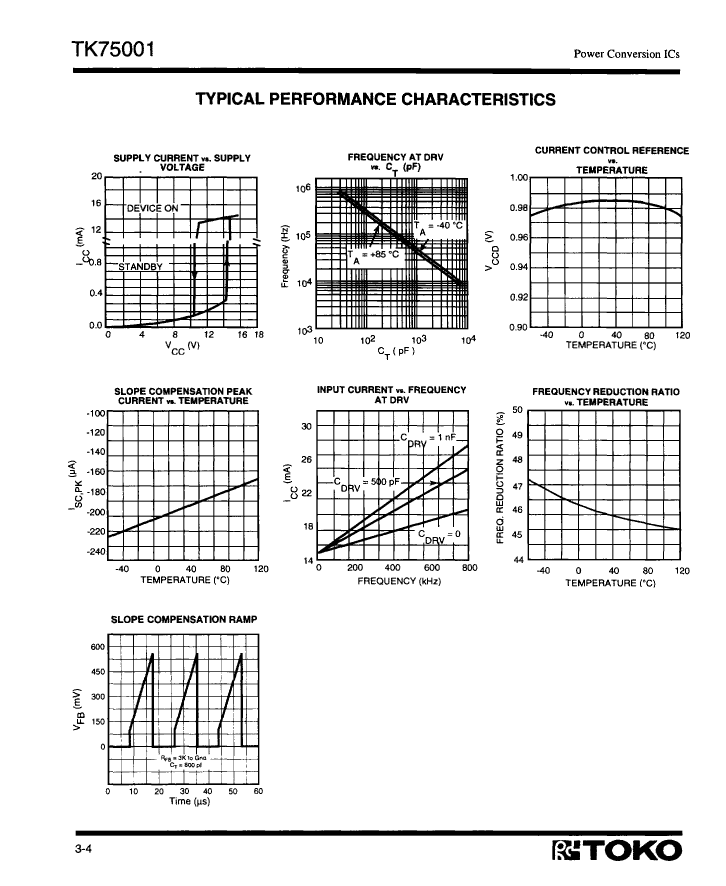

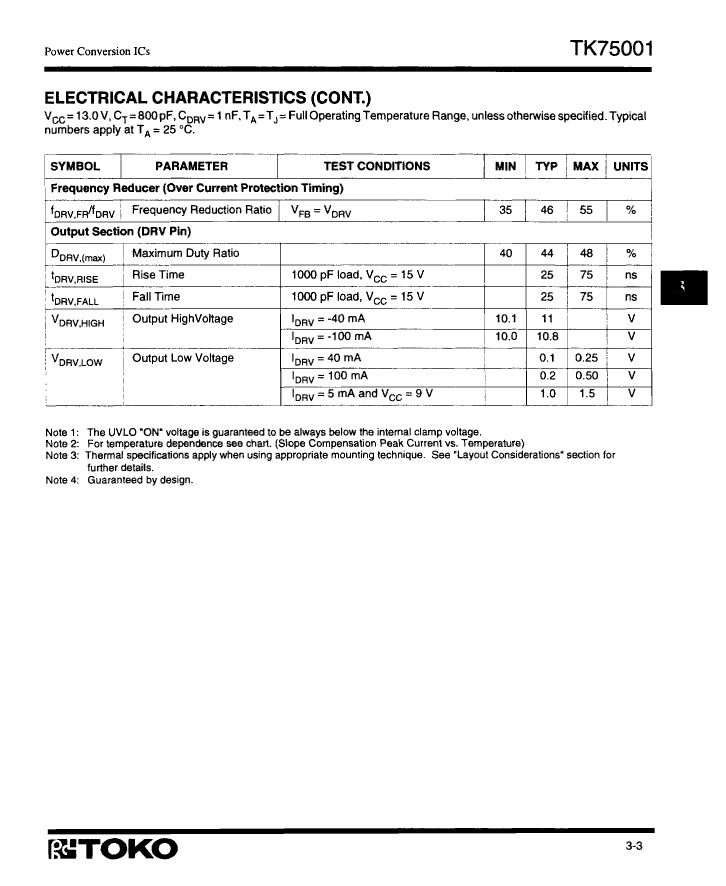

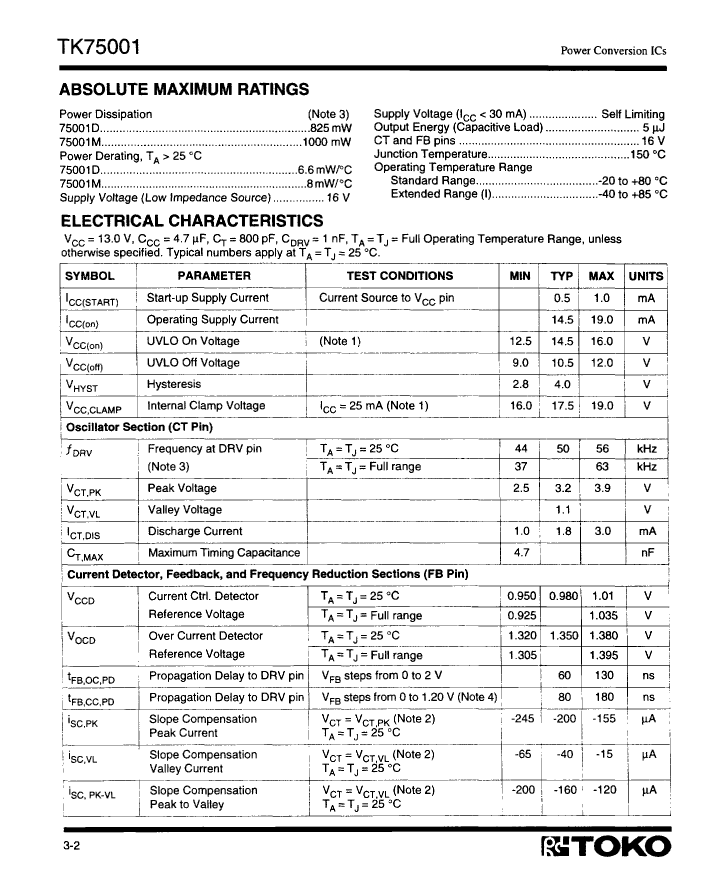

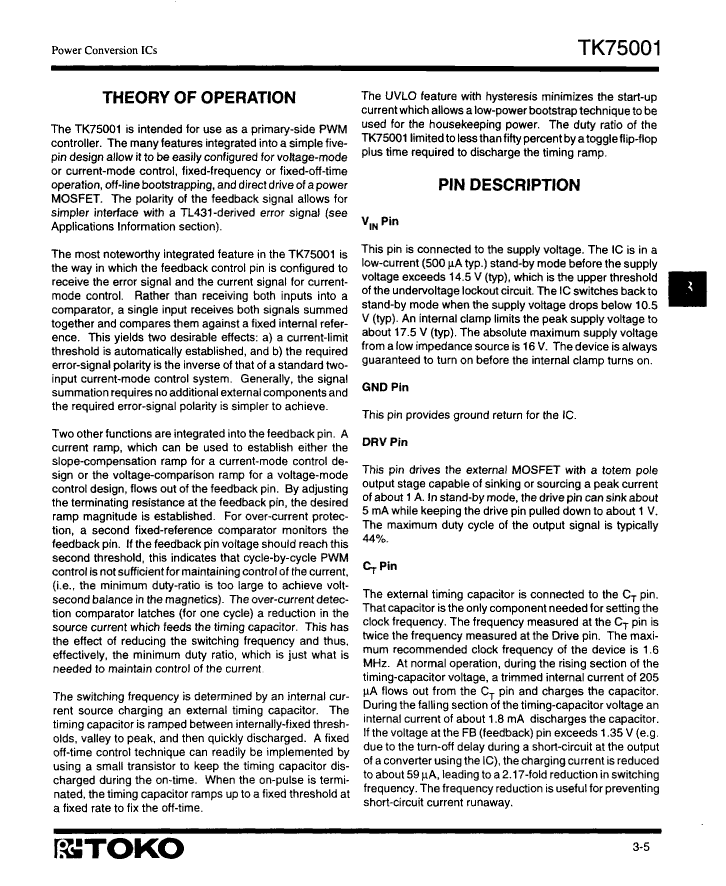

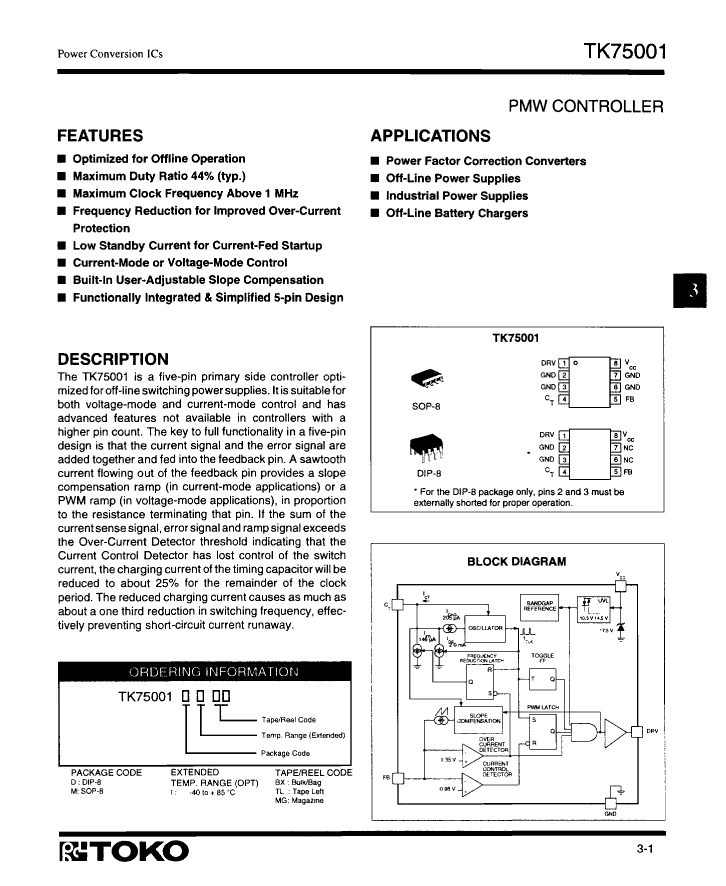

Preview

TK75001DBX: DescriptionSwitching Controller, Voltage-mode, PDIP8, DIP-8; CategoryPower/power management The power supply circuit; File Size421KB，10 Pages; ManufacturerTOKO, INC.; Websitehttps://www.murata.com/

Download Datasheet Parametric Compare View All

TK75001DBX Overview

Switching Controller, Voltage-mode, PDIP8, DIP-8

TK75001DBX Parametric

Parameter Name	Attribute value
Maker	TOKO, INC.
package instruction	DIP,
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER
control mode	VOLTAGE-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	16 V
Minimum input voltage	12 V
Nominal input voltage	13 V
JESD-30 code	R-PDIP-T8
length	9.5 mm
Number of functions	1
Number of terminals	8
Maximum operating temperature	80 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	4.1 mm
surface mount	NO
Switch configuration	SINGLE
Temperature level	COMMERCIAL EXTENDED
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

Preview

Download Datasheet

View All

TK75001DBX Related Products

	TK75001DBX	TK75001DIBX	TK75001MITL	TK75001MMG	TK75001MIMG	TK75001MIBX	TK75001MBX	TK75001MTL
Description	Switching Controller, Voltage-mode, PDIP8, DIP-8	Switching Controller, Voltage-mode, PDIP8, DIP-8	Switching Controller, Voltage-mode, PDSO8, SOP-8	Switching Controller, Voltage-mode, PDSO8, SOP-8	Switching Controller, Voltage-mode, PDSO8, SOP-8	Switching Controller, Voltage-mode, PDSO8, SOP-8	Switching Controller, Voltage-mode, PDSO8, SOP-8	Switching Controller, Voltage-mode, PDSO8, SOP-8
package instruction	DIP,	DIP,	SOP,	SOP,	SOP,	SOP,	SOP,	SOP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER
control mode	VOLTAGE-MODE	VOLTAGE-MODE	VOLTAGE-MODE	VOLTAGE-MODE	VOLTAGE-MODE	VOLTAGE-MODE	VOLTAGE-MODE	VOLTAGE-MODE
Control Technology	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION
Maximum input voltage	16 V	16 V	16 V	16 V	16 V	16 V	16 V	16 V
Minimum input voltage	12 V	12 V	12 V	12 V	12 V	12 V	12 V	12 V
Nominal input voltage	13 V	13 V	13 V	13 V	13 V	13 V	13 V	13 V
JESD-30 code	R-PDIP-T8	R-PDIP-T8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8
length	9.5 mm	9.5 mm	4.89 mm	4.89 mm	4.89 mm	4.89 mm	4.89 mm	4.89 mm
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8	8	8
Maximum operating temperature	80 °C	85 °C	85 °C	80 °C	85 °C	85 °C	80 °C	80 °C
Minimum operating temperature	-20 °C	-40 °C	-40 °C	-20 °C	-40 °C	-40 °C	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	SOP	SOP	SOP	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.1 mm	4.1 mm	1.94 mm	1.94 mm	1.94 mm	1.94 mm	1.94 mm	1.94 mm
surface mount	NO	NO	YES	YES	YES	YES	YES	YES
Switch configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Temperature level	COMMERCIAL EXTENDED	INDUSTRIAL	INDUSTRIAL	COMMERCIAL EXTENDED	INDUSTRIAL	INDUSTRIAL	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	7.62 mm	3.9 mm	3.9 mm	3.9 mm	3.9 mm	3.9 mm	3.9 mm
Maker	TOKO, INC.	-	-	TOKO, INC.	TOKO, INC.	TOKO, INC.	TOKO, INC.	TOKO, INC.
Is it Rohs certified?	-	-	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Peak Reflow Temperature (Celsius)	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum time at peak reflow temperature	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
