TWR-5/1000-12/210-D5 datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> TWR-5/1000-12/210-D5

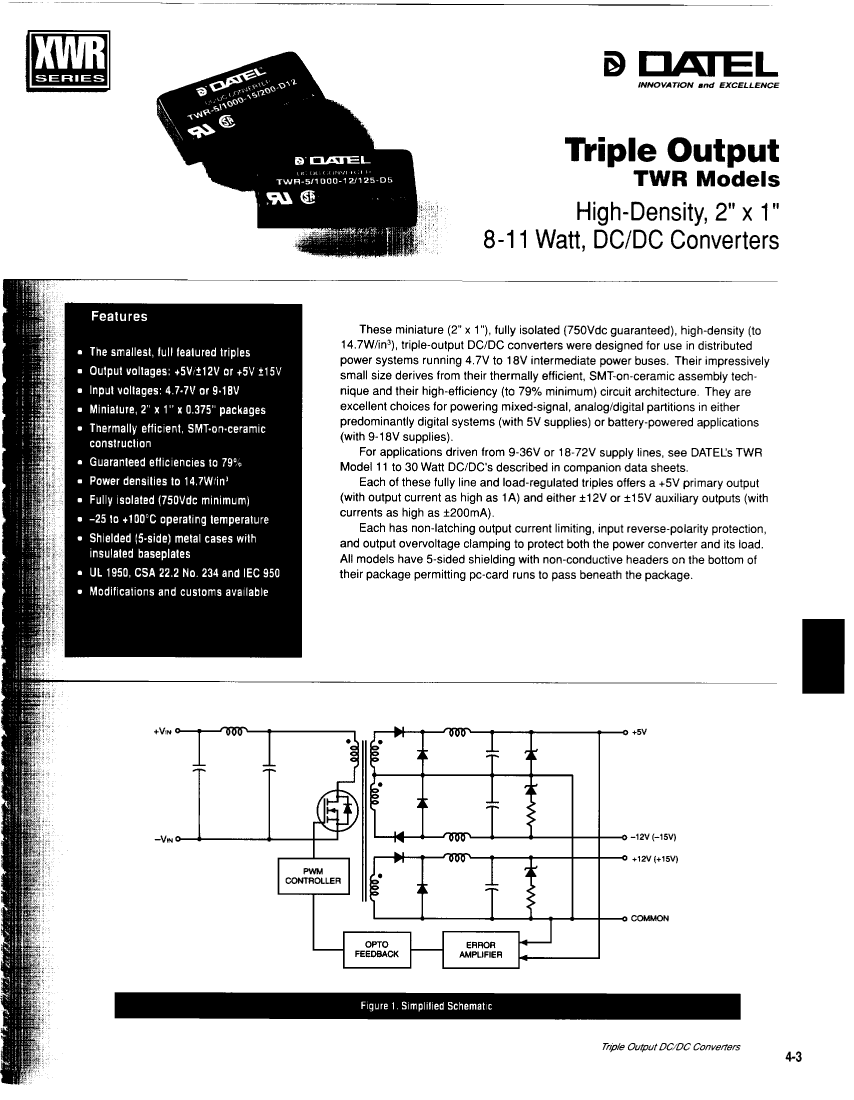

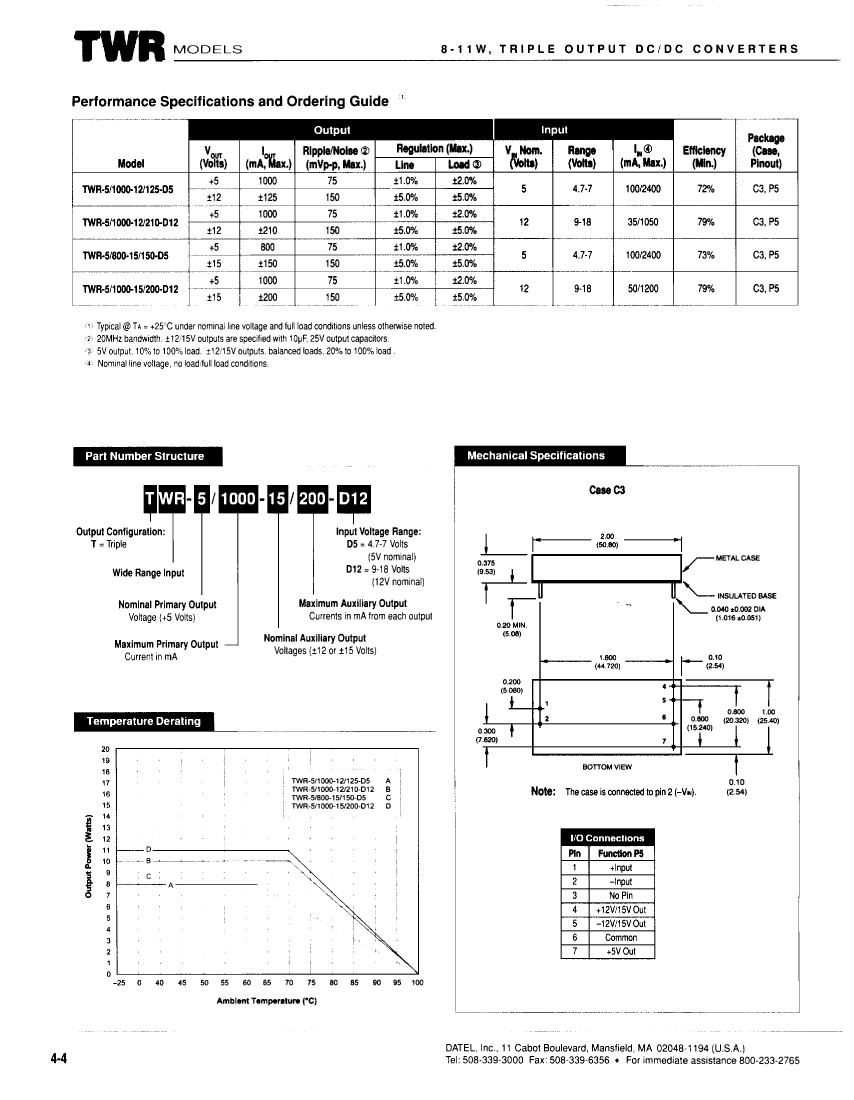

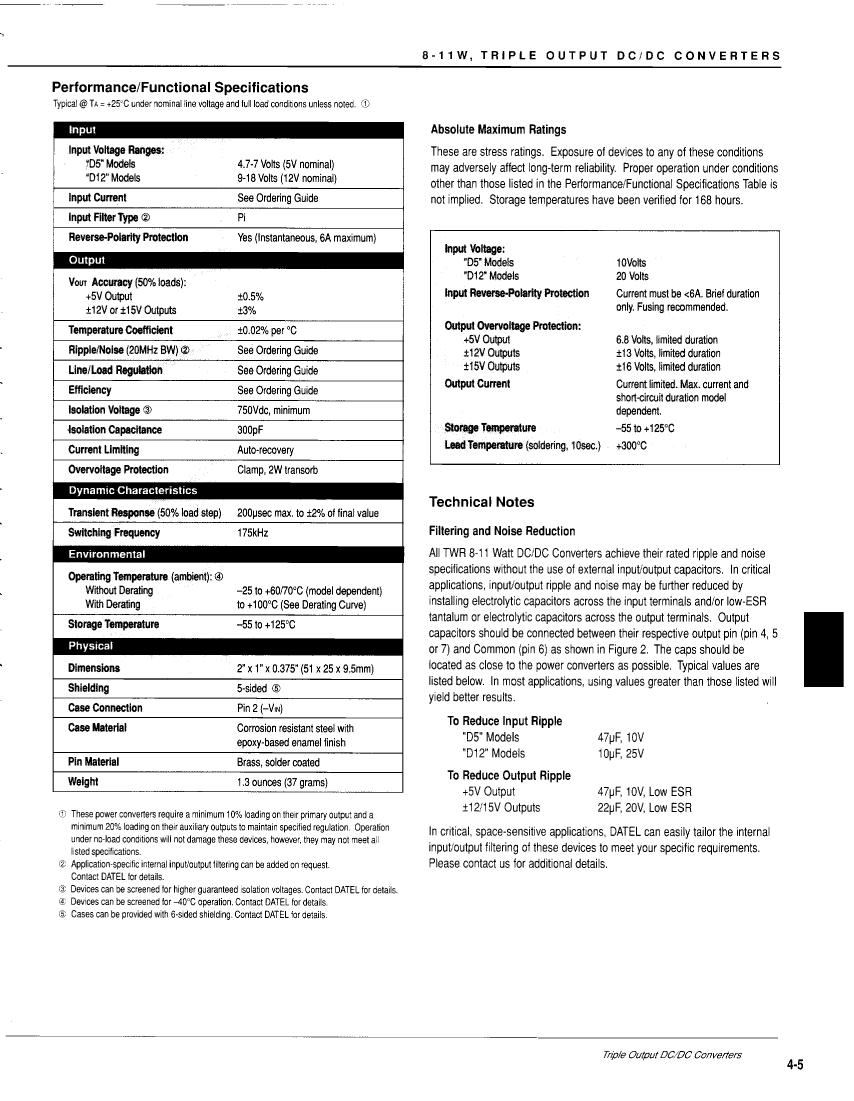

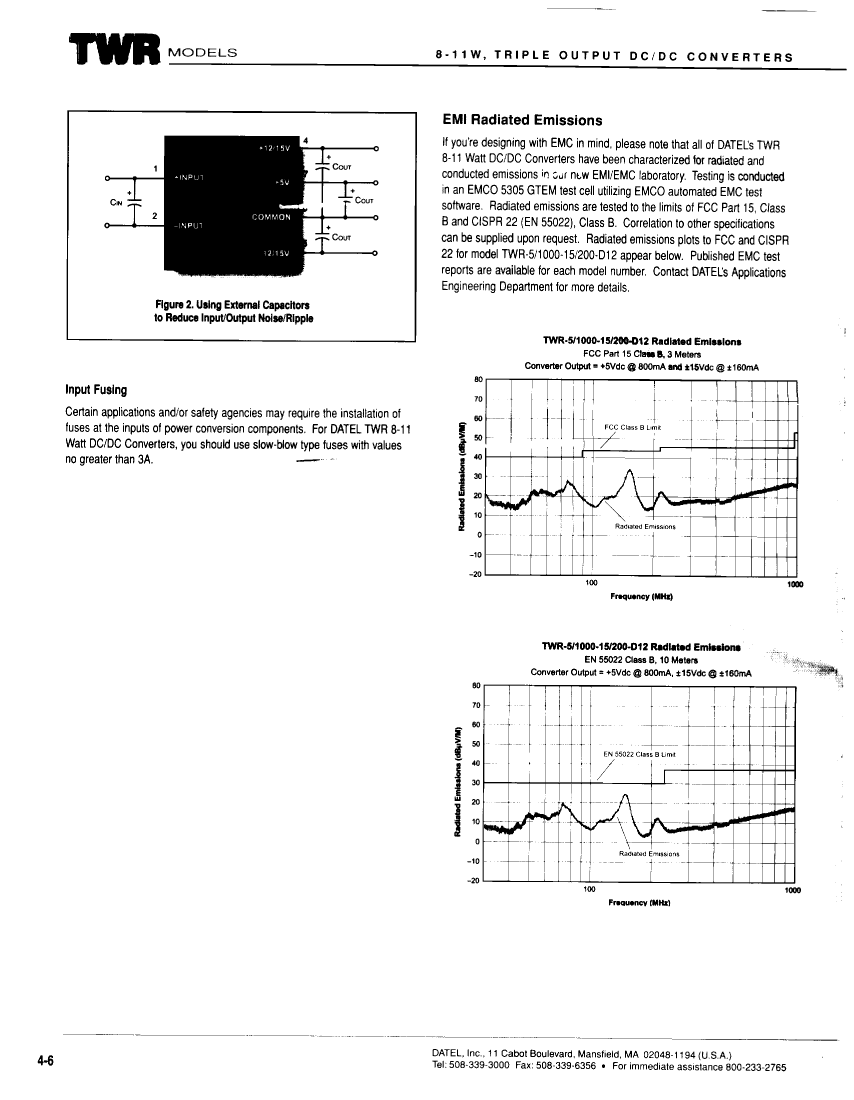

TWR-5/1000-12/210-D5: DescriptionDC-DC Regulated Power Supply Module, 3 Output, Hybrid, 2 X 1 INCH, 0.375 INCH HEIGHT, SHIELDED, METAL, PACKAGE-6; CategoryPower/power management The power supply circuit; File Size219KB，4 Pages; ManufacturerDATEL Inc.

Download Datasheet Parametric Compare View All

TWR-5/1000-12/210-D5 Overview

DC-DC Regulated Power Supply Module, 3 Output, Hybrid, 2 X 1 INCH, 0.375 INCH HEIGHT, SHIELDED, METAL, PACKAGE-6

TWR-5/1000-12/210-D5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	DATEL Inc.
Parts packaging code	MODULE
package instruction	,
Contacts	6
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Certification	UL; CSA
Efficiency (main output)	72%
Maximum input voltage	7 V
Minimum input voltage	4.7 V
Nominal input voltage	5 V
JESD-30 code	R-MDMA-P6
JESD-609 code	e0
Maximum grid adjustment rate	1%
Maximum load regulation	2%
Number of functions	1
Output times	3
Number of terminals	6
Maximum operating temperature	60 °C
Minimum operating temperature	-25 °C
Maximum output voltage	5.025 V
Minimum output voltage	4.975 V
Nominal output voltage	5 V
Package body material	METAL
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Protect	CURRENT; POLARITY; OUTPUT OVER VOLTAGE
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Fine-tuning/adjustable output	NO

Preview

Download Datasheet

View All

TWR-5/1000-12/210-D5 Related Products

	TWR-5/1000-12/210-D5	TWR-5/800-15/150-D5	TWR-5/1000-12/125-D12	TWR-5/1000-12/210-D12	TWR-5/1000-15/200-D12	TWR-5/1000-12/125-D5
Description	DC-DC Regulated Power Supply Module, 3 Output, Hybrid, 2 X 1 INCH, 0.375 INCH HEIGHT, SHIELDED, METAL, PACKAGE-6	DC-DC Regulated Power Supply Module, 3 Output, Hybrid, 2 X 1 INCH, 0.375 INCH HEIGHT, SHIELDED, METAL, PACKAGE-6	DC-DC Regulated Power Supply Module, 3 Output, Hybrid, 2 X 1 INCH, 0.375 INCH HEIGHT, SHIELDED, METAL, PACKAGE-6	DC-DC Regulated Power Supply Module, 3 Output, Hybrid, 2 X 1 INCH, 0.375 INCH HEIGHT, SHIELDED, METAL, PACKAGE-6	DC-DC Regulated Power Supply Module, 3 Output, Hybrid, 2 X 1 INCH, 0.375 INCH HEIGHT, SHIELDED, METAL, PACKAGE-6	DC-DC Regulated Power Supply Module, 3 Output, Hybrid, 2 X 1 INCH, 0.375 INCH HEIGHT, SHIELDED, METAL, PACKAGE-6
Parts packaging code	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE
Contacts	6	6	6	6	6	6
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Certification	UL; CSA	UL; CSA	UL; CSA	UL; CSA	UL; CSA	UL; CSA
Efficiency (main output)	72%	73%	79%	79%	79%	72%
Maximum input voltage	7 V	7 V	18 V	18 V	18 V	7 V
Minimum input voltage	4.7 V	4.7 V	9 V	9 V	9 V	4.7 V
Nominal input voltage	5 V	5 V	12 V	12 V	12 V	5 V
JESD-30 code	R-MDMA-P6	R-MDMA-P6	R-MDMA-P6	R-MDMA-P6	R-MDMA-P6	R-MDMA-P6
Maximum grid adjustment rate	1%	1%	1%	1%	1%	1%
Maximum load regulation	2%	2%	2%	2%	2%	2%
Number of functions	1	1	1	1	1	1
Output times	3	3	3	3	3	3
Number of terminals	6	6	6	6	6	6
Maximum operating temperature	60 °C	60 °C	70 °C	70 °C	70 °C	60 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Maximum output voltage	5.025 V	5.025 V	5.025 V	5.025 V	5.025 V	5.025 V
Minimum output voltage	4.975 V	4.975 V	4.975 V	4.975 V	4.975 V	4.975 V
Nominal output voltage	5 V	5 V	5 V	5 V	5 V	5 V
Package body material	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Protect	CURRENT; POLARITY; OUTPUT OVER VOLTAGE	CURRENT; POLARITY; OUTPUT OVER VOLTAGE	CURRENT; POLARITY; OUTPUT OVER VOLTAGE	CURRENT; POLARITY; OUTPUT OVER VOLTAGE	CURRENT; POLARITY; OUTPUT OVER VOLTAGE	CURRENT; POLARITY; OUTPUT OVER VOLTAGE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Fine-tuning/adjustable output	NO	NO	NO	NO	NO	NO
