T-1S6-13-T-2 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> T-1S6-13-T-2

Preview

T-1S6-13-T-2: DescriptionPCB Terminal; CategoryThe connector; File Size743KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

T-1S6-13-T-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	T-1S6-13-T-2	-	-	View	Buy Now

T-1S6-13-T-2 Overview

PCB Terminal

T-1S6-13-T-2 Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Reach Compliance Code	unknown
ECCN code	EAR99
Factory Lead Time	3 weeks
Manufacturer's serial number	T
terminal gender	MALE
Terminal and terminal strip types	PCB TERMINAL

Preview

Download Datasheet

View All

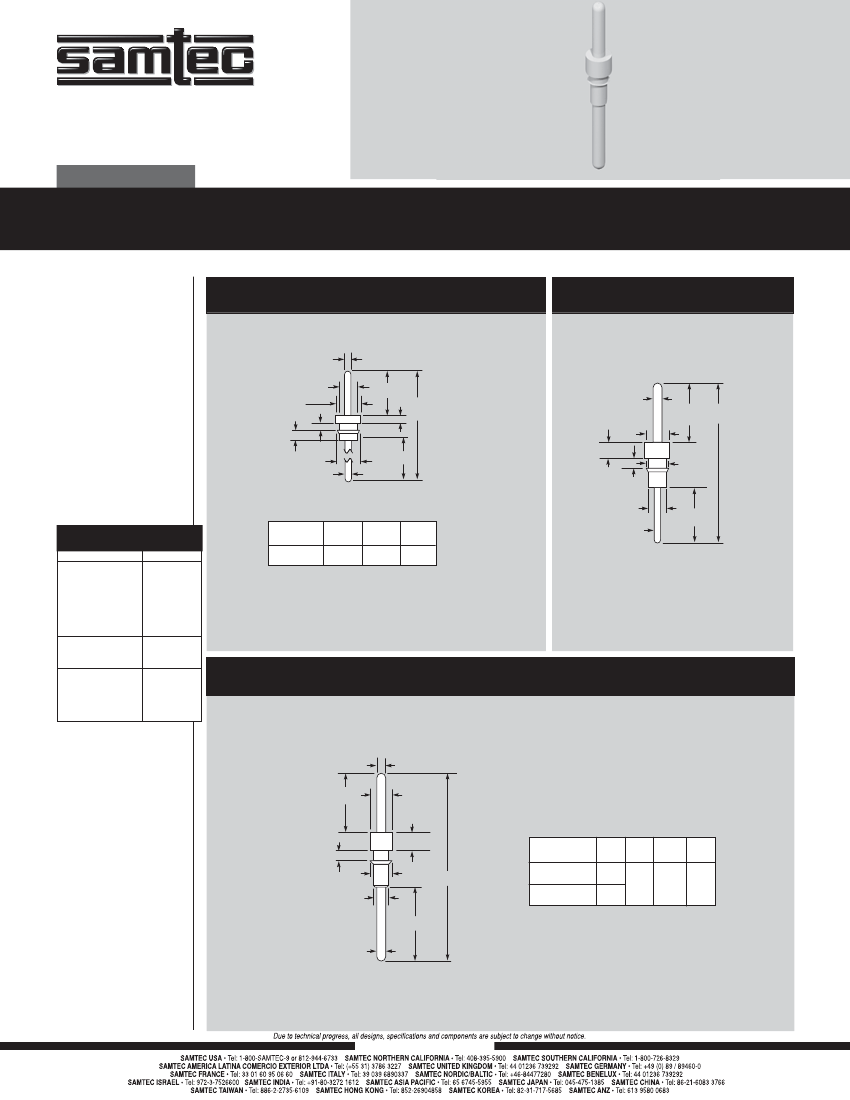

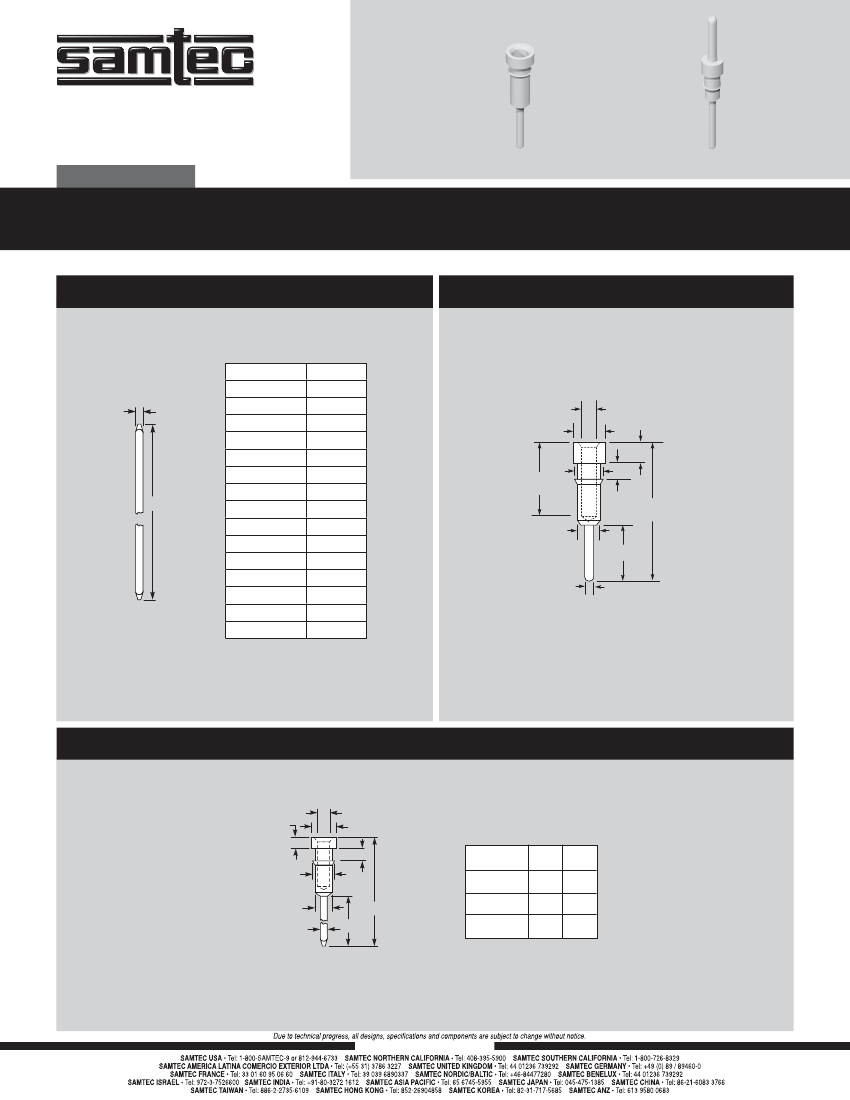

F-213 SUPPLEMENT

T–1R7–02–G

T, S SERIES

MACHINED TERMINALS & SOCKETS

Mates with:

SC, SK, SP

T–1R6–

(0,46)

.018 DIA

(1,32)

.052

(1,78)

.070 DIA

(3,18)

.125

T–1R0–

Speciﬁcations:

T, S

All T and S Series are

available with a choice of

Gold or Tin plating. Add

-G or -T as a sufﬁx to the

part number shown.

-G Plating:

Au over 50µ" (1,27 µm) Ni

-T Plating:

Sn over 50µ" (1,27 µm) Ni

or 100µ" (2,54 µm) Cu

Current Rating:

1A per contact;

except T-1S6 is 5A per contact

RECOMMENDED

PC HOLE SIZE:

LEAD SIZE

(0,46) .018 DIA

(0,51) .020 DIA

(0,64) .025 DIA

(0,76) .030 DIA

(0,89) .035 DIA

(1,14) .045 DIA

(1,32) .052 DIA

(0,46) .018 SQ

(0,64) .025 SQ

(1,14) .045 SQ

(0,20) .008 x (0,71) .028

(0,25) .010 x (0,51) .020

(0,41) .016 x (0,51) .020

(0,41) .016 x (0,61) .024

(0,41) .016 x (0,79) .031

B

C

REF

(0,64)

.025 DIA

(1,78)

.070

DIA

(4,22)

.166

(12,12)

.477

(0,69)

.027

(0,51)

.020

(0,46)

.018 DIA

(1,55)

.061

DIA

A

(1,32)

.052

(0,71)

.028

(1,32)

.052

DIA

(1,55)

.061

DIA

Part No.

A

TAIL

(2,74)

.108

B

HEAD

(0,51)

.020

C

OAL

(7,62)

.300

(0,46)

.018 DIA

(3,96)

.156

HOLE SIZE

(0,61) .024 DIA

(0,66) .026 DIA

(0,79) .031 DIA

(0,91) .036 DIA

(1,04) .041 DIA

(1,30) .051 DIA

(1,47) .058 DIA

(0,76) .030 DIA

(1,02) .040 DIA

(1,75) .069 DIA

(0,89) .035 DIA

(0,71) .028 DIA

(0,79) .031 DIA

(0,89) .035 DIA

(1,04) .041 DIA

T–1R6–

T–1R0–

Material: Brass

–G = 20µ" (0,51 µm) Gold

–T = 200µ" (5,08 µm) Tin

Material: Brass

–G = 20µ" (0,51 µm) Gold

–T = 200µ" (5,08 µm) Tin

T–1R7–

D

(4,22)

.166

(1,78)

.070

DIA

(1,32)

.052

(1,55)

.061 DIA

Part No.

A

DIA

B

TAIL

C

OAL

D

DIA

(0,71)

.028

(1,32)

.052

DIA

C

T–1R7–01

T–1R7–02

(0,64)

.025 (5,33) (13,46) (0,64)

.530

.025

(0,89) .210

.035

B

A

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

Material: Brass

–G = 10µ" (0,25 µm) Gold

–T = 200µ" (5,08 µm) Tin

WWW.SAMTEC.COM
