REVISION M
Pb
THIS PRODUCT MANUFACTURED
WITH LEAD-FREE PROCESSING
-XX.XX REF
(SEE PART CALLOUT)
-XX.XX - .448[11.38] ± .010[.25]
(SEE PART CALLOUT)
TCDL2-XX-X-XX.XX-XX
No OF POSITIONS
-10,-15, -20, -25
END SPECIFICATION
- T : TRANSFER END
(ONE CLT & ONE TMMH ASSEMBLY)
- F : FEMALE ENDS
(TWO CLT ASSEMBLIES)
-M: MALE ENDS
(TWO TMMH ASSEMBLIES)
.079 2.00 REF (TYP)
SIGNAL
-SE: SINGLE ENDED
-DP: DIFFERENTIAL PAIR
LENGTH (IN INCHES)
-05.00: 5.00[127.0] INCHES
-10.00: 10.00[254.0] INCHES
ASP-134562-XX
(SEE TABLE 2)
No OF POSITIONS X .0787[2.000]
+ .1126[2.860]
REF
.162±.010 4.11±0.25
.500 12.70 REF
.063 1.59 REF
DETAIL 'B'
TMMH-1XX-01-L-DV-LC
.079 2.00 REF
.126 3.20 REF
SUB-TCDL2-XX-X-XX.XX-XX
.297±.010 7.55±0.25
(TCDL2-25-T-XX.00-SE SHOWN)

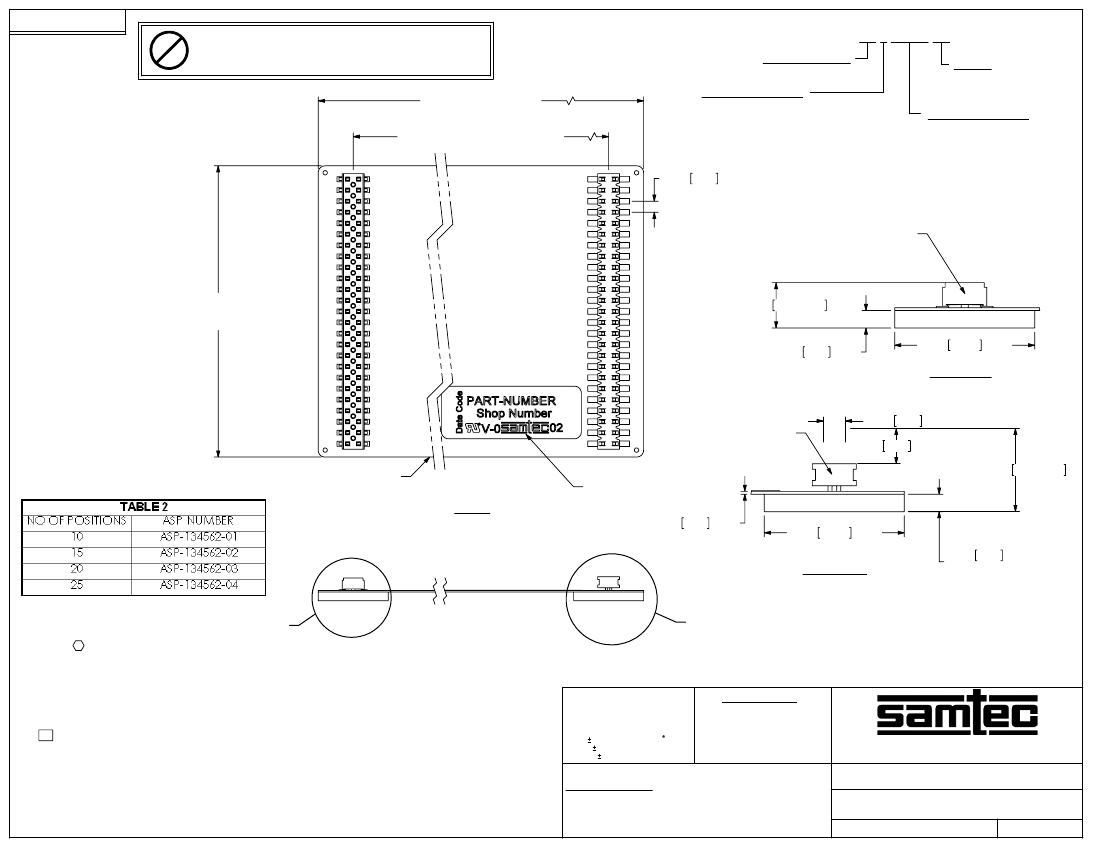

FIG. 1
HDRL-01
(SEE NOTE 11)
J1
J2
.010 0.25 REF
.500 12.70 REF
DETAIL 'A'
.063 1.59
REF
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. ALL DIMENSIONS TO BE SYMMETRICAL ABOUT CENTERLINE
WITHIN ±.002[.05] UNLESS OTHERWISE NOTED.
3. PARTS ARE TO BE 100% ELECTRICALLY TESTED FOR CONTINUITY, OPENS/SHORTS.
4. GERBER DATABASE TO TAKE PRECEDENCE OVER THIS DRAWING.
5. PARTS TO BE BUILT/INSPECTED TO IPC 610 & 6013 CLASS 2.
6. PARTS TO BE RoHS COMPLIENT.
7. NOTE DELETED.
M 8. PACKAGE PER CO-FL-WI-1026-M.
9. IMPEDANCE:
SINGLE ENDED NETS: 0.0048" TRACES = 50 OHM +/- 10%
DIFFERENTIAL PAIR NETS: .0036" TRACES = 100 OHM +/- 10%
10. TRACE WIDTH/SPACE:
SINGLE ENDED NETS TO BE .0048" +/-.001" WITH A SPACE OF .0048" +/- .001"
DP NETS TO BE .0036" +/- .001 WITH A SPACE OF .0067" +/- .001"
11. HDRL-01IS TO CONTAIN: PART NUMBER, SHOP NUMBER, DATE CODE, UL,
AND SAMTEC LOGO.
'B'
'A'
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01[.3]
.XXX: .005[.13]
.XXXX: .0020[.051]
ANGLES
2
DO NOT SCALE DRAWING
SHEET SCALE: 3:1
DESCRIPTION:
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
CONNECTOR MATERIALS:
-INSULATORS: LCP
-CONTACTS & TERMINALS: PHOS BRONZE
FLEXIBLE CIRCUIT, 2MM PITCH MALE/FEMALE CONNECTORS
DWG. NO.
TCDL2-XX-X-XX.XX-XX
4/13/2007
SHEET
1
OF
2
F:\DWG\MISC\MKTG\TCDL2-XX-X-XX.XX-XX-MKT.SLDDRW
BY:
B. PERRY
TCDL2-XX-X-XX.XX-XX
REVISION M
G
S
G
S
G
S
G
S
G
S
S
G
S
G
S
G
S
G
S
G
G
S
G
S
G
S
G
S
G
S
S
G
S
G
S
G
S
G
S
G

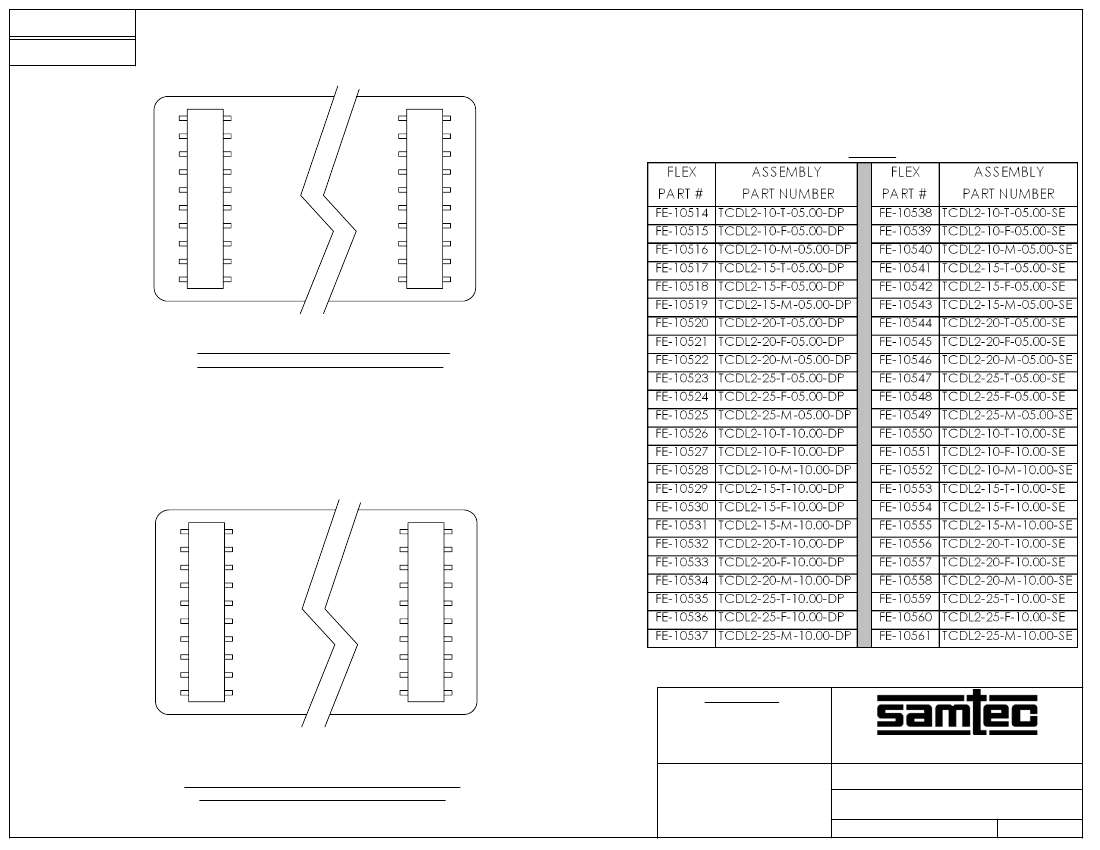

TABLE 1
RECOMMENDED SINGLE ENDED SIGNAL
ASSIGNMENT FOR BEST PERFORMANCE
(ALL SIGNALS ROUTED, OUTSIDE ROW TO INSIDE ROW)
J1
J2
-
-
-
-
-
+
+
+
+
+
-
-
-
-
-
+
+
+
+
+
G G
G G
G G
G G
G G
G G
G G
G G
G G
G G
F:\DWG\MISC\MKTG\TCDL2-XX-X-XX.XX-XX-MKT.SLDDRW
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
RECOMMENDED DIFFERENTIAL PAIR SIGNAL
ASSIGNMENT FOR BEST PERFORMANCE
(ALL SIGNALS ROUTED, OUTSIDE ROW TO INSIDE ROW)
SHEET SCALE: 1:0.333333
FLEXIBLE CIRCUIT, 2MM PITCH MALE/FEMALE CONNECTORS
DWG. NO.
TCDL2-XX-X-XX.XX-XX
4/13/2007
SHEET
2
OF
2
BY:
B. PERRY
