TFM-111-02-F-S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> TFM-111-02-F-S

TFM-111-02-F-S: DescriptionBoard Connector, 11 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal,; CategoryThe connector The connector; File Size216KB，3 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

TFM-111-02-F-S Overview

Board Connector, 11 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal,

TFM-111-02-F-S Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	2 weeks
body width	0.175 inch
subject depth	0.22 inch
body length	0.675 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.05 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Plating thickness	FLASH inch
Rated current (signal)	3.2 A
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	11

Preview

Download Datasheet

View All

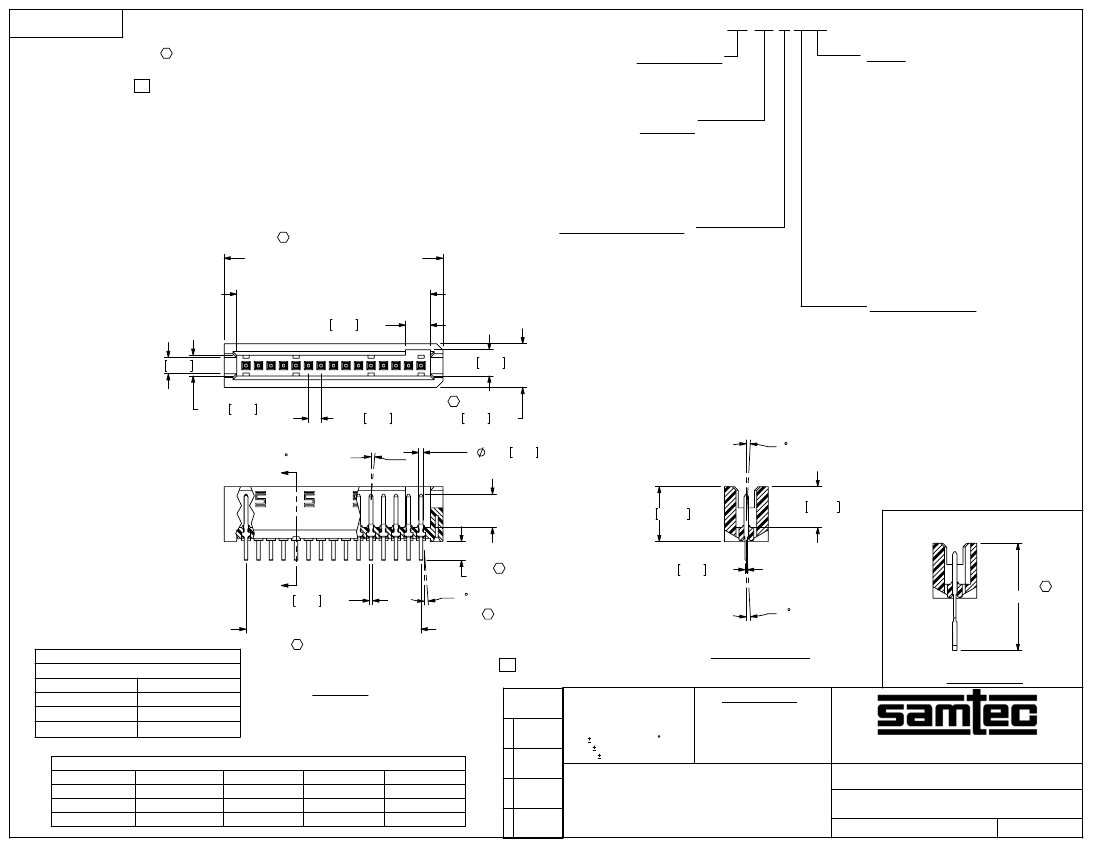

REVISION Z

NOTES:

REPRESENTS A CRITICAL DIMENSION.

2. MINIMUM PUSHOUT FORCE TO BE 16 OZ FOR TERMINALS, 12 OZ FOR WELD TABS,

AND 8 OZ FOR LOCKING CLIPS.

3. MEASURED FROM BEND.

4. MAXIMUM TERMINAL BURR: .003 [.08]

5. MAXIMUM HEIGHT VARIATION BETWEEN ANY TWO PINS: .005 [.13]

6. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED, THE -LC OPTION

IS NOT COMPATIBLE WITH AUTO PLACEMENT. SAMTEC RECOMMENDS

MANUAL PLACEMENT FOR ALL ASSEMBLIES WITH THE -LC OPTION.

TFM-1XX-XX-X-S-XX

No OF POSITIONS

ALL POSITIONS AVAILABLE

-02 THRU -50

OPTION

-A: ALIGNMENT PIN (USE TFM-XX-S-01-A)

(NOT AVAILABLE WITH -WT OPTION)

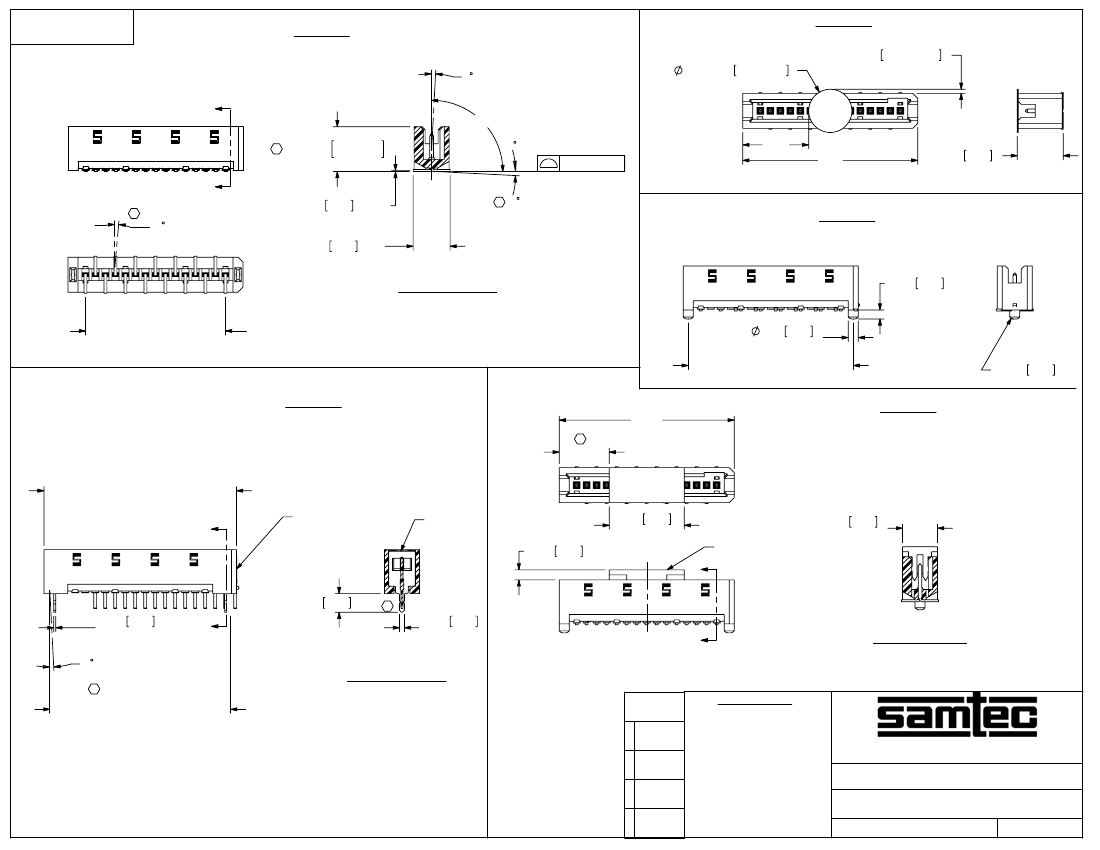

(SEE FIG. 5 SHEET 2)

-LC: LOCKING CLIP (USE LC-05-TM)

(NOT AVAILABLE WITH -WT OPTION)

(SEE FIG. 7 SHEET 3) (SEE NOTE 6)

-P: PICK AND PLACE PAD (USE PPP-15)

(SEE FIG. 6 SHEET 2)

(NOT AVAILABLE -03, -04 & -05 POSITIONS)

-K: POLYIMIDE FILM (SEE FIG. 3 SHEET 2)

(USE K-500-300)

-WT: WELD TABS (USE WT-25-07-T)

(SEE FIG. 4 SHEET 2)

(AVAILABLE ON -02 THRU -30 POS ONLY)

(NOT AVAILABLE WITH

-A OR -LC OPTIONS)

-TR: TAPE & REEL

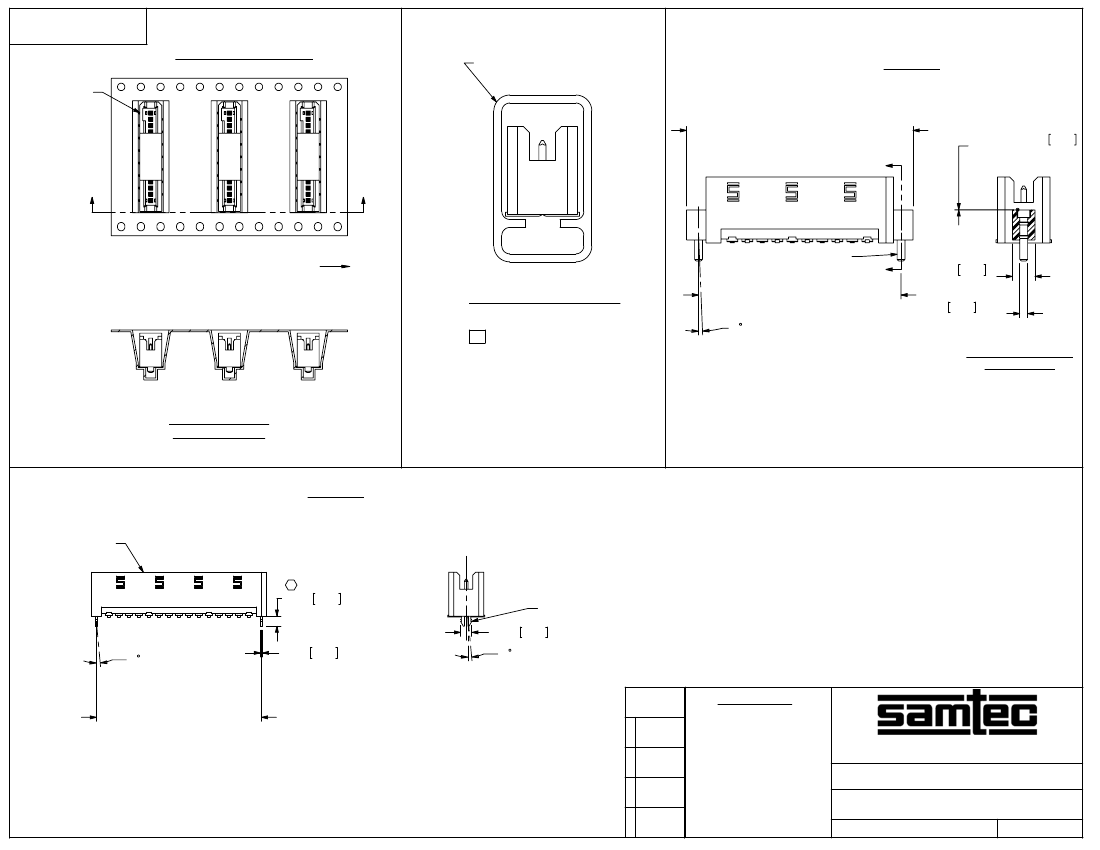

(SEE SHEET 3, TAPE AND REEL VIEW)

-SN: SOLDER NAIL (USE WT-27-03)

(NOT AVAILABLE WITH -A, -LC, OR

-WT OPTIONS) (SEE FIG. 8 SHEET 3)

BODY SPECIFICATION

-S: SINGLE ROW

(USE TFM-XX-S-XX-XX)

LEAD STYLE

-01: T-1R16-01-X-2

THROUGH HOLE

-02: T-1R16-01-X-2

SURFACE MOUNT

-03: T-1R16-10-X

THROUGH HOLE

((No. OF POSITIONS x .050[1.27])

+ .125[3.18])REF

((No. OF POSITIONS x .050[1.27])

+ .025[.64])REF

.100 2.54 REF

.065 1.65

.050 1.27 REF

2 MAX SWAY

(TYP)

"A"

PLATING SPECIFICATIONS

-S: 30µ" SELECTIVE GOLD IN CONTACT AREA,

MATTE TIN ON TAIL

-F: 3µ" GOLD IN CONTACT AREA,

MATTE TIN ON TAIL

-P: 3µ" GOLD PALLADIUM NICKEL IN CONTACT

AREA, MATTE TIN ON TAIL

-L: 10µ" GOLD IN CONTACT AREA,

MATTE TIN ON TAIL

.105 2.67 REF

NOT RELEASED FOR PRODUCTION

NOT TOOLED

.083 2.11

.175 4.45 REF

.018 0.46

2 MAX TOE

(TYP)

"B" REF

.2200 5.588

.1635 4.153 REF

"A"

.014 0.36 REF

((No. OF POSITIONS x .050[1.27])

- .050[1.27])

TABLE 1

ALLOWABLE COPLANARITY

POSITIONS

-02 THRU -29

.004 MAX

-030 THRU -39

.006 MAX

-40 THRU -50

.008 MAX

"A"

.010 0.25 REF

"C"

2 MAX TOE (TYP)

2 MAX SWAY (TYP)

(TFM-115-01-X-S-XX SHOWN)

SECTION "A"-"A"

IN-PROCESS

CPC

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

FIGURE 1

FREQUENCY

THIS SHEET

C1, C2

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

LEAD STYLE

-01

-02

-03

BODY

TFM-XX-S-XX-XX

TABLE 2

"A"

0.075 [1.91]

N/A

0.109 [2.77]

"B"

0.133 [3.38]

0.140 [3.56]

"C"

0.4285 [10.884]

0.644 [16.36]

B C3, C4, C5,

MATERIAL:

.XX: .01 [.3]

.XXX: .005 [.13]

.XXXX: .0020 [.051]

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail info@SAMTEC.com

code 55322

DESCRIPTION:

DWG. NO.

INSULATOR: LIQUID CRYSTAL POLYMER, COLOR: BLACK

TERMINAL: PHOSPHOR BRONZE

DO NOT SCALE DRAWING

SHEET SCALE: 1:0.4

.050 C.L. SINGLE ROW SHROUDED TERMINAL STRIP

TFM-1XX-XX-X-S-XX

8/21/2008

SHEET

F:\DWG\MISC\MKTG\TFM-1XX-XX-X-S-XX-MKT.SLDDRW

BY:

D. SCHMELZ
