5 x 7 mm, 3.0, 3.3 & 5.0 Volt, HCMOS or Clipped Sinewave,
Precision TCXO/TCVCXO
Product Features
•
•
•
•
•
Stratum 3 performance with hold-over
stability (0.32 ppm) over industrial temperature
range (-40 °C to +85 °C)
Available in both 10 and 4/5 pads configurations
3.0 V, 3.3 V and 5.0 V versions
Low phase noise and Excellent G-Sens performance:
1.5ppb/G
Tri-state Function available
N (10 Pad)
Package Option
Product Description
MtronPTI’s M610x Series TCXO’s and TCVCXO’s provide network and wireless engineers with low voltage, surface
mount products with tight stability over temperature and time. MtronPTI’s unique approach to crystal compensation
enables these devices to achieve full Stratum 3 temperature stability including holdover over -40 C to +85 C. Specially
processed crystals enable the M610x to achieve consistent long-term stability and minimal frequency shift after reflow.
This processing also achieves excellent g-sensitivity (1.5 ppb/g). The low phase noise (-155 dBc/Hz at 100 kHz) makes
the M610x ideal for those design engineers working on high data-rate, low BER data communication network products.
With two standard package configurations, MtronPTI can support the original industry standard 10 pad as well as the
newer 4/5 pad topology (4 pad is without Tristate function and 5 pad is with Tristate function).
Product Applications
The M610x Series is ideally suited for a wide range of applications such as SONET, SDH, SERDES, GSM, CDMA, 3G, 4G,
Gig-Ethernet, 10G and 40G systems. Standard output for the M610x series is HCMOS compatible or clipped sinewave and
draws as little as 1.5 mA with a 3.3 volt supply at 13 MHz. This low power consumption provides a distinct advantage over
similarly specified ovenized oscillators for power-sensitive remote applications. The M610x series offers ±9.2 ppm minimum
pull range with excellent tuning linearity performance for critical PLL applications. This series is available in frequencies from
8 to 40MHz and selectively to 52MHz.
Product Ordering Information
M6100Sxxx, M6101Sxxx & M6102Sxxx - Contact factory for datasheets.
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see www.mtronpti.com for our complete offering and detailed datasheets. Contact MtronPTI for your application specific requirements at 800.762.8800 toll free or 605.665.9321.
Revision: 1-5-11
M610x Series Stratum 3
Performance Characteristics
Parameter
Frequency Range
Operating Temperature
Storage Temperature
Frequency Tolerance @ +25°
C
Frequency Stability
Symbol
F
O
T
A
T
STG
Min.
8
-40
-55
-1.0
-0.28
-4.6
-0.32
-1.0
±0.02
±0.02
-5.0
2.2
3.5
6.0
1.5
1.8
3.0
V
OL
V
OH
80
1.0
0.8
40
15
10/10
±9.2
0.3
0.3
0.5
-50
100
2
70
-100
-95
-125
-145
-152
-155
MIL-STD-202, Method 213, Condition C
MIL-STD-202, Methods 201 & 204
EIAJ-STD-002
5.0 x 7.0 x 2.0 mm, SMT
See solder profile
30
+100
2.7
3.0
4.5
+50
3
Typ.
Max.
52
+85
+125
+1.0
+0.28
+4.6
+0.32
+1.0
±0.1
±0.1
+5.0
3.3
5.0
9.2
2.2
2.7
4.5
20
Units
MHz
°
C
°
C
ppm
ppm
ppm
ppm
ppm
ppm
ppm
%
mA
mA
mA
mA
mA
mA
%V
S
%V
S
V
pk-pk
V
pk-pk
%
ns
pF
Kohm/pF
ppm
Volts
Volts
Volts
µA
Kohm
%
kHz
%V
S
%V
S
µA
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
5 x 7 mm, 3.0, 3.3 & 5.0 Volt, HCMOS or Clipped Sinewave,
Precision TCXO/TCVCXO
Conditions/Notes
Contact factory above 40 MHz
See Ordering Information
For TCXO only
Stability vs. Temperature
Overall stability for 10 years
Holdover stability for 24 hours over
operating temperature
For 5% supply voltage variation
For 5% load variation
See Ordering Information
HCMOS output at 13 MHz
HCMOS output at 26 MHz
HCMOS output at 52 MHz
Clipped sinewave output at 13 MHz
Clipped sinewave output at 26 MHz
Clipped sinewave output at 52 MHz
I
OH
/I
OL
= ± 4 mA, Vs = +3.0 V
I
OH
/I
OL
= ± 4 mA, Vs = +3.0 V
F
o
< 40 MHz
F
o
> 40 MHz
Ref. to ½ V
S.
HCMOS only
Ref. 10% to 90%. HCMOS only
HCMOS output
Clipped sinewave output
Over Control Voltage Range
For V
S
= 3.0
For V
S
= 3.3
For V
S
= 5.0
Stability Vs. Reflow
Frequency Vs. Supply
Frequency Vs. Load
Supply Voltage Tolerance
Supply Current (I
D
)
Electrical Specifications
Output Logic Levels
(HCMOS)
Output Level
(Clipped Sinewave)
Waveform Symmetry
Rise/Fall Time
Output Load
Frequency Adjustment
Control Voltage Range
60
8
Input Leakage Current
Input Resistance
Linearity
Modulation Bandwidth
Tristate Function
Tristate Leakage Current
Phase Noise
(Typical 10 MHz CMOS)
Output enabled. Logic “1” or “Open”
Output disabled. Logic “0” or “GND”
10 Hz Offset
100 Hz Offset
1 KHz Offset
10 KHz Offset
100 kHz Offset
100 g
10 g from 10 to 2000 Hz
RoHS Compliant
Environmental
Shock
Vibration
Solderability
Package
Max Soldering Conditions
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see www.mtronpti.com for our complete offering and detailed datasheets. Contact MtronPTI for your application specific requirements at 800.762.8800 toll free or 605.665.9321.
2
M610x Series Stratum 3
5 x 7 mm, 3.0, 3.3 & 5.0 Volt, HCMOS or Clipped Sinewave,
Precision TCXO/TCVCXO

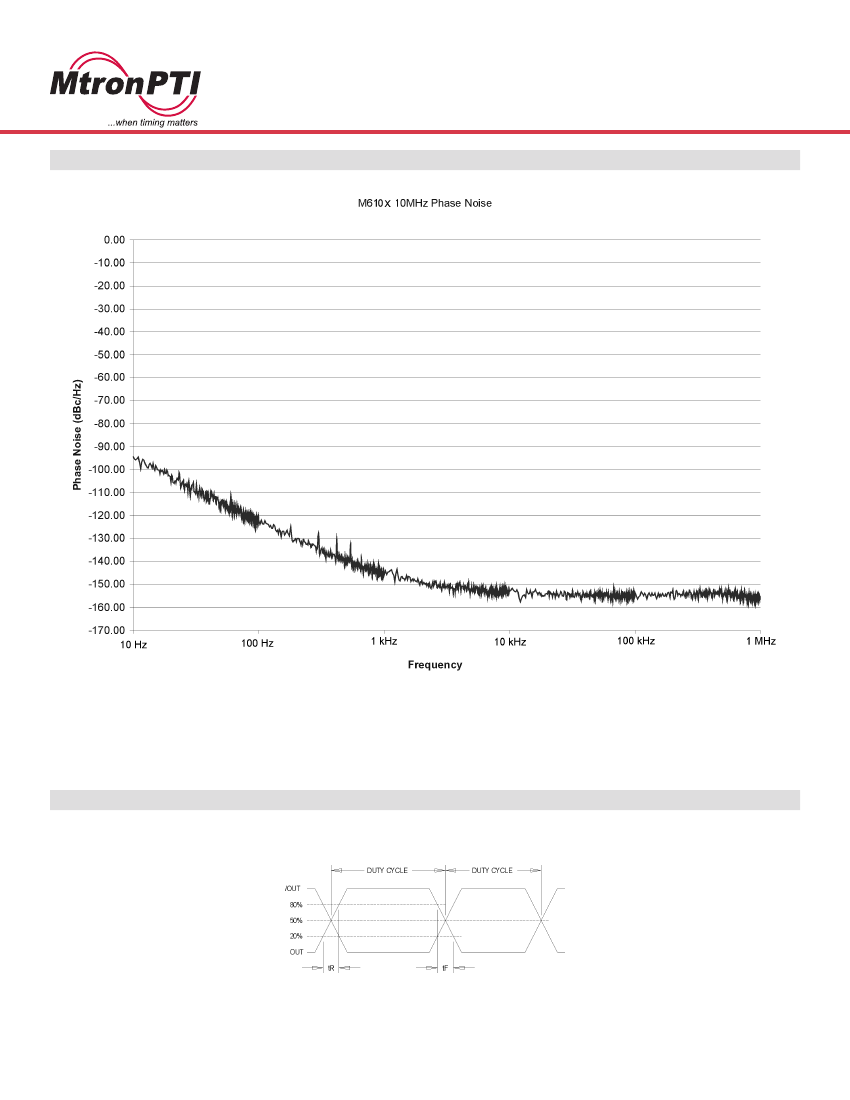

Phase Noise Plot
Output Waveform (HCMOS Output)
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see www.mtronpti.com for our complete offering and detailed datasheets. Contact MtronPTI for your application specific requirements at 800.762.8800 toll free or 605.665.9321.
3
M610x Series Stratum 3
Product Dimension & Pinout Information - Package Code N (10 Pad)
5 x 7 mm, 3.0, 3.3 & 5.0 Volt, HCMOS or Clipped Sinewave,
Precision TCXO/TCVCXO
Pin Connections
Function
Pad
Vref or N/C
1
N/C - Do Not Connect
2
N/C - Do Not Connect
3
Ground
4
Output
5
N/C - Do Not Connect
6
N/C - Do Not Connect
7
Tristate
8
Supply Voltage (V
s
)
9
Control Voltage
10
Part Marking Guide
Line
Description
1
Part family, year,
month of production
2
Frequency
SUGGESTED SOLDER PAD LAYOUT
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see www.mtronpti.com for our complete offering and detailed datasheets. Contact MtronPTI for your application specific requirements at 800.762.8800 toll free or 605.665.9321.
4
Product Dimension & Pinout Information - Package Code T (4/5 Pad)
Pin Connections
Function
Vcontrol
N/C - Do Not Connect
N/C - Do Not Connect
Ground
N/C - Do Not Connect
Output
Tristate or
N/C - Do Not Connect
Power
N/C - Do Not Connect
Pad
1
A
B
2
C
3
4
5
D
Part Marking Guide
Line
Description
1
Part family, year,
month of production
2
Frequency
SUGGESTED SOLDER PAD LAYOUT
WITHOUT TRISTATE (4 PAD)
SUGGESTED SOLDER PAD LAYOUT
WITH TRISTATE (5 PAD)
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see www.mtronpti.com for our complete offering and detailed datasheets. Contact MtronPTI for your application specific requirements at 800.762.8800 toll free or 605.665.9321.
