TLP762J(LF4) datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> TLP762J(LF4)

TLP762J(LF4): DescriptionOptocoupler - Trigger Device Output, 1 CHANNEL TRIAC OUTPUT OPTOCOUPLER, PLASTIC, DIP-5; CategoryLED optoelectronic/LED photoelectric; File Size91KB，4 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TLP762J(LF4) Overview

Optocoupler - Trigger Device Output, 1 CHANNEL TRIAC OUTPUT OPTOCOUPLER, PLASTIC, DIP-5

TLP762J(LF4) Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
package instruction	PLASTIC, DIP-5
Reach Compliance Code	unknown
Other features	UL RECOGNIZED
Configuration	SINGLE
Maximum forward current	0.05 A
Nominal input trigger current	10 mA
Maximum insulation voltage	4000 V
JESD-609 code	e0
Number of components	1
Maximum on-state current	0.1 A
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	TRIAC OUTPUT OPTOCOUPLER
Minimum off-state peak voltage	600 V
Terminal surface	Tin/Lead (Sn/Pb)

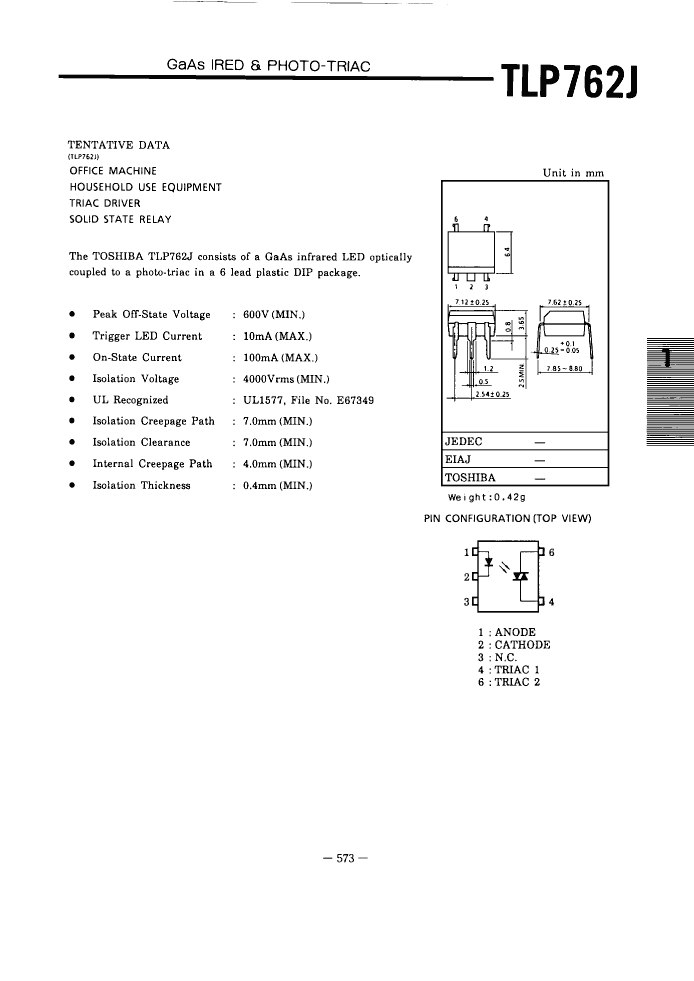

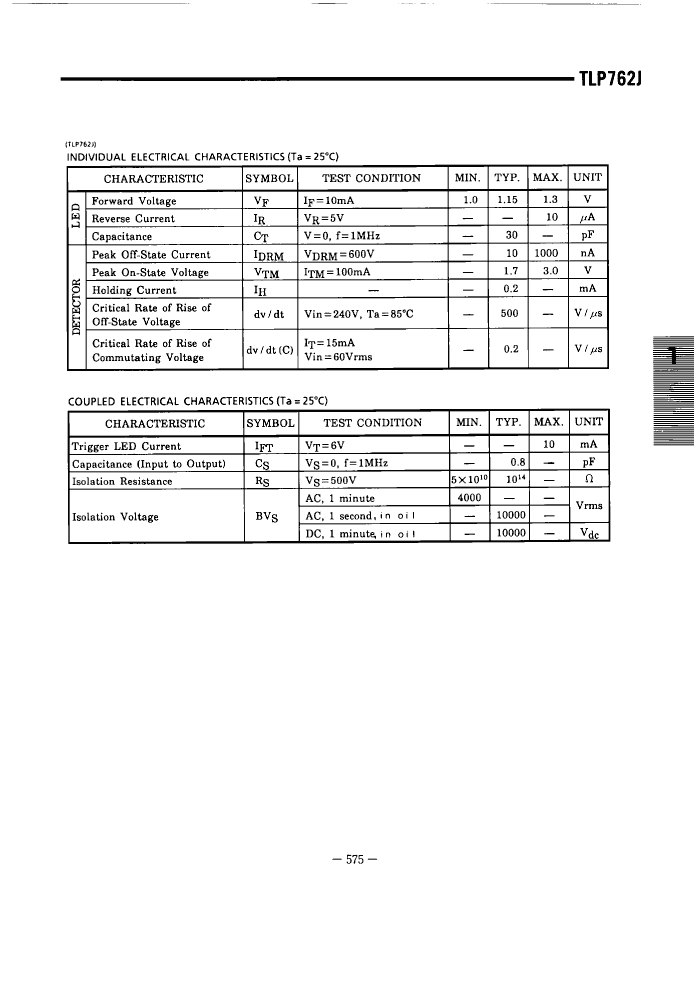

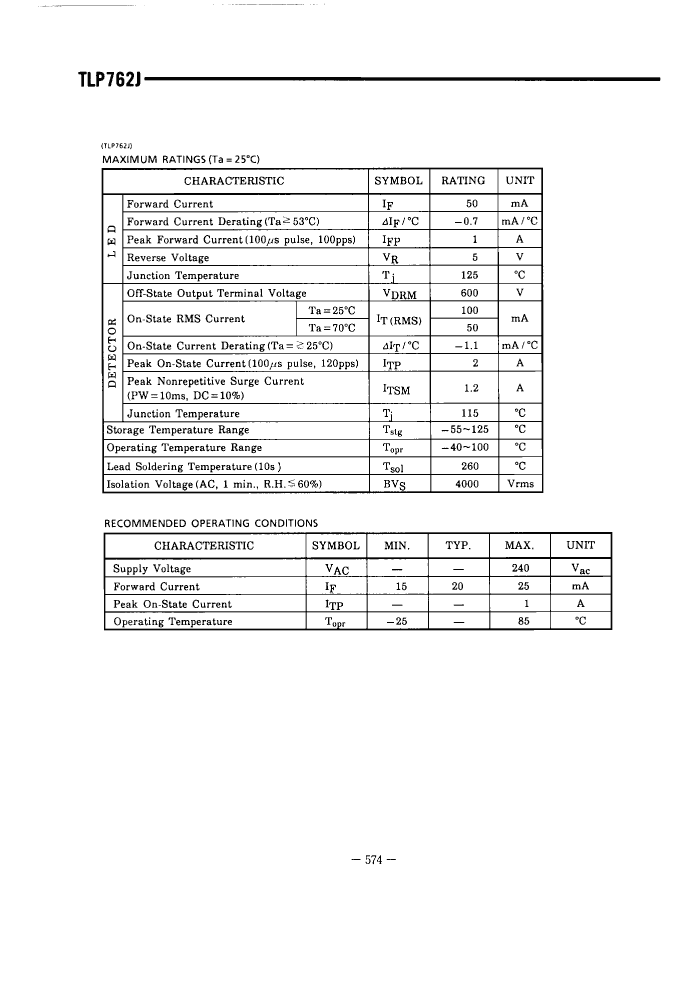

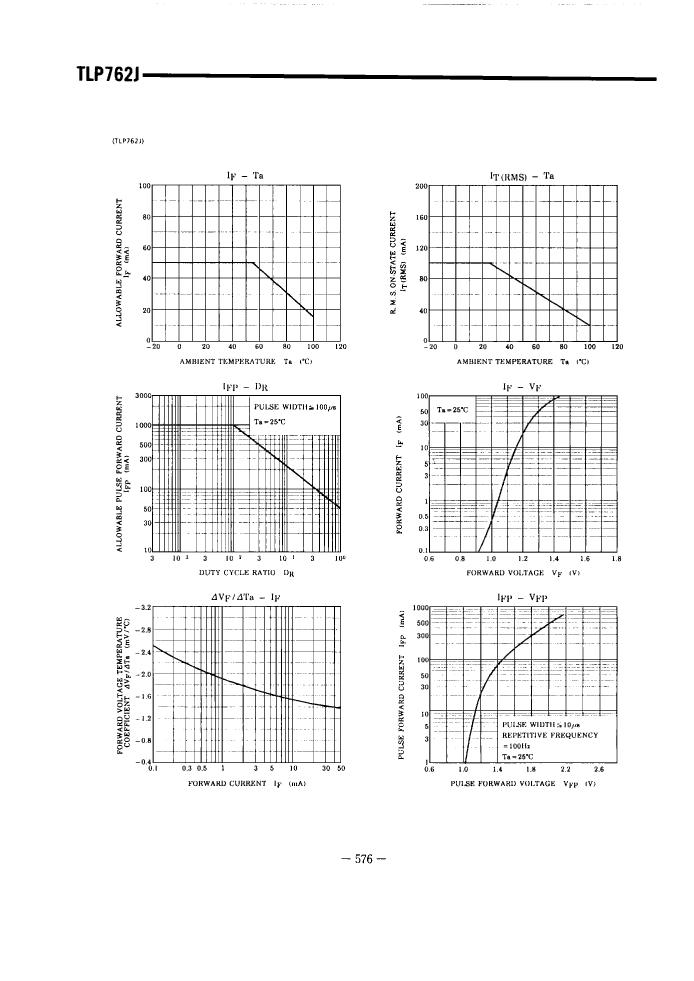

TLP762J(LF4) Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

TLP762J(LF4) Related Products

	TLP762J(LF4)	TLP762J(TP1)	TLP762J(LF5)	TLP762J(TP5)	TLP762J(LF1)	TLP762J(TP4)
Description	Optocoupler - Trigger Device Output, 1 CHANNEL TRIAC OUTPUT OPTOCOUPLER, PLASTIC, DIP-5	Optocoupler - Trigger Device Output, 1 CHANNEL TRIAC OUTPUT OPTOCOUPLER, PLASTIC, DIP-5	Optocoupler - Trigger Device Output, 1 CHANNEL TRIAC OUTPUT OPTOCOUPLER, PLASTIC, DIP-5	Optocoupler - Trigger Device Output, 1 CHANNEL TRIAC OUTPUT OPTOCOUPLER, PLASTIC, DIP-5	Optocoupler - Trigger Device Output, 1 CHANNEL TRIAC OUTPUT OPTOCOUPLER, PLASTIC, DIP-5	Optocoupler - Trigger Device Output, 1 CHANNEL TRIAC OUTPUT OPTOCOUPLER, PLASTIC, DIP-5
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor
package instruction	PLASTIC, DIP-5	PLASTIC, DIP-5	PLASTIC, DIP-5	PLASTIC, DIP-5	PLASTIC, DIP-5	PLASTIC, DIP-5
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A
Nominal input trigger current	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA
Maximum insulation voltage	4000 V	4000 V	4000 V	4000 V	4000 V	4000 V
JESD-609 code	e0	e0	e0	e0	e0	e0
Number of components	1	1	1	1	1	1
Maximum on-state current	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Optoelectronic device types	TRIAC OUTPUT OPTOCOUPLER	TRIAC OUTPUT OPTOCOUPLER	TRIAC OUTPUT OPTOCOUPLER	TRIAC OUTPUT OPTOCOUPLER	TRIAC OUTPUT OPTOCOUPLER	TRIAC OUTPUT OPTOCOUPLER
Minimum off-state peak voltage	600 V	600 V	600 V	600 V	600 V	600 V
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
