SF1194A
•
•
•
•
•
Low Insertion Loss
Excellent Size-to-Performance Ratio
Hermetic SMP-75 Surface-Mount Case
Single-Ended or Differential Input and Output
Complies with Directive 2002/95/EC (RoHS)
Pb
167 MHz
SAW Filter
Units
+10
30
-5 to +85
260°C for 30 s
dBm
VDC
°C
Absolute Maximum Ratings
Rating
Maximum Incident Power in Passband
Max. DC voltage between any 2 terminals
Temperature Range
Suitable for lead-free soldering - Max. Soldering Profile
Value
SMP-75
Characteristic
Center Frequency
Maximum Insertion Loss 167 ± .075 MHz
2.0 dB Bandedges
17 dB Bandedges
36 dB Bandedges
41 dB Bandedges
Ultimate Rejection
30 to 147 MHz
147 to 165.4 MHz
168.6 to 187 MHz
187 to 276 MHz
276 to 278 MHz
278 to 2000 MHz
Amplitude Variation
Amplitude Ripple
Absolute Group Delay
Group Delay Variation
Maximum RF Input Power
Input IMR
For two -20dBm input signals
At 167 + .800 MHz
And 167 + 1.600 MHz
Or at 167 -.800 MHz
And 167 -1.600 MHz
167 ± .075 MHz
167 ± .075 MHz
167 ± 0.75 MHz
167 ± 0.75 MHz
167 ± 0.75 MHz
167 ± 0.75 MHz
Sym
f
O
IL
Notes
1
Min
Typ
167
Max
7.0
± .200
± .400
± .600
± .800
Units
MHz
dB
MHz
MHz
MHz
MHz
dB
dB
dB
dB
dB
dB
1.5
1
dB p-p
dB p-p
µsec
nsec
dBm
70
41
41
70
50
70
2.3
2.6
400
22
100
dB
Input Return Loss
Output Return Loss
Source/Load Impedance
Matching Components
Case Style
15
10
Single-Ended or Differential Input / Output
Fixed value, external Q 40-50
4
SMP-75 19 x 6.5 mm Nominal Footprint
RFM SF1194A YYWW
dB
dB
Ohm
Lid Symbolization (YY = year, WW = week)
©2010-2014
© Murata
Electronics N.A., Inc.
Ltd. All Rights Reserved 2003
Copyright
by Murata
Manufacturing Co.,
SF1194A (R) 3/21/14
Page 1 of 10
www.murata.com
NOTES:
1.
2.
3.
4.
5.
6.
7.
Unless noted otherwise, all specifications apply over the operating temperature range with filter soldered to the specified demonstration board with impedance matching to
50
Ω
and measured with 50
Ω
network analyzer.
Unless noted otherwise, all frequency specifications are referenced to the nominal center frequency, fc.
The design, manufacturing process, and specifications of this filter are subject to change.
Tape and Reel Standard ANSI / EIA 481.
US and international patents may apply.
Murata, stylized Murata logo, and Murata N.A., Inc. are registered trademarks of Murata Manufacturing Co., Ltd
Electrostatic Sensitive Device. Observe precautions for handling.
SMP-75 Case
10-Terminal Ceramic Surface-Mount Case
19 x 6.5 mm Nominal Footprint
Case Dimensions
Dimension
A
B
C
D
E
H
P
Min
18.80
6.30
mm
Nom
19.00
6.50
1.75
2.29
1.02
1.0
1.905
Max
19.30
6.80
2.00
Min
0.740
0.248
Inches
Nom
0.748
0.256
0.069
0.090
0.040
0.039
0.075
Max
0.760
0.268
0.079
Electrical Connections
Materials
Solder Pad
Termination
Lid
Body
Pb Free
Au plating 30 - 60 µinches (76.2-152 µm) over 80-200
µinches (203-508 µm) Ni.
Fe-Ni-Co Alloy Electroless Nickel Plate (8-11% Phos-
phorus) 100-200 µinches Thick
Al
2
O
3
Ceramic
Port 1
Port 2
Connection
Input or Return
Return or Input
Output or Return
Return or Output
Ground
Single Ended Operation
Differential Operation
Terminals
10
1
5
6
All others
Return is ground
Return is hot
B
C
H
D
P (8 Places)
6
7
A
8
9
10
5
4
3
2
1
5
4
3
2
1
6
7
8
9
10
E (10 Places)
TOP VIEW
BOTTOM VIEW
©2010-2014 by Murata
Manufacturing Co.,
Copyright © Murata
Electronics N.A., Inc.
Ltd. All Rights Reserved 2003
SF1194A (R) 3/21/14
Page 2 of 10
www.murata.com
Tape and Reel Specifications
Tape and Reel Packaging with the
following conditions:
Tape Width: 32 mm
100 REF.
"B" REF.
Tape Pitch (part to part): 12 mm
Component Orientation: Parts shall be oriented with the
narrow side closest to the tape’s round sprocket holes on the
tape’s trailing edge.
See Detail "A"
W
12.0
“B “
Nominal Size
Inches
7
13
20
.2
13.
0
Quantity Per Reel
500
1000
millimeters
178
330
2.0
COMPONENT ORIENTATION and DIMENSIONS
Carrier Tape Dimensions
Ao
Bo
Ko
Pitch
W
.276 ± .004 (7.01)
.768 ± .004 (19.51)
.088 ± .004 (2.24)
12mm
32mm
Cover Tape
25.5 mm
PIN #1
USER DIRECTION OF FEED
©2010-2014 by Murata
Manufacturing Co.,
Copyright © Murata
Electronics N.A., Inc.
Ltd. All Rights Reserved 2003
SF1194A (R) 3/21/14
Page 3 of 10
www.murata.com
Assembly Diagram
Copyright © Murata Manufacturing Co., Ltd. All Rights Reserved 2003
©2010-2014 by Murata Electronics N.A., Inc.
SF1194A (R) 3/21/14
Page 4 of 10
www.murata.com

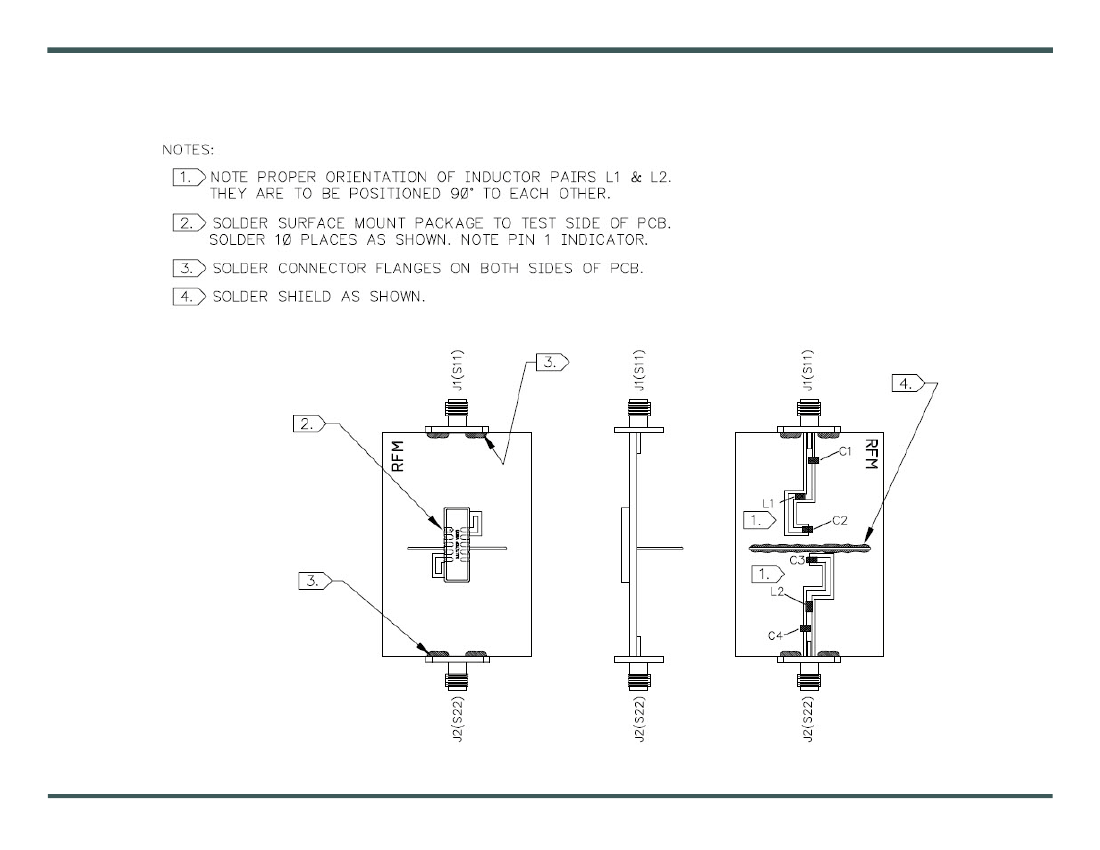

Inductor Pairs
Copyright © Murata Manufacturing Co., Ltd. All Rights Reserved 2003
©2010-2014 by Murata Electronics N.A., Inc.
SF1194A (R) 3/21/14
Page 5 of 10
www.murata.com
