MPSA20RLRP

Description
100mA, 40V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92, CASE 29-11, TO-226AA, 3 PIN
CategoryDiscrete semiconductor    The transistor
File Size102KB,7 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Download Datasheet Parametric Compare View All

MPSA20RLRP Overview

100mA, 40V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92, CASE 29-11, TO-226AA, 3 PIN

MPSA20RLRP Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerON Semiconductor
Parts packaging codeTO-92
package instructionCASE 29-11, TO-226AA, 3 PIN
Contacts3
Manufacturer packaging codeCASE 29-11
Reach Compliance Codecompliant
ECCN codeEAR99
Maximum collector current (IC)0.1 A
Collector-emitter maximum voltage40 V
ConfigurationSINGLE
Minimum DC current gain (hFE)40
JEDEC-95 codeTO-92
JESD-30 codeO-PBCY-T3
JESD-609 codee0
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeROUND
Package formCYLINDRICAL
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typeNPN
Certification statusNot Qualified
surface mountNO
Terminal surfaceTIN LEAD
Terminal formTHROUGH-HOLE
Terminal locationBOTTOM
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsAMPLIFIER
Transistor component materialsSILICON
Nominal transition frequency (fT)125 MHz

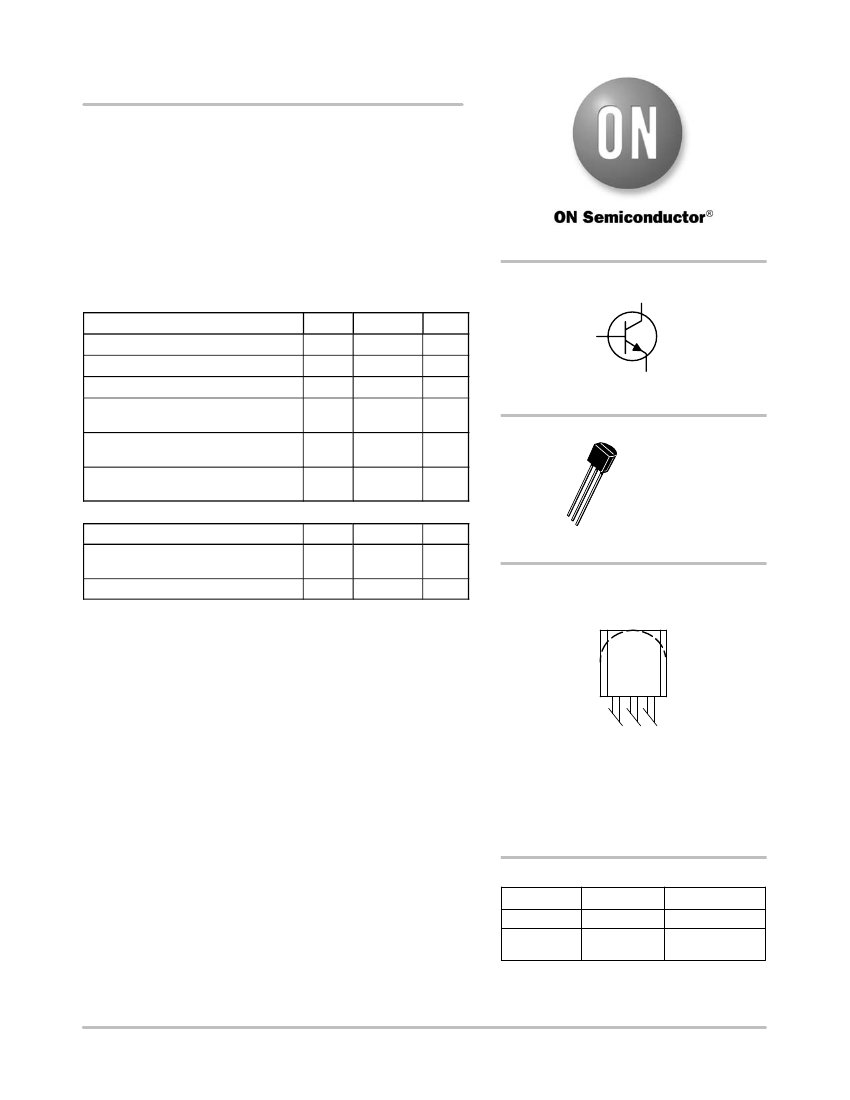

MPSA20
Amplifier Transistor
NPN Silicon
Features
Pb−Free Package is Available*
MAXIMUM RATINGS
Rating
Collector −Emitter Voltage
Collector −Base Voltage
Collector Current − Continuous
Total Device Dissipation @ T
A
= 25°C
Derate above 25°C
Total Device Dissipation @ T
C
= 25°C
Derate above 25°C
Operating and Storage Junction
Temperature Range
Symbol
V
CEO
V
CBO
I
C
P
D
P
D
T
J
, T
stg
Value
40
4.0
100
625
5.0
1.5
12
−55 to +150
Unit
Vdc
Vdc
mAdc
mW
mW/°C
W
mW/°C
°C
http://onsemi.com
COLLECTOR
3
2
BASE
1
EMITTER
THERMAL CHARACTERISTICS
Characteristic
Thermal Resistance, Junction−to−Ambient
(Note 1)
Thermal Resistance, Junction−to−Case
Symbol
R
qJA
R
qJC
Max
200
83.3
Unit
°C/W
°C/W
1
2
3
TO−92
CASE 29−11
STYLE 1
MARKING DIAGRAM
Maximum ratings are those values beyond which device damage can occur.
Maximum ratings applied to the device are individual stress limit values (not
normal operating conditions) and are not valid simultaneously. If these limits are
exceeded, device functional operation is not implied, damage may occur and
reliability may be affected.
1. R
qJA
is measured with the device soldered into a typical printed circuit board.
MPS
A20
AYWW
G
G
MPSA20 = Device Code
A
= Assembly Location
Y
= Year
WW
= Work Week
G
= Pb−Free Package
(Note: Microdot may be in either location)
ORDERING INFORMATION
Device
MPSA20
MPSA20G
Package
TO−92
TO−92
(Pb−Free)
Shipping
5,000 Units / Box
5,000 Units / Box
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
©
Semiconductor Components Industries, LLC, 2006
1
January, 2006 − Rev. 3
Publication Order Number:
MPSA20/D

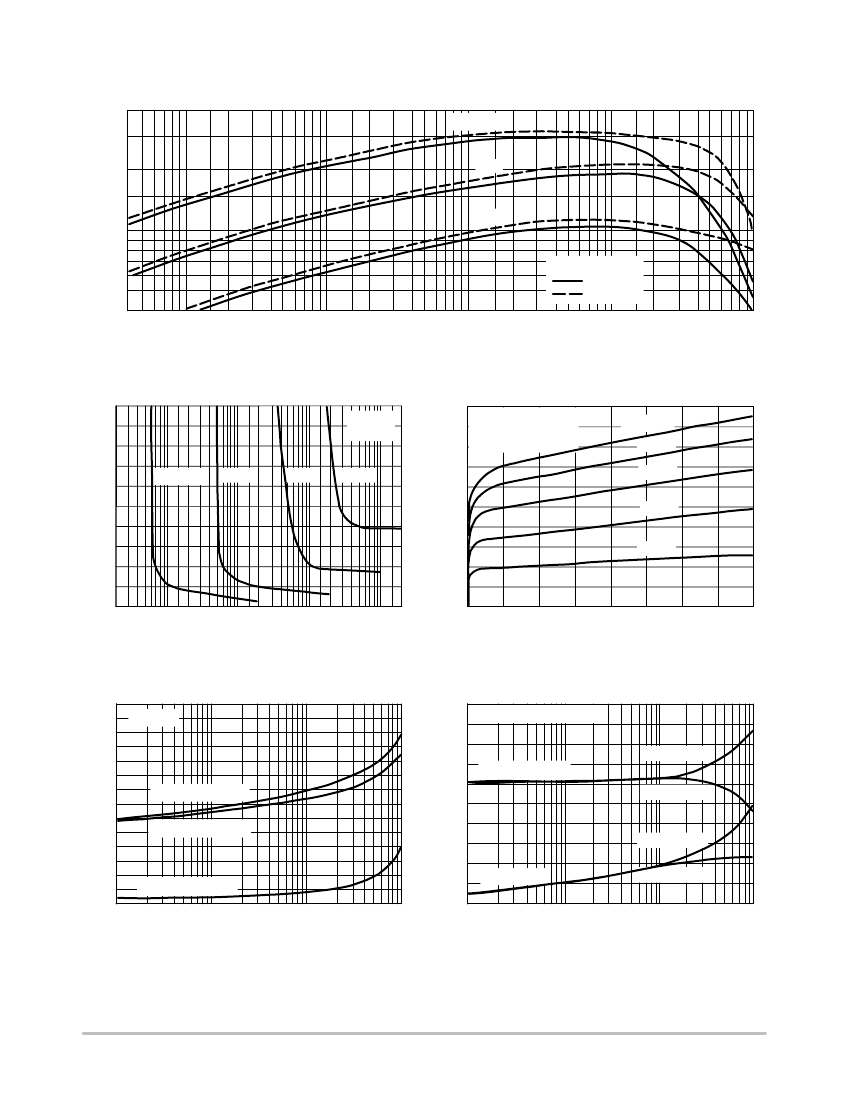

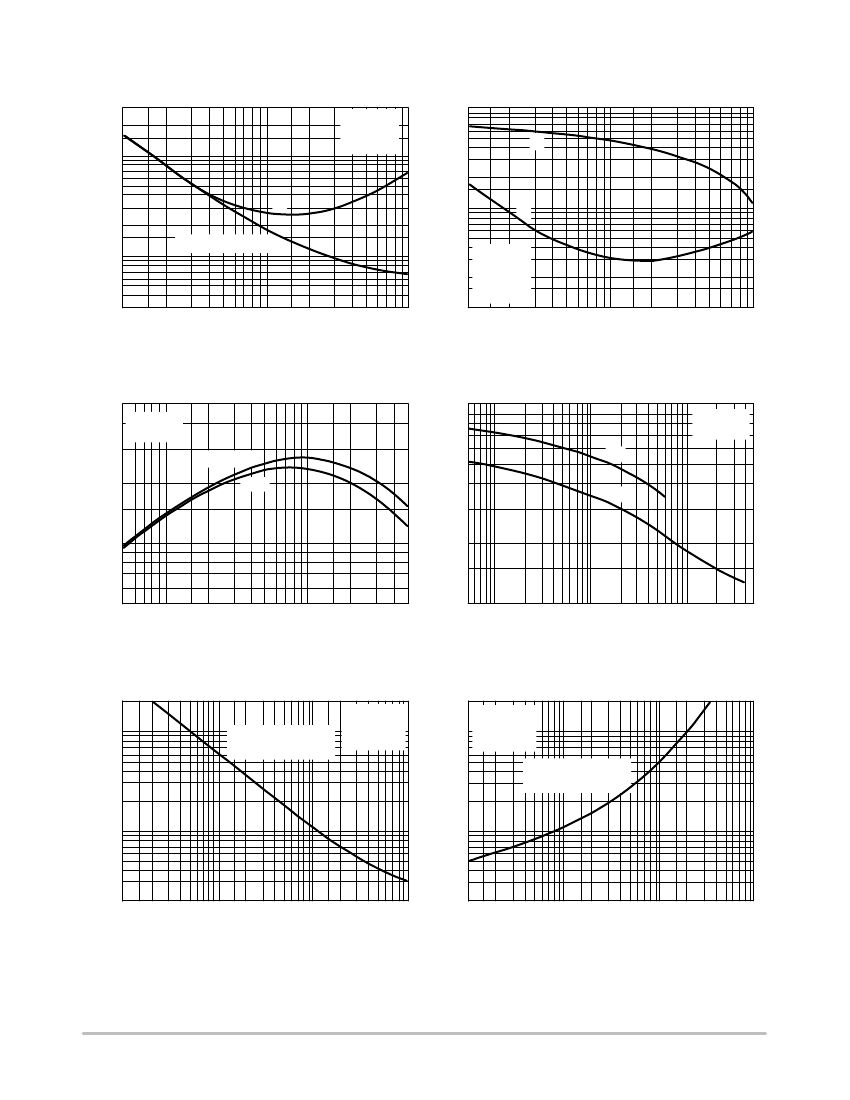

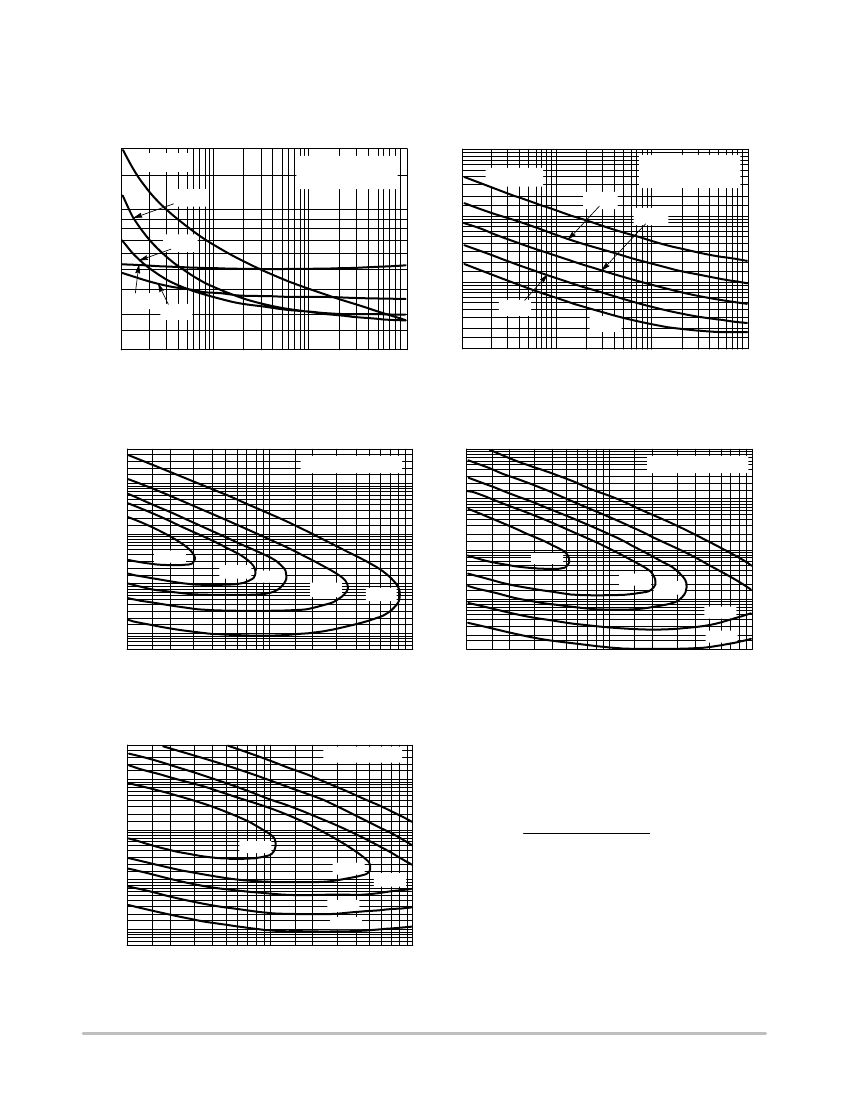

MPSA20RLRP Related Products

MPSA20RLRP MPSA20RLRE MPSA20RLRA MPSA20RL MPSA20RLRM MPSA20RL1
Description 100mA, 40V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92, CASE 29-11, TO-226AA, 3 PIN 100mA, 40V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92, CASE 29-11, TO-226AA, 3 PIN TRANSISTOR 100 mA, 40 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92, CASE 29-11, TO-226AA, 3 PIN, BIP General Purpose Small Signal 100mA, 40V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92, CASE 29-11, TO-226AA, 3 PIN 100mA, 40V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92, CASE 29-11, TO-226AA, 3 PIN 100mA, 40V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92, CASE 29-11, TO-226AA, 3 PIN
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible incompatible
Maker ON Semiconductor ON Semiconductor ON Semiconductor ON Semiconductor ON Semiconductor ON Semiconductor
Parts packaging code TO-92 TO-92 TO-92 TO-92 TO-92 TO-92
package instruction CASE 29-11, TO-226AA, 3 PIN CYLINDRICAL, O-PBCY-T3 CYLINDRICAL, O-PBCY-T3 CASE 29-11, TO-226AA, 3 PIN CASE 29-11, TO-226AA, 3 PIN CASE 29-11, TO-226AA, 3 PIN
Contacts 3 3 3 3 3 3
Manufacturer packaging code CASE 29-11 CASE 29-11 CASE 29-11 CASE 29-11 CASE 29-11 CASE 29-11
Reach Compliance Code compliant compliant compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Maximum collector current (IC) 0.1 A 0.1 A 0.1 A 0.1 A 0.1 A 0.1 A
Collector-emitter maximum voltage 40 V 40 V 40 V 40 V 40 V 40 V
Configuration SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE
Minimum DC current gain (hFE) 40 40 40 40 40 40
JEDEC-95 code TO-92 TO-92 TO-92 TO-92 TO-92 TO-92
JESD-30 code O-PBCY-T3 O-PBCY-T3 O-PBCY-T3 O-PBCY-T3 O-PBCY-T3 O-PBCY-T3
JESD-609 code e0 e0 e0 e0 e0 e0
Number of components 1 1 1 1 1 1
Number of terminals 3 3 3 3 3 3
Maximum operating temperature 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape ROUND ROUND ROUND ROUND ROUND ROUND
Package form CYLINDRICAL CYLINDRICAL CYLINDRICAL CYLINDRICAL CYLINDRICAL CYLINDRICAL
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Polarity/channel type NPN NPN NPN NPN NPN NPN
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
surface mount NO NO NO NO NO NO
Terminal surface TIN LEAD TIN LEAD TIN LEAD TIN LEAD TIN LEAD TIN LEAD
Terminal form THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE
Terminal location BOTTOM BOTTOM BOTTOM BOTTOM BOTTOM BOTTOM
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
transistor applications AMPLIFIER AMPLIFIER AMPLIFIER AMPLIFIER AMPLIFIER AMPLIFIER
Transistor component materials SILICON SILICON SILICON SILICON SILICON SILICON
Nominal transition frequency (fT) 125 MHz 125 MHz 125 MHz 125 MHz 125 MHz 125 MHz
