3410GJ122M450JPA1

Description
CAP,AL2O3,1.2MF,450VDC,20% -TOL,20% +TOL
CategoryPassive components    capacitor
File Size170KB，4 Pages
ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]
Environmental Compliance
Download Datasheet Parametric View All

3410GJ122M450JPA1 Overview

CAP,AL2O3,1.2MF,450VDC,20% -TOL,20% +TOL

3410GJ122M450JPA1 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerCDE [ CORNELL DUBILIER ELECTRONICS ]
package instruction,
Reach Compliance Codeunknown
ECCN codeEAR99
capacitance1200 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
diameter50 mm
dielectric materialsALUMINUM
ESR44 mΩ
length105 mm
Manufacturer's serial number3410
negative tolerance20%
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package formSnap-in
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)450 V
ripple current10590 mA
series3410

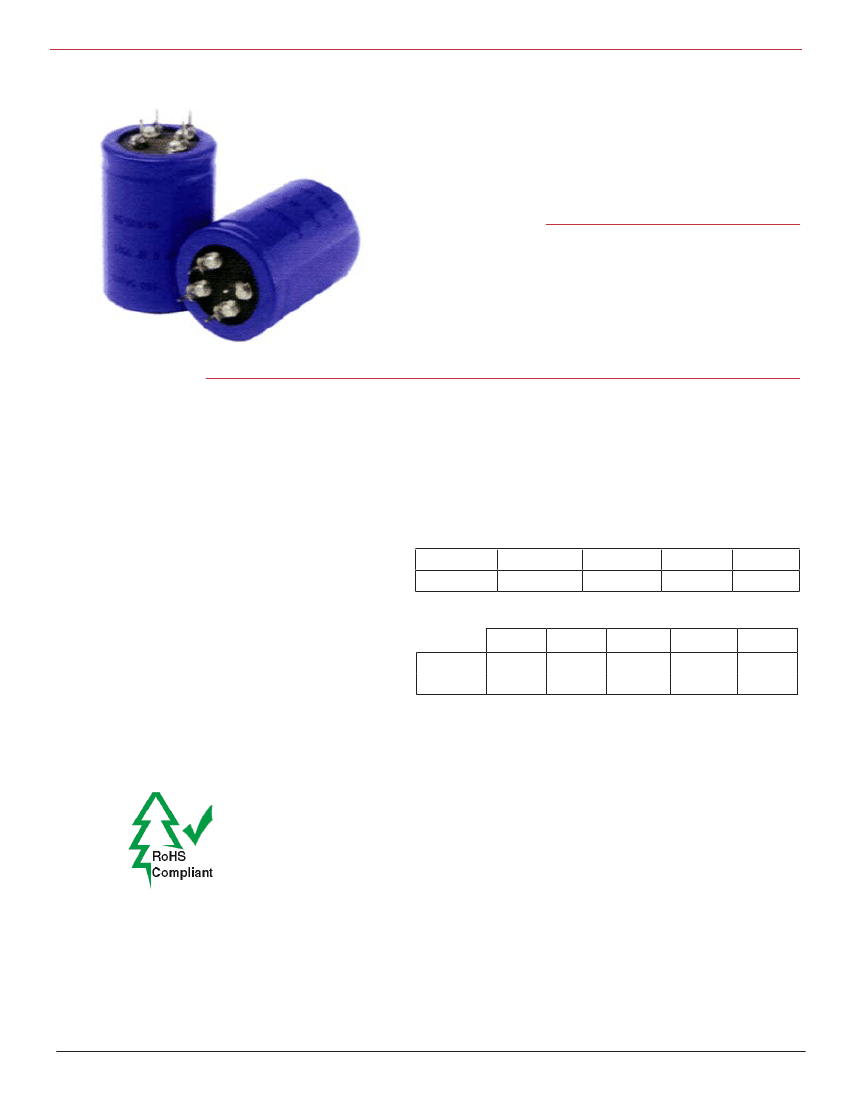

3410GJ122M450JPA1 Preview

Type 3410
85 ºC, 4-Pin, Multipin Snap-In Aluminum Electrolytic
Round Snap-In Aluminum Electrolytic Capacitors
Type 3410 multipin polarized snap-in aluminum
electrolytic capacitors are great as high ripple current bus
capacitors. The 3410 performs well in linear and switch-
mode power supplies and energy storage pulse systems.
Highlights
•
•
•
•
•
Reverse proof keyed polarity with 4 snap-in terminals
Long useful life of more than 5000 hours at 85 ºC
Very high ripple current per capacitance value
Cylindrical insulated case with light blue sleeve
Pressure relief side vent
Specifications
Capacitance Range:
Voltage Range:
Capacitance Tolerance:
Operating Temperature Range:
DC Leakage Current:
Reverse Voltage:
Ripple Current Multipliers:
330 µF to 1600 µF
100 Vdc to 450 Vdc
±20%
–40 ºC to +85 ºC
≤ 0.002CV+4 µA at 5 minutes
≤1V
Ambient Temperature
45 °C
2.24
Frequency
50 Hz
100 V
250–450 V
0.86
0.86
100 Hz
1.00
1.00
300 Hz
1.15
1.25
1000 Hz
1.35
1.40
≥10 kHz
1.45
1.50
55 °C
2.00
65 °C
1.73
75 °C
1.41
85 °C
1.00
Series Inductance:
19 nH typical, 25nH maximum, all case sizes
Life Endurance:
2,000 h at 85 ºC and rated voltage
Δ Capacitance ±30%
ESR 300% of limit
DCL 100% of limit
Expected Life:
≥ 5000 h at 85 ºC and rated ripple current
Δ Capacitance ±15%
ESR 200% of limit
DCL 100% of limit
Total failures ≤ 4%
Shelf Life:
500 h at 85 ºC and no voltage
Δ Capacitance ±15%
ESR 120% of limit
DCL 200% of limit
Vibration:
10 to 5 Hz, 0.06” and 10g max. 1.5 h ea. of 2 axis
CDM Cornell Dubilier
•
140 Technology Place
•
Liberty, SC 29657
•
Phone: (864)843-2277
•
Fax: (864)843-3800
•
www.cde.com
Complies with the EU Directive
2002/95/EC requirement restricting
the use of Lead (Pb), Mercury (Hg),
Cadmium (Cd), Hexavalent chromium
(Cr(VI)), PolyBrominated Biphenyls
(PBB) and PolyBrominated Diphenyl
Ethers (PBDE).
Type 3410
85 ºC, 4-Pin, Multipin Snap-In Aluminum Electrolytic
Part Numbering System
3410
Type
3410
DH
Case Code
See Table
331
Capacitance
331 = 330 µF
163 = 16000 µF
M
Tolerance
450
Voltage
H
Terminal
H = 4 pins
J = 5 pins
(5 pins for
45 & 50 mm
dia)
P
Insulation
P = 0.008" PVC
A2
Construction
(factory assigned
sequence number)
M = ±20% 100 = 100 Vdc
450 = 450 Vdc
Case Codes and Dimensions
Case Dimensions, Insulated Can
Diam. (D)
Case
Code
DF
DG
DH
DJ
EF
EG
EH
EJ
FF
FG
FH
FJ
GF
GG
GH
GJ
±0.031
(in)
1.378
1.378
1.378
1.378
1.575
1.575
1.575
1.575
1.772
1.772
1.772
1.772
1.969
1.969
1.969
1.969
±0.8
(mm)
35
35
35
35
40
40
40
40
45
45
45
45
50
50
50
50
(in)
2.05
2.56
3.23
4.21
2.05
2.56
3.23
4.21
2.05
2.56
3.23
4.21
2.05
2.56
3.23
4.21
Length (L)
±0.062
±1.6
(mm)
52
65
82
107
52
65
82
107
52
65
82
107
52
65
82
107
Typical Weight
(oz)
2.5
3.2
4.1
5.3
3.3
4.2
5.3
6.9
4.2
5.3
6.7
8.8
5.2
6.5
8.3
10.9
(g)
72
91
115
151
94
118
150
197
119
150
190
250
147
185
235
309
CDM Cornell Dubilier
•
140 Technology Place
•
Liberty, SC 29657
•
Phone: (864)843-2277
•
Fax: (864)843-3800
•
www.cde.com
Type 3410
85 ºC, 4-Pin, Multipin Snap-In Aluminum Electrolytic
Ratings
Max ESR
@ 25 °C
Cap.
(µF)
4700
5600
6800
6800
8200
8200
8200
10000
10000
10000
11000
11000
12000
13000
14000
16000
1200
1400
1600
1800
1900
2100
2200
2500
2600
2700
3000
3100
3300
3700
3900
4700
560
680
820
820
1000
1000
1000
Catalog Part Number
120 Hz
(Ω)
0.037
0.038
0.031
0.037
0.026
0.027
0.040
0.021
0.023
0.029
0.025
0.031
0.021
0.026
0.020
0.022
0.085
0.075
0.071
0.055
0.065
0.054
0.048
0.051
0.043
0.040
0.046
0.041
0.035
0.037
0.034
0.031
0.089
0.159
0.132
0.145
0.103
0.112
0.121
20 kHz
(Ω)
100 Vdc (125 Vdc Surge)
0.018
0.018
0.015
0.018
0.012
0.013
0.019
0.010
0.011
0.014
0.012
0.015
0.010
0.012
0.010
0.010
250 Vdc (300 Vdc Surge)
0.040
0.036
0.034
0.026
0.031
0.026
0.023
0.024
0.020
0.019
0.022
0.020
0.017
0.018
0.016
0.015
350 Vdc (400 Vdc Surge)
0.042
0.076
0.063
0.069
0.049
0.053
0.058
120 Hz
(A)
7.70
8.10
9.10
8.90
10.90
10.40
9.10
13.50
12.20
10.80
12.50
10.80
14.60
12.70
15.00
15.00
5.20
5.90
6.30
7.10
7.10
7.50
7.90
8.10
8.80
9.40
9.00
9.60
10.70
10.50
11.50
12.50
3.40
4.00
4.50
4.50
5.30
5.20
5.20
Ripple Amps
Max @ 85 °C
20 kHz
(A)
11.17
11.75
13.20
12.91
15.81
15.08
13.20
19.58
17.69
15.66
18.13
15.66
21.17
18.42
21.75
21.75
7.54
8.56
9.14
10.30
10.30
10.88
11.46
11.75
12.76
13.63
13.05
13.92
15.52
15.23
16.68
18.13
4.93
5.80
6.53
6.53
7.69
7.54
7.54
Nominal
Size
DxL
(mm)
35 x 50
40 x 50
35 x 63
45 x 50
35 x 80
40 x 63
50 x 50
35 x 105
40 x 80
45 x 63
45 x 80
50 x 63
40 x 105
50 x 80
45 x 105
50 x 105
35 x 50
40 x 50
45 x 50
35 x 63
50 x 50
40 x 63
35 x 80
45 x 63
40 x 80
35 x 105
50 x 63
45 x 80
40 x 105
50 x 80
45 x 105
50 x 105
35 x 50
40 x 50
35 x 63
45 x 50
35 x 80
40 x 63
50 x 50
