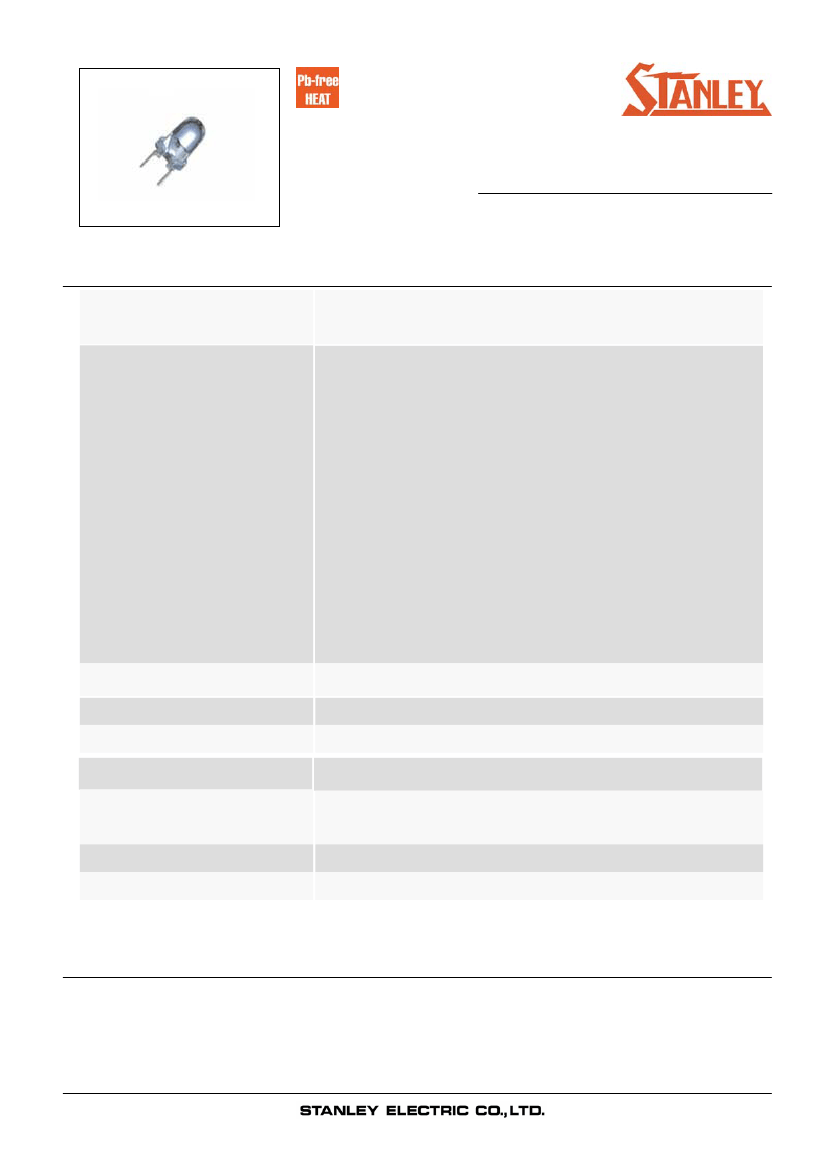

DNP325-4
Through-hole IRED/φ5 High Radiant Intensity Type
Features
Package
φ5
type, Water clear epoxy
Product features
・High
Radiant Intensity : 80mW TYP. (I
F
=50mA)
・High
Speed : Cut-off Frequency 12 TYP. MHz (I
F
=50mA)
・Narrow
Distribution
・Lead–free
soldering compatible
・RoHS
compliant
Peak Wavelength
Half Intensity Angle
Die materials
Rank grouping parameter
Soldering methods
880nm
10 deg.
GaAlAs
Sorted by radiant intensity per rank taping
TTW (Through The Wave) soldering and manual soldering
※Please
refer to Soldering Conditions about soldering.
ESD
Packing
2kV (HBM)
Bulk : 200pcs(MIN.)
Recommended Applications
Electric Household Appliances, OA/FA, PC/Peripheral Equipment, Other General Applications
2006.8.31
Page 1
DNP325-4
Through-hole IRED/φ5 High Radiant Intensity Type
Absolute Maximum Ratings
Item
Power Dissipation
Forward Current
Pulse Forward Current
Derating
(Ta=25℃ or higher)
Reverse Voltage
Operating Temperature
Storage Temperature
※
1
(Ta=25℃)
Symbol
Pd
I
F
I
FRM
⊿I
F
⊿I
FRM
V
R
T
opr
T
stg
Absolute Maximum Ratings
150
100
1,000
1.33
13.3
5
-30~+85
-30~+100
Unit
mW
mA
mA
mA/℃
mA/℃
V
℃
℃
※1
IFRM Measurement condition : Pulse Width≦100μs, Duty≦1/100
Electro-Optical Characteristics
Item
Symbol
Characteristics
TYP.
MAX.
MAX.
MIN.
TYP.
TYP.
TYP.
TYP.
TYP.
MIN.
TYP.
TYP.
Max.
1.4
1.6
100
40
80
13
880
40
10
-
12
30
3.4
(Ta=25℃)
Conditions
I
F
=50mA
V
R
=5V
I
F
=50mA
I
F
=50mA
I
F
=50mA
I
F
=50mA
I
F
=50mA
I
F
=50mA
DC
±5mA,
-3db from 0.1MHz
I
F
=50mA
I
FRM
=500mA
Unit
Forward Voltage
Reverse Current
Radiant Intensity
Total Output Power
Peak Wavelength
Spectral Half-width
Half Intensity Angle
Cut-off Frequency
Response Time
Pulse Forward Voltage
V
F
I
R
I
E
Po
λ
p
⊿λ
2θ1/2
fc
tr/tf
V
FM
V
μA
mW/sr
mW
nm
nm
deg.
MHz
ns
V
2004.11.17
Page 2
DNP325-4
Through-hole IRED/φ5 High Radiant Intensity Type
Radiant Intensity Rank
I
E
（mW/s
r）
R ank
MIN.
A
B
C
D
E
40
56
80
112
160
MAX .
80
112
160
224
320
I
F
= 50mA
Condition
(Ta=25℃)
※Please
contact our sales staff concerning rank designation.
2004.11.17
Page 3
DNP325-4
Through-hole IRED/φ5 High Radiant Intensity Type

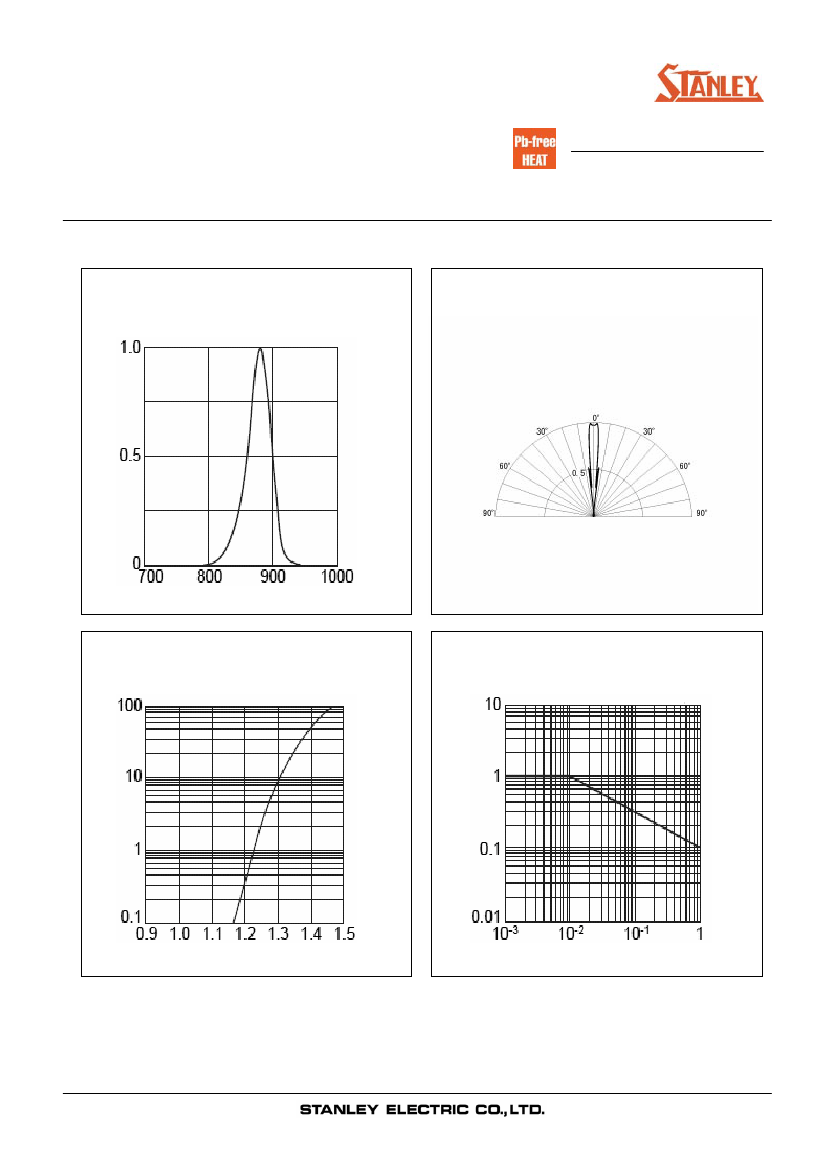

Technical Data
Spectral Distribution
Relative Intensity vs. Wavelength
Condition : Ta = 25℃, I
F
= 50mA
Spatial Distribution Example
Condition : Ta = 25℃
Relative Intensity
Wavelength [nm]
Forward Voltage vs. Forward Current
Condition : Ta = 25℃
Duty Ratio vs. Pulse Forward Current
Condition : Ta = 25℃, tw
≦
100μs
Forward Current I
F
(mA)
Forward Voltage : V
F
(V)
Pulse Forward Current I
FRM
(A)
Duty Ratio
2004.11.17
Page 4
DNP325-4
Through-hole IRED/φ5 High Radiant Intensity Type

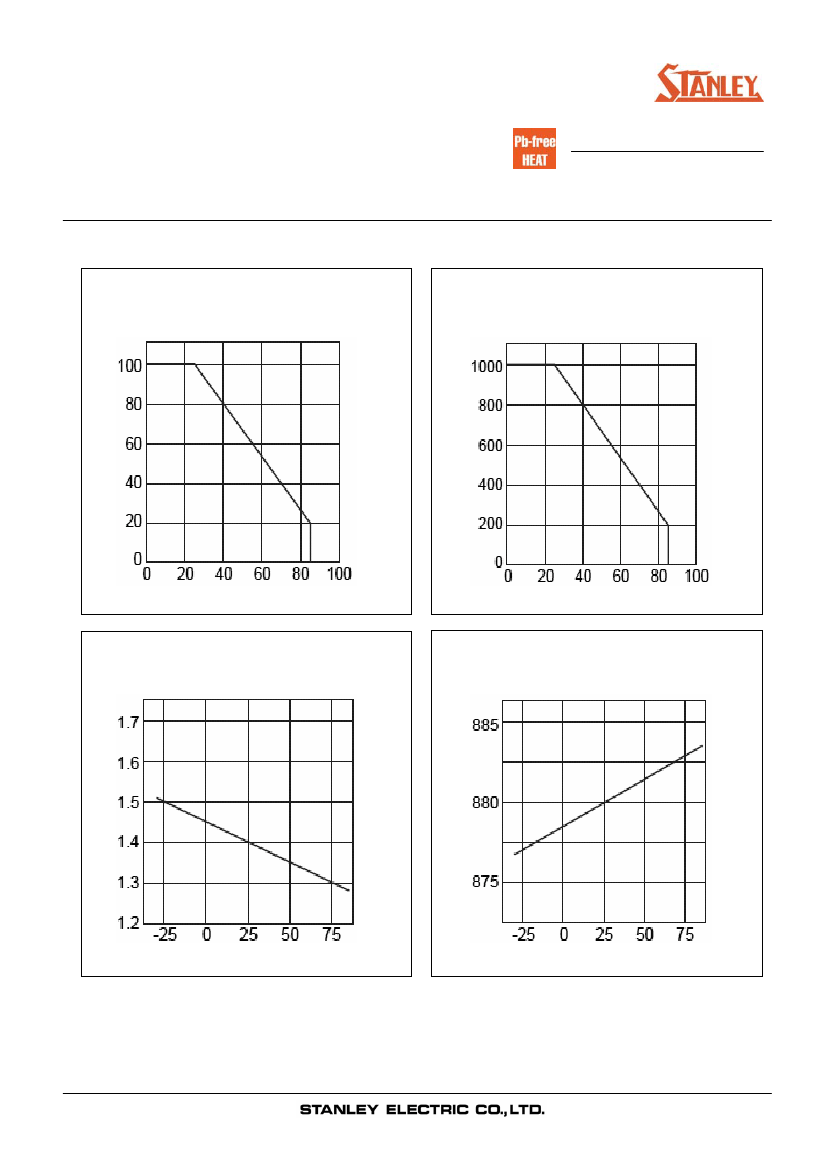

Technical Data
Ambient Temperature vs. Forward Current
Ambient Temperature vs. Pulse Forward Current
Condition : tw≦100μs, Duty≦1/100
Pulse Forward Current I
FRM
(mA)
Forward Current : I
F
(mA)
Ambient Temperature : Ta(℃)
Ambient Temperature : Ta(℃)
Ambient Temperature vs. Forward Voltage
Condition : I
F
= 50mA
Ambient Temperature vs. Peak Wavelength
Condition : I
F
= 50mA
Peak Wavelength
λp
(nm)
Forward Voltage V
F
(V)
Ambient Temperature : Ta (℃)
Ambient Temperature : Ta(℃)
2004.11.17
Page 5
