RD27MB: DescriptionZener Diode, 27V V(Z), 7.04%, 0.2W, Silicon, Unidirectional, PLASTIC, SC-59, 3 PIN; CategoryDiscrete semiconductor diode; File Size65KB，8 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

RD27MB Overview

Zener Diode, 27V V(Z), 7.04%, 0.2W, Silicon, Unidirectional, PLASTIC, SC-59, 3 PIN

RD27MB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NEC Electronics
Parts packaging code	SC-59
package instruction	R-PDSO-G3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JESD-30 code	R-PDSO-G3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.2 W
Certification status	Not Qualified
Nominal reference voltage	27 V
surface mount	YES
technology	ZENER
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	7.04%
Working test current	2 mA

Preview

Download Datasheet

View All

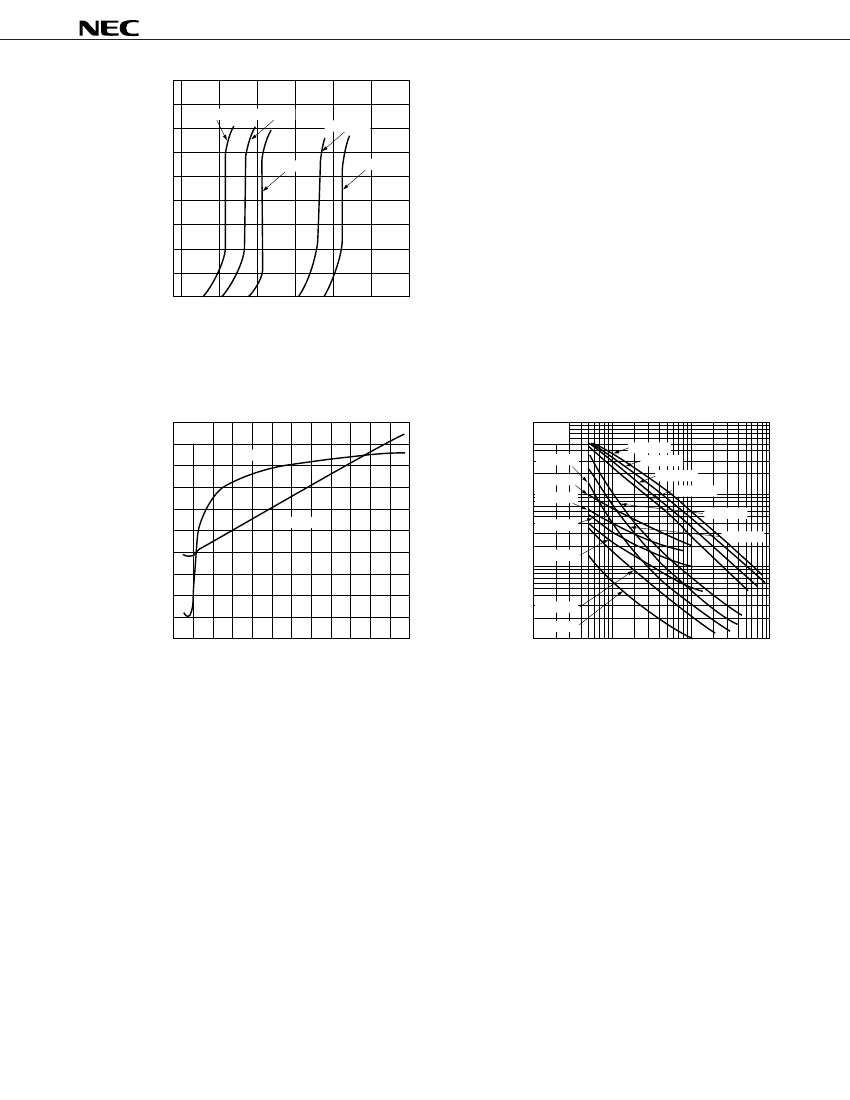

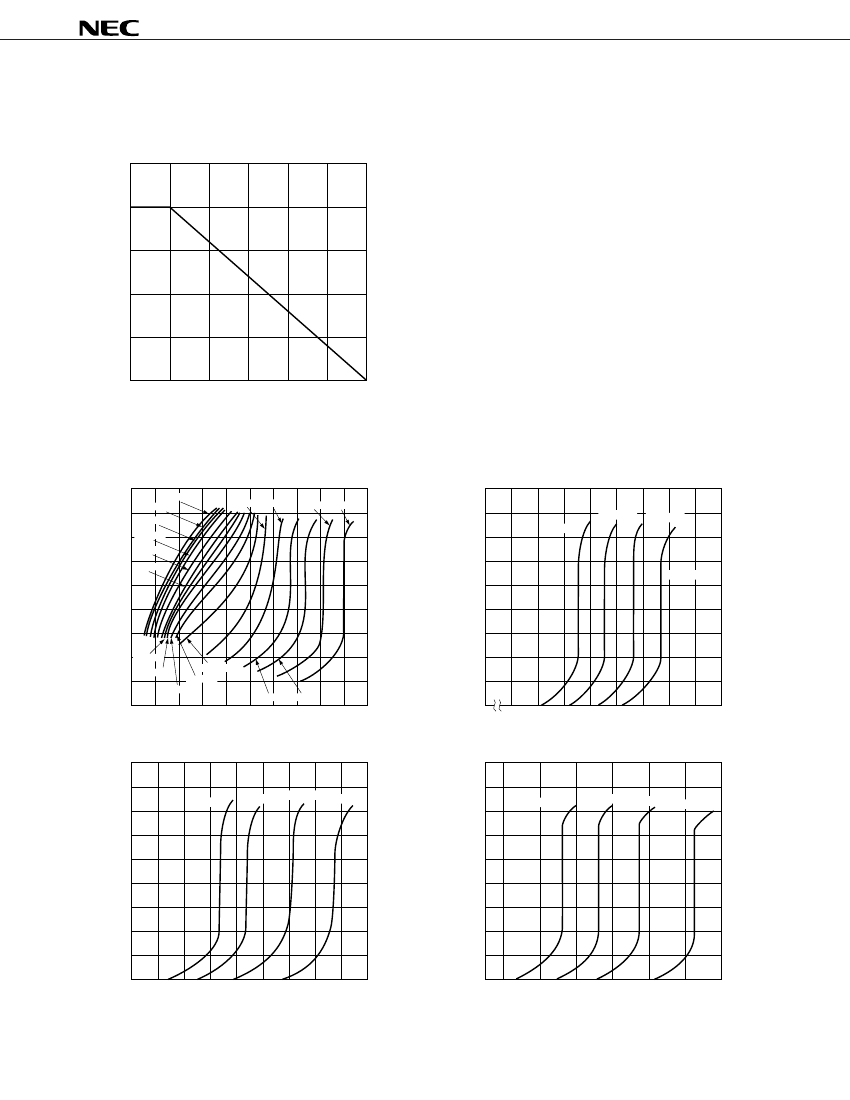

DATA SHEET

ZENER DIODES

RD2.0M to RD47M

ZENER DIODES

200 mW 3-PIN MINI MOLD

DESCRIPTION

Type RD2.0M to RD47M Series are planar type zener diodes

processing an allowable power dissipation of 200 mW.

0.4

+0.1

–0.05

PACKAGE DIMENSIONS

(Unit: mm)

2.8

0.2

1.5

0.65

–0.15

+0.1

FEATURES

•

Planar process

; Applied E24 standard.

0.95

APPLICATIONS

Circuits for,

Constant Voltage, Constant Current,

Waveform clipper, Surge absorber, etc.

2.9

0.2

Marking

Power Dissipation

Forward Current

Junction Temperature

Storage Temperature

Peak Reverse Power

stg

RSM

200 mW

150 mA

150°C

–55 to +150°C

100 W (t = 10

1.1 to 1.4

1 . NC

2 . Anode : A SC-59 (EIAJ)

3 . Cathode: K

0 to 0.1

0.16

–0.06

MAXIMUM RATINGS (T

= 25

0.3

The information in this document is subject to change without notice. Before using this document, please

confirm that this is the latest version.

Not all devices/types available in every country. Please check with local NEC representative for availability

and additional information.

Document No. D14716EJ6V0DS00 (6th edition)

(Previous No. DC-2141)

Date Published June 2000 N CP(K)

Printed in Japan

+0.1

0.4

–0.05

1995

RD27MB Related Products

	RD27MB	RD12MB1	RD12MB2	RD20MB3	RD16MB3	RD16MB1	RD24MB2
Description	Zener Diode, 27V V(Z), 7.04%, 0.2W, Silicon, Unidirectional, PLASTIC, SC-59, 3 PIN	Zener Diode, 11.66V V(Z), 2.06%, 0.2W, Silicon, Unidirectional, PLASTIC, SC-59, 3 PIN	Zener Diode, 11.99V V(Z), 2.09%, 0.2W, Silicon, Unidirectional, PLASTIC, SC-59, 3 PIN	Zener Diode, 20.645V V(Z), 2.11%, 0.2W, Silicon, Unidirectional, PLASTIC, SC-59, 3 PIN	Zener Diode, 16.72V V(Z), 2.21%, 0.2W, Silicon, Unidirectional, PLASTIC, SC-59, 3 PIN	Zener Diode, 15.69V V(Z), 2.04%, 0.2W, Silicon, Unidirectional, PLASTIC, SC-59, 3 PIN	Zener Diode, 24.25V V(Z), 2.19%, 0.2W, Silicon, Unidirectional, PLASTIC, SC-59, 3 PIN
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics
Parts packaging code	SC-59	SC-59	SC-59	SC-59	SC-59	SC-59	SC-59
package instruction	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Contacts	3	3	3	3	3	3	3
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Number of components	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Maximum power dissipation	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal reference voltage	27 V	11.66 V	11.99 V	20.65 V	16.72 V	15.69 V	24.25 V
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	Tin/Lead (Sn/Pb)	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum voltage tolerance	7.04%	2.06%	2.09%	2.11%	2.21%	2.04%	2.19%
Working test current	2 mA	5 mA	5 mA	5 mA	5 mA	5 mA	5 mA
