144693: Description55 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT; CategoryThe connector The connector; File Size54KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

144693 Overview

55 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT

144693 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	PEG
body width	0.606 inch
subject depth	0.53 inch
body length	0.984 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Manufacturer's serial number	144693
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	5
Number of rows loaded	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.146 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	55
Evacuation force-minimum value	.139 N
Base Number Matches	1

Preview

Download Datasheet

View All

Date Code

Ident-Nr.

Firmensignet

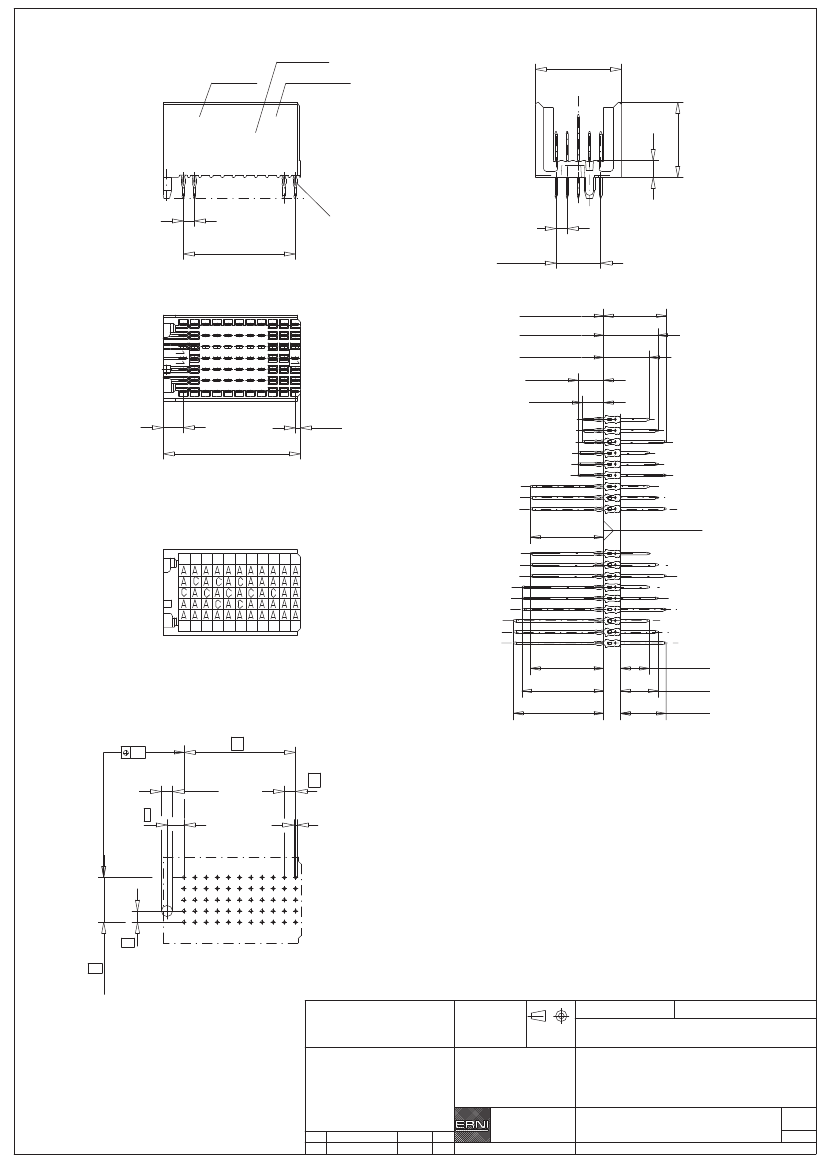

15,4

2

EE Zone für durchkontaktierte

2

4x2=

8

10 x 2 =

20

Löcher ø 0.6±0.05

compliant zone for thru hole

ø 0.6±0.05

11

1

z

a

b

c

d

e

f

Ebene -

Level 3

Level 2

11.2

9.7

8.2

+0.2

Ebene - Level 1

+0.2

4.5

±0.3

3.7

±0.3

1 max.

P2

A

B

C

D

3,7

25 max.

P1

U

1

Bestückungsplan

11 10 9

8

7

6

- contact layout

5

4

3

2

1

z

a

b

c

d

e

f

13

±0.3

Bezugsebene Tiefe

Datum plane depth

K

R

3

R

2

R

1

13

±0.2

Lochbild für Leiterplatte

(Bestückungsseite)

Board hole pattern

(Component mounting side )

14.5

±0.2

16

±0.2

13,45

-0,1

E

F

G

H

J

L

M

N

P

Q

R

S

T

3

-0,1

0.1

alle Löcher

all holes

10 x 2 = ( 20 )

+0,05

2

nicht

durchkontaktiert

3

not plated thru

4 x 2 = (8)

2

11

Consider protection memo from DIN 34

ERNI

XXXXXXX

2

1)

ø 0,6

ø 0,7

z

a

b

c

d

e

f

1

±0,05

±0,02

144693

5.3

±0.1

6.8

8.3

±0.1

Durchmesser des metallisierten Loches

Diameter of finished plated-through hole

Bohrungsdurchmesser des Loches

Diameter of drilled hole

Schichtaufbau im metallisierten Loch siehe Zeichnung 114406

Metal plating of plated-through hole see drawing 114406

Fehlende Masse und Angaben nach IEC 61076-4-101

Missing information and dimensions per IEC 61076-4-101

Information:

P2

Level 1, 2,3

Tolerances

All Dimensions

in mm

Scale

2:1

siehe Bestückungsplan/

see contact layout

Anforderungsstufe 2/

class 2

Angaben zu entsprechender Ident-Nr. siehe Fertigungsunterlagen

For further information about I.D. number see manufacturing document

Designation

Only for information.

To insure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Subject to modification without

prior notice.

Drawing will not be updated.

ERmet Messerleiste C

ERmet Male Wide Type C

Elektroapparate GmbH

D-73099 ADELBERG

144693

I

Index

Date

M:00024100.SZN
