D8051AH datasheet, PDF - EEWORLD Datasheet

D8051AH: DescriptionMicrocontroller, 8-Bit, MROM, 8051 CPU, 12MHz, CMOS, CDIP40, HERMETIC SEALED, CERAMIC, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size671KB，20 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric View All

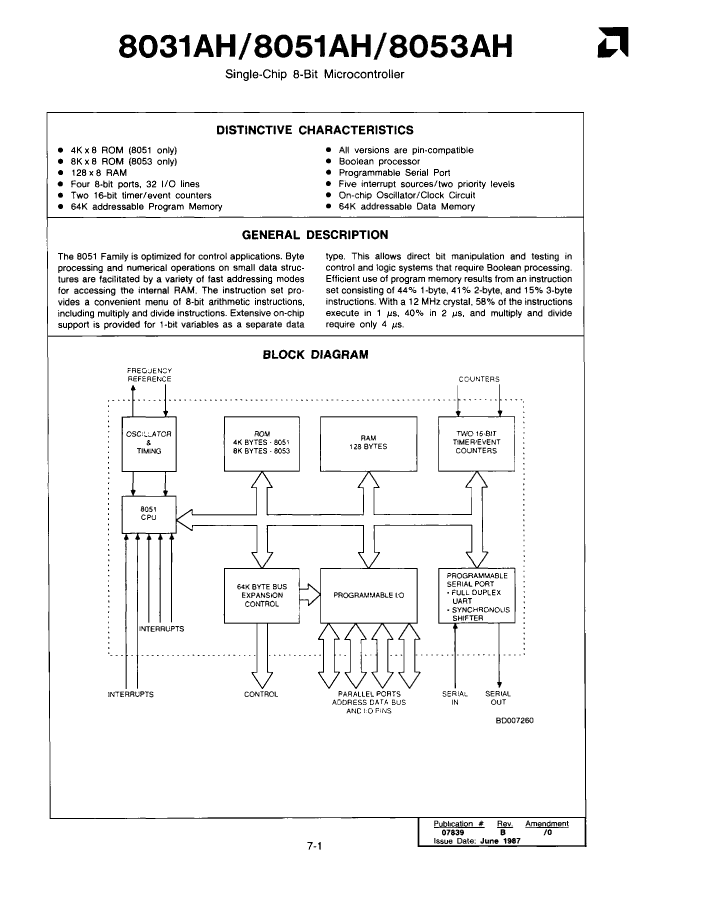

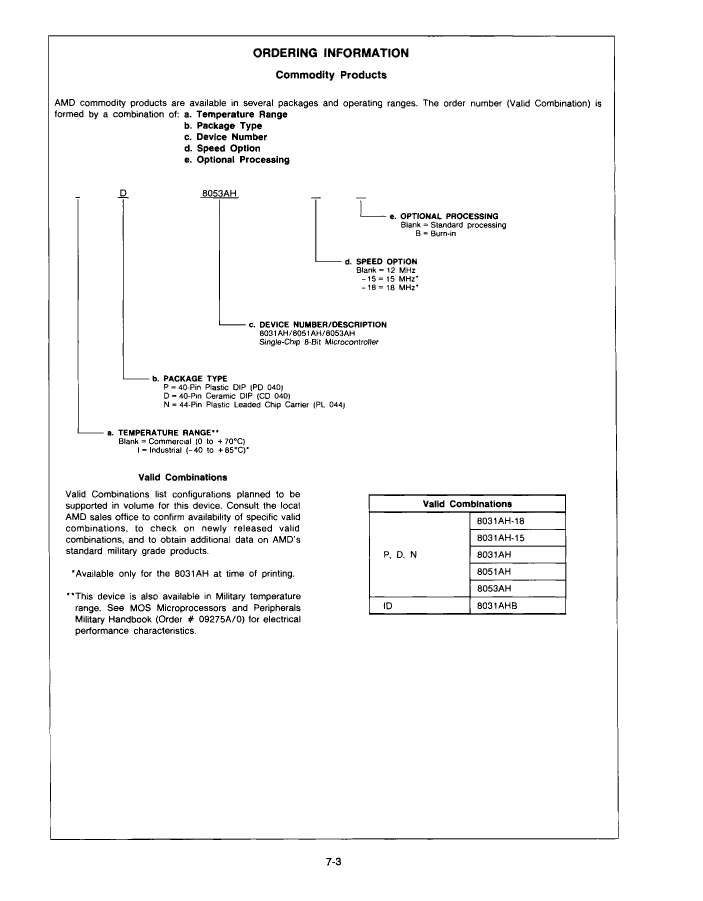

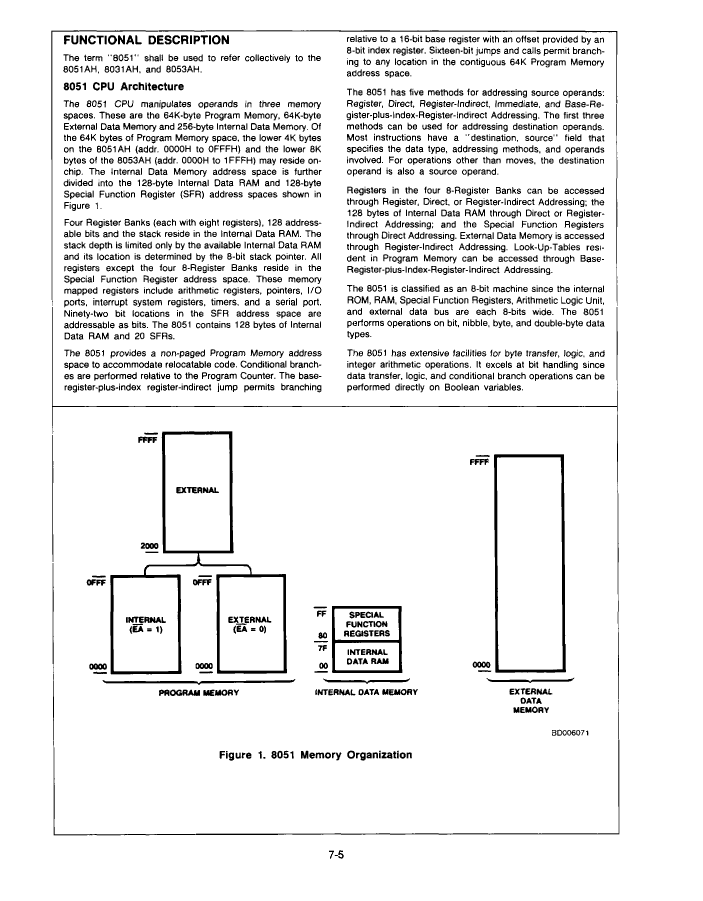

D8051AH Overview

Microcontroller, 8-Bit, MROM, 8051 CPU, 12MHz, CMOS, CDIP40, HERMETIC SEALED, CERAMIC, DIP-40

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AMD
Parts packaging code	DIP
package instruction	DIP, DIP40,.6

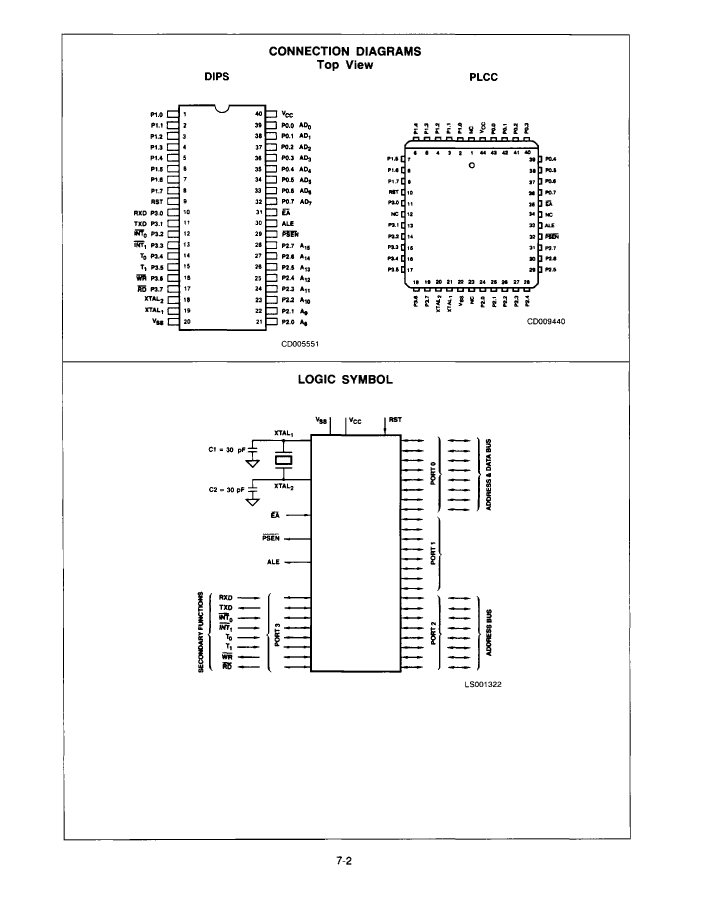

Contacts	40
Reach Compliance Code	unknown
Has ADC	NO
Address bus width	16
bit size	8
CPU series	8051
maximum clock frequency	12 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	R-GDIP-T40
JESD-609 code	e0
length	52.3875 mm

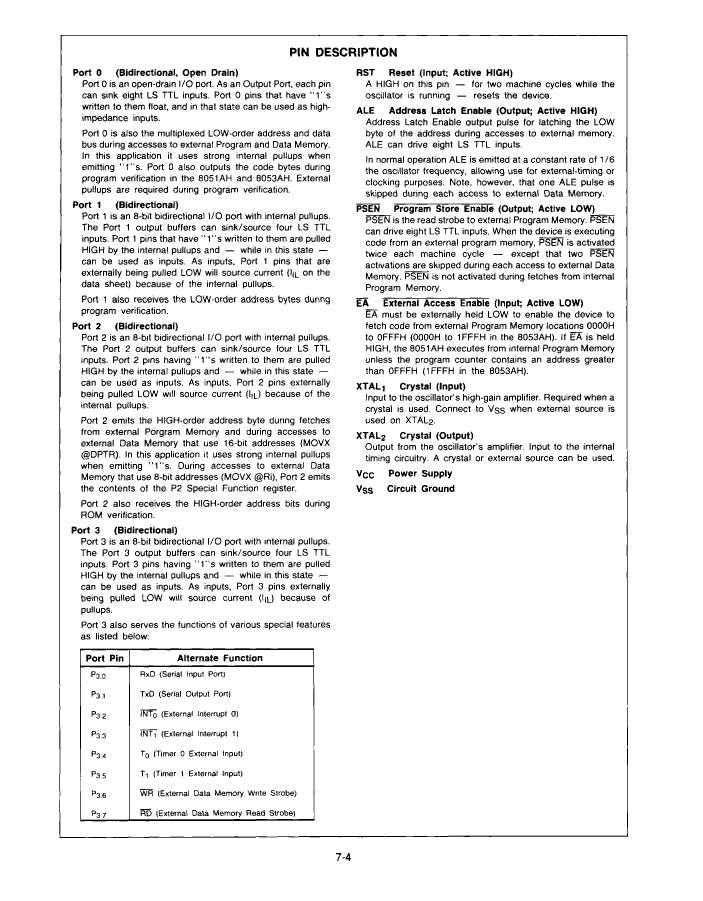

Number of I/O lines	32
Number of terminals	40
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	128
rom(word)	4096
ROM programmability	MROM
Maximum seat height	5.588 mm
speed	12 MHz
Maximum slew rate	160 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
