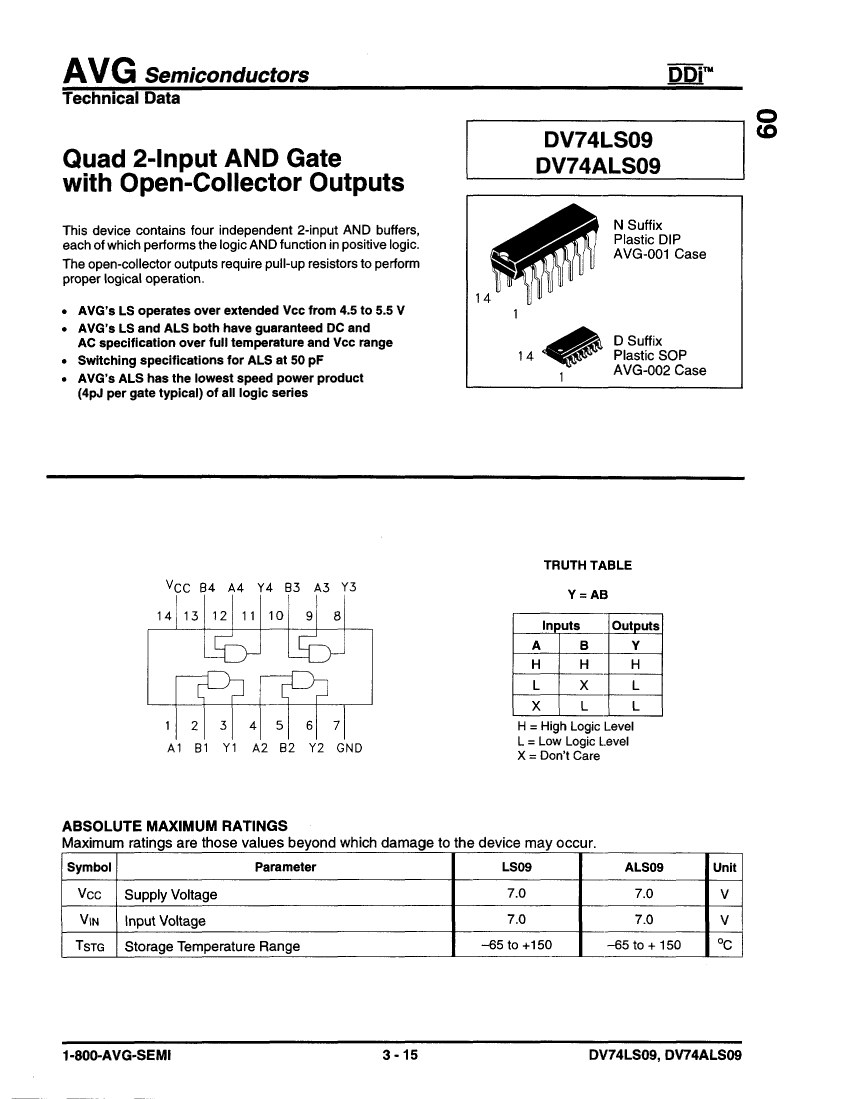

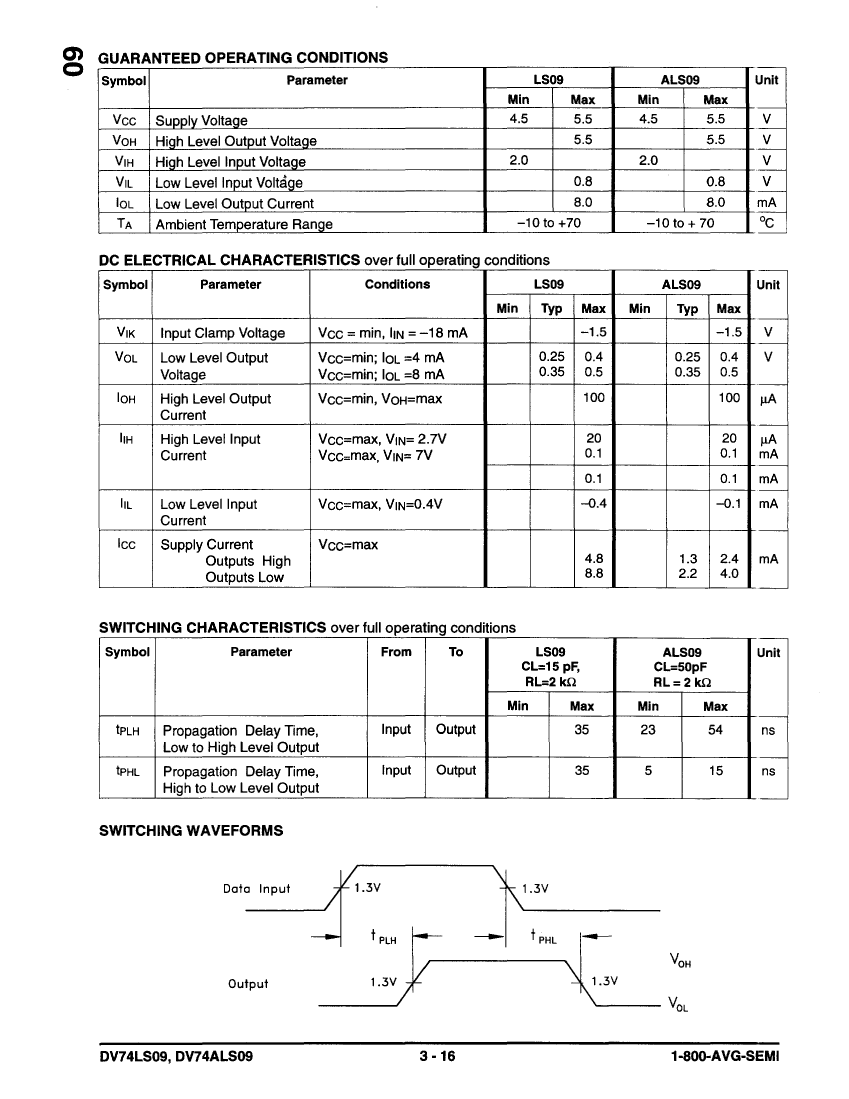

DV74LS09N: DescriptionAND Gate, LS Series, 4-Func, 2-Input, TTL, PDIP14, PLASTIC, DIP-14; Categorylogic logic; File Size92KB，2 Pages; ManufacturerAVG [AVG Semiconductors(HITEK)]

Download Datasheet Parametric Compare View All

DV74LS09N Overview

AND Gate, LS Series, 4-Func, 2-Input, TTL, PDIP14, PLASTIC, DIP-14

DV74LS09N Parametric

Parameter Name	Attribute value
Maker	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	DIP
package instruction	PLASTIC, DIP-14
Contacts	14
Reach Compliance Code	unknown
series	LS
JESD-30 code	R-PDIP-T14
length	18.86 mm
Load capacitance (CL)	15 pF
Logic integrated circuit type	AND GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Output characteristics	OPEN-COLLECTOR
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	8.8 mA
propagation delay (tpd)	35 ns
Certification status	Not Qualified
Maximum seat height	4.69 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

Preview

Download Datasheet

View All

DV74LS09N Related Products

	DV74LS09N	DV74LS09D	DV74ALS09D	DV74ALS09N
Description	AND Gate, LS Series, 4-Func, 2-Input, TTL, PDIP14, PLASTIC, DIP-14	AND Gate, LS Series, 4-Func, 2-Input, TTL, PDSO14, PLASTIC, SOP-14	AND Gate, ALS Series, 4-Func, 2-Input, TTL, PDSO14, PLASTIC, SOP-14	AND Gate, ALS Series, 4-Func, 2-Input, TTL, PDIP14, PLASTIC, DIP-14
Maker	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	DIP	SOIC	SOIC	DIP
package instruction	PLASTIC, DIP-14	SOP,	SOP,	DIP,
Contacts	14	14	14	14
Reach Compliance Code	unknown	unknown	unknown	unknown
series	LS	LS	-	ALS
JESD-30 code	R-PDIP-T14	R-PDSO-G14	-	R-PDIP-T14
length	18.86 mm	8.65 mm	-	18.86 mm
Load capacitance (CL)	15 pF	15 pF	-	50 pF
Logic integrated circuit type	AND GATE	AND GATE	-	AND GATE
Number of functions	4	4	-	4
Number of entries	2	2	-	2
Number of terminals	14	14	-	14
Maximum operating temperature	70 °C	70 °C	-	70 °C
Minimum operating temperature	-10 °C	-10 °C	-	-10 °C
Output characteristics	OPEN-COLLECTOR	OPEN-COLLECTOR	-	OPEN-COLLECTOR
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY
encapsulated code	DIP	SOP	-	DIP
Package shape	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	-	IN-LINE
Maximum supply current (ICC)	8.8 mA	8.8 mA	-	4 mA
propagation delay (tpd)	35 ns	35 ns	-	54 ns
Certification status	Not Qualified	Not Qualified	-	Not Qualified
Maximum seat height	4.69 mm	1.75 mm	-	4.69 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	-	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	-	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	-	5 V
surface mount	NO	YES	-	NO
technology	TTL	TTL	-	TTL
Temperature level	COMMERCIAL	COMMERCIAL	-	COMMERCIAL
Terminal form	THROUGH-HOLE	GULL WING	-	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	-	2.54 mm
Terminal location	DUAL	DUAL	-	DUAL
width	7.62 mm	3.9 mm	-	7.62 mm
