HI9P0201HS-5Z datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> HI9P0201HS-5Z

HI9P0201HS-5Z: DescriptionQUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO16, LEAD FREE, SOIC-16; CategoryAnalog mixed-signal IC The signal circuit; File Size779KB，12 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

HI9P0201HS-5Z Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HI9P0201HS-5Z	-	-	View	Buy Now

HI9P0201HS-5Z Overview

QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO16, LEAD FREE, SOIC-16

HI9P0201HS-5Z Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Renesas Electronics Corporation
Parts packaging code	SOIC
package instruction	SOP, SOP16,.4
Contacts	16
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	7 weeks
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-PDSO-G16
JESD-609 code	e3
length	10.3 mm
Humidity sensitivity level	3
Nominal Negative Supply Voltage (Vsup)	-15 V
normal position	NC
Number of channels	1
Number of functions	4
Number of terminals	16
Nominal off-state isolation	72 dB
On-state resistance matching specifications	0.9 Ω
Maximum on-state resistance (Ron)	50 Ω
Maximum operating temperature	75 °C
Minimum operating temperature
output	SEPARATE OUTPUT
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
power supply	+-15 V
Certification status	Not Qualified
Maximum seat height	2.65 mm
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum disconnect time	50 ns
Maximum connection time	50 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Matte Tin (Sn) - annealed
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
width	7.5 mm

Preview

Download Datasheet

View All

DATASHEET

HI-201HS

High Speed, Quad SPST, CMOS Analog Switch

The HI-201HS is a monolithic CMOS Analog Switch

featuring very fast switching speeds and low ON resistance.

The integrated circuit consists of four independently

selectable SPST switches and is pin compatible with the

industry standard HI-201 switch.

Fabricated using silicon-gate technology and the Intersil

Dielectric Isolation process, this TTL compatible device offers

improved performance over previously available CMOS analog

switches. Featuring maximum switching times of 50ns, low ON

resistance of 50 maximum, and a wide analog signal range, the

HI-201HS is designed for any application where improved

switching performance, particularly switching speed, is required.

(A more detailed discussion on the design and application of the

HI-201HS can be found in Application Note AN543.)

FN3123

Rev.4.00

September 2004

Features

• Pb-free Available as an Option

• Fast Switching Times

- t

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30ns

- t

OFF

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40ns

• Low “ON” Resistance . . . . . . . . . . . . . . . . . . . . . . . . 30

• Pin Compatible with Standard HI-201

• Wide Analog Voltage Range (15V Supplies) . . . . . . .

15V

• Low Charge Injection (15V Supplies) . . . . . . . . . . 10pC

• TTL Compatible

• Symmetrical Switching Analog Current Range . . . . . 80mA

Ordering Information

PART NUMBER

HI1-0201HS-2

HI1-0201HS-4

HI1-0201HS-5

HI3-0201HS-5

HI3-0201HS-5Z

(See Note)

HI9P0201HS-5

HI9P0201HS-5Z

(See Note)

HI9P0201HS-9

HI9P0201HS-9Z

(See Note)

TEMP.

RANGE (°C)

-55 to 125

-25 to 85

0 to 75

-40 to 85

PACKAGE

16 Ld CERDIP

16 Ld PDIP

(Pb-free)

16 Ld SOIC

(Pb-free)

16 Ld SOIC

(Pb-free)

PKG.

DWG. #

F16.3

E16.3

M16.3

Applications

• High Speed Multiplexing

• High Frequency Analog Switching

• Sample and Hold Circuits

• Digital Filters

• Operational Amplifier Gain Switching Networks

• Integrator Reset Circuits

Pinout

(Switches Shown For Logic “1” Input)

HI-201HS (CERDIP, PDIP, SOIC)

TOP VIEW

16 A

15 OUT2

14 IN2

13 V+

12 NC

11 IN3

10 OUT3

9 A

M16.3

OUT1

IN1

V-

GND

IN4

OUT4

NOTE: Intersil Pb-free products employ special Pb-free material

sets; molding compounds/die attach materials and 100% matte tin

plate termination finish, which is compatible with both SnPb and

Pb-free soldering operations. Intersil Pb-free products are MSL

classified at Pb-free peak reflow temperatures that meet or exceed

the Pb-free requirements of IPC/JEDEC J STD-020C.

FN3123 Rev.4.00

September 2004

Page 1 of 12

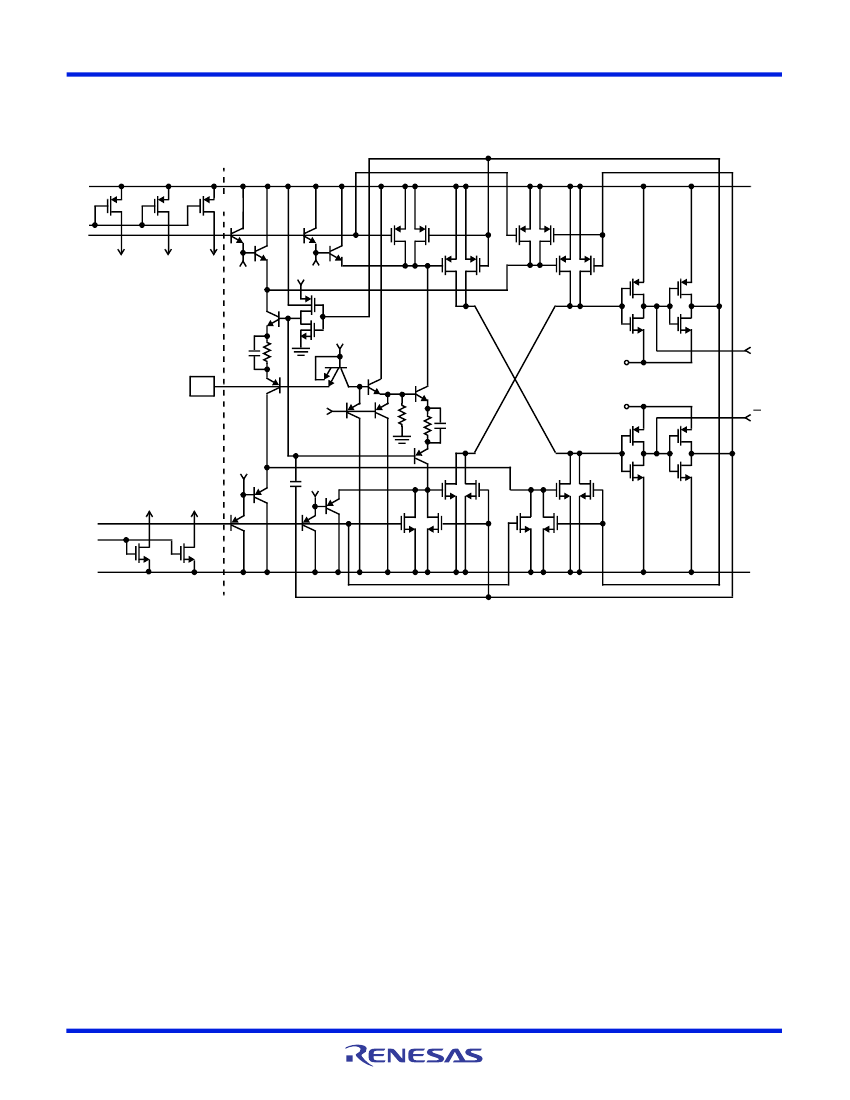

HI9P0201HS-5Z Related Products

	HI9P0201HS-5Z	HI3-0201HS-5Z	HI9P0201HS-9Z	HI1-0201HS-2
Description	QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO16, LEAD FREE, SOIC-16	QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDIP16, LEAD FREE, PLASTIC, DIP-16	QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO16, LEAD FREE, SOIC-16	QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, CDIP16, CERDIP-16
Is it lead-free?	Lead free	Lead free	Lead free	Contains lead
Is it Rohs certified?	conform to	conform to	conform to	incompatible
Parts packaging code	SOIC	DIP	SOIC	DIP
package instruction	SOP, SOP16,.4	LEAD FREE, PLASTIC, DIP-16	SOP, SOP16,.4	DIP-16
Contacts	16	16	16	16
Reach Compliance Code	compliant	compliant	compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	SPST	SPST	SPST	SPST
JESD-30 code	R-PDSO-G16	R-PDIP-T16	R-PDSO-G16	R-GDIP-T16
JESD-609 code	e3	e3	e3	e0
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V
normal position	NC	NC	NC	NC
Number of channels	1	1	1	1
Number of functions	4	4	4	4
Number of terminals	16	16	16	16
Nominal off-state isolation	72 dB	72 dB	72 dB	72 dB
On-state resistance matching specifications	0.9 Ω	0.9 Ω	0.9 Ω	0.9 Ω
Maximum on-state resistance (Ron)	50 Ω	50 Ω	50 Ω	50 Ω
Maximum operating temperature	75 °C	75 °C	85 °C	125 °C
output	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED
encapsulated code	SOP	DIP	SOP	DIP
Encapsulate equivalent code	SOP16,.4	DIP16,.3	SOP16,.4	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE
Peak Reflow Temperature (Celsius)	260	NOT APPLICABLE	260	NOT SPECIFIED
power supply	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.65 mm	5.33 mm	2.65 mm	5.08 mm
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V
surface mount	YES	NO	YES	NO
Maximum disconnect time	50 ns	50 ns	50 ns	50 ns
Maximum connection time	50 ns	50 ns	50 ns	50 ns
switch	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	INDUSTRIAL	MILITARY
Terminal surface	Matte Tin (Sn) - annealed	Matte Tin (Sn) - annealed	Matte Tin (Sn) - annealed	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	40	NOT APPLICABLE	40	NOT SPECIFIED
width	7.5 mm	7.62 mm	7.5 mm	7.62 mm
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	-	Renesas Electronics Corporation
Factory Lead Time	7 weeks	-	7 weeks	19 weeks
length	10.3 mm	19.17 mm	10.3 mm	-
