IDT79R2000AA16GB datasheet, PDF

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> IDT79R2000AA16GB

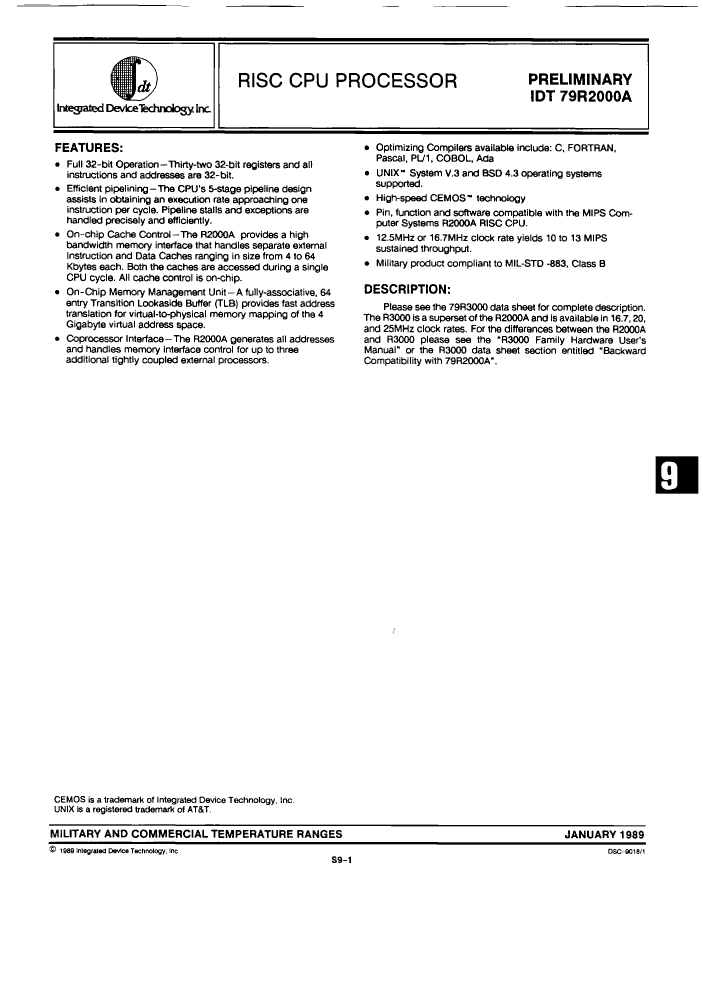

IDT79R2000AA16GB: DescriptionRISC Microprocessor, 32-Bit, 16.67MHz, CMOS, CPGA144, CAVITY DOWN, PGA-144; CategoryThe embedded processor and controller Microcontrollers and processors; File Size172KB，7 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT79R2000AA16GB Overview

RISC Microprocessor, 32-Bit, 16.67MHz, CMOS, CPGA144, CAVITY DOWN, PGA-144

IDT79R2000AA16GB Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	PGA
package instruction	PGA, PGA144,15X15
Contacts	144
Reach Compliance Code	_compli
ECCN code	3A001.A.2.C
Address bus width	16
bit size	32
boundary scan	NO
maximum clock frequency	16.67 MHz
External data bus width	32
Format	FIXED POINT
Integrated cache	YES
JESD-30 code	S-CPGA-P144
JESD-609 code	e0
length	39.9923 mm
low power mode	NO
Number of terminals	144
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA
Encapsulate equivalent code	PGA144,15X15
Package shape	SQUARE
Package form	GRID ARRAY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	4.064 mm
speed	16.67 MHz
Maximum slew rate	675 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR
Maximum time at peak reflow temperature	NOT SPECIFIED
width	39.9923 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR, RISC
Base Number Matches	1

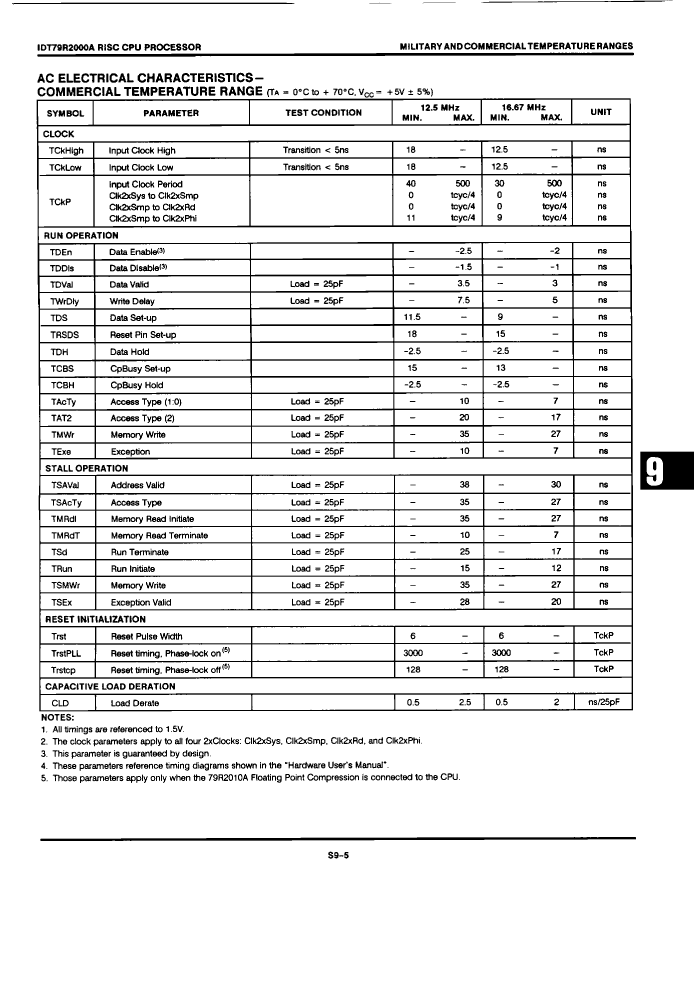

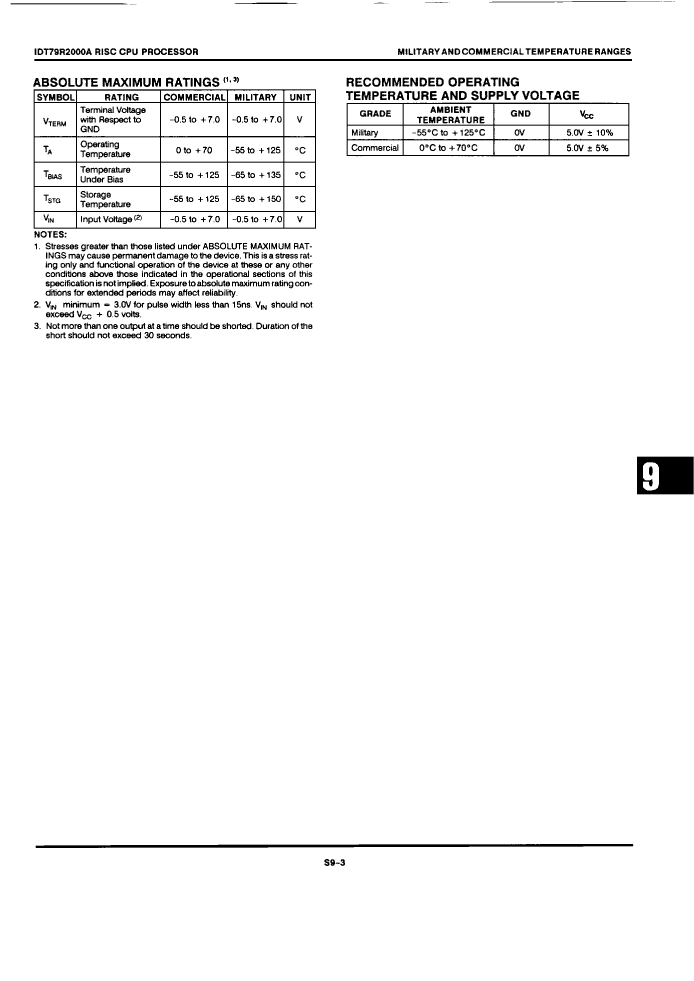

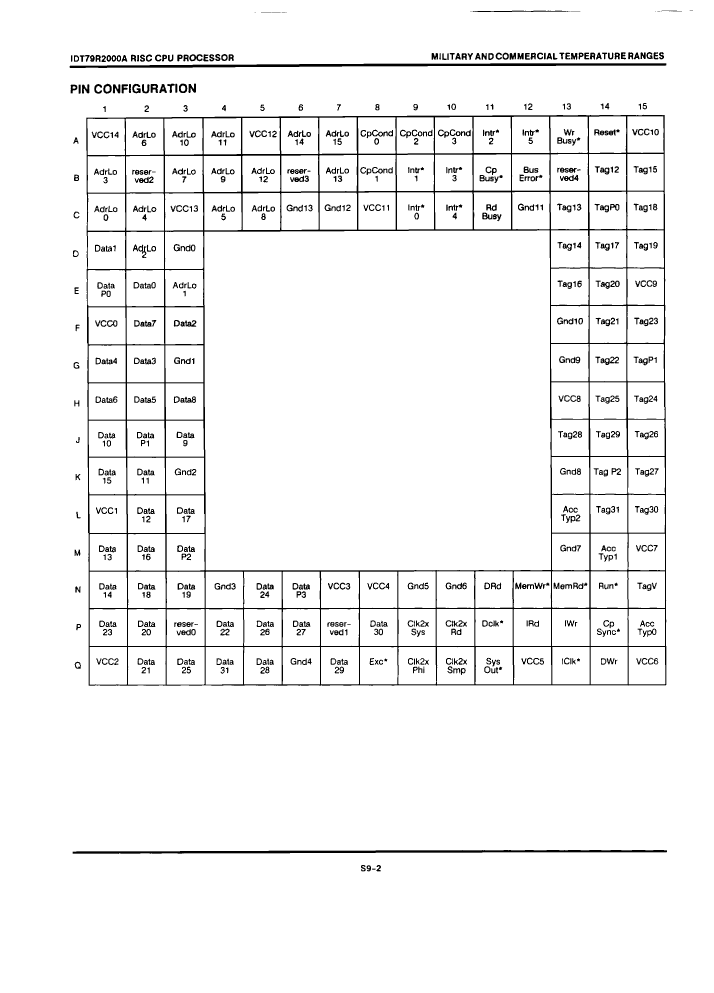

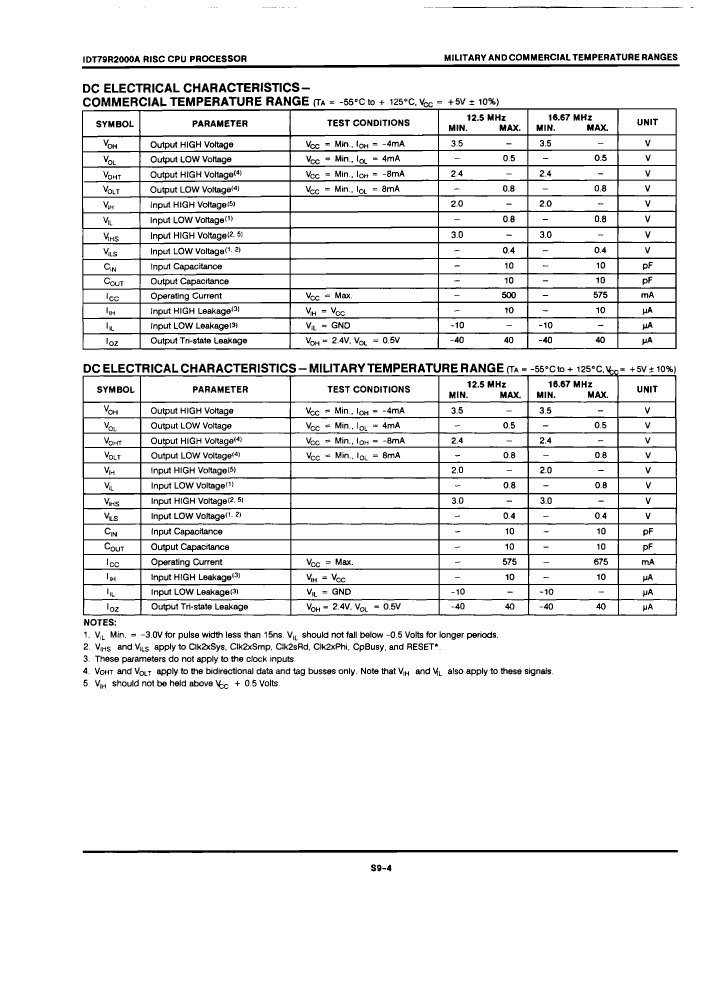

Preview

Download Datasheet

View All

IDT79R2000AA16GB Related Products

	IDT79R2000AA16GB	IDT79R2000AA16G	IDT79R2000AA12GB	IDT79R2000AA12G	IDT79R2000AB12G	IDT79R2000AB16G	IDT79R2000AB16GB	IDT79R2000AB12GB
Description	RISC Microprocessor, 32-Bit, 16.67MHz, CMOS, CPGA144, CAVITY DOWN, PGA-144	RISC Microprocessor, 32-Bit, 16.67MHz, CMOS, CPGA144, CAVITY DOWN, PGA-144	RISC Microprocessor, 32-Bit, 12.5MHz, CMOS, CPGA144, CAVITY DOWN, PGA-144	RISC Microprocessor, 32-Bit, 12.5MHz, CMOS, CPGA144, CAVITY DOWN, PGA-144	RISC Microprocessor, 32-Bit, 12.5MHz, CMOS, CPGA144, CAVITY DOWN, PGA-144	RISC Microprocessor, 32-Bit, 16.67MHz, CMOS, CPGA144, CAVITY DOWN, PGA-144	RISC Microprocessor, 32-Bit, 16.67MHz, CMOS, CPGA144, CAVITY DOWN, PGA-144	RISC Microprocessor, 32-Bit, 12.5MHz, CMOS, CPGA144, CAVITY DOWN, PGA-144
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	PGA	PGA	PGA	PGA	PGA	PGA	PGA	PGA
package instruction	PGA, PGA144,15X15	PGA, PGA144,15X15	PGA, PGA144,15X15	PGA, PGA144,15X15	PGA, PGA144,15X15	PGA, PGA144,15X15	PGA, PGA144,15X15	PGA, PGA144,15X15
Contacts	144	144	144	144	144	144	144	144
Reach Compliance Code	_compli	_compli	_compli	_compli	not_compliant	not_compliant	not_compliant	not_compliant
Address bus width	16	16	16	16	16	16	16	16
bit size	32	32	32	32	32	32	32	32
boundary scan	NO	NO	NO	NO	NO	NO	NO	NO
maximum clock frequency	16.67 MHz	16.67 MHz	12.5 MHz	12.5 MHz	12.5 MHz	16.67 MHz	16.67 MHz	12.5 MHz
External data bus width	32	32	32	32	32	32	32	32
Format	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	YES	YES	YES	YES	YES	YES	YES	YES
JESD-30 code	S-CPGA-P144	S-CPGA-P144	S-CPGA-P144	S-CPGA-P144	S-CPGA-P144	S-CPGA-P144	S-CPGA-P144	S-CPGA-P144
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
length	39.9923 mm	39.9923 mm	39.9923 mm	39.9923 mm	39.9923 mm	39.9923 mm	39.9923 mm	39.9923 mm
low power mode	NO	NO	NO	NO	NO	NO	NO	NO
Number of terminals	144	144	144	144	144	144	144	144
Maximum operating temperature	125 °C	70 °C	125 °C	70 °C	70 °C	70 °C	125 °C	125 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA	PGA	PGA	PGA	PGA	PGA	PGA	PGA
Encapsulate equivalent code	PGA144,15X15	PGA144,15X15	PGA144,15X15	PGA144,15X15	PGA144,15X15	PGA144,15X15	PGA144,15X15	PGA144,15X15
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.064 mm	4.064 mm	4.064 mm	4.064 mm	4.064 mm	4.064 mm	4.064 mm	4.064 mm
speed	16.67 MHz	16.67 MHz	12.5 MHz	12.5 MHz	12.5 MHz	16.67 MHz	16.67 MHz	12.5 MHz
Maximum slew rate	675 mA	575 mA	575 mA	500 mA	500 mA	575 mA	675 mA	575 mA
Maximum supply voltage	5.5 V	5.25 V	5.5 V	5.25 V	5.25 V	5.25 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.75 V	4.5 V	4.75 V	4.75 V	4.75 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	COMMERCIAL	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR
width	39.9923 mm	39.9923 mm	39.9923 mm	39.9923 mm	39.9923 mm	39.9923 mm	39.9923 mm	39.9923 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC
Base Number Matches	1	1	1	1	1	-	-	-
