GHS222M063-2530 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> GHS222M063-2530

GHS222M063-2530: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum, 63V, 20% +Tol, 20% -Tol, 2200uF; CategoryPassive components capacitor; File Size271KB，3 Pages; ManufacturerGemmy Electronics Co., Ltd.

Download Datasheet Parametric View All

GHS222M063-2530 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 63V, 20% +Tol, 20% -Tol, 2200uF

GHS222M063-2530 Parametric

Parameter Name	Attribute value
Maker	Gemmy Electronics Co., Ltd.
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	2200 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	25 mm
dielectric materials	ALUMINUM
length	30 mm
Manufacturer's serial number	GHS(63V)
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package form	Radial
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	63 V
series	GHS(63V)
Terminal pitch	10 mm

Preview

Download Datasheet

View All

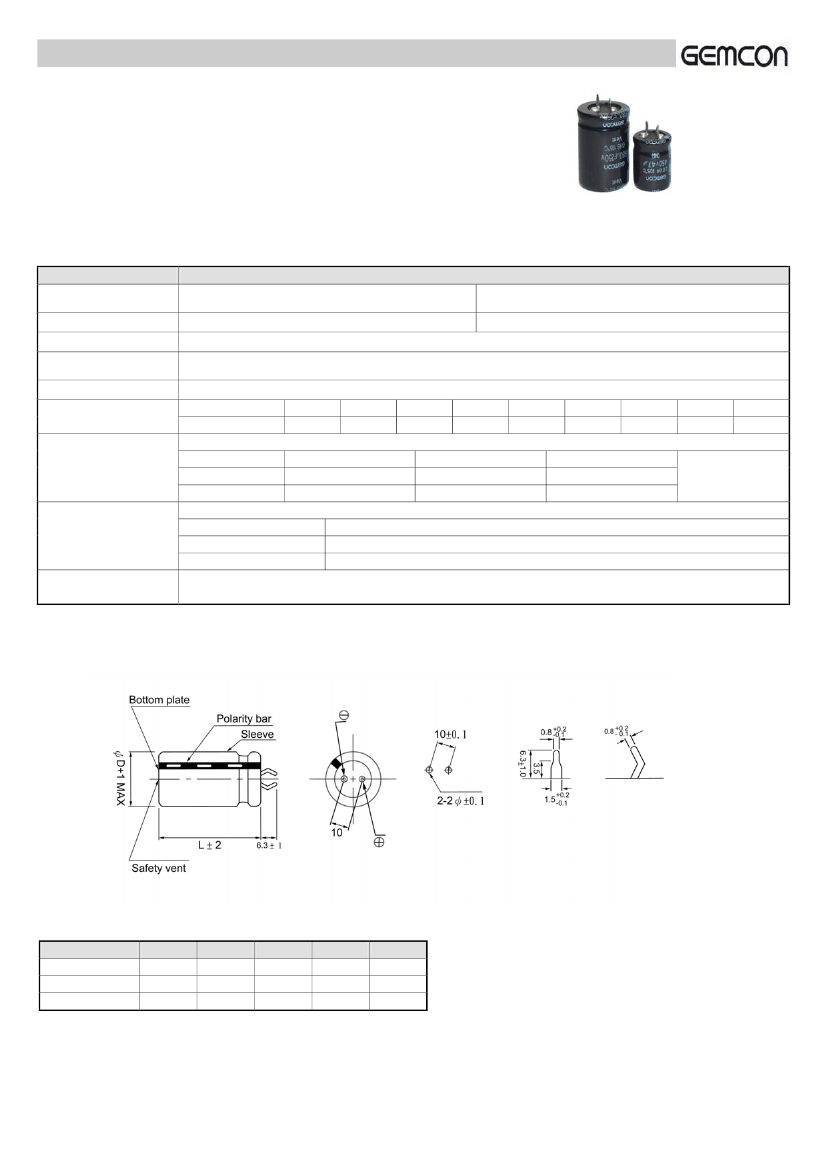

ALUMINUM ELECTROLYTIC CAPACITOR

GHS

105°C

標準型品

Snap-In Type 105°C Standard Series

Snap-In

2,000

105

Designed for PCB mount and suitable for power filtering circuit.

Life guaranteed 2,000hours/105°C.

Specifications

Item

Operating Temperature

range

Rated Voltage

Capacitance Range

容量範圍

Capacitance Tolerance

Leakage Current

Dissipation Factor

(120Hz, 20°C)

Temperature

Characteristics

(120Hz)

-40 + 105°C

16V

∼

250V

∼

47,000

µF

±20%

(120Hz, 20°C)

≤

3√CV or 4

µA,

whichever is greater after 5 minutes application of rated voltage.

Rated voltage (V)

Tan

(max.)

Rated voltage (V)

Z (-25°C) / Z (20°C)

Z (-40°C) / Z (20°C)

Capacitance change

Tan

Leakage current

Shelf Life

0.50

0.40

∼

100

Within

±20%

of initial value

200% or less of initial specified value

Initial specified value or less

0.35

0.30

160

∼

250

0.25

0.20

350

∼

450

100

0.20

160∼250

0.15

350∼450

0.25

Performance Characteristics

-25 + 105°C

350V

∼

450V

Impedance Ratio / Stability at Low Temperature

After 2,000 hours application of WV at 105°C, capacitor shall meet the characteristics requirements mentioned below.

Load Life

After leaving capacitors under no load at 105°C for 1,000 hours and applying voltage according to JIS C5102 and C5141, they

shall meet the specified value as load life characteristics listed above.

Dimension

•

Frequency coefficient of allowable ripple current

WV \ Frequency

∼

100V

160

∼

250V

400

∼

450V

50Hz

0.88

0.85

0.88

60Hz

0.90

0.88

0.90

120Hz

1.00

1KHz

1.15

1.10

10KHz∼

1.15

1.20

1.15

Recommended Resources

car stereo power amplifier

HT-680/HT-6187/HT-600/HT-6207/HT-640/HT-6247 electric line-b

Capacitive differential tilt measurement circuit diagram

MC1488 circuit

555 natural wind circuit with long timing

Telephone schematic diagram 05

120V Boost 4A Peak Current High Frequency High-Side/Low-Side Driver: The UCC27210 and UCC27211 drivers are based on the popular UCC27200 and UCC27201 MOSFET drivers, but with significantly improved performance. Peak output pull-up and pull-down currents have been incre...; qwqwqw2088 Analogue and Mixed Signal

Just applied for the sample. Very new: Last time I saw someone apply for samples on the forum, and I also want to make a power management module, so I want to apply for samples from TI. Haha, this is my first time receiving a FedEx package...; qixiangyujj Talking

Does anyone have the routine program or information of Hanyuan DSP 2808?: Does anyone have Hanyuan DSP 2808 routine programs or data? I will use it for my own use and will not use it for other purposes. I am in urgent need of Shanghai Hanyuan DSP. Please send it to [email]q...; h295472204 DSP and ARM Processors

Help!! Thank you: Does anyone have AD09, DXP2004 or other PCB design software installation packages? Please send them to me. Thank you....; 罗观武 PCB Design

MSP430F5438 ADC12 speed up issue: Let me describe the situation first: I am using ADC12. The original scanned data is 32 (rows) * 24 (columns) * 50 (frames). The ADC12 used is configured with 12-bit accuracy, 256 sampling clocks, and ...; shushu Microcontroller MCU

Design of RF broadband amplifier circuit: (1) Voltage gain Av ≥ 60dB, input voltage effective value Ui ≤ 1mV. Av is adjustable in the range of 0 to 60dB. (2) When Av ≥ 60dB, the peak-to-peak value of the output noise voltage UoNpp ≤ 100mV. (3...; Uniqueq Analog electronics
