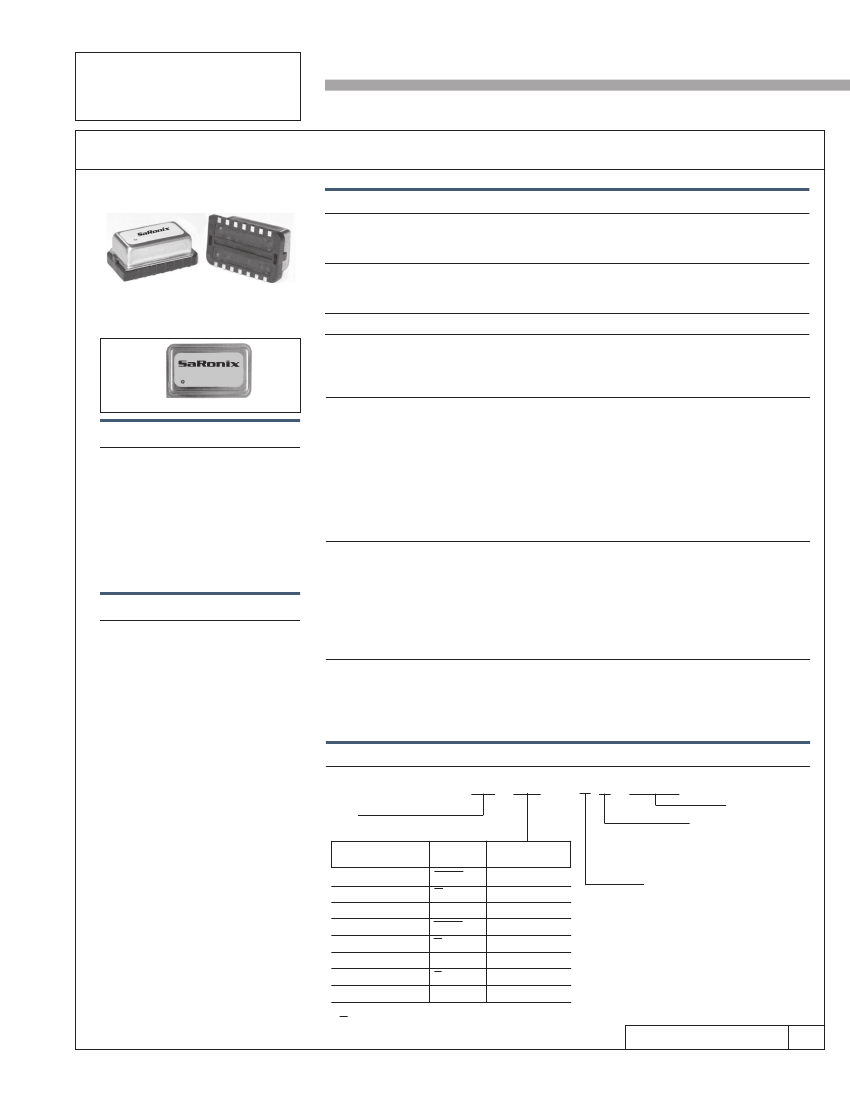

New
True SMD Package
SaRonix
Crystal Clock Oscillator
3.3 & 5V, High Frequency, ECL
SEL24xx / SEL25xx Series
Technical Data
Frequency Range:
Frequency Stability:
7 MHz to 200 MHz
±20, ±25, ±50 or ±100 ppm over all conditions: calibration tolerance,
operating temperature, input voltage change, load change, aging,
shock and vibration.
Temperature Range:
Operating:
Storage:
Supply Voltage:
Supply Current:
0 to +70°C or -40 to +85°C
-55 to +125°C
5.0V or -5.2V, 3.3V PECL
48mA
45mA
43mA
80mA
typ / Complementary
typ / E/D (40mA/Disabled)
typ / Single Output
max
ACTUAL SIZE
Output Drive:
Symmetry:
Rise & Fall Times:
Logic 0:
Logic 1:
Load:
Jitter:
Mechanical:
Shock:
Solderability:
Terminal Strength:
Vibration:
Solvent Resistance:
Resistance to Soldering Heat:
Environmental:
Gross Leak Test:
Fine Leak Test:
Thermal Shock:
Moisture Resistance:
Part Numbering Guide
MIL-STD-883, Method 2002, Condition B
MIL-STD-883, Method 2003
MIL-STD-883, Method 2004, Conditions B2
MIL-STD-883, Method 2007, Condition A
MIL-STD-202, Method 215
MIL-STD-202, Method 210, Condition A, B or C
( I or J for Gull Wing )
45/55% max @ V
BB
or Complementary Outputs Crossing
1ns typ, 3ns max 20% to 80% for 10KH Logic
350ps typ, 550ps max 20% to 80% for 10KE Logic
V
CC
-1.595 max, 0 to +70°C
V
CC
-1.595 max, -40 to +85°C
V
CC
-1.02 min, 0 to +70°C
V
CC
-1.08 min, -40 to +85°C
50Ω to V
CC
-2V
3.5ps max RMS period jitter, 1ps max 1σ cycle-to-cycle jitter
Description
A crystal controlled, high frequency,
highly stable oscillator, compatible with
Motorola 10KH,10KE or 100LVE logic
families. The output can be disabled and
wired-OR for testing or combining mul-
tiple clocks. Open emitter output allows
the user to select the load termination to
optimize performance. Complementary
outputs are available.
Applications & Features
• SONET/ATM/SDH - 155.5200 MHz
• Forward Error Correction (FEC) -
166.6285 MHz
• Gigabit Ethernet - 125.0000 MHz
• Fibre Channel - 106.2500 MHz
• Ideal for high resolution graphics &
imaging applications
• Provides 10KH and 10KE (Motorola
ECLinPS) compatible outputs
• 3.3V PECL versions are LVDS com-
patible
• Disable/wired-OR output feature and
complementary output are available
• Superior stability with AT-cut crystal
performance compared to SAW tech-
nology
• Fundamental or overtone crystal op-
eration results in superior jitter charac-
teristics over PLL implementations
• True SMD DIL 14 version available
MIL-STD-883,
MIL-STD-883,
MIL-STD-883,
MIL-STD-883,
Method
Method
Method
Method
1014, Condition C
1014, Condition A2
1011, Condition A
1004
SEL
Series
ECL/PECL
Pin 1
Type= Voltage/Logic Function
2410= +5.0V / 10KH Enable
2411= +5.0V / 10KH
2412= +5.0V / 10KH
2430= +3.3V / 10KE
2431= +3.3V / 10KE
2432= +3.3V / 10KE
2511= -5.2V / 10KH
2512= -5.2V / 10KH
Q Comp
No Connct
Enable
Q Comp*
No Connct
Q Comp*
No Connect
2410
B
- 106.2500
Frequency (MHz)
Blank
= Thru-hole
K
= Gull Wing Package
S
= True SMD Adaptor
(see product photo)
Stability Tolerance
AA = ±20 ppm, 0 to +70°C
A = ±25 ppm, 0 to +70°C
B = ±50 ppm, 0 to +70°C
C = ±100 ppm, 0 to +70°C
E = ±50 ppm, -40 to +85°C
F = ±100 ppm, -40 to +85°C
Frequency
(MHz)
7 to 133.3333
7 to 200.0000
7 to 133.3333
84 to 200.0000
25 to 200.0000
25 to 200.0000
7 to 200.0000
7 to 133.3333
*Q
Complementary - both outputs require termination
DS-217
REV B
SaRonix
141 Jefferson Drive • Menlo Park, CA 94025 • USA • 650-470-7700 • 800-227-8974 • Fax 650-462-9894
New
True SMD Package*
SaRonix
Crystal Clock Oscillator
3.3 & 5V, High Frequency, ECL
SEL24xx / SEL25xx Series
Technical Data

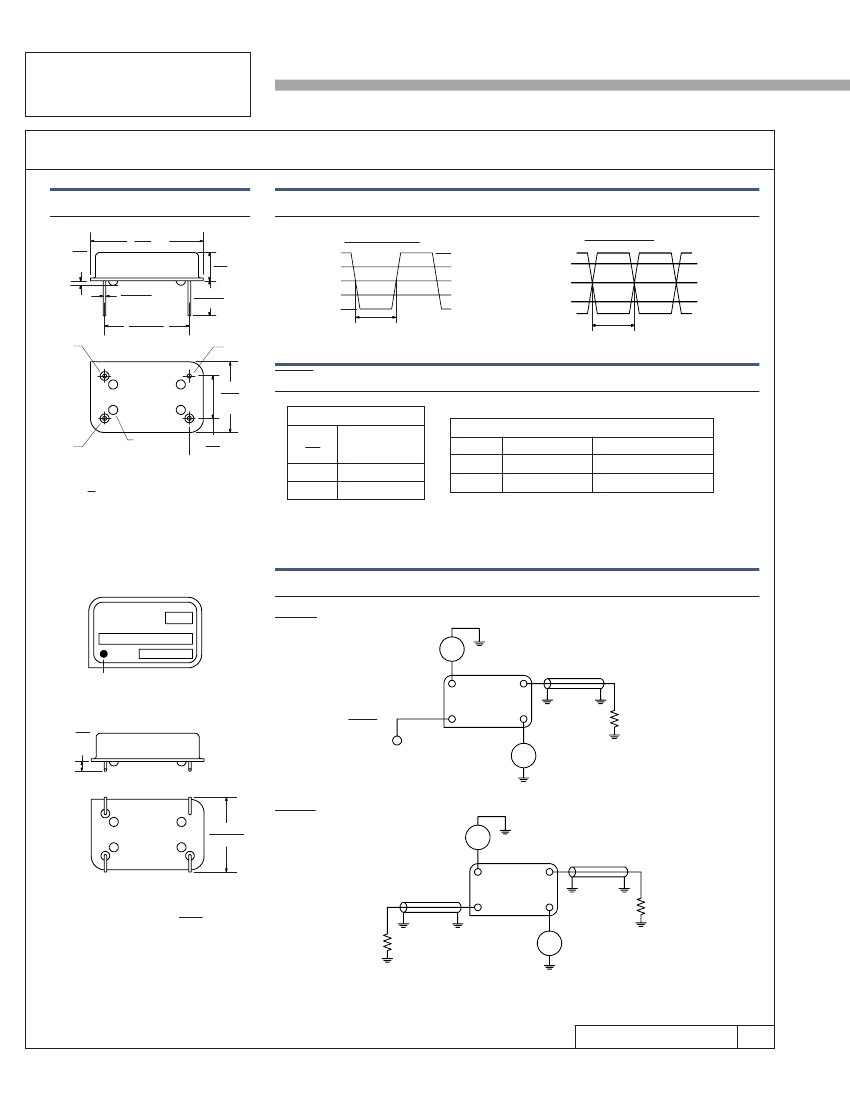

Package Details
21.0
max
.825
5.08
max
.200
.46±.08
.018±.003
15.24±.13
.600±.005
Pin 1
Pin 7
6.35±.51
.250±.020
Output Waveforms
Disable Wired-or
Logic 1
80%
V
BB
(V
CC
-1.29V)
20%
Logic 0
SYMMETRY
45% min, 55% max
V
OL
max
20%
Logic 0
SYMMETRY
45% min, 55% max
V
OH
min
Logic 1
80%
Complementary
V
OH
min
Outputs
Crossing
V
OL
max
0.9
.036
max
Enable Function and Supply Options
13.0
.510
max
Truth Table I - Positive Supply
Pin 14
(4) Glass
Insulators
Pin 8
7.75 max
.305
Pin 1
EN
Logic 0
Logic1
Table II
Device
SEL24xx
SEL251x
Pin 7 (Case)
V
EE
0V
V
CC
0V
Pin 14
V
CC
+5V (+3.3V 10KE)
V
EE
-5V ( -3.3V )
Pin 8
Clock Output
Logic 0
Pin Functions:
Pin 1:
Q SEL2xx1
E/D SEL24x0
N/C SEL2xx2
Pin 14:
V
CC
SEL24xx
V
EE
SEL251x
Pin 7:
Case
V
EE
SEL24xx
V
CC
SEL251x
Pin 8:
Q
Enable/Disable Propagation Delay:
10K: (
(
1/f
)
/ 2 ) +250ps max
10KH: (
(
1/f
)
/ 2 ) +2ns max
Marking Format**
Includes Date Code, Frequency, Model
Test Circuits
SEL24x0
SARONIX
2V
14
Denotes Pin 1
8
OSCILLATOR
Gull Wing Package
1.78
.070
typ
Enable
(See Table I)
1
7
-3V
50Ω INTERNAL SCOPE
TERMINATION TO GND
(For SEL2430 use -1.3V)
SEL24x1
13.46±.25
.530±.010
(For SEL2511 use -3.2V)
2V
14
OSCILLATOR
8
Scale: None ( Dimensions in
mm
)
inches
1
50Ω INTERNAL SCOPE
TERMINATION TO GND
7
-3V
50Ω INTERNAL SCOPE
TERMINATION TO GND
(For SEL2431use -1.3V)
(For SEL2511 use 2V)
**
Exact location of items may vary
* Package with true SMD adapter is not
shown, please see separate data sheet.
All specifications are subject to change without notice.
DS-217
REV B
SaRonix
141 Jefferson Drive • Menlo Park, CA 94025 • USA • 650-470-7700 • 800-227-8974 • Fax 650-462-9894
