DV74HCT138AD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> DV74HCT138AD

DV74HCT138AD: DescriptionDecoder/Driver, HCT Series, Inverted Output, CMOS, PDSO16, PLASTIC, SOP-16; Categorylogic logic; File Size542KB，4 Pages; ManufacturerAVG [AVG Semiconductors(HITEK)]

Download Datasheet Parametric Compare View All

DV74HCT138AD Overview

Decoder/Driver, HCT Series, Inverted Output, CMOS, PDSO16, PLASTIC, SOP-16

DV74HCT138AD Parametric

Parameter Name	Attribute value
Maker	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	SOIC
package instruction	PLASTIC, SOP-16
Contacts	16
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	3 ENABLE INPUTS
series	HCT
Input adjustment	STANDARD
JESD-30 code	R-PDSO-G16
length	9.9 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	OTHER DECODER/DRIVER
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	45 ns
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm

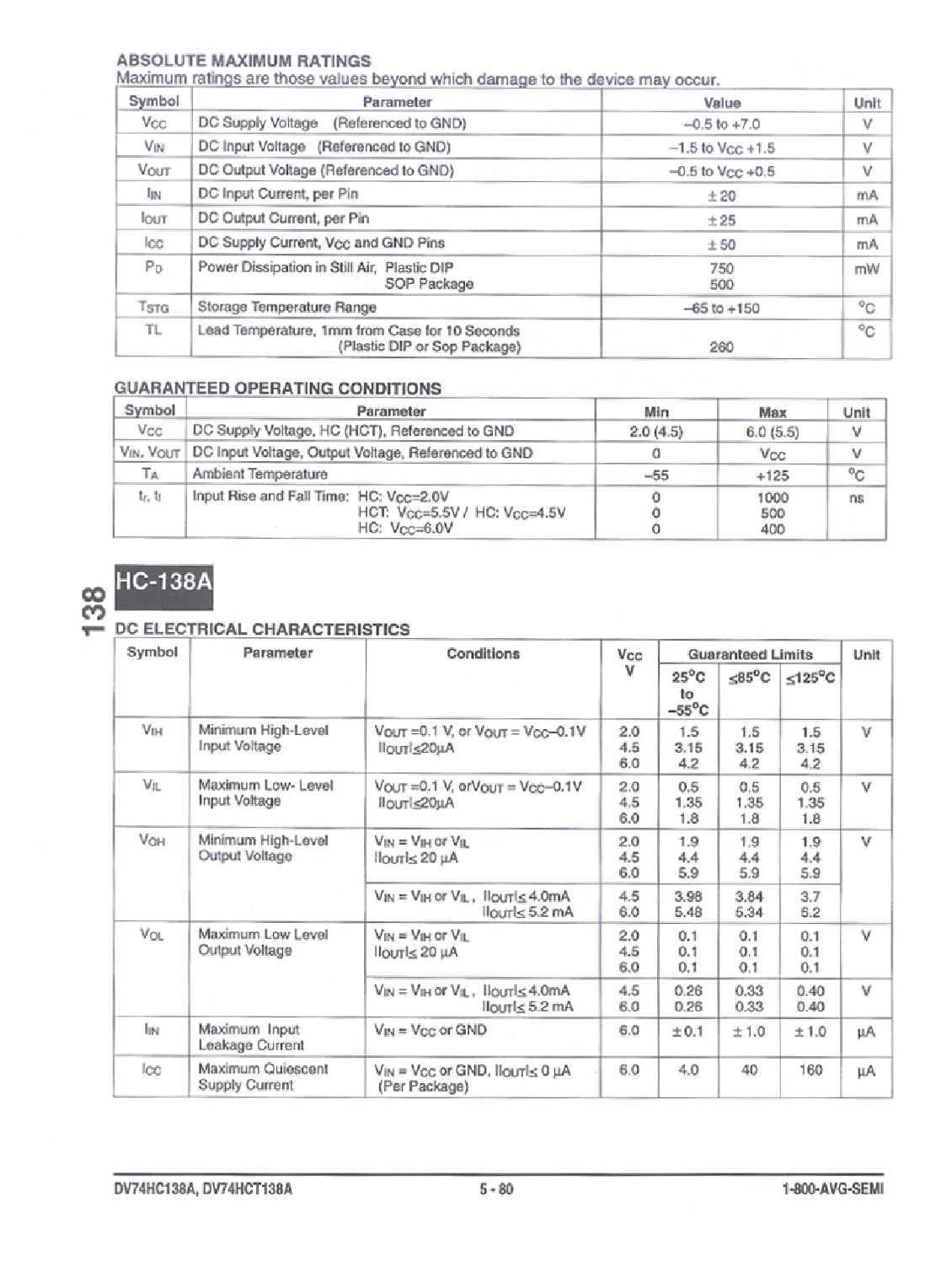

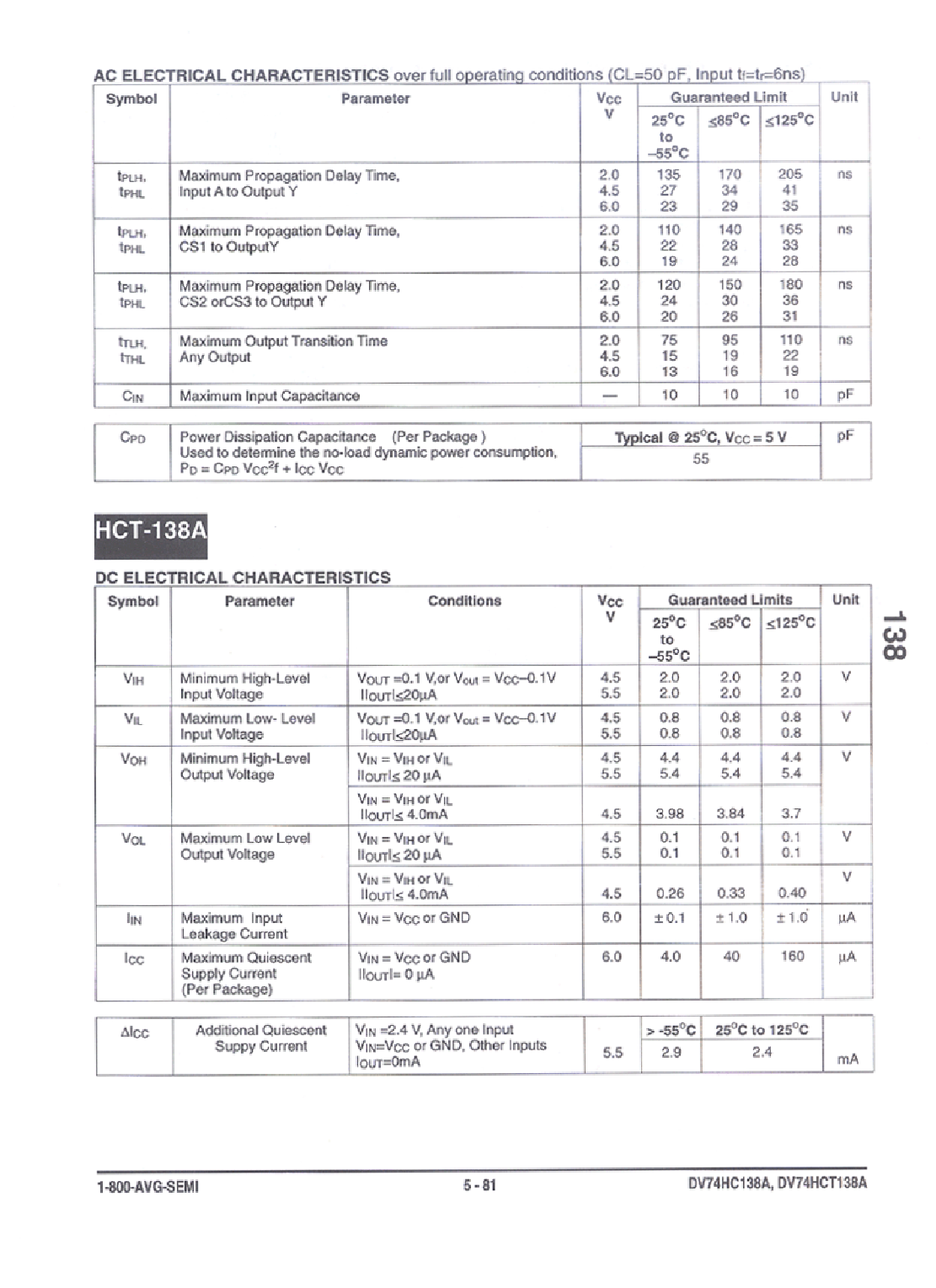

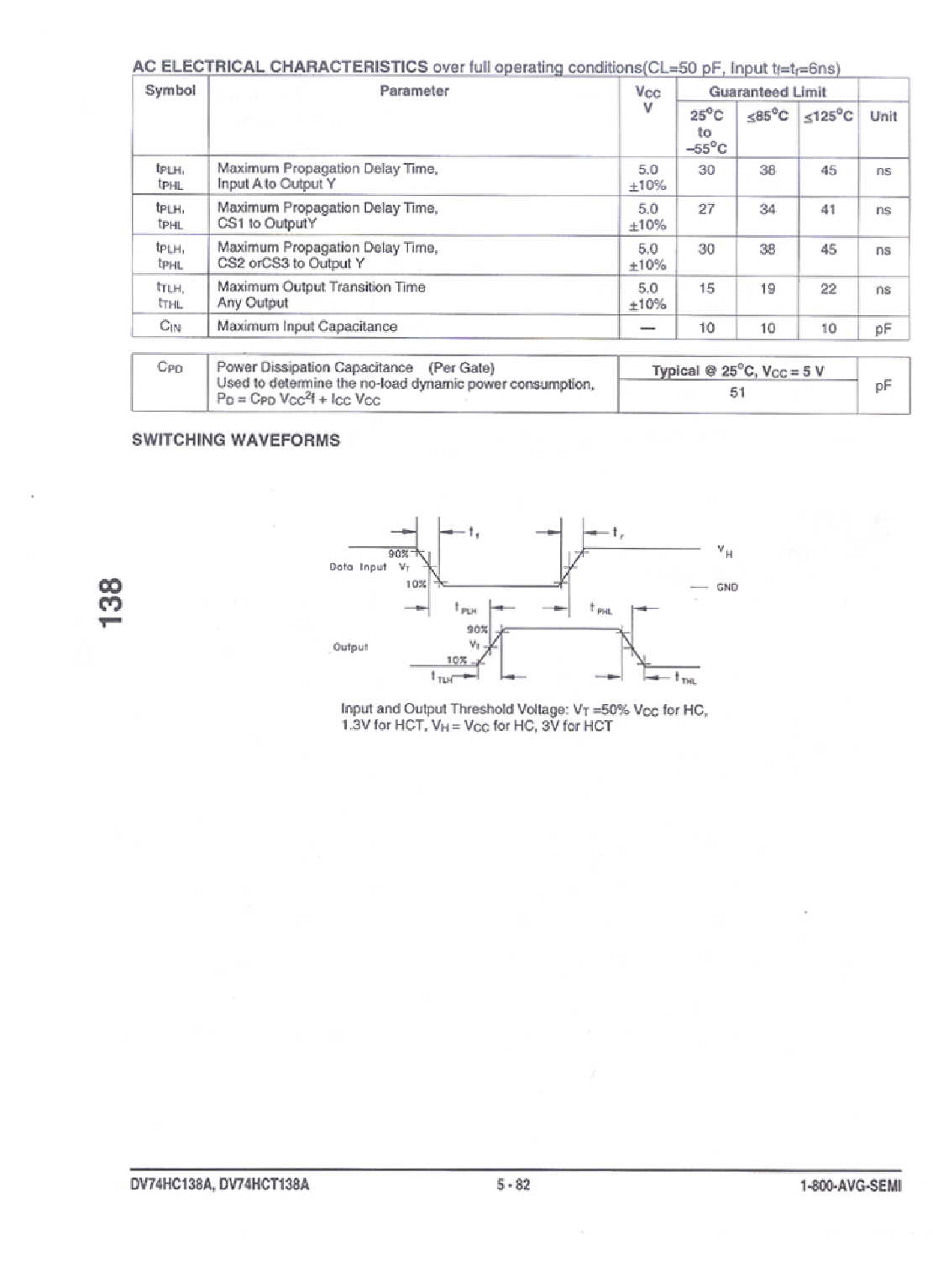

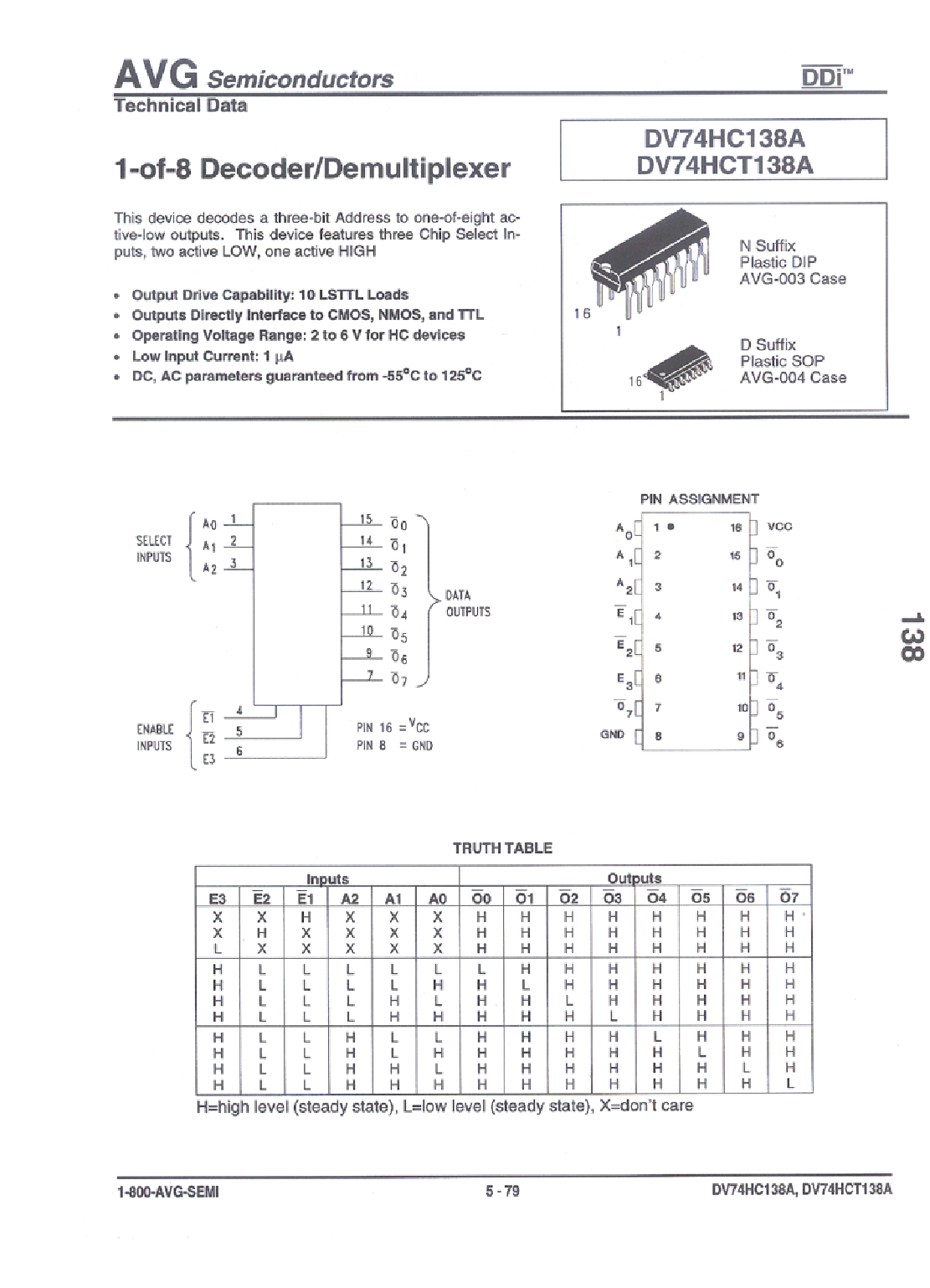

DV74HCT138AD Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

DV74HCT138AD Related Products

	DV74HCT138AD	DV74HCT138AN	DV74HC138AN	DV74HC138AD
Description	Decoder/Driver, HCT Series, Inverted Output, CMOS, PDSO16, PLASTIC, SOP-16	Decoder/Driver, HCT Series, Inverted Output, CMOS, PDIP16, PLASTIC, DIP-16	Decoder/Driver, HC/UH Series, Inverted Output, CMOS, PDIP16, PLASTIC, DIP-16	Decoder/Driver, HC/UH Series, Inverted Output, CMOS, PDSO16, PLASTIC, SOP-16
Maker	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	SOIC	DIP	DIP	SOIC
package instruction	PLASTIC, SOP-16	PLASTIC, DIP-16	DIP,	SOP,
Contacts	16	16	16	16
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	3 ENABLE INPUTS	3 ENABLE INPUTS	3 ENABLE INPUTS	3 ENABLE INPUTS
series	HCT	HCT	HC/UH	HC/UH
Input adjustment	STANDARD	STANDARD	STANDARD	STANDARD
JESD-30 code	R-PDSO-G16	R-PDIP-T16	R-PDIP-T16	R-PDSO-G16
length	9.9 mm	19.175 mm	19.175 mm	9.9 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF
Number of functions	1	1	1	1
Number of terminals	16	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Output polarity	INVERTED	INVERTED	INVERTED	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	DIP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE
propagation delay (tpd)	45 ns	45 ns	205 ns	205 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	4.44 mm	4.44 mm	1.75 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	6 V	6 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	2 V	2 V
Nominal supply voltage (Vsup)	5 V	5 V	4.5 V	4.5 V
surface mount	YES	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	3.9 mm	7.62 mm	7.62 mm	3.9 mm
Logic integrated circuit type	OTHER DECODER/DRIVER	-	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER
