T-LVA56A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> T-LVA56A

T-LVA56A: Description5.6V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-35; CategoryDiscrete semiconductor diode; File Size70KB，3 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

T-LVA56A Overview

5.6V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-35

T-LVA56A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	LOW NOISE
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
Maximum dynamic impedance	40 Ω
JEDEC-95 code	DO-35
JESD-30 code	O-LALF-W2
JESD-609 code	e0
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.5 W
Certification status	Not Qualified
Nominal reference voltage	5.6 V
Maximum reverse current	0.05 µA
surface mount	NO
technology	ZENER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	5%
Working test current	1 mA

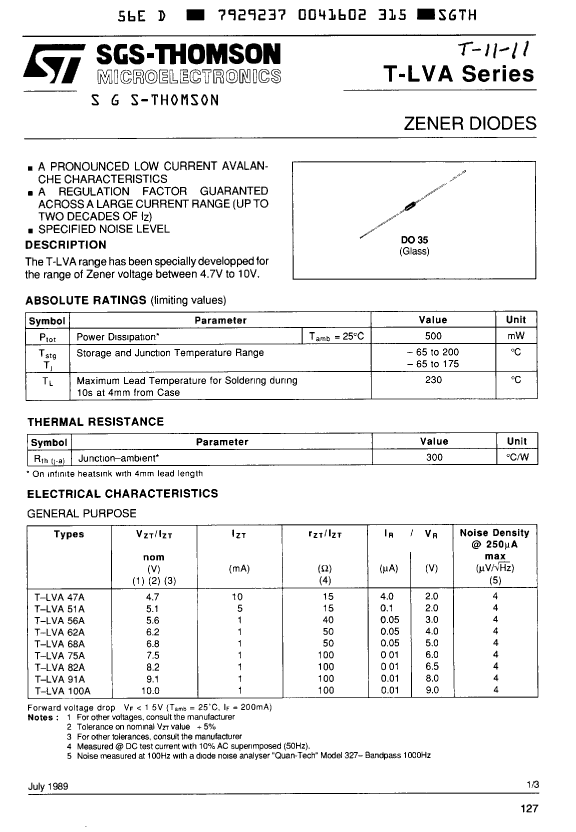

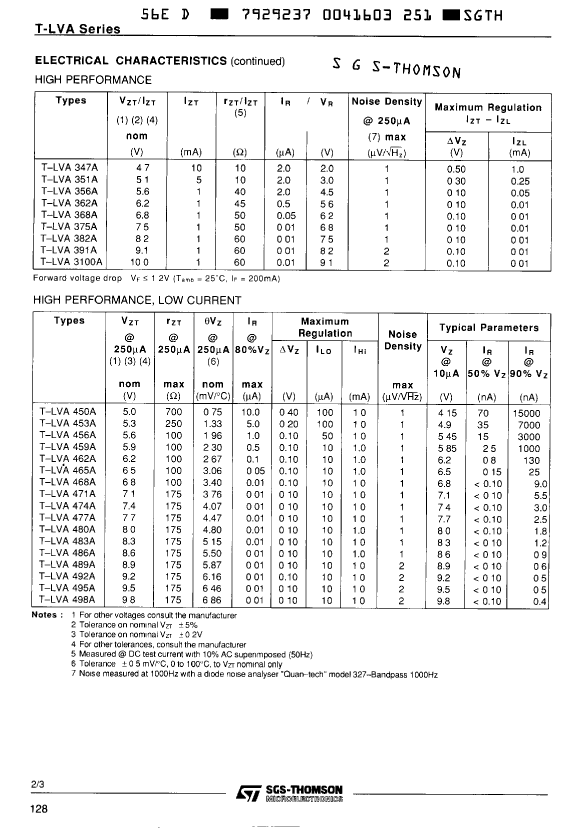

Preview

Download Datasheet

View All

T-LVA56A Related Products

	T-LVA56A	T-LVA91A	RNN60E2083BPM761	RNN60E2180DPRSL1	T-LVA62A
Description	5.6V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-35	9.1V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-35	Fixed Resistor, Metal Film, 0.125W, 208000ohm, 250V, 0.1% +/-Tol, 25ppm/Cel, Through Hole Mount, AXIAL LEADED	Fixed Resistor, Metal Film, 0.125W, 218ohm, 250V, 0.5% +/-Tol, 25ppm/Cel, Through Hole Mount, AXIAL LEADED	6.2V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-35
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	not_compliant	not_compliant	unknown	unknown	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	LOW NOISE	LOW NOISE	HERMATICALLY SEALED, PRECISION	HERMATICALLY SEALED, PRECISION	LOW NOISE
JESD-609 code	e0	e0	e0	e0	e0
Number of terminals	2	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C
Package form	LONG FORM	LONG FORM	Axial	Axial	LONG FORM
surface mount	NO	NO	NO	NO	NO
technology	ZENER	ZENER	METAL FILM	METAL FILM	ZENER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maker	STMicroelectronics	STMicroelectronics	-	-	STMicroelectronics
Shell connection	ISOLATED	ISOLATED	-	-	ISOLATED
Configuration	SINGLE	SINGLE	-	-	SINGLE
Diode component materials	SILICON	SILICON	-	-	SILICON
Diode type	ZENER DIODE	ZENER DIODE	-	-	ZENER DIODE
Maximum dynamic impedance	40 Ω	100 Ω	-	-	50 Ω
JEDEC-95 code	DO-35	DO-35	-	-	DO-35
JESD-30 code	O-LALF-W2	O-LALF-W2	-	-	O-LALF-W2
Number of components	1	1	-	-	1
Minimum operating temperature	-65 °C	-65 °C	-	-	-65 °C
Package body material	GLASS	GLASS	-	-	GLASS
Package shape	ROUND	ROUND	-	-	ROUND
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	-	-	NOT SPECIFIED
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	-	-	UNIDIRECTIONAL
Maximum power dissipation	0.5 W	0.5 W	-	-	0.5 W
Certification status	Not Qualified	Not Qualified	-	-	Not Qualified
Nominal reference voltage	5.6 V	9.1 V	-	-	6.2 V
Maximum reverse current	0.05 µA	0.01 µA	-	-	0.05 µA
Terminal form	WIRE	WIRE	-	-	WIRE
Terminal location	AXIAL	AXIAL	-	-	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	-	-	NOT SPECIFIED
Maximum voltage tolerance	5%	5%	-	-	5%
Working test current	1 mA	1 mA	-	-	1 mA
package instruction	-	O-LALF-W2	AXIAL LEADED	AXIAL LEADED	O-LALF-W2
