TDA5732MDK-T datasheet, PDF - EEWORLD Datasheet

TDA5732MDK-T: DescriptionIC 2-BAND, VIDEO TUNER, PDSO20, Tuner IC; CategoryOther integrated circuit (IC) Consumption circuit; File Size343KB，15 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

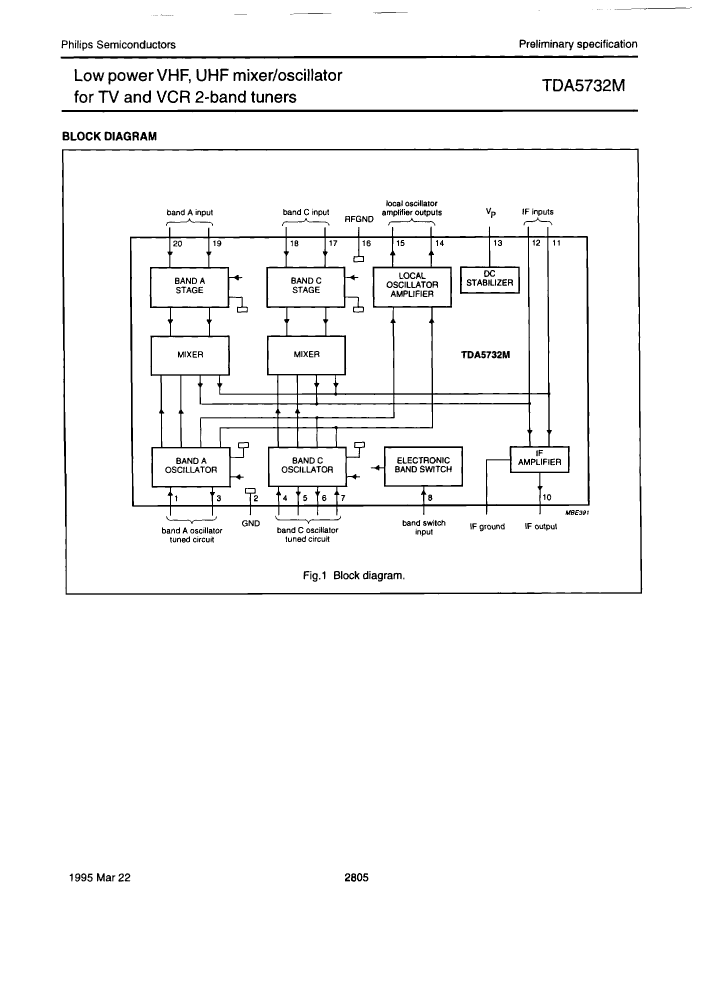

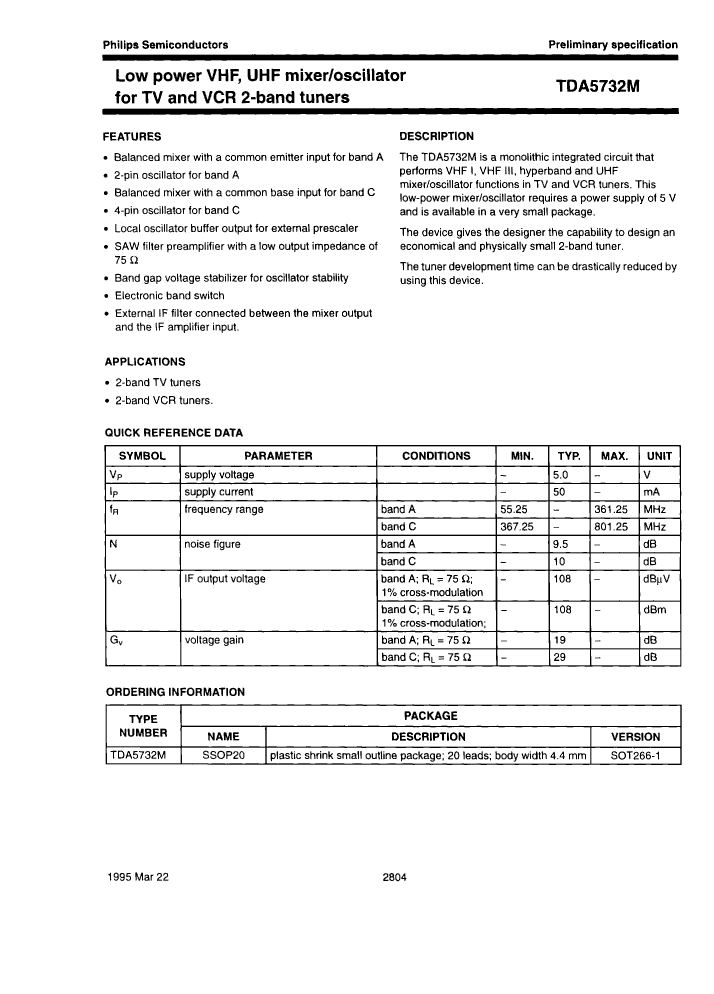

TDA5732MDK-T Overview

IC 2-BAND, VIDEO TUNER, PDSO20, Tuner IC

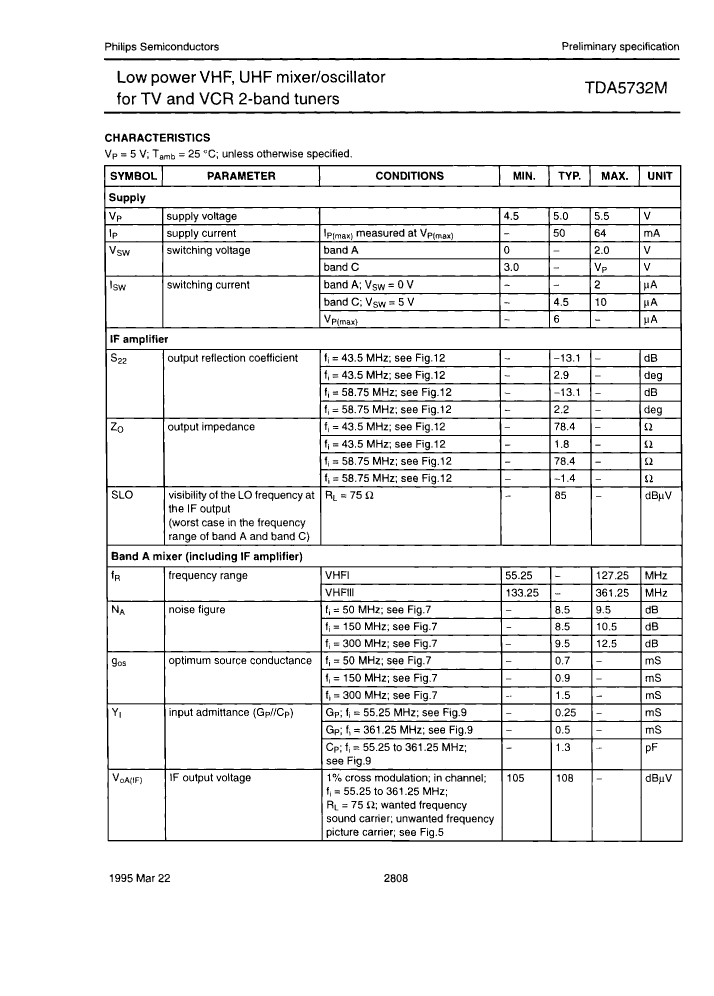

Parameter Name	Attribute value
Maker	NXP
package instruction	LSSOP,
Reach Compliance Code	unknown
ECCN code	EAR99
Built-in IF amplifier	YES
Commercial integrated circuit types	VIDEO TUNER
Maximum input frequency (RF)	801.25 MHz
Minimum input frequency (RF)	55.25 MHz
JESD-30 code	R-PDSO-G20
length	6.5 mm
Nominal noise index	10 dB
Number of frequency bands	2

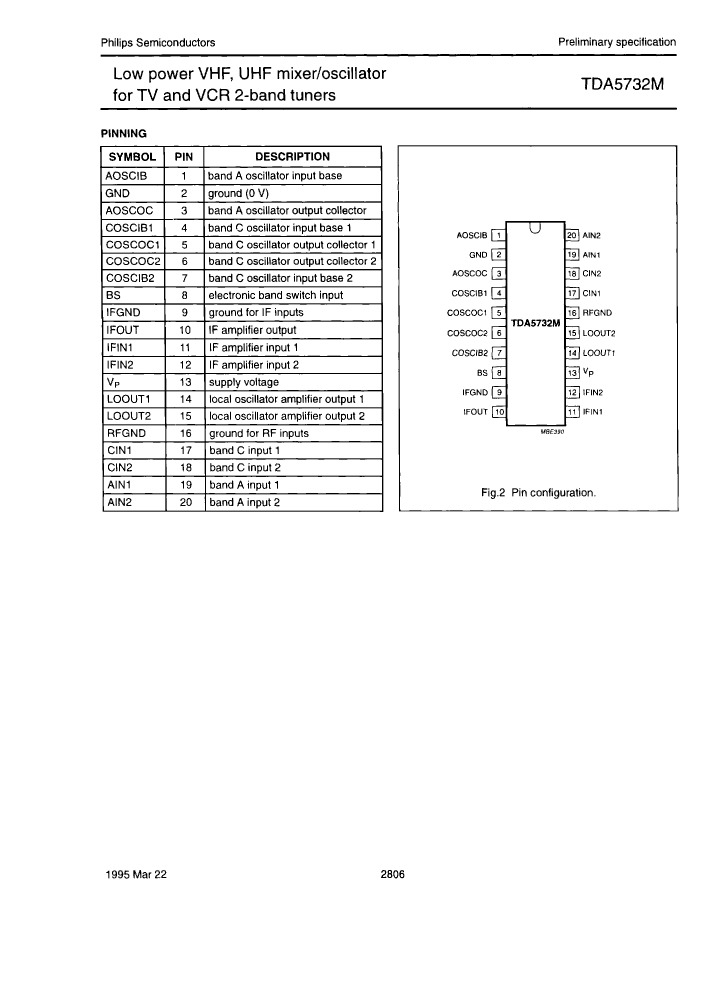

Number of terminals	20

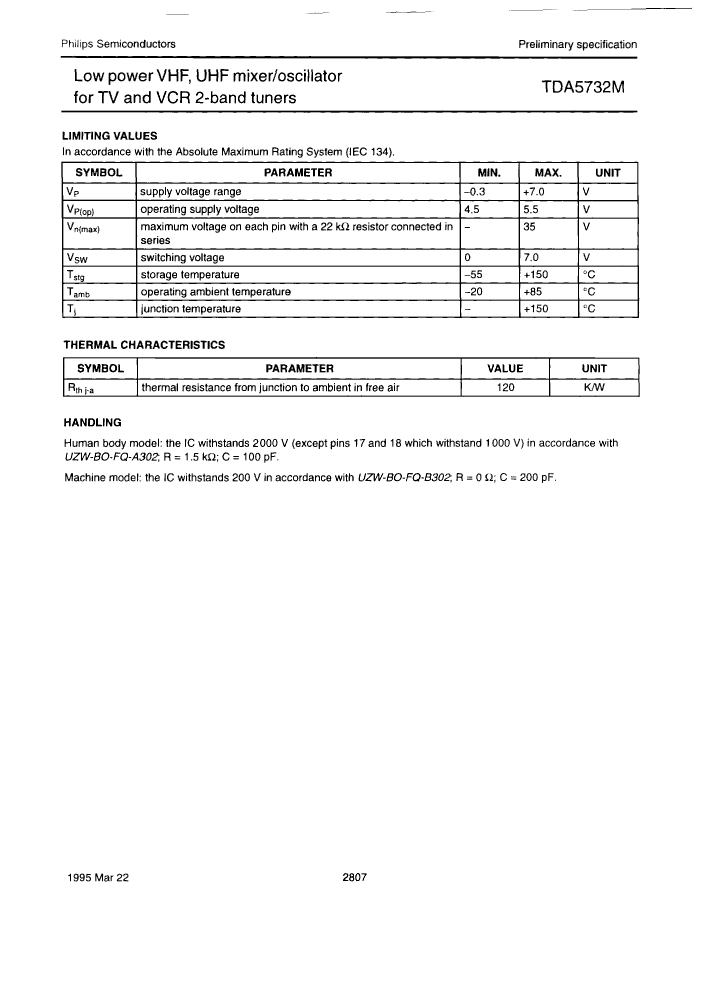

Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Certification status	Not Qualified
Maximum seat height	1.5 mm
Maximum slew rate	64 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
surface mount	YES
Temperature level	OTHER
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	4.4 mm

	TDA5732MDK-T	TDA5732MDK
Description	IC 2-BAND, VIDEO TUNER, PDSO20, Tuner IC	IC 2-BAND, VIDEO TUNER, PDSO20, Tuner IC
Maker	NXP	NXP
package instruction	LSSOP,	LSSOP,
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Built-in IF amplifier	YES	YES
Commercial integrated circuit types	VIDEO TUNER	VIDEO TUNER
Maximum input frequency (RF)	801.25 MHz	801.25 MHz
Minimum input frequency (RF)	55.25 MHz	55.25 MHz
JESD-30 code	R-PDSO-G20	R-PDSO-G20
length	6.5 mm	6.5 mm
Nominal noise index	10 dB	10 dB
Number of frequency bands	2	2
Number of terminals	20	20
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSSOP	LSSOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.5 mm	1.5 mm
Maximum slew rate	64 mA	64 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
surface mount	YES	YES
Temperature level	OTHER	OTHER
Terminal form	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm
Terminal location	DUAL	DUAL
width	4.4 mm	4.4 mm
