T0812MH datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> T0812MH

T0812MH: Description600V, 8A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-220, TO-220, 3 PIN; CategoryAnalog mixed-signal IC Trigger device; File Size134KB，5 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

T0812MH Overview

600V, 8A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-220, TO-220, 3 PIN

T0812MH Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	STMicroelectronics
Parts packaging code	SFM
package instruction	TO-220, 3 PIN
Contacts	3
Reach Compliance Code	not_compliant
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	500 V/us
Maximum DC gate trigger current	50 mA
Maximum DC gate trigger voltage	2.5 V
Maximum holding current	100 mA
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
JESD-609 code	e3
Maximum leakage current	2 mA
Number of components	1
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	8 A
Off-state repetitive peak voltage	600 V
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	4 QUADRANT LOGIC LEVEL TRIAC

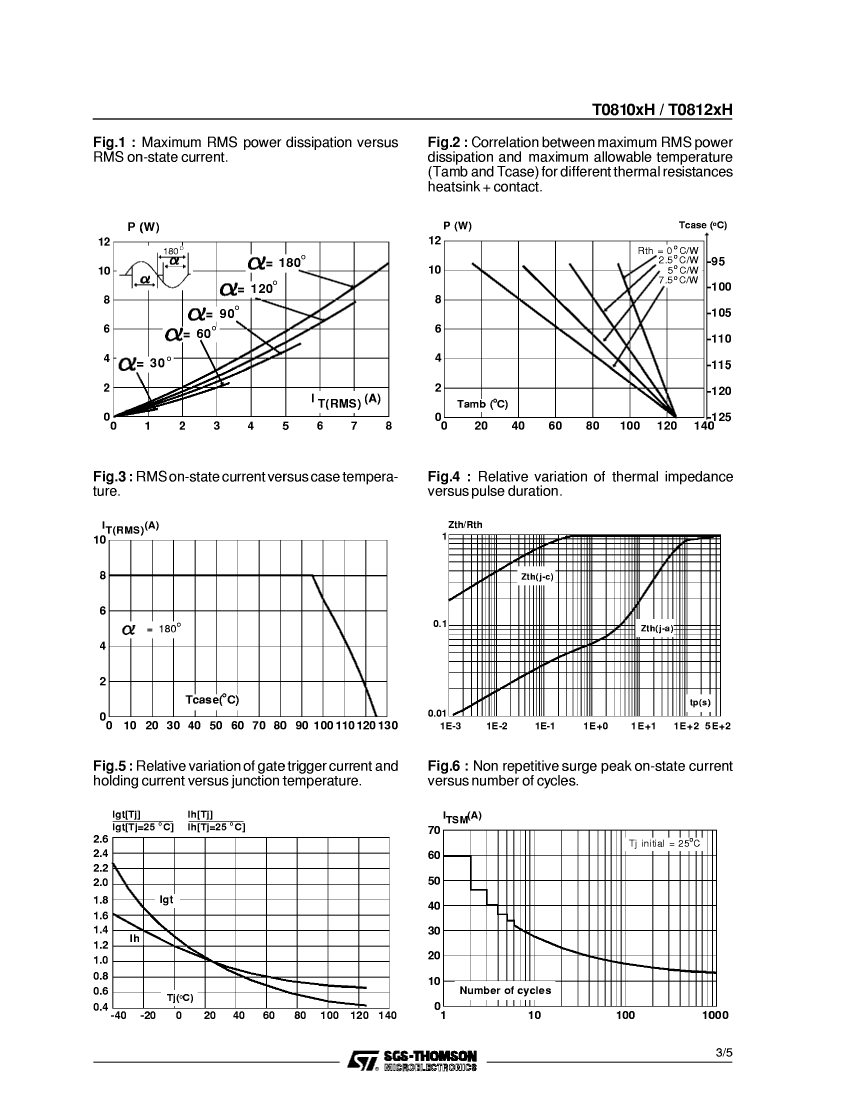

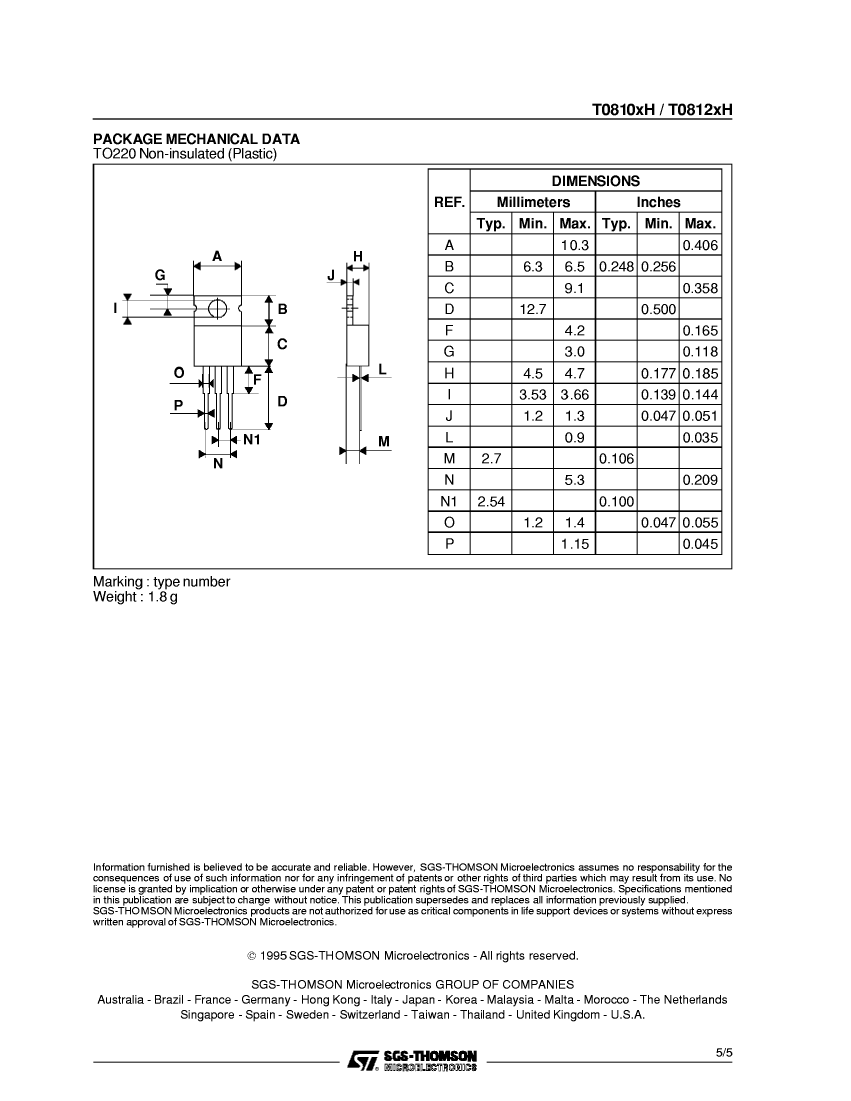

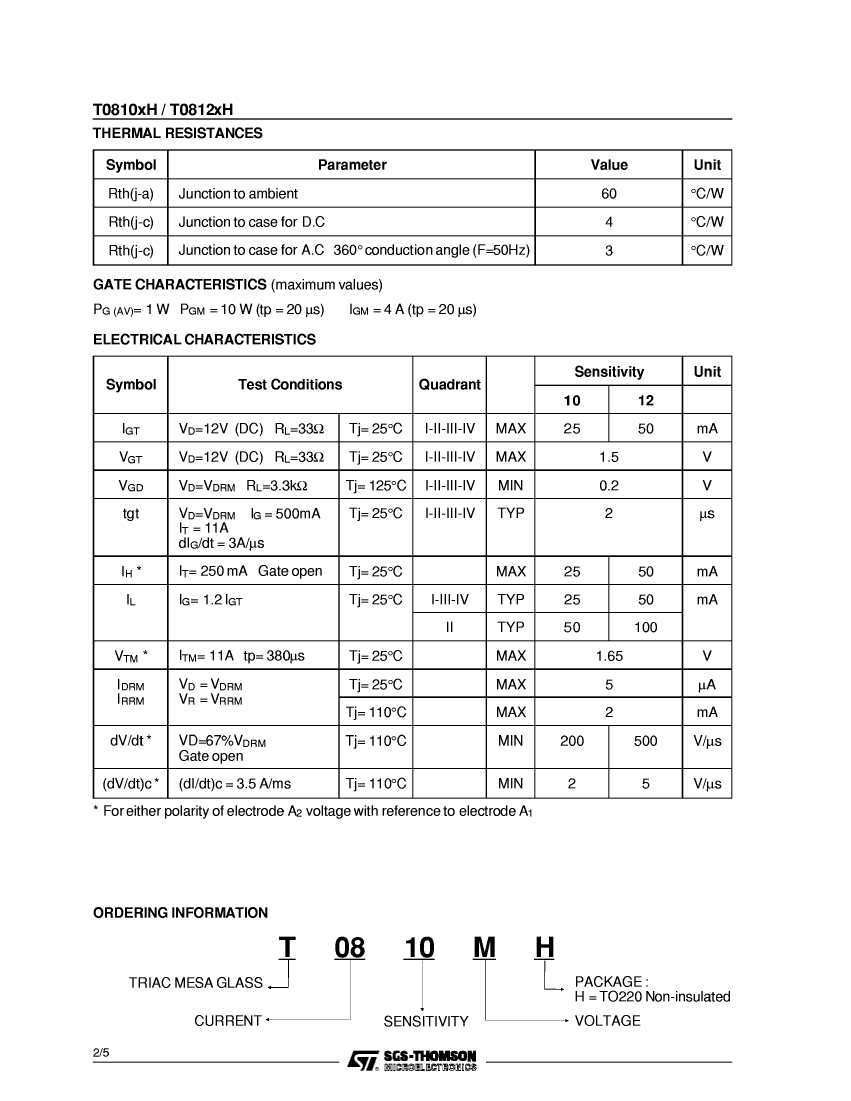

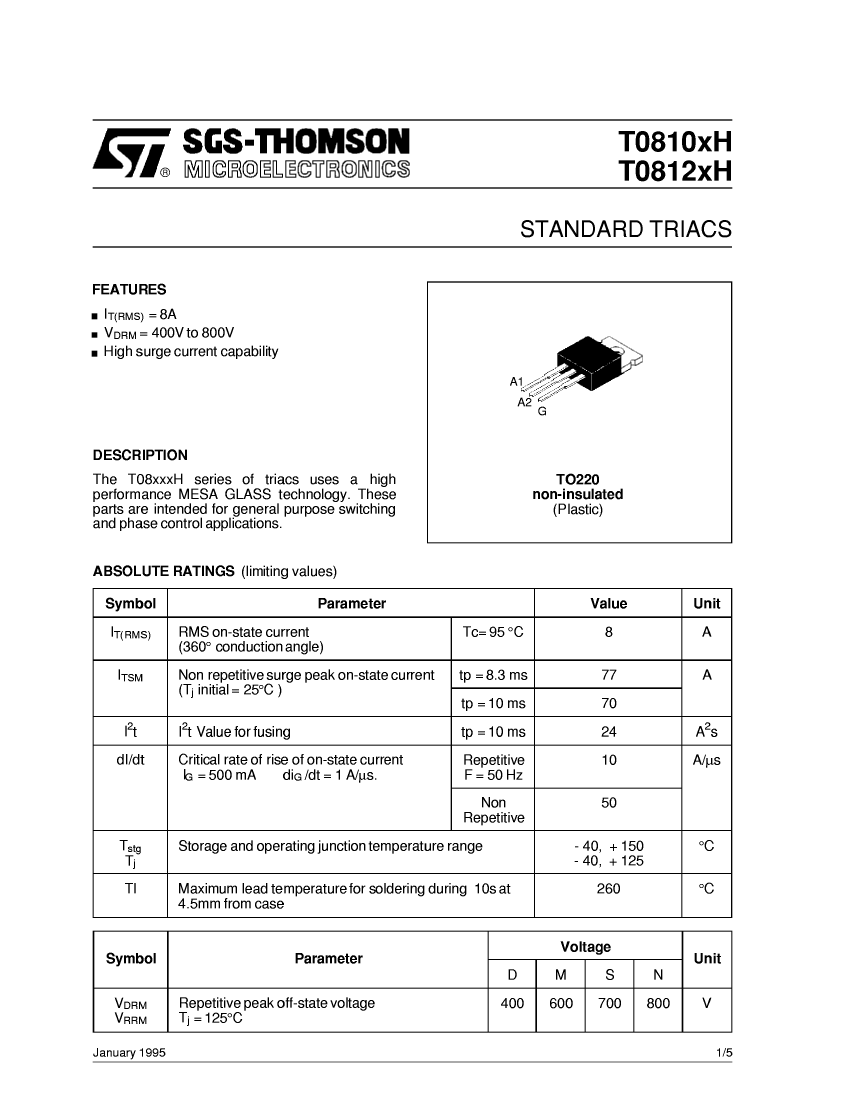

Preview

Download Datasheet

View All

T0812MH Related Products

	T0812MH	T0810DH	T0810MH	T0810SH	T0812SH	T0812NH	T0812DH	T0810NH
Description	600V, 8A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-220, TO-220, 3 PIN	400V, 8A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-220, TO-220, 3 PIN	600V, 8A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-220, TO-220, 3 PIN	700V, 8A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-220, TO-220, 3 PIN	700V, 8A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-220, TO-220, 3 PIN	800V, 8A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-220, TO-220, 3 PIN	400V, 8A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-220, TO-220, 3 PIN	800V, 8A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-220, TO-220, 3 PIN
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
Parts packaging code	SFM	SFM	SFM	SFM	SFM	SFM	SFM	SFM
package instruction	TO-220, 3 PIN	TO-220, 3 PIN	TO-220, 3 PIN	TO-220, 3 PIN	TO-220, 3 PIN	TO-220, 3 PIN	TO-220, 3 PIN	TO-220, 3 PIN
Contacts	3	3	3	3	3	3	3	3
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Critical rise rate of minimum off-state voltage	500 V/us	200 V/us	200 V/us	200 V/us	500 V/us	500 V/us	500 V/us	200 V/us
Maximum DC gate trigger current	50 mA	25 mA	25 mA	25 mA	50 mA	50 mA	50 mA	25 mA
Maximum DC gate trigger voltage	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V
Maximum holding current	100 mA	50 mA	50 mA	50 mA	100 mA	100 mA	100 mA	50 mA
JEDEC-95 code	TO-220AB	TO-220AB	TO-220AB	TO-220AB	TO-220AB	TO-220AB	TO-220AB	TO-220AB
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3
Maximum leakage current	2 mA	2 mA	2 mA	2 mA	2 mA	2 mA	2 mA	2 mA
Number of components	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-45 °C	-40 °C	-40 °C	-40 °C	-40 °C	-45 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	8 A	8 A	8 A	8 A	8 A	8 A	8 A	8 A
Off-state repetitive peak voltage	600 V	400 V	600 V	700 V	700 V	800 V	400 V	800 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Trigger device type	4 QUADRANT LOGIC LEVEL TRIAC	4 QUADRANT LOGIC LEVEL TRIAC	4 QUADRANT LOGIC LEVEL TRIAC	4 QUADRANT LOGIC LEVEL TRIAC	4 QUADRANT LOGIC LEVEL TRIAC	4 QUADRANT LOGIC LEVEL TRIAC	4 QUADRANT LOGIC LEVEL TRIAC	4 QUADRANT LOGIC LEVEL TRIAC
