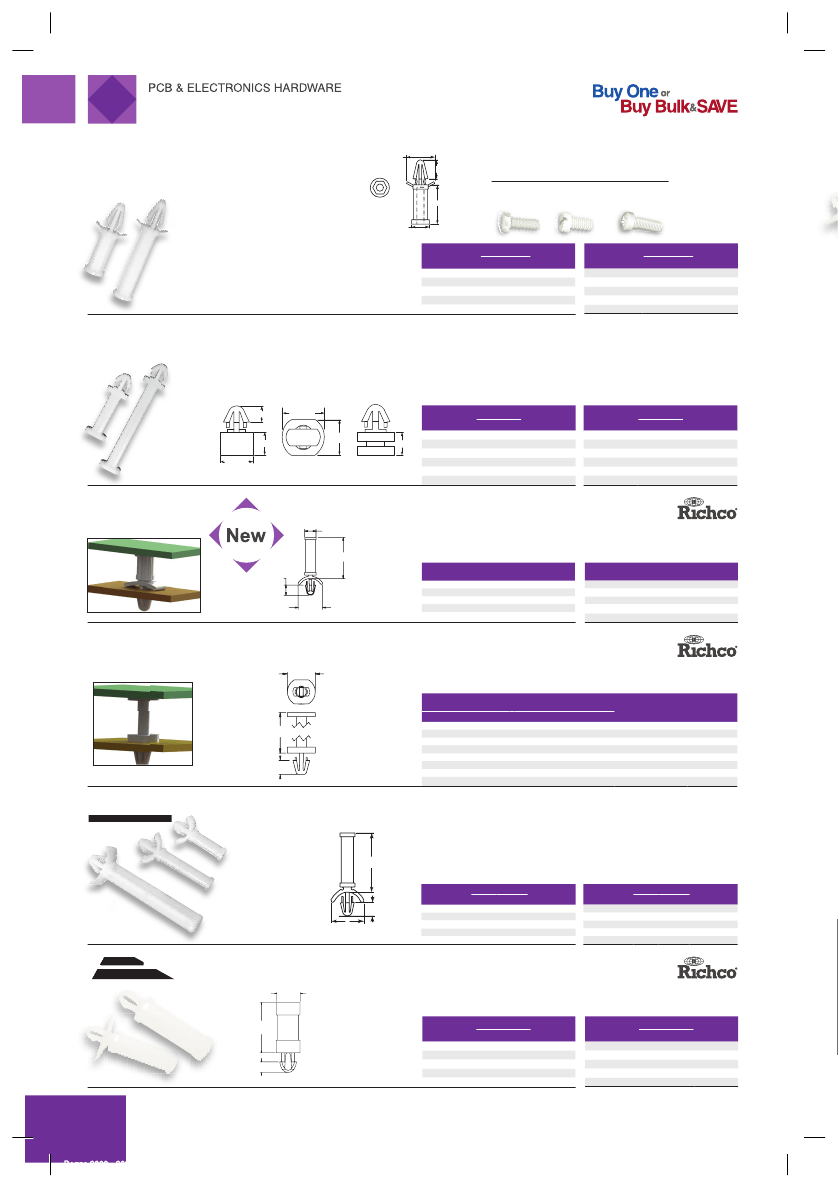

PUSH SPACER SUPPORT POSTS
CBTFS
Threaded Female Locking Supports
Specifications:
•
Material: Nylon 6/6
•
Color: Natural
•
Flame Class: UL94 V-2
To Lock Hole:
.157 (4.0)
Panel Thickness:
.047–.067 (1.2–1.7)
For (M3)
Self-Tapped Screw
.43 (10.8)
.29 (7.4)
CBTFS Series (Threaded Female Locking Supports)
can be used with the following screws:
Threads: M3
SXHM Series - SCSM Series - SPXM Series -
Page: 784
Page: 787
Page: 786
.10 (2.5)
.27 (6.9)
A
Features:
•
Threaded female support provides an
exceptionally robust hold to the chassis
•
Easily disassembled for change or repair
in the field
CBPSW Series
Wide Base Push Spacers
Item
No.
A
In
mm
Bulk Pack
Qty.
Item
No.
A
In
mm
Bulk Pack
Qty.
CBTFS005A
CBTFS010A
CBTFS015A
CBTFS020A
CBTFS025A
0.197 5.0
0.250 6.4
0.276 7.0
0.394 10.0
0.591 15.0
1000
1000
1000
1000
1000
CBTFS030A
CBTFS035A
CBTFS040A
CBTFS045A
0.787
0.984
1.181
1.378
20.0
25.0
30.0
35.0
1000
1000
1000
1000
Specifications:
•
Material: Nylon 6/6
•
Color: Natural
•
Flame Class: UL94 V-2
.11 (2.8)
.24 (6.0)
Features:
•
The wide base design on both ends provides additional
support for heavily loaded PCBs.
•
Eliminates screws, nuts and lock washers from mounting
Item
No.
A
In
mm Style
Bulk Pack
Qty.
Item
No.
A
In
mm Style
Bulk Pack
Qty.
To Lock in Hole:
.137 (3.5)
Panel Thickness:
.047–.067 (1.2–1.7)
A
.24 (6.0)
.20 (5.0)
A
Style 2
Style 3
Style 1
CBPSW005A
CBPSW010A
CBPSW015A
CBPSW020A
CBPSW025A
CBPSW030A
0.118
0.138
0.157
0.177
0.197
0.217
3.0
3.5
4.0
4.5
5.0
5.5
1
1
1
2
3
2
2000
2000
2000
2000
2000
2000
CBPSW035A
CBPSW040A
CBPSW045A
CBPSW050A
CBPSW055A
0.236
0.256
0.276
0.531
1.024
6.0
6.5
7.0
13.5
26.0
2
2
2
2
2
2000
2000
2000
2000
2000
PSM
Mini Push Spacer
Ø11/64
(4.4)
A
5/32
(4)
3/8 (9.5)
Ref
Bottom Hole:
Snap-lock: .125 (3.18)
Panel Thickness:
.031 - .078 (0.79 - 1.98)
•
•
•
•
Supports heavily loaded PC boards
Often used with Richco LCBS series
Material: UL94 V-2 Nylon 6/6
Color: Natural
Item
No.
“A”
Standoff Height
PSM-2-01
PSM-3-01
PSM-4-01
PSM-5-01
PSM-6-01
1/8 (3.2)
3/16 (4.8)
1/4 (6.4)
5/16 (7.9)
3/8 (9.5)
Bulk Pack
Qty.
1000
1000
1000
1000
1000
PSM-7-01
PSM-8-01
PSM-9-01
PSM-10-01
Item
No.
“A”
Standoff Height
7/16 (11.1)
1/2 (12.7)
9/16 (14.3)
5/8 (15.9)
Bulk Pack
Qty.
1000
1000
1000
1000
PSD
Metric Push Spacer
7mm
•
•
•
•
Sturdy construction supports heavily loaded PCB’s
Allows easy access to underside of board
Material: Nylon 6/6
Color: Natural
Item
No.
Material: UL94 V-2
Material: UL94 V-0
“A”
Standoff Height
mm
Bulk Pack
Qty.
A
3.5
mm
Bottom Hole:
Snap-lock: 3 - 3.1mm
Panel Thickness:
1.6mm
PSD-4M-01
PSD-6M-01
PSD-7M-01
PSD-8M-01
PSD-10M-01
PSD-12M-01
PSD-14M-01
PSD-18M-01
PSD-4M-19
PSD-6M-19
PSD-7M-19
PSD-8M-19
PSD-10M-19
PSD-12M-19
PSD-14M-19
PSD-18M-19
4
6
7
8
10
12
14
18
1000
1000
1000
1000
1000
1000
1000
1000
CBPS
Push In Spacers
To Lock in Hole:
.118 (3.0)
Panel Thickness:
.031–.078 (0.8–2.0)
A
Specifications:
•
Material: Nylon 6/6
•
Color: Natural
•
Flame Class: UL94 V-2
Item
No.
A
Bulk Pack
Qty.
Features:
•
The tension wing design offers
extra support and a secure fit
•
No fasteners required for mount-
ing due to the one-piece design
Item
No.
A
In
mm
Bulk Pack
Qty.
.37 (9.5)
.13 (3.2)
CBPS105A
CBPS110A
CBPS115A
CBPS120A
CBPS125A
0.125
0.187
0.250
0.312
0.375
In
mm
3.2
4.8
6.4
7.9
9.5
1000
1000
1000
1000
1000
CBPS130A
CBPS135A
CBPS140A
CBPS145A
CBPS150A
0.437
0.500
0.562
0.625
0.748
11.1
12.7
14.3
15.9
19.0
1000
1000
1000
1000
1000
PST Series
Teardrop Push Spacer
Ø11/64 (4.4)
Specifications:
•
Material: Nylon 6/6
•
Color: Natural
•
Flame Class: UL94 V-2
Item
No.
A
In
mm
Bulk Pack
Qty.
Item
No.
A
In
mm
Bulk Pack
Qty.
A
Snap-Lock:
.100 ± .002 (2.5 ± 0.1 )
Panel Thickness:
.064 (1.6) Max
.08 (2.0)
PST-1-01
PST-2-01
PST-3-01
PST-4-01
PST-5-01
0.063
0.125
0.188
0.250
0.313
1.6
3.2
4.8
6.4
7.9
1000
1000
1000
1000
1000
PST-6-01
PST-7-01
PST-8-01
PST-9-01
PST-10-01
0.375
0.438
0.500
0.563
0.625
9.5
11.1
12.7
14.3
15.9
1000
1000
1000
1000
1000
684
Pages 0682 - 0691.indd 684
