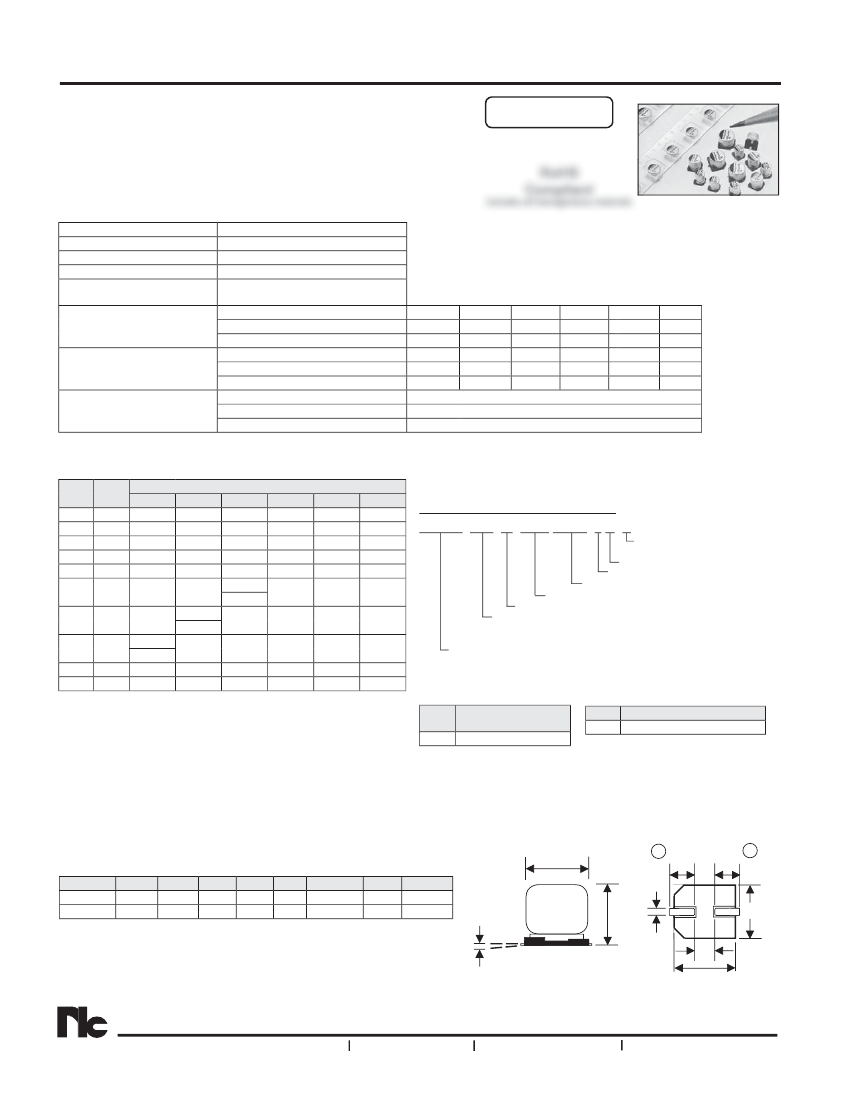

NAWS330M6.3V5X4JBF

Description
Surface Mount Aluminum Electrolytic Capacitors
File Size88KB,3 Pages
ManufacturerNIC
Websitehttps://www.niccomp.com
Download Datasheet View All

NAWS330M6.3V5X4JBF Overview

Surface Mount Aluminum Electrolytic Capacitors

Surface Mount Aluminum Electrolytic Capacitors
FEATURES
CYLINDRICAL V-CHIP CONSTRUCTION FOR SURFACE MOUNTING
LOW PROFILE 4MM HEIGHT
LOAD LIFE (1,000 HOURS @ +105°C)
DESIGNED FOR AUTOMATIC MOUNTING AND REFLOW SOLDERING
SAC
Alloy Compatible
240°C
NAWS Series
includes all homogeneous materials
RoHS
Compliant
CHARACTERISTICS
Rated Voltage Rating
Rated Capacitance Range
Operating Temp. Range
Capacitance Tolerance
Max. Leakage Current
After 2 Miuntes @ 20°C
Dissipation Factor
Low Temperature
Stability
Impedance Ratio @ 120Hz
Load Life Test @ 105°C
1,000 hours
6.3 ~ 50Vdc
1.0 ~ 100μF
-40 ~ +105°C
±20% (M)
0.01CV or 3μA
whichever is greater
W.V. (Vdc)
S.V. (Vdc)
Tan
δ
@ 120Hz/20°C
W.V. (Vdc)
Z-25°C/Z+20°C
Z-40°C/Z+20°C
Capacitance Change
Tan
δ
Leakage Current
*See Part Number System for Details
P N b S
f D il
6.3
8.0
0.38
6.3
4
10
10
16
25
35
50
13
20
32
44
63
0.32
0.20
0.16
0.14
0.14
10
16
25
35
50
3
2
2
2
2
8
6
4
4
4
Within ±30% of initial measured value
Less than ±300% of the specified maximum value
Less than the specified maximum value
STANDARD VALUES AND CASE SIZES (mm)
Cap.
Code
(μF)
1.0
1R0
2.2
2R2
3.3
3R3
4.7
4R7
10
100
22
33
47
68
100
220
330
470
680
101
6.3
-
-
-
-
-
5X4
5X4
5X4
6.3X4
6.3X4
6.3X4
Working Voltage (Vdc)
10
16
25
35
-
-
-
-
-
-
-
-
-
-
-
-
-
-
5X4
5X4
-
5X4
5X4
5X4
5X4
5X4
6.3X4
6.3X4
6.3X4
5X4
6.3X4
6.3X4
-
6.3X4
6.3X4
-
-
6.3X4
-
-
-
-
-
-
-
-
50
5X4
5X4
5X4
5X4
6.3X4
-
-
-
-
-
Series
PART NUMBER SYSTEM
NAWS 101 M 6.3V 6.3x4 J B F
RoHS Compliant
Termination/Packaging Code
Reflow Temperature Code
Size in mm
Working Voltage
Tolerance Code M=20%
Capacitance Code in
μF,
rst 2 digits are significant
Third digit is no. of zeros, “R” indicates decimal for
values under 10μF
PEAK REFLOW
TERMINATION FINISH &
TEMPERATURE CODES PACKAGING OPTIONS CODES
Code
J
Peak Reflow
Temperature
240°C
Code
B
Finish & Reel Size
Sn-Bi Finish & 13" Reel
DIMENSIONS (mm) AND REEL QUANTITIES
Case Size
φD±0.5
L max. A±0.2 B±0.2 I±0.3
W
5x4
5.0
4.0
5.3
5.3
2.3 0.5 ~ 0.8
6.3x4
6.3
4.0
6.6
6.6
2.6 0.5 ~ 0.8
P±0.2 Qty/Reel
1.4
1,000
2.2
1,000
W
0.3mm max.
+
I
I
-
L
P
B
A
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
SPECIFICATIONS ARE SUBJECT TO CHANGE
1
