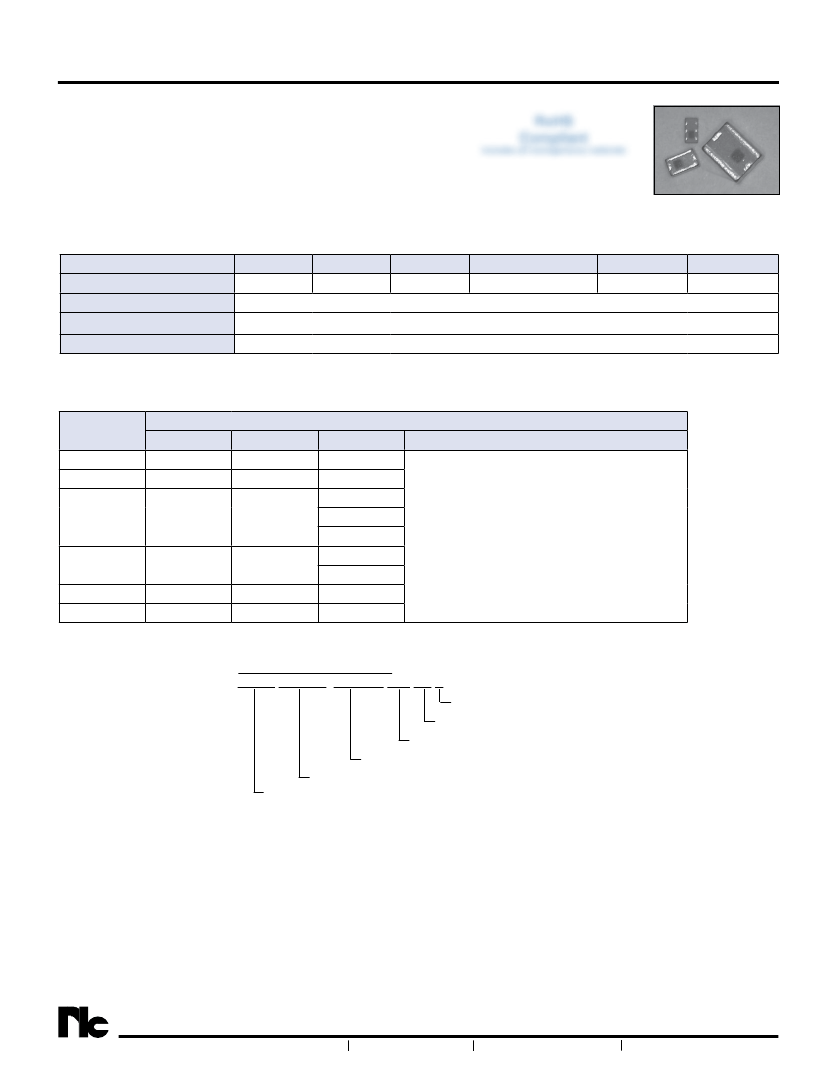

Multilayer Chip Band Pass Filters
FEATURES
• LOW INSERTION LOSS
• HIGH ATTENTUATION
• INTERNAL SHIELDING
• SMALL SIZE & LOW PROFILE LTCC CONSTRUCTION
• TAPED AND REELED FOR AUTOMATIC INSERTION
includes all homogeneous materials
NGFP Series
RoHS
Compliant
*See Part Number System for Details
CHARACTERISTICS
Case Code
Center Frequency Ranges
Operating Temperature Range
Bandwidth
Resistance to Solder Heat
0402
2450 MHz
0603
2450 MHz
0805
2450 MHz
1008
2450 MHz ~ 3275 MHz
-40°C ~ +85°C
±5MHz
~ ±225Mhz (Refer to Individual Part Numbers for Specific Values)
+260°C for 10 seconds
1206
2450 MHz
1210
2450 MHz
DIMENSIONS (mm)
Case Code
NGFP0402
NGFP0603
NGFP0805
DIMENSIONS (mm)
A
1.0 ± 0.05
1.6 ± 0.10
2.0 ± 0.15
B
0.5 ± 0.05
0.8 ± 0.10
1.2 ± 0.15
C
0.38 ± 0.05
0.6 ± 0.10
0.45 ± 0.05
0.80 ± 0.10
0.95 ± 0.10
NGFP1008
NGFP1206
NGFP1210
2.5 ± 0.20
3.2 ± 0.15
3.2 ± 0.20
2.0 ± 0.20
1.6 ± 0.15
2.5 ± 0.20
0.95 ± 0.10
1.2 ± 0.10
1.2 ± 0.10
1.5 ± 0.10
Refer to Individual Part Number Table
Pin Layout and Dimensions
PART NUMBER SYSTEM
NGFP 0805AB 2R450G
050 TR F
RoHS Compliant
Packaging: TR = Tape & Reel
Bandwidth Code
Frequency Code (Ghz): “R” indicates decimal
Style & Performance Codes (see dimensions and part number tables for details)
Series
®
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
Specifications are subject to change
1
Multilayer Chip Band Pass Filters
NGFP0402 Size
Standard Values - Case Size 0402 (1.0 x 0.5 x 0.38mm)
Part Number
Center
Frequency
(MHz)
Bandwidth
(MHz)
Max. IL in BW
@ 25°C (dB)
Attenuation (dB)
NGFP Series
Component
Thickness
25dB Min. at 880~960MHz
NGFP0402AG2R450G050TRF
2,450
f0 ± 50.0
1.4
8dB Min. at 1710~1970MHz
23dB Min. at 4800~5000MHz
32dB Min. at 7200~7500MHz
0.38 ± 0.05
(Customization Available. Please contact NIC for any center frequency and response customizations)
COMPONENT LAYOUT (in mm)
0.18 ± 0.1
LAND PATTERNS (in mm)
0.25
1.0 ± 0.05
0.25 ± 0.1
0.5 ± 0.05
(4)
(3)
(2)
0.38 ± 0.05
(1)
0.60
0.25
NGFP0402 Style Code
All Styles
(1)
Ground
(2)
Out
(3)
Ground
(4)
In
0.60
0.625
NGFP0603 Size
Standard Values - Case Size 0603 (1.6 x 0.8 x 0.6mm)
Part Number
Center
Frequency
(MHz)
Bandwidth
(MHz)
Max. IL in BW
@ 25°C (dB)
Attenuation (dB)
24dB min. at 880~960MHz
NGFP0603AG2R450G050TRF
2,450
f0 ± 50.0
1.6
20dB min. at 1710~1990MHz
25dB min. at 4800~5000MHz
25dB min. at 7200~7500MHz
30dB min. at 880~960MHz
NGFP0603AH2R450G050TRF
2,450
f0 ± 50.0
2.5
25dB min. at 1710~1990MHz
25dB min. at 4800~5000MHz
20dB min. at 7200~7500MHz
0.60 ± 0.10
Component
Thickness
(Customization Available. Please contact NIC for any center frequency and response customizations)
COMPONENT LAYOUT
1.6 ± 0.1
0.3 ± 0.1
0.6 ± 0.1
0.8 ± 0.1
0.7 ± 0.15
LAND PATTERNS
2.6
0.15 ± 0.1
(4)
(1)
(3)
(2)
0.3
0.15 ± 0.1
NGFP0603 Style Code
Style A
(1)
Ground
(2)
Out
(3)
Ground
(4)
In
0.25
0.7
®
2
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
Specifications are subject to change
0.6
0.7
0.05
1.45
Multilayer Chip Band Pass Filters
NGFP0805 Size
Standard Values - Case Size 0603 (1.6 x 0.8 x 0.6mm)
Part Number
Center
Frequency
(MHz)
Bandwidth
(MHz)
Max. IL in BW
@ 25°C (dB)
Attenuation (dB)
NGFP Series
Component
Thickness
(C - mm)
40dB Min. at 880~960MHz
NGFP0805AG2R450G050TRF
2,450
f0 ± 50.0
2.6
38dB Min. at 1710~1990MHz
16dB Min. at 2110~2170MHz
30dB Min. at 4800~5000MHz
30dB Min. at 900MHz
NGFP0805AH2R450G050TRF
2,450
f0 ± 50.0
1.7
20dB Min. at 1850MHz
30dB Min. at 4800MHz
15dB Min. at 1600MHz
NGFP0805AJ2R450G050TRF
2,450
f0 ± 50.0
1.2
20dB Min. at 3200MHz
40dB Min. at 4800~5000MHz
20dB Min. at 700~800MHz
25dB Min. at 1710~1880MHz
NGFP0805AK2R450G050TRF
2,450
f0 ± 50.0
2.8
35dB Min. at 3200MHz
20dB Min. at 4800~5000MHz
20dB Min. at 7200~7500MHz
35dB min. at 880~960MHz
NGFP0805BG2R450G050TRF
2,450
f0 ± 50.0
1.5
20dB min. at 1710~1990MHz
30dB min. at 4800~5000MHz
30dB Min. at 824~915MHz
28dB Min. at 1545~1605MHz
NGFP0805CG2R450G050TRF
2,450
f0 ± 50.0
1.8
35dB Min. at 1710~1990MHz
30dB Min. at 2170MHz
30dB Min. at 4800~5000MHz
25dB min. at 7200~7500MHz
30dB Min. at 746~960MHz
28dB Min. at 1570~1580MHz
35dB Min. at 1710~1990MHz
NGFP0805CH2R450G050TRF
2,450
f0 ± 50.0
2.7
30dB Min. at 2110~2170MHz
15dB Min. at 3300~3800MHz
20dB Min. at 4800~5000MHz
20dB Min. at 7200~7500MHz
30dB min. at 880~960MHz
30dB min. at 1710~1990MHz
NGFP0805CJ2R450G050TRF
2,450
f0 ± 50.0
1.5
6dB min. at 2110~2170MHz
30dB min. at 4800~5000MHz
20dB min. at 7200~7500MHz
0.45 ± 0.05
0.80 ± 0.10
0.95 ± 0.10
(Customization Available. Please contact NIC for any center frequency and response customizations)
®
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
Specifications are subject to change
3
Multilayer Chip Band Pass Filters
NGFP0805 Size
COMPONENT LAYOUT
Style "A"
0.22 ± 0.15
2.0 ± 0.15
1.2 ± 0.15
0.95 ± 0.1
1.7 ± 0.15
1.2 ± 0.15
0.75
NGFP Series
LAND PATTERNS
Style "A"
1.65
0.75
(1)
(4)
(3)
(2)
1.5
0.25 ± 0.15
0.95
Style "B"
0.2 ± 0.1
2.0 ± 0.15
0.95 ± 0.1
0.3 ± 0.15
0.3 ± 0.15
0.5
Style "B"
0.65
0.35
(3)
(4)
(5)
0.2 ± 0.1
1.2 ± 0.1
(2)
(6)
(1)
(8)
(7)
0.75
1.5
0.65 ± 0.1
0.5
Style "C"
2.0 ± 0.15
0.95 ± 0.1
1.2 ± 0.1
0.6 ± 0.1
Style "C"
C
0.6
(1)
(2)
(3)
0.95
0.275 ± 0.1
0.25 ± 0.1
0.25
0.275
NGFP0805 Style Code
Style A
Style B
Style C
(1)
Ground
In
(5)
Out
In
(2)
Out
NC
(6)
Ground
Ground
(3)
Ground
NC
(7)
NC
Out
(4)
In
Ground
(8)
Ground
-
®
4
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
Specifications are subject to change
0.35
0.35
Multilayer Chip Band Pass Filters
NGFP1008 Size
Standard Values - Case Size 1008 (2.5 x 2.0mm)
Part Number
Center
Frequency
(MHz)
Bandwidth
(MHz)
Max. IL in BW
@ 25°C (dB)
Attenuation (dB)
25dB Min. at 1750MHz
NGFP1008AH2R450G050TRF
2,450
f0 ± 50.0
1.7
6dB min. at 2100MHz
NGFP Series
Component
Thickness
(C - mm)
22dB Min. at 4800~5000MHz
20dB Min. at 7200~7500MHz
50dB Min. at 956~961MHz
24dB Min. at 2868~2883MHz
0.90 ± 0.10
NGFP1008AG1R917G005TRF
1,917
f0 ± 5.0
1.9
29dB Min. at 3824~3844MHz
33dB Min. at 4780~4805MHz
32dB Min. at 5736~5766MHz
25dB Min. at 1000~2300MHz
25dB Min. at 4380~8000MHz
NGFP1008AG3R275G225TRF
3,275
f0 ± 225.0
1.5
1.20 ± 0.10
(Customization Available. Please contact NIC for any center frequency and response customizations)
COMPONENT LAYOUT
0.3 ± 0.2
2.5 ± 0.25
C
LAND PATTERNS
3.9
2.0
1.1
0.55 ± 0.15
(1)
(4)
(3)
0.3 ± 0.15
1.1
NGFP1008 Style Code
All Styles
(1)
Ground
(2)
Out
(3)
Ground
(4)
In
®
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
0.6
(2)
2.0 ± 0.2
0.3
3.4
1.7
Specifications are subject to change
5
