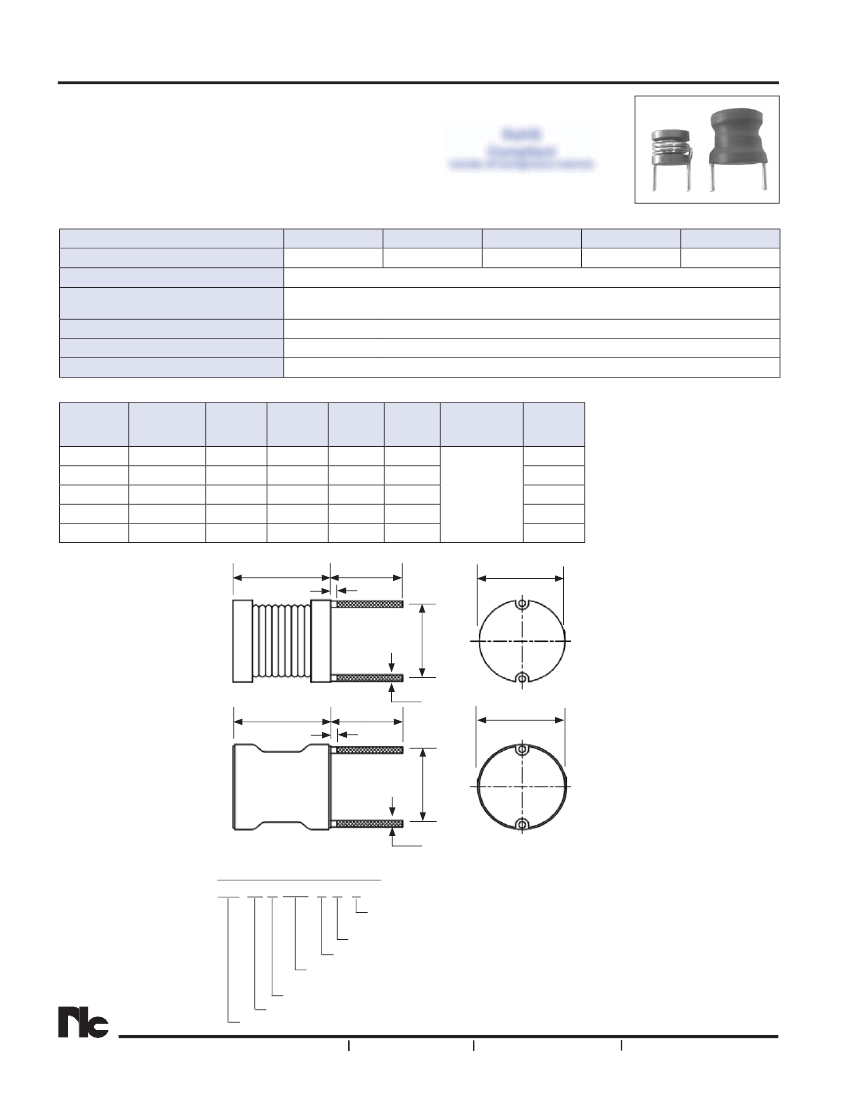

NLI Radial Power Inductors
FEATURES
• RADIAL LEADED POWER INDUCTOR
• WIRE WOUND CONSTRUCTION
• WIDE VALUE RANGE 1.0μH ~ 330μH
• AVAILABLE WITH HIGH TEMPERATURE SLEEVE
• FIVE CASE SIZES (6.5X6.5mm ~ 11X15.5mm)
• BULK PACKAGING ONLY
CHARACTERISTICS
Case Code
Inductance Range (μH)
Ambient Operating Temperature Range
Maximum Component Temperature
(Ambient + Self-Heating)
Temperature Rise at Irms
Inductance Change at Isat
Inductance Tolerance
NLI66H
1.0μH ~ 4.7μH
NLI77H
1.0μH ~ 22μH
NLI87H
2.2μH ~ 22μH
-20°C ~ +80°C
+105°C
+20°C
-20%
K (±10%), M (±20%)
NLI101H
NLI__H Series
RoHS
Compliant
includes all homogeneous materials
*See Part Number System for Details
NLI121H
10μH ~ 330μH
3.3μH ~ 100μH
DIMENSIONS (mm)
Series
NLI66H
NLI77H
NLI87H
NLI101H
NLI121H
A max.
6.5
7.5
7.5
10.5
15.5
B
5.0 ± 1.0
5.0 ± 1.0
5.0 ± 1.0
10.0 ± 2.0
10.0 ± 2.0
C
5.0 ± 1.0
6.0 ± 1.0
6.0 ± 1.0
8.0 ± 1.0
11.0 ± 1.0
A
F
D max.
(Without
Sleeve)
6.5
7.5
8.5
11.0
15.0
B
D1 max.
(With
Sleeve)
7.0
8.0
9.0
11.5
15.5
D
See
Specifications
Tables
E
F max.
1.5
1.5
1.5
1.5
1.5
C
A
F
B
E
D1
C
E
PART NUMBER SYSTEM
NLI 66 H 4R7 K U F
RoHS Compliant
U = Optional Black UL Sleeving (blank for no sleeving)
Inductance Tolerance Code: K = ±10%, M = ±20%
Inductance Code (μH): 1st two digits are significant,
3rd digit is multiplier for values from 10μH and up.
Construction Code (see drawing for details)
Size Code (see table for details)
Series
®
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
SPECIFICATIONS SUBJECT TO CHANGE
1
NLI Radial Power Inductors
Part Number
NLI66H1R0M _ F
NLI66H1R5M _ F
NLI66H2R2M _ F
NLI66H3R3M _ F
NLI66H4R7M _ F
Inductance
(μH)
1
1.5
2.2
3.3
4. 7
NLI66H STANDARD VALUES (H = 6.5mm x D = 6.5mm)
Inductance
SRF
DCR
Q min.
Q Freq.
Tolerance*
(MHz) min.
(Ω) max.
±20%
20
7.96MHz
100
0.008
±20%
±20%
±20%
±20%
20
20
20
20
7.96MHz
7.96MHz
7.96MHz
7.96MHz
70
60
50
40
0.009
0.013
0.018
0.024
I sat
(A)
6
5
4
3.2
2. 7
NLI__H Series
I rms
(A)
4.3
3.7
3.2
2.7
2. 4
Dim. E
(ref.)
0.6
0.55
0.55
0.5
0.5
DC I maximum +25°C temperature rise,
ΔL
-20% max.
* Contact NIC for other tolerance options. _ Add the letter "U" if sleeving is required.
NLI77H STANDARD VALUES (H = 7.5mm x D = 7.5mm)
Inductance
SRF
DCR
Q min.
Q Freq.
Tolerance*
(MHz) min.
(Ω) max.
±20%
10
7.96MHz
70
0.006
±20%
±20%
±20%
±20%
±20%
±10%
±10%
±10%
10
10
10
10
10
20
20
20
7.96MHz
7.96MHz
7.96MHz
7.96MHz
7.96MHz
2.52MHz
2.52MHz
2.52MHz
56
45
36
29
24
19
15
12
0.008
0.011
0.018
0.022
0.028
0.043
0.056
0.086
Part Number
NLI77H1R0M _ F
NLI77H1R5M _ F
NLI77H2R2M _ F
NLI77H3R3M _ F
NLI77H4R7M _ F
NLI77H6R8M _ F
NLI77H100K _ F
NLI77H150K _ F
NLI77H220K _ F
Inductance
(μH)
1
1.5
2.2
3.3
4.7
6.8
10
15
22
I sat
(A)
6.6
5.4
4
3.6
3.1
2.5
2.1
1.7
1. 4
I rms
(A)
5
4.3
3.7
2.9
2.6
2.3
1.9
1.6
1. 3
Dim. E
(ref.)
0.7
0.7
0.7
0.55
0.5
0.5
0.45
0.45
0.4
DC I maximum +25°C temperature rise,
ΔL
-20% max.
* Contact NIC for other tolerance options. _ Add the letter "U" if sleeving is required.
NLI87H STANDARD VALUES (H = 7.5mm x D = 8.5mm)
Inductance
SRF
DCR
Q min.
Q Freq.
Tolerance*
(MHz) min.
(Ω) max.
±20%
10
7.96MHz
60
0.011
±20%
±20%
±20%
±10%
±10%
±10%
10
10
10
20
20
20
7.96MHz
7.96MHz
7.96MHz
2.52MHz
2.52MHz
2.52MHz
38
30
24
19
15
12
0.013
0.017
0.023
0.031
0.042
0.07
Part Number
NLI87H2R2M _ F
NLI87H3R3M _ F
NLI87H4R7M _ F
NLI87H6R8M _ F
NLI87H100K _ F
NLI87H150K _ F
NLI87H220K _ F
Inductance
(μH)
2.2
3.3
4.7
6.8
10
15
22
I sat
(A)
5.5
3.8
3.7
2.8
2.5
2
1. 6
I rms
(A)
4
3.4
3
2.6
2.2
1.9
1. 5
Dim. E
(ref.)
0.7
0.7
0.6
0.55
0.55
0.5
0.45
DC I maximum +25°C temperature rise,
ΔL
-20% max.
* Contact NIC for other tolerance options. _ Add the letter "U" if sleeving is required.
NLI101H STANDARD VALUES (H = 10.5mm x D = 11.0mm)
Inductance
SRF
DCR
Q min.
Q Freq.
Tolerance*
(MHz) min.
(Ω) max.
±20%
10
7.96MHz
36
0.01
±20%
±20%
±20%
±10%
±10%
±10%
±10%
±10%
±10%
10
10
20
20
20
30
30
20
20
7.96MHz
7.96MHz
2.52MHz
2.52MHz
2.52MHz
2.52MHz
2.52MHz
2.52MHz
796KHz
28
18
16
12
9.5
7
5.8
4.7
3.8
0.015
0.016
0.025
0.029
0.04
0.062
0.075
0.13
0.16
Part Number
NLI101H3R3M _ F
NLI101H4R7M _ F
NLI101H6R8M _ F
NLI101H100M _ F
NLI101H150K _ F
NLI101H220K _ F
NLI101H330K _ F
NLI101H470K _ F
NLI101H680K _ F
NLI101H101K _ F
Inductance
(μH)
3.3
4.7
6.8
10
15
22
33
47
68
100
I sat
(A)
8.8
7.2
6.1
5
4.2
3.4
2.8
2.3
1.9
1. 6
I rms
(A)
5.9
4.8
4.6
3.7
3.4
2.9
2.3
2.1
1.6
1. 4
Dim. E
(ref.)
0.8
0.8
0.8
0.8
0.8
0.7
0.6
0.6
0.5
0.5
DC I maximum +25°C temperature rise,
ΔL
-20% max.
* Contact NIC for other tolerance options. _ Add the letter "U" if sleeving is required.
®
2
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
SPECIFICATIONS SUBJECT TO CHANGE
NLI Radial Power Inductors
Part Number
NLI121H100M _ F
NLI121H150K _ F
NLI121H220K _ F
NLI121H330K _ F
NLI121H470K _ F
NLI121H680K _ F
NLI121H101K _ F
NLI121H151K _ F
NLI121H221K _ F
NLI121H331K _ F
Inductance
(μH)
10
15
22
33
47
68
100
150
220
330
NLI121H STANDARD VALUES (H = 15.5mm x D = 15.0mm)
Inductance
SRF
DCR
Q min.
Q Freq.
Tolerance*
(MHz) min.
(Ω) max.
±20%
20
2.52MHz
19
0.023
±10%
±10%
±10%
±10%
±10%
±10%
±10%
±10%
±10%
20
20
20
20
20
20
20
20
20
2.52MHz
2.52MHz
2.52MHz
2.52MHz
2.52MHz
796KHz
796KHz
796KHz
796KHz
12
7.6
6.9
5.6
4.4
3.3
2.6
2.2
1.8
0.028
0.035
0.043
0.052
0.068
0.097
0.14
0.2
0.3
I sat
(A)
8
6.5
5.5
4.5
3.6
3.1
2.6
2.1
1.7
1.4
NLI__H Series
I rms
(A)
5.1
4.5
4.2
3.7
3.4
3
2.5
2.1
1.7
1.4
Dim. E
(ref.)
0.9
0.9
0.8
0.7
0.7
0.7
0.6
0.55
0.5
0.45
DC I maximum +25°C temperature rise,
ΔL
-20% max.
* Contact NIC for other tolerance options. _ Add the letter "U" if sleeving is required.
PACKAGING QUANTITIY
Series
NLI66H
NLI77H
NLI87H
NLI101H
NLI121H
Bulk (per bag)
100
100
100
100
80
®
