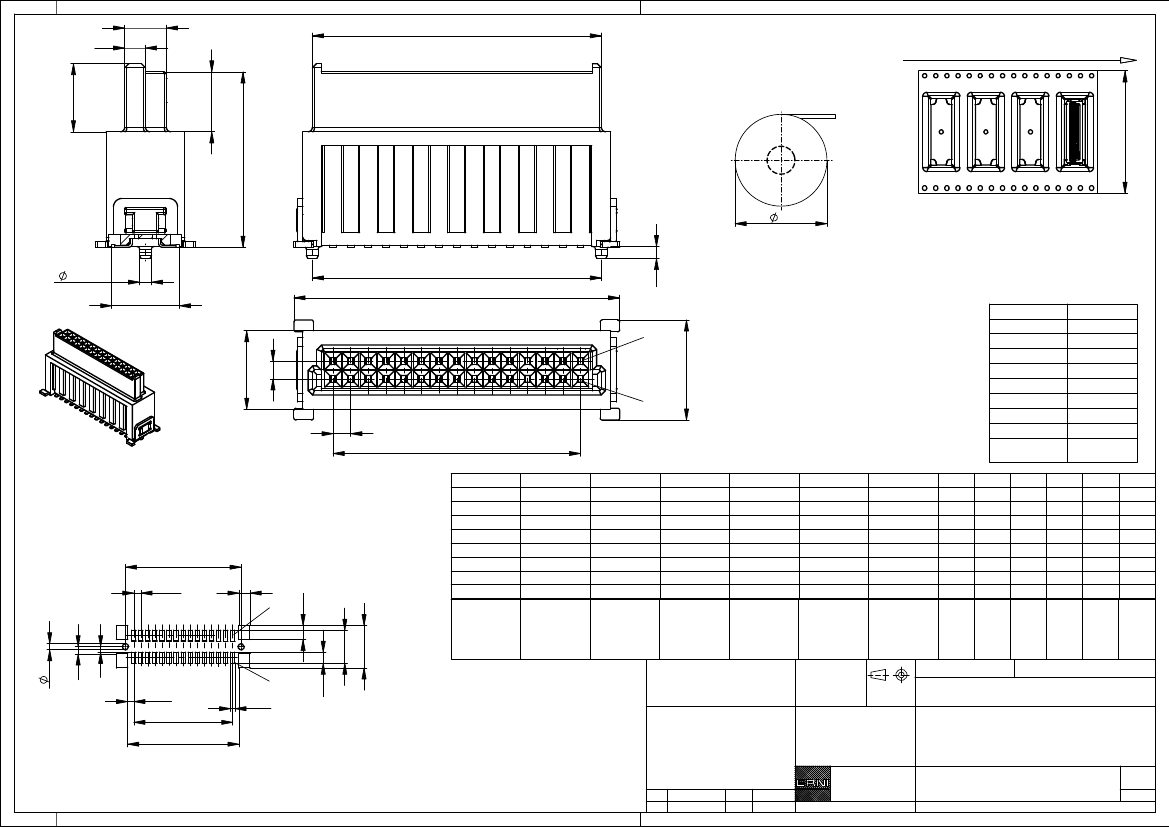

109471: DescriptionMiniMez Vertical Female SMT with Bracket&Pegs 12,6mm; File Size45KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet View All

109471 Overview

MiniMez Vertical Female SMT with Bracket&Pegs 12,6mm

Preview

Download Datasheet

View All

1,5

±0,15

Abspulrichtung -

Reel off Direction

Verpackt in Gurtverpackung

Tape on Reel Packaging

4,9

Verpackungseinheit: 250 Stück

Packaging unit: 250pcs

4,3

12,6

330

0,85

±0,05

4,85

±0,3

0,85

±0,15

packaging tube / tube&cap

100

Polzahl

65,23

52,53

46,18

39,83

33,48

27,13

20,78

14,43

8,08

Verpackung Stange / Stange & Ansaughaube

M 2:1

5,65

1,27

7,2

±0,3

1,27

±0,15

109477

109476

109475

109474

109473

109472

109471

109470

109469

Id-Nr.

tape&reel

100 mating-

cycles

109468

109467

109466

109465

109464

109463

109462

109461

109460

Id-Nr.

tape&reel

10 mating-

cycles

109459

109458

109457

109456

109455

109454

109453

109452

109451

Id-Nr.

tube&cap

100 mating-

cycles

Proprietary notice pursuant to ISO 16016 to be observed.

Masse und Toleranzen in Übereinstimmung mit ANSI Y15.5M-1994 /

Interpret dimensions according to ANSI Y15.5M-1994

109450

109449

109448

109447

109446

109445

109444

109443

109442

Id-Nr.

tube&cap

10 mating-

cycles

109441

109440

109439

109438

109437

109436

109435

109434

109433

Id-Nr.

tube

100 mating-

cycles

109432

109431

109430

109429

109428

109427

109426

109425

109424

Id-Nr.

tube

10 mating-

cycles

Tolerances

No. of positions

67,86

55,16

48,81

42,46

36,11

29,76

23,41

17,06

10,71

62,23

49,53

43,18

36,83

30,48

24,13

17,78

11,43

5,08

Stück / pieces

64,46

51,76

45,41

39,06

32,71

26,36

20,01

13,66

7,31

±0,1

Layout

M 2:1

1,27

2,5

100

Polzahl

65,23

52,53

46,18

39,83

33,48

27,13

20,78

14,43

8,08

5,9

±0,1

7,6

±0,1

no of positions

Scale

All Dimensions

in mm

Mass A Mass B Mass C Mass D Mass E Mass F

1,1

1,3

Information:

5:1

1,95

1,12

±0,1

0,76

Bei Gurtverpackung ist Ansaughaube immer montiert.

Tape & reel packaging is always with assembly cap.

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

MiniMez Vertical Female SMT

with Bracket&Pegs 12,6mm

www.ERNI.com

Index

Date

109423

Class

MINIMEZ
