74AHC86
QUADRUPLE 2-INPUT EXCLUSIVE OR GATES
Description
The 74AHC86 provides provides four independent 2-input exclusive
OR gates with standard push-pull outputs. The device is designed for
operation with a power supply range of 2.0V to 5.5V. The inputs are
tolerant to 5.5V allowing this device to be used in a mixed voltage
environment.

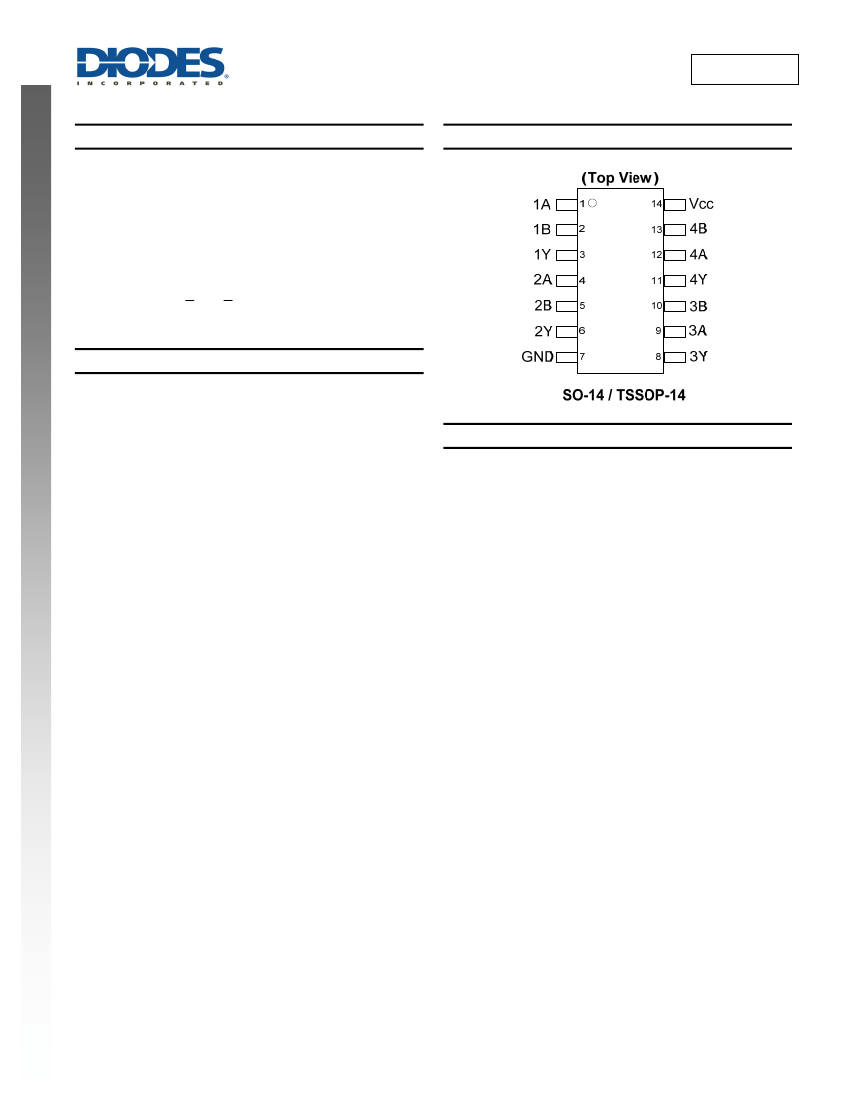

Pin Assignments
NEW PRODUCT
The gates perform the Boolean function:
Y
=
A
⊕
B
or
Y
=
AB
+
A B
Features
•
•
•
•
•
•
Wide Supply Voltage Range from 2.0V to 5.5V
Outputs Sink or Source 8mA at V
CC
= 4.5V
CMOS Low Power Consumption
Schmitt Trigger Action at All Inputs
Inputs can be driven by 3.3V or 5.5V allowing for voltage
translation applications.
ESD Protection Exceeds JESD 22
200-V Machine Model (A115-A)
2000-V Human Body Model (A114-A)
Exceeds 1000-V Charged Device Model (C101C)
•
•
•
•
Latch-Up Exceeds 250mA per JESD 78, Class II
Range of Package Options SO-14 and TSSOP-14
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Applications
•
•
General Purpose Logic
Wide array of products such as:
PCs, Networking, Notebooks, Netbooks
Computer Peripherals, Hard Drives, CD/DVD ROM
TV, DVD, DVR, Set Top Box
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.

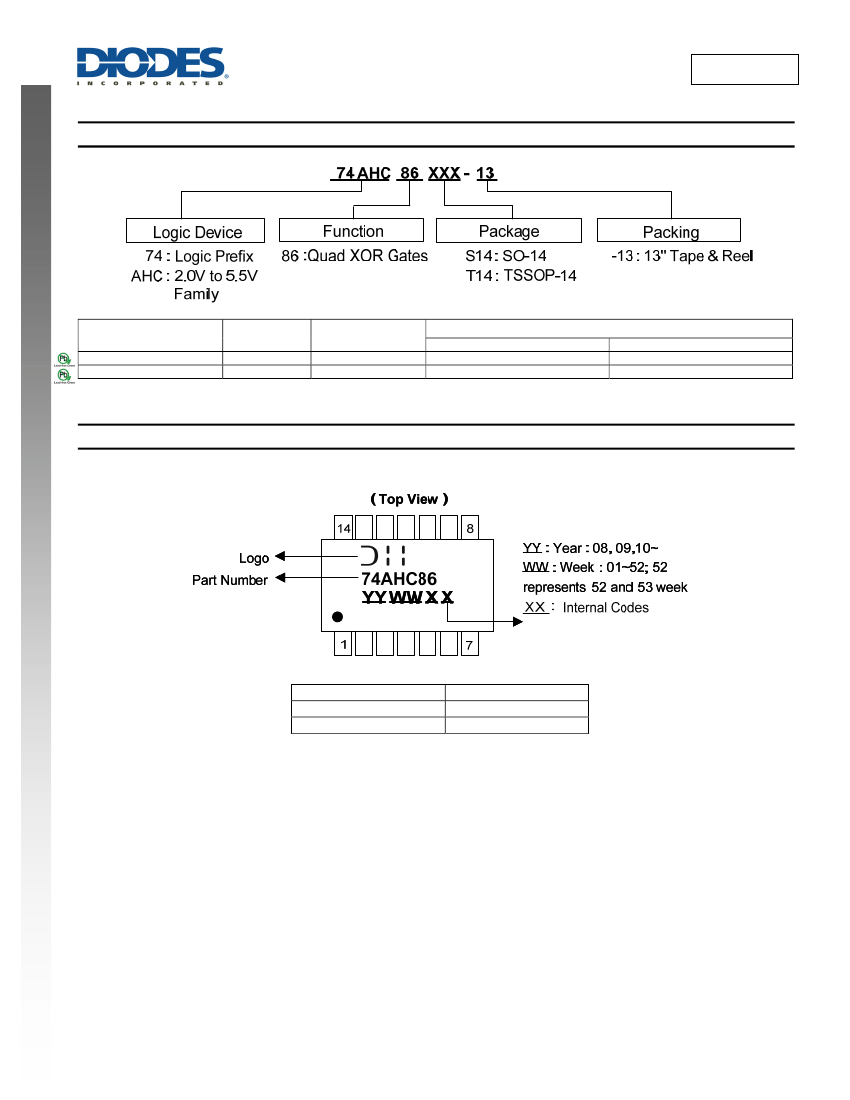

Click here for ordering information, located at the end of datasheet
74AHC86
Document number: DS35344 Rev. 3 - 2
1 of 8
www.diodes.com
January 2013
© Diodes Incorporated
74AHC86
Pin Descriptions
Pin
Number
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Pin Name
1A
1B
1Y
2A
2B
2Y
GND
3Y
3A
3B
4Y
4A
4B
V
CC
Function
Data Input
Data Input
Data Output
Data Input
Data Input
Data Output
Ground
Data Output
Data Input
Data Input
Data Output
Data Input
Data Input
Supply Voltage

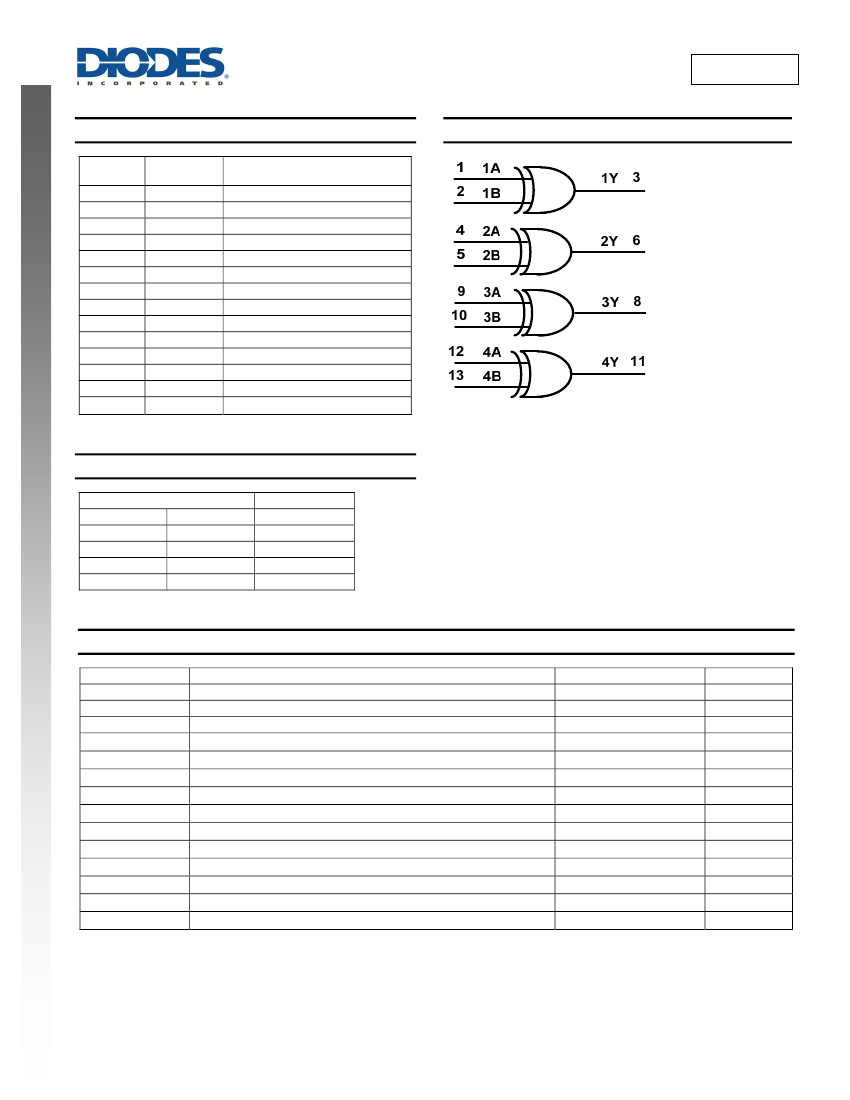

Logic Diagram
NEW PRODUCT
Function Table
Inputs
A
L
L
H
H
B
L
H
L
H
Output
Y
L
H
H
L
Absolute Maximum Ratings
(Note 4) (@T
A
= +25°C, unless otherwise specified.)
Symbol
ESD HBM
ESD CDM
ESD MM
V
CC
V
I
I
IK
I
OK
I
OK
I
O
I
CC
I
GND
T
J
T
STG
P
TOT
Note:
Description
Human Body Model ESD Protection
Charged Device Model ESD Protection
Machine Model ESD Protection
Supply Voltage Range
Input Voltage Range
Input Clamp Current
Output Clamp Current
Output Clamp Current
V
I
< -0.5V
V
O
< -0.5V
V
O
> V
CC
+0.5V
Rating
2
1
200
-0.5 to +7.0
-0.5 to +7.0
-20
-20
25
+/- 25
75
-75
-40 to +150
-65 to +150
500
Unit
KV
KV
V
V
V
mA
mA
mA
mA
mA
mA
°C
°C
mW
Continuous Output current -0.5V < V
O
V
CC
+0.5V
Continuous Current Through V
CC
Continuous Current Through GND
Operating Junction Temperature
Storage Temperature
Total Power Dissipation
4. Stresses beyond the absolute maximum may result in immediate failure or reduced reliability. These are stress values and device operation should
be within recommend values.
74AHC86
Document number: DS35344 Rev. 3 - 2
2 of 8
www.diodes.com
January 2013
© Diodes Incorporated
74AHC86
Recommended Operating Conditions
(Note 5) (@T
A
= +25°C, unless otherwise specified.)
Symbol
V
CC
V
I
V
O
Δt/ΔV
Parameter
Supply Voltage
Input Voltage
Output Voltage
Input Transition Rise or Fall Rate
Operating Free-Air Temperature
V
CC
= 3.0V to 3.6V
V
CC
= 4.5V to 5.5V
-40
Conditions
Min
2.0
0
0
Max
5.5
5.5
V
CC
100
20
+125
Unit
V
V
V
ns/V
°C
NEW PRODUCT
T
A
Note:
5. Unused inputs should be held at V
CC
or Ground.
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Symbol
Parameter
Test Conditions
V
CC
2.0V
V
IH
High-Level Input Voltage
3.0V
5.5V
2.0V
V
IL
Low-Level Input voltage
I
OH
= -50μA
V
OH
High-Level Output
Voltage
I
OH
= -50μA
I
OH
= -50μA
I
OH
= -4mA
I
OH
= -8mA
I
OL
= 50μA
V
OL
Low-Level Output
Voltage
I
OL
= 50μA
I
OL
= 50μA
I
OL
= 4mA
I
OL
= 8mA
I
I
I
CC
Input Current
Supply Current
V
I
= GND to 5.5V
V
I
= GND or V
CC
, I
O
= 0
3.0V
5.5V
2.0V
3.0V
4.5V
3.0V
4.5V
2.0V
3.0V
4.5V
3.0V
4.5V
3.6V
3.6V
1.9
2.9
4.4
2.48
3.80
0.1
0.1
0.1
0.44
0.44
±1
20
T
A
= -40°C to +85°C
Min
1.5
2.1
3.85
0.5
0.9
1.65
1.9
2.9
4.4
2.40
3.70
0.1
0.1
0.1
0.55
0.55
±2
40
μA
μA
V
V
Max
T
A
= -40°C to +125°C
Min
1.5
2.1
3.85
0.5
0.9
1.65
V
V
Max
Unit
Operating Characteristics
Parameter
Power Dissipation
Capacitance per Gate
Input Capacitance
Test
Conditions
f = 1MHz
V
i
= V
CC
– or GND
V
CC
= 2.0V
Typ
9.7
4.0
V
CC
= 3.3V
Typ
11.5
4.0
V
CC
= 5V
Typ
15.5
4.0
Unit
pF
pF
C
pd
C
i
74AHC86
Document number: DS35344 Rev. 3 - 2
3 of 8
www.diodes.com
January 2013
© Diodes Incorporated
74AHC86
Switching Characteristics
Symbol
Parameter
Test
Conditions
Figure 1
C
L
= 15pF
Figure 1
C
L
= 50pF
V
CC
3.0V to 3.6V
4.5V to 5.5V
3.0V to 3.6V
4.5V to 5.5V
T
A
= +25°C
Min
0.5
0.5
0.5
0.5
Typ
4.8
3.4
6.8
4.8
Max
11.0
6.8
14.5
8.8
-40°C to +85°C
Min
0.5
0.5
0.5
0.5
Max
13.0
8.0
16.5
10.0
-40°C to +125°C
Min
0.5
0.5
0.5
0.5
Max
14.0
8.5
18.5
11.0
Unit
t
PD
Propagation
Delay A
N
to Y
N
ns
NEW PRODUCT
Parameter Measurement Information
V
CC
3.3V -3.6V
4.5V to 5.5V
Inputs
V
I
V
CC
V
CC
t
r
/t
f
3ns
3ns
V
M
V
CC
/2
V
CC
/2
C
L
15pF, 50pF
15pF, 50pF
Voltage Waveform
Pulse Duration
Voltage Waveform
Propagation Delay Times
Inverting and Non Inverting Outputs

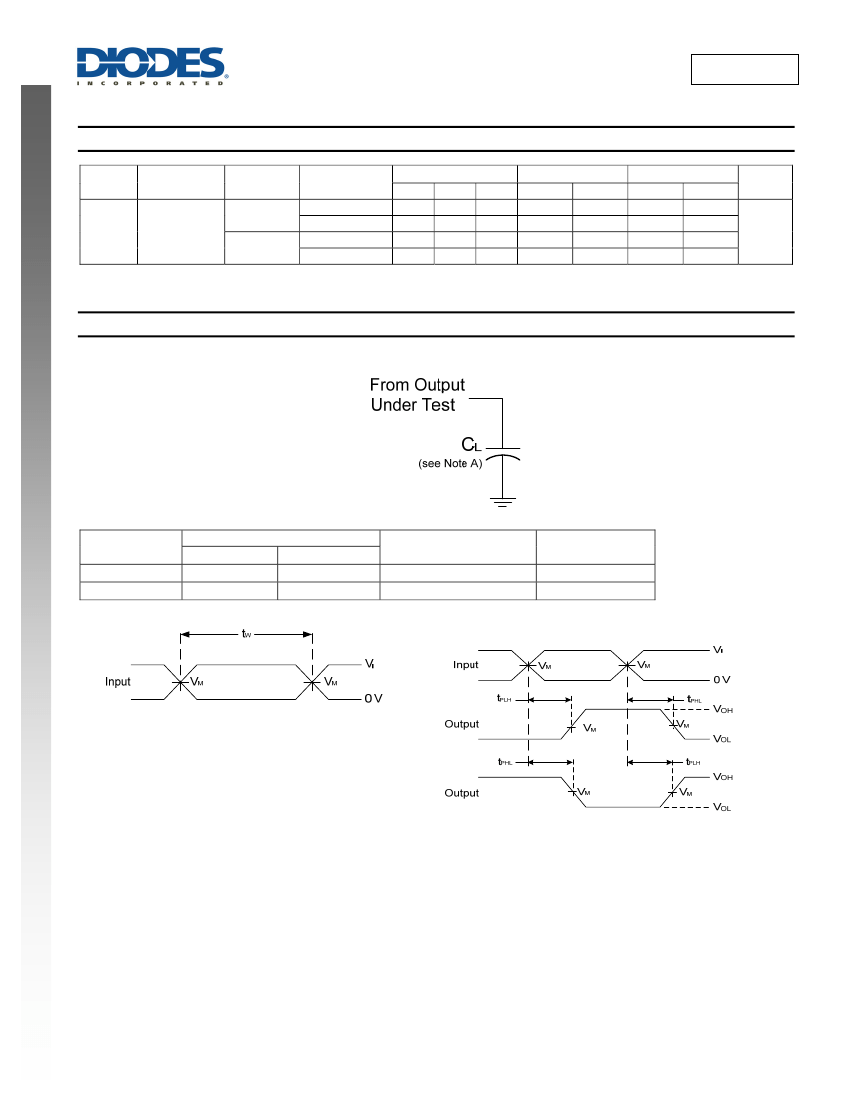

Figure 1 Load Circuit and Voltage Waveforms
Notes:
A. Includes test lead and test apparatus capacitance.
B. All pulses are supplied at pulse repetition rate
≤
1 MHz.
C. Inputs are measured separately one transition per measurement.
D. t
PLH
and t
PHL
are the same as t
PD
.
74AHC86
Document number: DS35344 Rev. 3 - 2
4 of 8
www.diodes.com
January 2013
© Diodes Incorporated
