BC846BR datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BC846BR

Preview

BC846BR: DescriptionSmall Signal Bipolar Transistor, 0.1A I(C), 65V V(BR)CEO, 1-Element, NPN, Silicon, PLASTIC PACKAGE-3; CategoryDiscrete semiconductor The transistor; File Size340KB，2 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric View All

BC846BR Overview

Small Signal Bipolar Transistor, 0.1A I(C), 65V V(BR)CEO, 1-Element, NPN, Silicon, PLASTIC PACKAGE-3

BC846BR Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Central Semiconductor
package instruction	PLASTIC PACKAGE-3
Contacts	3
Reach Compliance Code	not_compliant
ECCN code	EAR99
Maximum collector current (IC)	0.1 A
Collector-emitter maximum voltage	65 V
Configuration	SINGLE
Minimum DC current gain (hFE)	200
JESD-30 code	R-PDSO-G3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	YES
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	100 MHz

Preview

Download Datasheet

View All

BC846 SERIES

BC847 SERIES

BC848 SERIES

SURFACE MOUNT

NPN SILICON TRANSISTOR

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR BC846, BC847

and BC848 Series types are NPN Silicon Transistors

manufactured by the epitaxial planar process, epoxy

molded in a surface mount package, designed for

general purpose switching and amplifier applications.

MARKING CODE: SEE MARKING CODE TABLE

ON FOLLOWING PAGE

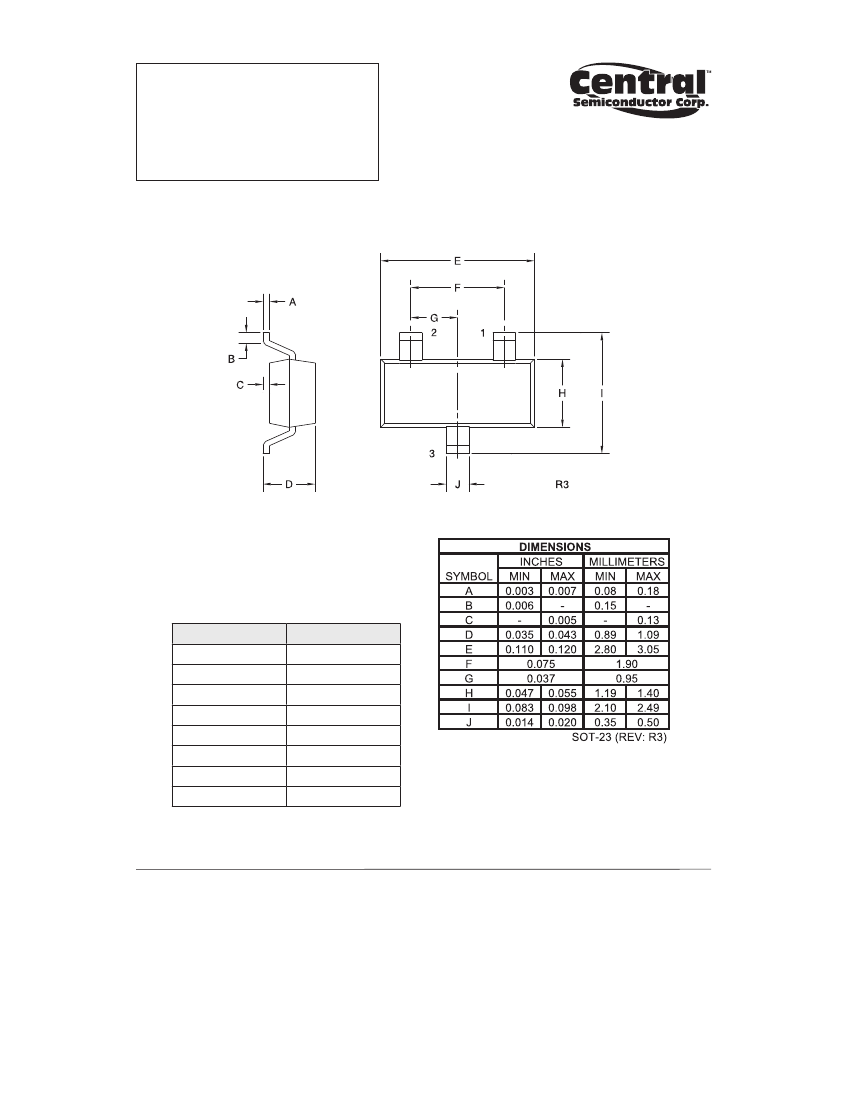

SOT-23 CASE

MAXIMUM RATINGS:

(TA=25°C)

Collector-Base Voltage

Collector-Emitter Voltage

Emitter-Base Voltage

Continuous Collector Current

Peak Collector Current

Peak Base Current

Power Dissipation

Operating and Storage Junction Temperature

Thermal Resistance

ELECTRICAL

SYMBOL

ICBO

IEBO

BVCBO

BVCEO

BVEBO

VCE(SAT)

VBE(ON)

fT

NF

Note: Reverse Lead Codes Available, Add “R” to

the end of the Part # and Marking Code.

SYMBOL

VCBO

VCEO

VEBO

IC

ICM

IBM

PD

TJ, Tstg

Θ

JA

BC848

30

BC847

50

45

5.0

100

200

350

-65 to +150

357

BC846

80

65

UNITS

V

mA

mW

°C

°C/W

CHARACTERISTICS:

(TA=25°C unless otherwise noted)

TEST CONDITIONS

MIN

VCB=30V

VCB=30V, TA=150°C

VEB=5.0V

IC=10μA (BC848)

30

IC=10μA (BC847)

50

IC=10μA (BC846)

80

IC=10mA (BC848)

30

IC=10mA (BC847)

45

IC=10mA (BC846)

65

IE=10μA

5.0

IC=10mA, IB=0.5mA

IC=100mA, IB=5.0mA

IC=2.0mA, VCE=5.0V

0.58

IC=10mA, VCE=5.0V

VCE=5.0V, IC=10mA, f=100MHz

100

VCE=5.0V, IC=200μA,

RS=2.0KΩ, f=1.0KHz, BW=200Hz

BC846A

BC847A

BC848A

MIN MAX

110 220

MAX

15

5.0

100

0.25

0.60

0.70

0.77

UNITS

nA

μA

nA

V

MHz

dB

10

BC846B

BC847B

BC848B

MIN MAX

200

450

hFE

VCE=5.0V, IC=2.0mA

BC847C

BC848C

MIN

MAX

420

800

R1 (20-November 2009)
