25.471.3753.0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 25.471.3753.0

25.471.3753.0: DescriptionStrip Terminal Block, 4A, 1 Row(s), 1 Deck(s); CategoryThe connector terminals; File Size295KB，2 Pages; ManufacturerWieland Electric GmbH; Websitehttps://www.wieland-electric.com/; Environmental Compliance

Download Datasheet Parametric View All

25.471.3753.0 Overview

Strip Terminal Block, 4A, 1 Row(s), 1 Deck(s)

25.471.3753.0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Fastening method	SPRING LOADED
Manufacturer's serial number	8520BL
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	7
Rated current	4 A
Rated voltage	300 V
Terminal and terminal strip types	STRIP TERMINAL BLOCK
Wire gauge	20 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

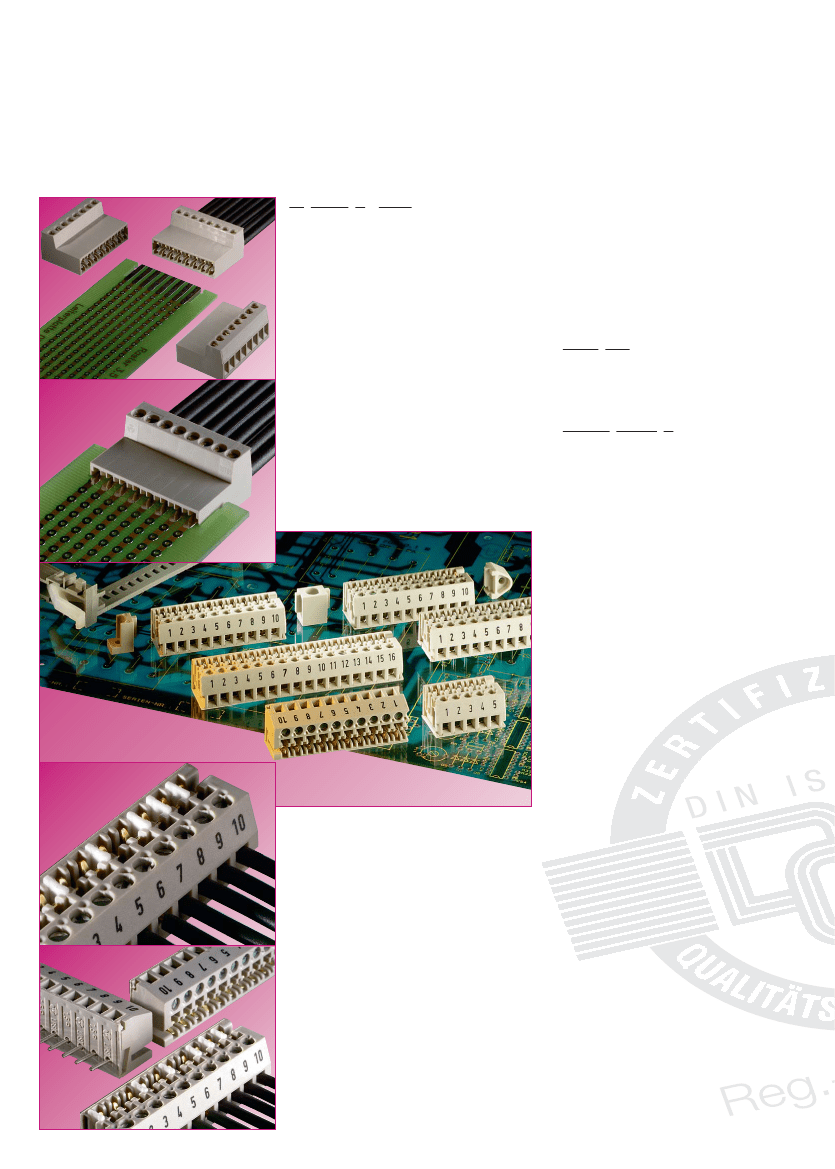

wiecon

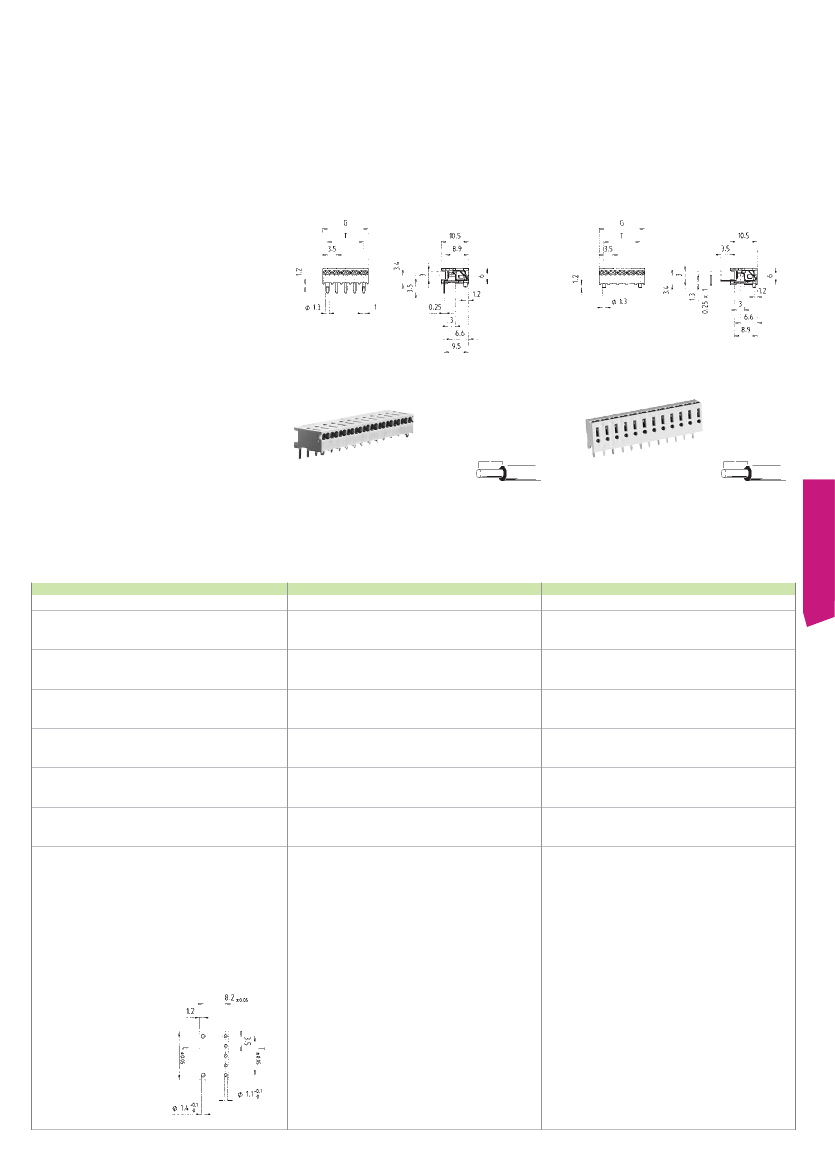

Spring clamp connector for PC boards,

Type 8520 BL, direct mount spring clamp

Spacings: 3.50/7.00 mm, 2 x 0.5 mm

Rated cross section:

0.5 mm

Rated current:

Connection range:

0.25 – 0.5 mm

solid

2 connections per pole

160 V/2.5 kV/3 – Overvoltage category III

250 V/2.5 kV/2 – Overvoltage category II

*690 V/2.5 kV/1 – Overvoltage category I

Spacing: 3.50 mm

Solder pin 0.25 x 1.0 mm

Bore hole Ø 1.1 mm

* max. 600 V ungrounded networks or expected

overvoltage

≤

3 kV for L

≥

2.0 mm and

≤

2.5 kV for 2.0 mm > L

≥

1.5 mm

Type 8520 BL/...W

Wire horizontal to PC board

Rated voltages: VDE 0110

UL ratings

CSA ratings

Approvals pending

Std. pack

Poles

Type 8520 BL/...G

Wire vertical to PC board

300 V

Part no.

No. 24 – 20 AWG

Part no.

No. 24 – 20 AWG

Part no.

300 V

Spacing: 3.50 mm

1000

500

250

7.0

10.5

14.0

17.5

21.0

24.5

28.0

31.5

35.0

38.5

42.0

45.5

49.0

52.5

56.0

3.5

7.0

10.5

14.0

17.5

21.0

24.5

28.0

31.5

35.0

38.5

42.0

45.5

49.0

52.5

unmarked

25.471.0253.0

25.471.0353.0

25.471.0453.0

25.471.0553.0

25.471.0653.0

25.471.0753.0

25.471.0853.0

25.471.0953.0

25.471.1053.0

25.471.1153.0

25.471.1253.0

25.471.1353.0

25.471.1453.0

25.471.1553.0

25.471.1653.0

marked

25.471.3253.0

25.471.3353.0

25.471.3453.0

25.471.3553.0

25.471.3653.0

25.471.3753.0

25.471.3853.0

25.471.3953.0

25.471.4053.0

25.471.4153.0

25.471.4253.0

25.471.4353.0

25.471.4453.0

25.471.4553.0

25.471.4653.0

unmarked

25.472.0253.0

25.472.0353.0

25.472.0453.0

25.472.0553.0

25.472.0653.0

25.472.0753.0

25.472.0853.0

25.472.0953.0

25.472.1053.0

25.472.1153.0

25.472.1253.0

25.472.1353.0

25.472.1453.0

25.472.1553.0

25.472.1653.0

marked

25.472.3253.0

25.472.3353.0

25.472.3453.0

25.472.3553.0

25.472.3653.0

25.472.3753.0

25.472.3853.0

25.472.3953.0

25.472.4053.0

25.472.4153.0

25.472.4253.0

25.472.4353.0

25.472.4453.0

25.472.4553.0

25.472.4653.0

Spacing: 7.00 mm

upon request

Rated voltages:

(Spacing: 7.00 mm): VDE 0110

400 V/6 kV/3 – Overvoltage category III

690 V/6 kV/2 – Overvoltage category II

1000 V/6 kV/1 – Overvoltage category I

Bore hole plan, 3.50/7.00 mm spacing

with angled solder pin and fixing bolts:

325

wiecon
