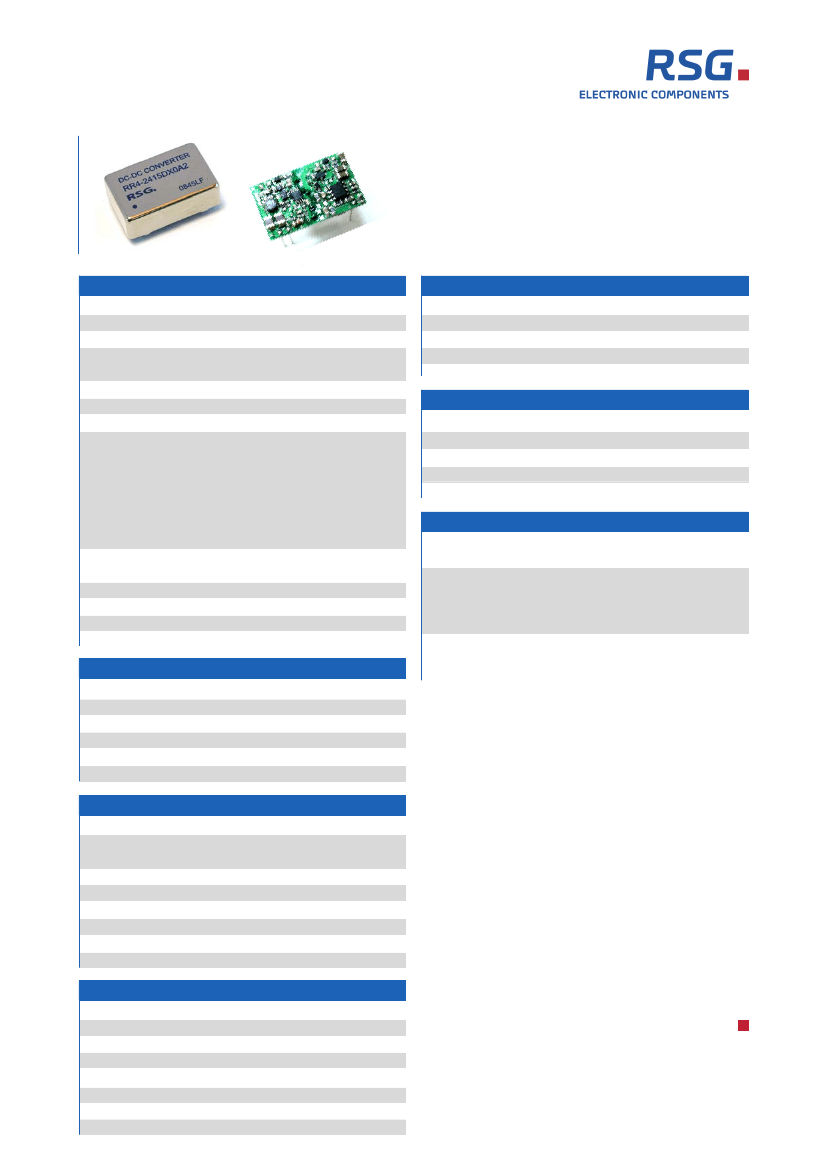

RR4-S10/D10
10 Watt 2:1 regulated
single & dual output
DIP24, wide
2:1 input range
■
Full SMD technology
■
1500 VDC isolation
■
Continuous short circuit protection
■
Efficiency up to 90%
■
-40°C~85°C operation temperature range
■
High power density: 10W in DIL-24 package
■
OUTPUT SPECIFICATIONS
± 1%
see table
± 0.5%
± 0.5%
(Output 3.3 V Model) (1)
± 0.7%
Cross regulation
(dual output) (2)
± 5.0%
Over current protection
(of FL typ.)
150%
Ripple & Noise
(3)
75 mV pk-pk
Over voltage protection
2.5V output
3.9V
(Zener diode clamp)
3.3V output
3.9V
5V output
6.2V
12V output
15V
15V output
18V
± 12V output
± 15V
± 15V output
± 18V
Short circuit protection
Indefinite (hiccup)
(Automatic recovery)
Temperature coefficient
± 0.02%/°C
Capacitor load
(4)
See table
Transient recovery time
(5)
200us typ.
Transient response deviation
(5)
± 3% max.
Output Voltage accuracy
Maximum Output current
Line regulation
Load regulation
(From 10% to 100% Load) (1)
PHYSICAL SPECIFICATIONS
Case material
Pin material
Potting material
Weight
Dimensions
Nickel-coated copper
Ø 0.5 mm brass solder-coated
Epoxy (UL94V-0 rated)
17 g
1.25“x0.8“x0.4“
ENVIRONMENTAL SPECIFICATIONS
Operating temperature
(See derating curve)
-40°C~ 85°C
Operating temperature
(for 100% load)
-40°C~ 60°C
Maximum case temperature
100°C
Storage temperature
-40°C~125°C
Cooling
Nature convection
ABSOLUTE MAXIMUM RATINGS
(7)
These are stress ratings. Exposure of devices to any of these
conditions may adversely affect long-term reliability.
Input voltage (100 mS)
12 modes
-0.7 ~ 25 VDC
24 modes
-0.7 ~ 50 VDC
48 modes
-0.7 ~ 100 VDC
Lead soldering temperature
260°C
(1.5 mm from case 10 sec.)
INPUT SPECIFICATIONS
Voltage range
Start up time
(Nom. Vin and constant resistive load)
Input current No-Load
(typ.)
Input current Full-Load
(max.)
Input filter
Input reflected ripple current, typ.
(6)
See table
20ms typ.
See table
See table
PI Type
20mA pk-pk
All specifications typical at Ta = 25°C, nominal input voltage and full load
unless otherwise specified.
The information and specifications contained in this data sheet are believed
to be correct at time of publication. However, we accept no responsibility
for consequences arising from printing errors or inaccuracies.
Subject to change without notice.
GENERAL SPECIFICATIONS
Efficiency
I/O isolation voltage Input / output
(3 sec.)
Metal case / input & output
I/O isolation capacitance
I/O isolation resistance
Switching frequency
Humidity
Reliability calculated MTBF
(MIL-HDBK-217F)
Safety standard
(designed to meet)
See table
1500 VDC
1000 VDC
1000 pF typ.
1000 M Ohm
typ. 330 kHz
95% rel. H
> 1 Mhrs.
IEC 60950
The models listed are just for standard type. If you need a
special specification product, please contact our service.
Phone: +49 69 984047-0, mail to: info@rsg-electronic.de
or use the forms on www.rsg-electronic.de („Kontakt“).
EMC CHARACTERISTICS
Radiated Emissions
Conducted Emissions
ESD
RS
EFT
Surge
(9)
CS
PFMF
(8)
EN55022
EN55022
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8
Class A
Class A
Perf. crit. B
Perf. crit. A
Perf. crit. B
Perf. crit. B
Perf. crit. A
Perf. crit. A
Page: 1/3
Last update: 12.02.09
RR4-S10/D10
10 Watt 2:1 regulated
single & dual output
NUMBER STRUCTURE
RR4
-
XX
XX
S
10
A
1

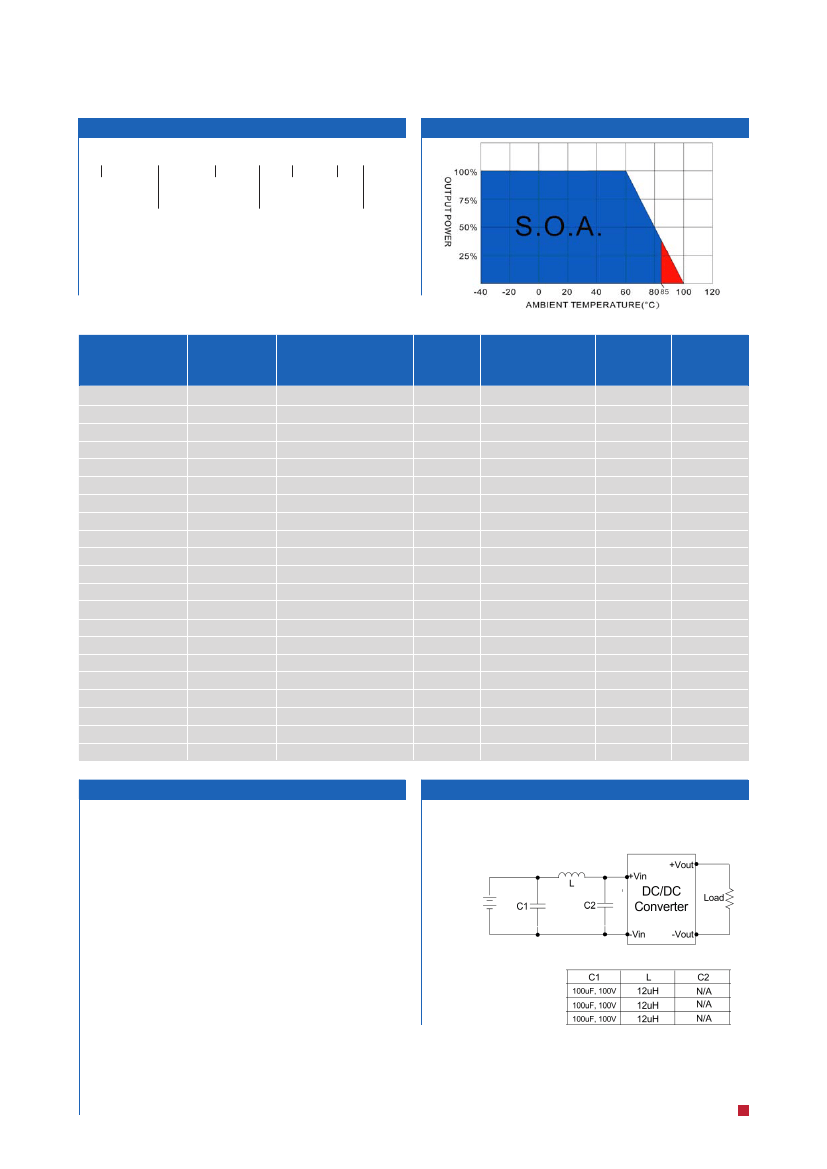

DERATING CURVE
Name/Package
RR4=DIL24
Output
02=2.5V
03=3.3V
Input
05=5V
12=9~18V 12=12V
24=18~36V 15=15V
48=36~75V
Power
Code
10=10W internal
Type
S=Single
D=Dual
Isolation
1=1.5 kVDC
MODEL SELECTION GUIDE
Model Number
Input
Range VDC
9-18
9-18
9-18
9-18
9-18
9-18
9-18
18-36
18-36
18-36
18-36
18-36
18-36
18-36
36-75
36-75
36-75
36-75
36-75
36-75
36-75
Input current (mA)
No Load / Full Load
10 / 791
10 / 1006
10 / 992
10 / 980
10 / 958
10 / 980
10 / 969
10 / 381
10 / 497
10 / 479
10 / 485
10 / 485
10 / 485
10 / 474
10 / 191
10 / 249
10 / 242
10 / 245
10 / 242
10 / 245
10 / 245
Output
VDC
2.5
3.3
5
12
15
±12
±15
2.5
3.3
5
12
15
±12
±15
2.5
3.3
5
12
15
±12
±15
Output current
Full Load (mA)
3000
3000
2000
833
667
±416
±333
3000
3000
2000
833
667
±416
±333
3000
3000
2000
833
667
±416
±333
Efficiency
@FL (%)
81
84
86
87
89
87
88
84
85
89
88
88
88
90
84
85
88
87
88
87
87
Capacitor
Load (HF)
2200
2200
2200
820
470
±220
±150
2200
2200
2200
820
470
±220
±150
2200
2200
2200
820
470
±220
±150
RR4-1202S10A1
RR4-1203S10A1
RR4-1205S10A1
RR4-1212S10A1
RR4-1215S10A1
RR4-1212D10A1
RR4-1215D10A1
RR4-2402S10A1
RR4-2403S10A1
RR4-2405S10A1
RR4-2412S10A1
RR4-2415S10A1
RR4-2412D10A1
RR4-2415D10A1
RR4-4802S10A1
RR4-4803S10A1
RR4-4805S10A1
RR4-4812S10A1
RR4-4815S10A1
RR4-4812D10A1
RR4-4815D10A1
NOTE
1) Operation between no-load and 10% conditions will not
damage these devices. However they may not meet all
listed specifications.
2) One load is 25% to 100%, the other load is 100%. The
output voltage variable rate is within ±5%.
3) Measured with 20MHz bandwith and 0.1uF ceramic
capacitor.
4) Tested by nominal Vin and constant resistive load.
5) Tested by normal Vin and 25% load step change (75%-
50%-25% of Io).
6) Measured input reflected ripple current with a simulated
source inductance of 12uH.
7) Exceeding the absolute ratings of the unit could cause
damage. It is not allowed for continuous operating.
8) Input filter components (C1, L) are used to help meeting
the conducted emissions requirements for the module.
These components should be mounted as close as possible
to the module and all leads should b minimized to decrease
radiated noise.
9) An external filter capacitor is required if the module has
to meet EN61000-4-5.
RR4-12XXX10A1
RR4-24XXX10A1
RR4-48XXX10A1
Page: 2/3
Last update: 12.02.09
RR4-S10/D10
10 Watt 2:1 unregulated
single & dual output

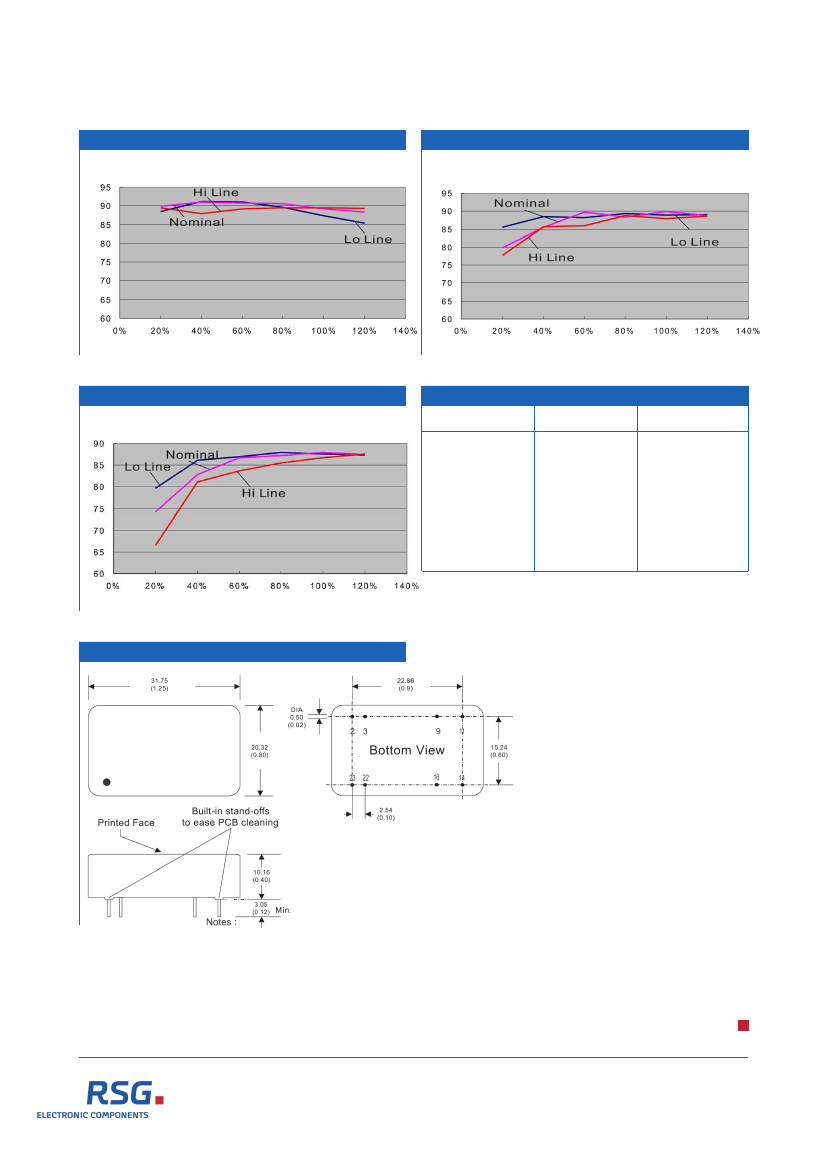

EFFICIENCY VS OUTPUT CURRENT 12
12 MODELS
EFFICIENCY VS OUTPUT CURRENT 24
24 MODELS
Efficiency (%)
Load
Efficiency (%)
Load
EFFICIENCY VS OUTPUT CURRENT 48
48 MODELS
PIN CONNECTIONS
Pin Number
2
3
9
11
14
16
22
23
Single
-V Input
-V Input
N.P.
N.C.
+V Output
-V Output
+V Input
+V Input
Dual
-V Input
-V Input
Common
-V Output
+V Output
Common
+V Input
+V Input
Efficiency (%)
Load
MECHANICAL SPECIFICATIONS
RSG
RR4-XXXXX10A1
24 Pin DIL package
Nickel coated copper
All dimensions are typical in millimeters (inches).
1) Pin diameter: 0.5 ± 0.05 (0.02 ± 0.002)
2) Pin pitch tolerance: ± 0.35 (± 0.014)
3) Case tolerance: ± 0.5 (± 0.02)
Page: 3/3
Last update: 16.01.09
