B5743-204-M-L-2 datasheet, PDF

Datasheet> All Categories > The connector> The connector> B5743-204-M-L-2

B5743-204-M-L-2: DescriptionBoard Connector, 4 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, Plug,; CategoryThe connector The connector; File Size96KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric Compare View All

B5743-204-M-L-2 Overview

Board Connector, 4 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, Plug,

B5743-204-M-L-2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Harwin
Reach Compliance Code	compliant
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	TIN LEAD
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	B5743
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0

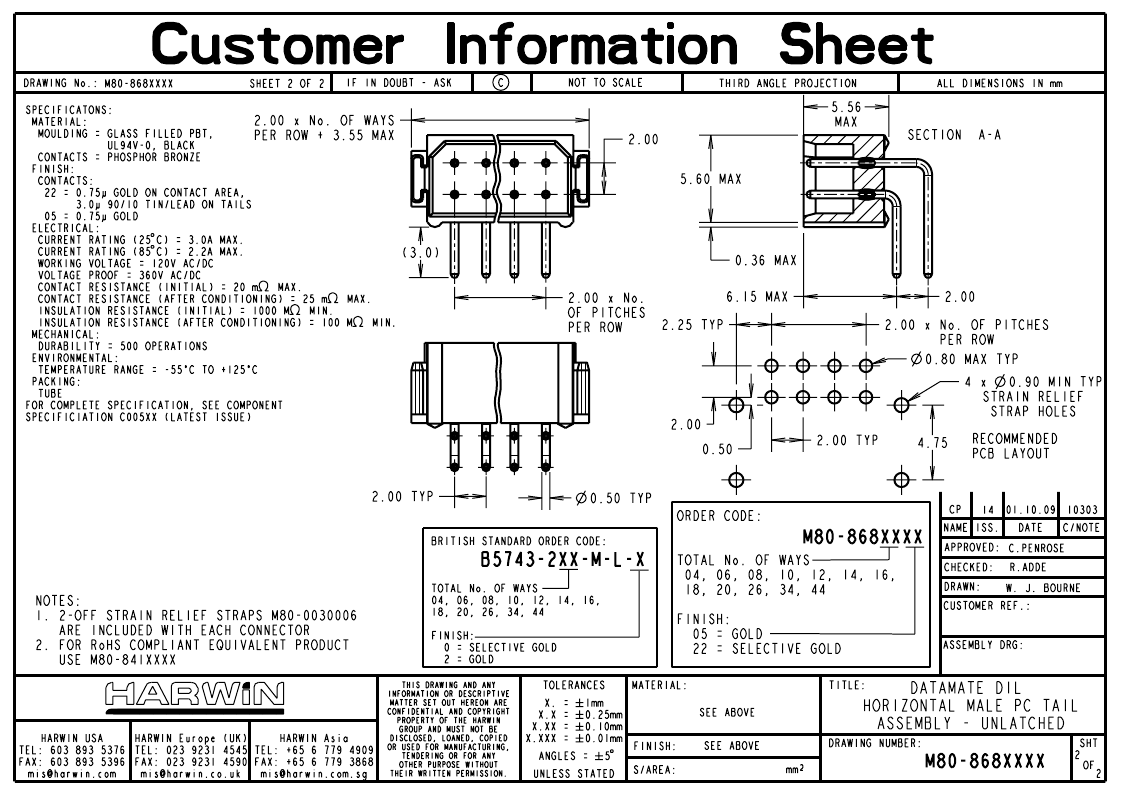

Preview

Download Datasheet

View All

B5743-204-M-L-2 Related Products

	B5743-204-M-L-2	B5743-214-M-L-2	M80-8683405	B5743-212-M-L-2	B5743-216-M-L-2	B5743-218-M-L-2	B5743-220-M-L-2	B5743-226-M-L-2	M80-8684405
Description	Board Connector, 4 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, Plug,	Board Connector, 14 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, Plug	Board Connector, 34 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle,	Board Connector, 12 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, Plug	Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, Plug	Board Connector, 18 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, Plug	Board Connector, 20 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, Plug	Board Connector, 26 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, Plug	Board Connector, 44 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle,
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Body/casing type	PLUG	PLUG	RECEPTACLE	PLUG	PLUG	PLUG	PLUG	PLUG	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD	GOLD	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	TIN LEAD	TIN LEAD	Gold (Au)	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	Gold (Au)
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e0	e0	e4	e0	e0	e0	e0	e0	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	4	14	34	12	16	18	20	26	44
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
