25.523.0553.0

Description
Strip Terminal Block, 10A, 2.5mm2, 1 Row(s), 1 Deck(s)
CategoryThe connector    terminals
File Size149KB，5 Pages
ManufacturerWieland Electric GmbH
Websitehttps://www.wieland-electric.com/
Environmental Compliance
Download Datasheet Parametric View All

25.523.0553.0 Overview

Strip Terminal Block, 10A, 2.5mm2, 1 Row(s), 1 Deck(s)

25.523.0553.0 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompli
ECCN codeEAR99
Other featuresPOLYAMIDE, 94V-0
Fastening methodSCREW
Manufacturer's serial number8235
Installation typeBOARD
Number of layers1
Rows1
Number of channels5
Rated current10 A
Rated voltage300 V
safety certificateUL; VDE; CSA
Terminal and terminal strip typesSTRIP TERMINAL BLOCK
Conductor cross section2.5 mm2
Wire gauge12 AWG
Base Number Matches1

Preview

Download Datasheet
wiecon
wiecon

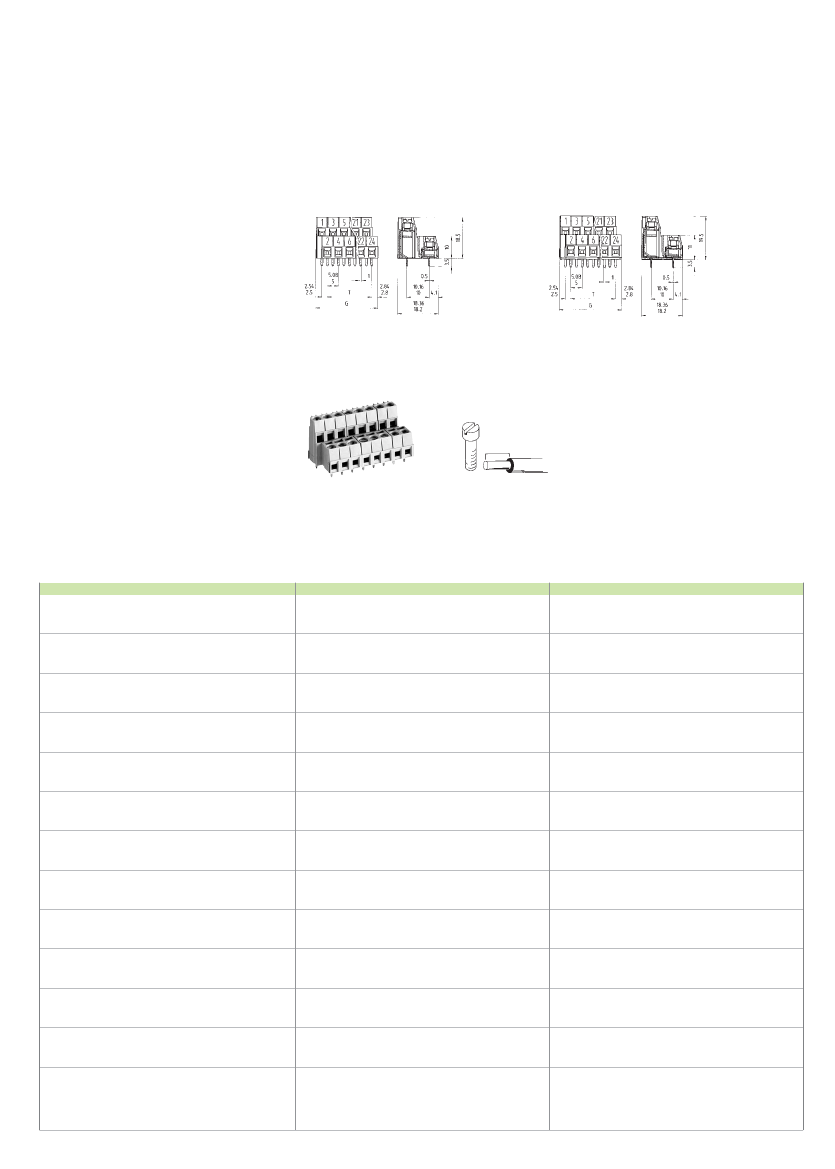

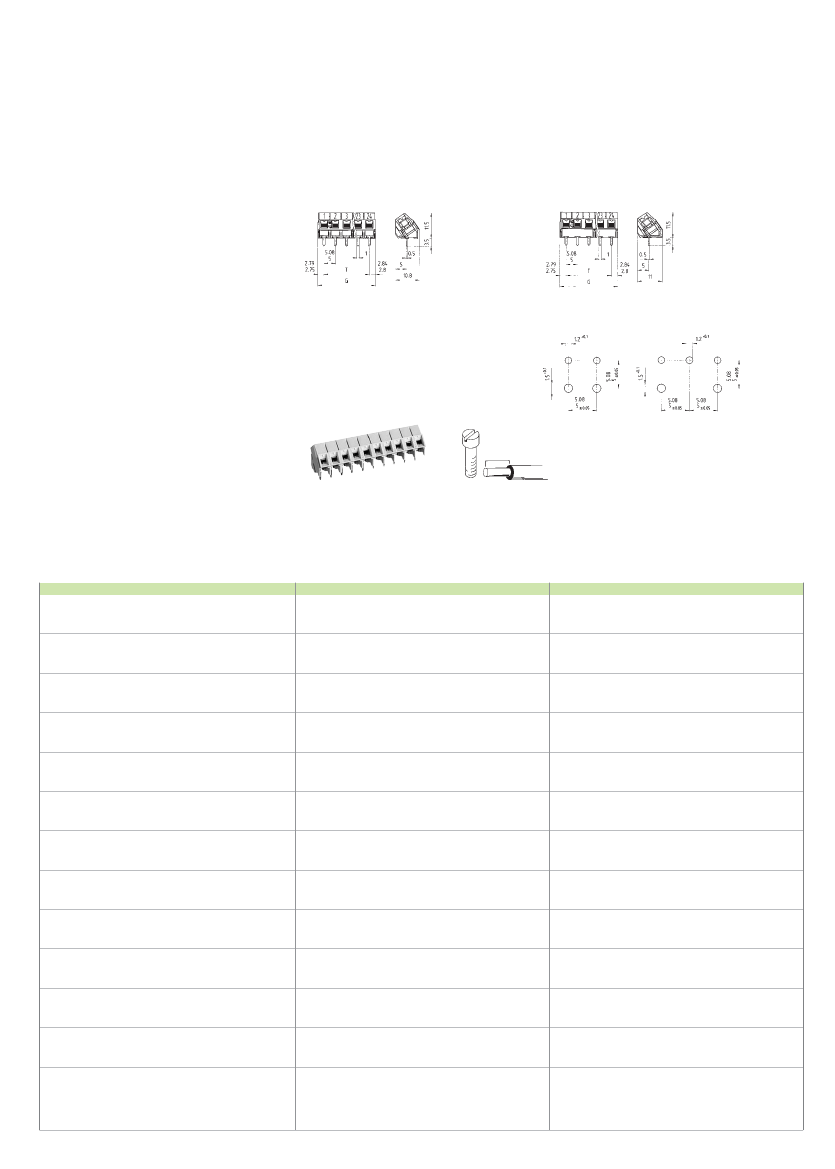

PC board connectors, rising cage clamp system
Spacing: 5.00/5.08 mm
PCB
Rated cross section:
1.5 mm
2
Rated current:
10 A
Connection range:
0.14 – 2.5 mm
2
solid/
0.14 – 1.5 mm
2
fine stranded
without
insulating plate
with
insulating plate,
without
fixing bolts
Bore hole
plan for version
with
fixing bolts
250 V/4 kV/3 – Overvoltage category III
*690 V/4 kV/2 – Overvoltage category II
1000 V/4 kV/1 – Overvoltage category I
M3
6
* max. 600 V for ungrounded networks or expected
overvoltage
≤
4 kV
Solder pin 0.5 x 1.0 mm
Bore hole Ø 1.2 mm
Type 8134/8234
wire 35° to PC board
Rated voltages VDE 0110
UL ratings
CSA ratings
Approvals
Std. pack
field/factory wiring
No. 30 – 14 AWG
No. 30 – 14 AWG
300 V
300 V
Part no.
15/16 A
15 A
Part no.
Part no.
üigqwd
G
T
Poles
Part no.
unmarked
without insulating plate
marked
without insulating plate
25.500.0253.0
25.500.0353.0
25.500.0453.0
25.500.0553.0
25.500.0653.0
25.500.0753.0
25.500.0853.0
25.500.0953.0
25.500.1053.0
25.500.1153.0
25.500.1253.0
25.500.1353.0
25.500.1453.0
25.500.1553.0
25.500.1653.0
Spacing: 5.00 mm
100
100
50
50
50
50
50
50
50
50
50
50
50
50
50
10.55
15.55
20.55
25.55
30.55
35.55
40.55
45.55
50.55
55.55
60.55
65.55
70.55
75.55
80.55
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
25.501.0253.0
25.501.0353.0
25.501.0453.0
25.501.0553.0
25.501.0653.0
25.501.0753.0
25.501.0853.0
25.501.0953.0
25.501.1053.0
25.501.1153.0
25.501.1253.0
25.501.1353.0
25.501.1453.0
25.501.1553.0
25.501.1653.0
unmarked
with insulating plate
with fixing bolts
25.501.6253.0
25.501.6353.0
marked
with fixing bolts
25.500.6253.0
25.500.6353.0
17 to 24pole upon request
Spacing: 5.08 mm
100
100
50
50
50
50
50
50
50
50
50
50
50
50
50
10.71
15.79
20.87
25.95
31.03
36.11
41.19
46.27
51.35
56.42
61.51
66.59
71.67
76.75
81.83
5.08
10.16
15.24
20.32
25.40
30.48
35.56
40.64
45.72
50.80
55.88
60.96
66.04
71.12
76.20
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
25.503.0253.0
25.503.0353.0
25.503.0453.0
25.503.0553.0
25.503.0653.0
25.503.0753.0
25.503.0853.0
25.503.0953.0
25.503.1053.0
25.503.1153.0
25.503.1253.0
25.503.1353.0
25.503.1453.0
25.503.1553.0
25.503.1653.0
25.502.0253.0
25.502.0353.0
25.502.0453.0
25.502.0553.0
25.502.0653.0
25.502.0753.0
25.502.0853.0
25.502.0953.0
25.502.1053.0
25.502.1153.0
25.502.1253.0
25.502.1353.0
25.502.1453.0
25.502.1553.0
25.502.1653.0
25.503.6253.0
25.503.6353.0
25.502.6253.0
25.502.6353.0
17 to 24pole upon request
360
