KBPC (4 Leads) Square Leaded Package
Package Outline
and Packaging Information
KBPC_Pkg_Drawing Rev281005
Continental Device India Limited
Data Sheet
Page 1 of 3
Continental Device India Limited
An ISO/TS 16949, ISO 9001 and ISO 14001 Certified Company

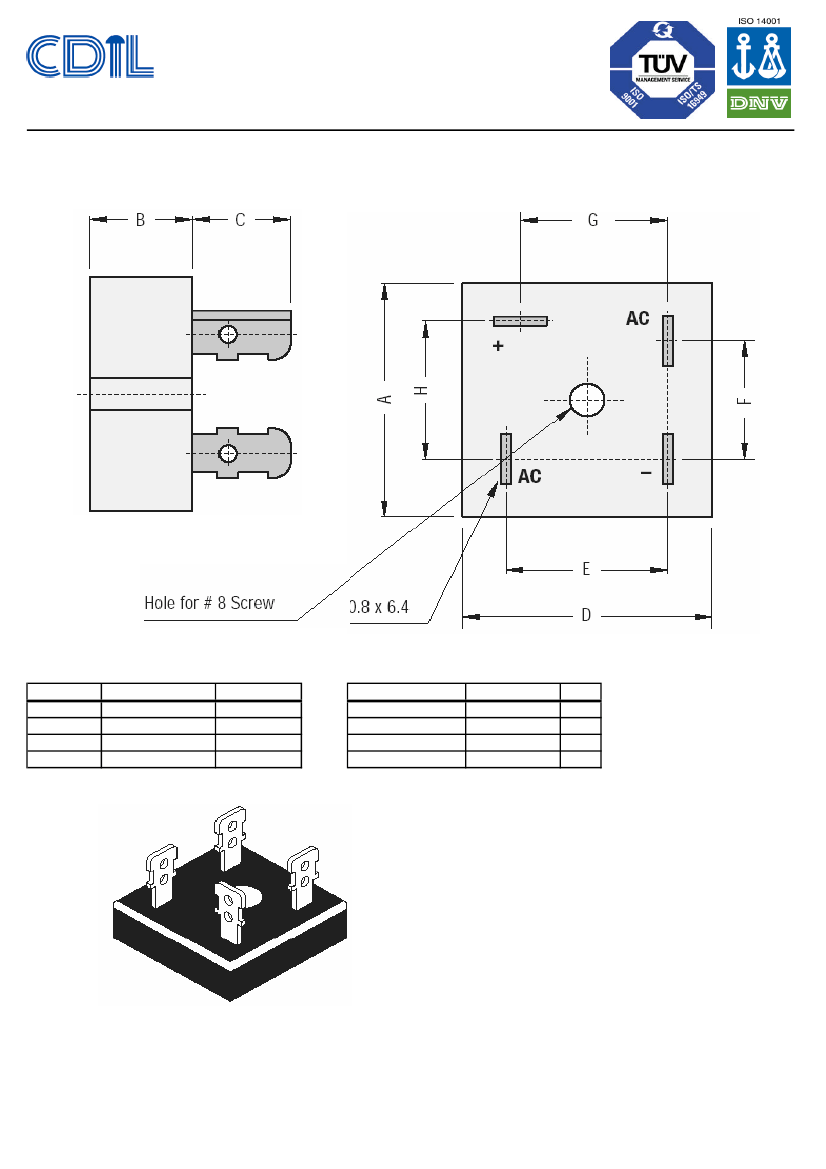

KBPC Square Leaded Plastic Package
DIM
Min
A
28.0
B
C
10.80
D
28.0
All Dimensions are in mm
Max
30.0
11.50
12.20
30.0
DIM
E
F
G
H
Min
17.60
13.80
16.10
16.10
Max
18.60
14.80
17.10
17.10
KBPC_Pkg_Drawing Rev281005
Continental Device India Limited
Data Sheet
Page 2 of 3
KBPC Package and Packaging
Packaging Information
Package/
Case Type
KBP
Packaging Type
Std. Packing
Qty
400
Qty
Inner Carton
Size L x W x H
Gross Weight
(cm)
(Kg)
Qty
Outer Carton
Size L x W x H Gross Weight
(cm)
(Kg)
Bulk
Bulk: Lose in Poly bags
Component Disposal Instructions
1. CDIL Semiconductor Devices are non-recyclable RoHS compliant, customers are requested to please dispose
as per prevailing Environmental Legislation of their Country.
2. In Europe, please dispose as per EU Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).
