GD74HCT190J: DescriptionDecade Counter, Asynchronous, Bidirectional, CMOS, CDIP16,; Categorylogic logic; File Size425KB，11 Pages; ManufacturerLG Semicon Co., Ltd.

Download Datasheet Parametric Compare View All

GD74HCT190J Overview

Decade Counter, Asynchronous, Bidirectional, CMOS, CDIP16,

GD74HCT190J Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	LG Semicon Co., Ltd.
Reach Compliance Code	unknown
Counting direction	BIDIRECTIONAL
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Load capacitance (CL)	50 pF
Load/preset input	YES
Logic integrated circuit type	DECADE COUNTER
Maximum Frequency@Nom-Sup	13000000 Hz
MaximumI(ol)	0.004 A
Operating mode	ASYNCHRONOUS
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

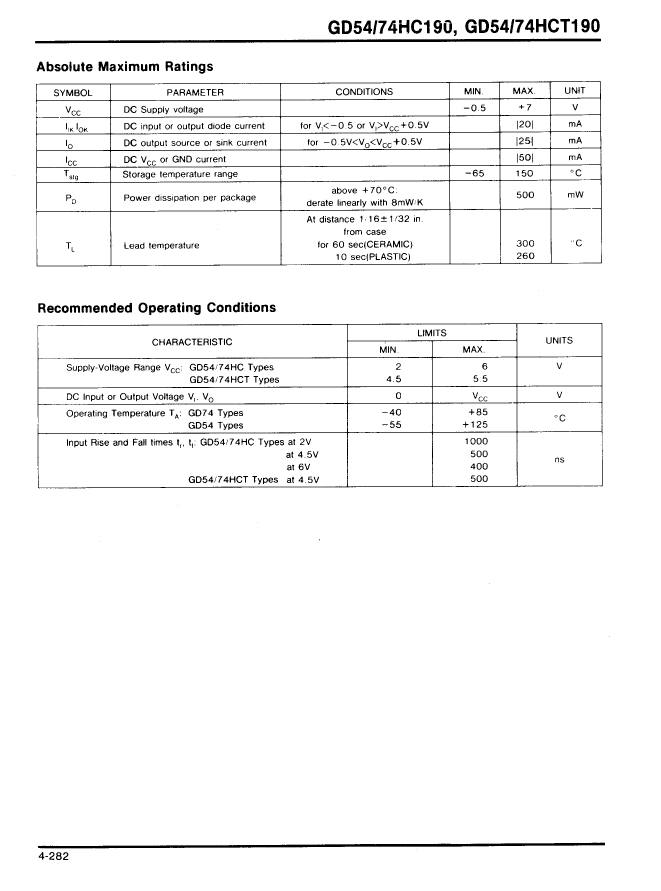

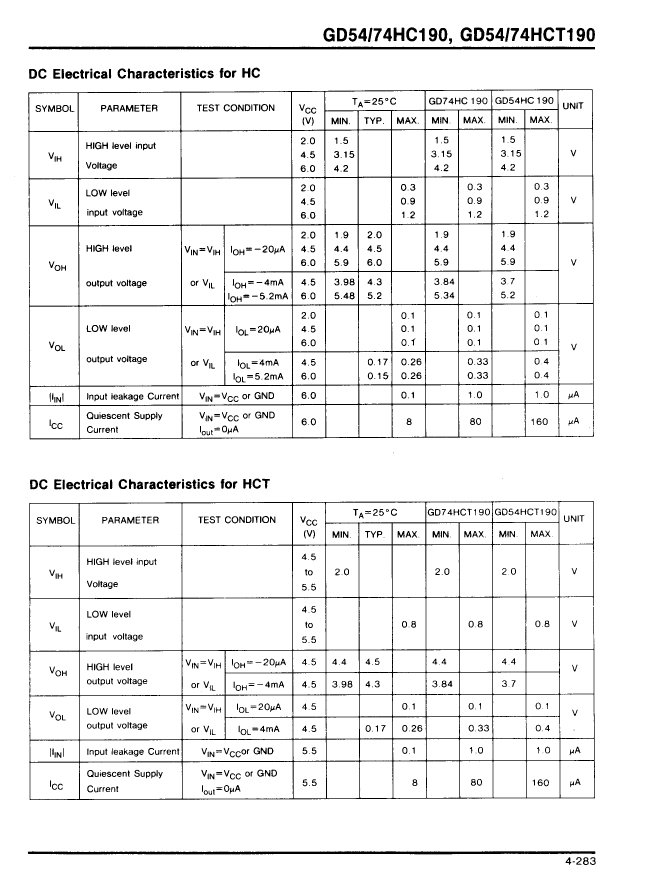

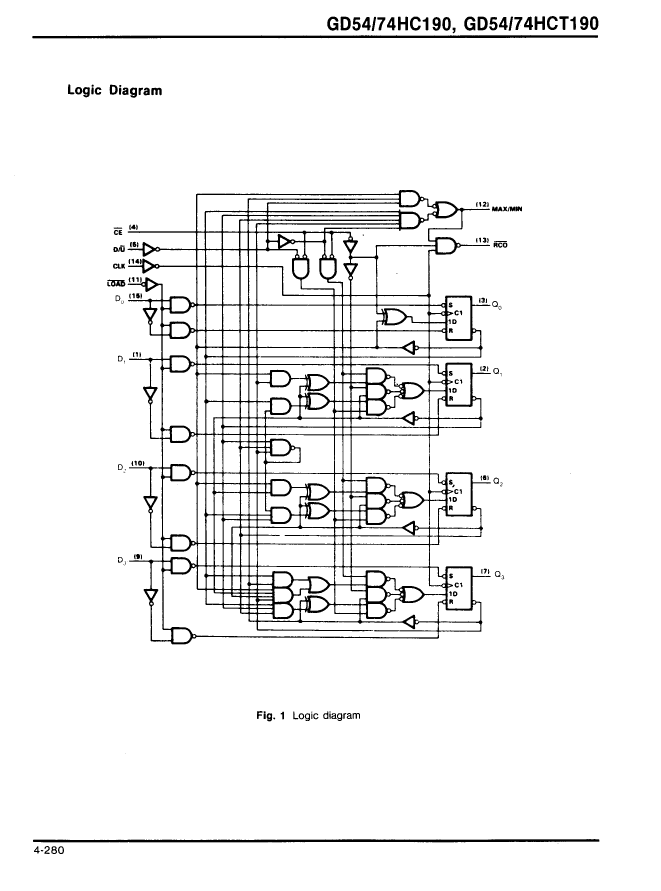

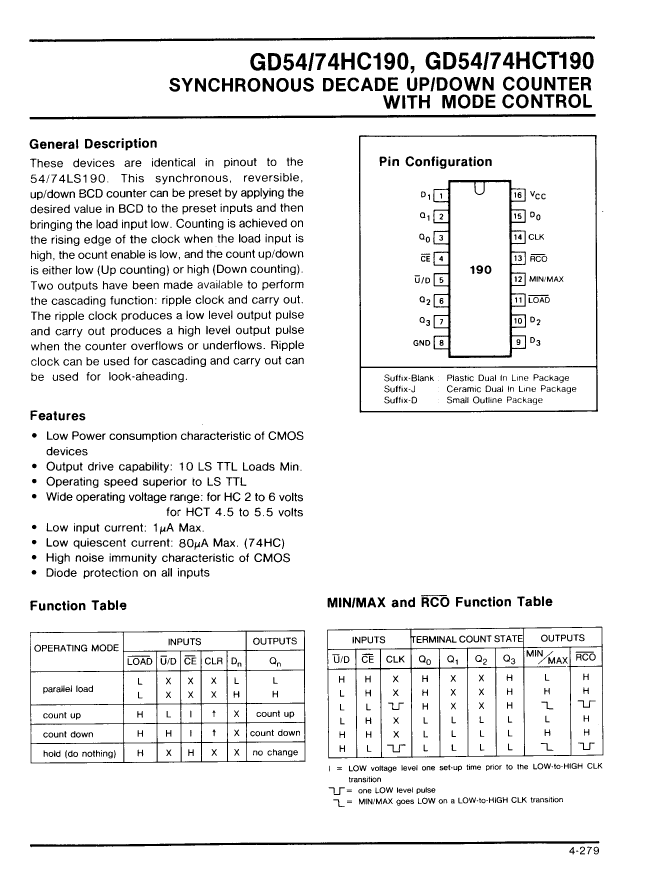

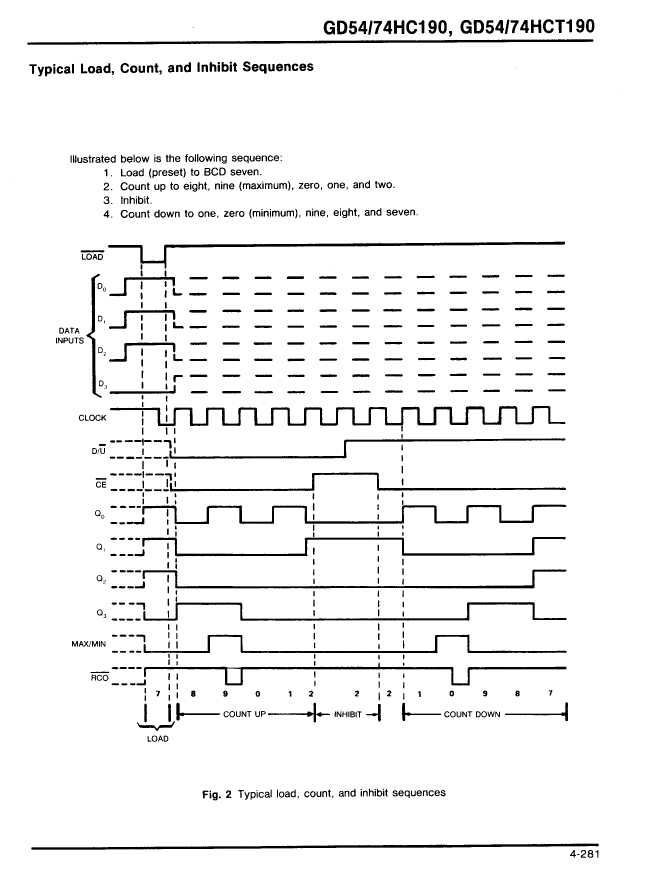

Preview

Download Datasheet

View All

GD74HCT190J Related Products

	GD74HCT190J	GD74HC190	GD74HC190J	GD74HC190D	GD54HC190J	GD74HCT190D	GD74HCT190	GD54HCT190J
Description	Decade Counter, Asynchronous, Bidirectional, CMOS, CDIP16,	Decade Counter, Asynchronous, Bidirectional, CMOS, PDIP16,	Decade Counter, Asynchronous, Bidirectional, CMOS, CDIP16,	Decade Counter, Asynchronous, Bidirectional, CMOS, PDSO16,	Decade Counter, Asynchronous, Bidirectional, CMOS, CDIP16,	Decade Counter, Asynchronous, Bidirectional, CMOS, PDSO16,	Decade Counter, Asynchronous, Bidirectional, CMOS, PDIP16,	Decade Counter, Asynchronous, Bidirectional, CMOS, CDIP16,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maker	LG Semicon Co., Ltd.	-	-	-	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	-	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
JESD-30 code	R-XDIP-T16	R-PDIP-T16	R-XDIP-T16	R-PDSO-G16	-	R-PDSO-G16	R-PDIP-T16	R-XDIP-T16
JESD-609 code	e0	e0	e0	e0	-	e0	e0	e0
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	-	50 pF	50 pF	50 pF
Load/preset input	YES	YES	YES	YES	-	YES	YES	YES
Logic integrated circuit type	DECADE COUNTER	DECADE COUNTER	DECADE COUNTER	DECADE COUNTER	-	DECADE COUNTER	DECADE COUNTER	DECADE COUNTER
Maximum Frequency@Nom-Sup	13000000 Hz	12000000 Hz	12000000 Hz	12000000 Hz	-	13000000 Hz	13000000 Hz	11000000 Hz
MaximumI(ol)	0.004 A	0.004 A	0.004 A	0.004 A	-	0.004 A	0.004 A	0.004 A
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	-	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Number of functions	1	1	1	1	-	1	1	1
Number of terminals	16	16	16	16	-	16	16	16
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	-	85 °C	85 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-	-40 °C	-40 °C	-55 °C
Package body material	CERAMIC	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC
encapsulated code	DIP	DIP	DIP	SOP	-	SOP	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3	SOP16,.25	-	SOP16,.25	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	-	SMALL OUTLINE	IN-LINE	IN-LINE
power supply	5 V	2/6 V	2/6 V	2/6 V	-	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	YES	-	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	-	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	-	INDUSTRIAL	INDUSTRIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	-	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	1.27 mm	-	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	-	DUAL	DUAL	DUAL
Base Number Matches	-	1	1	1	1	1	-	-
