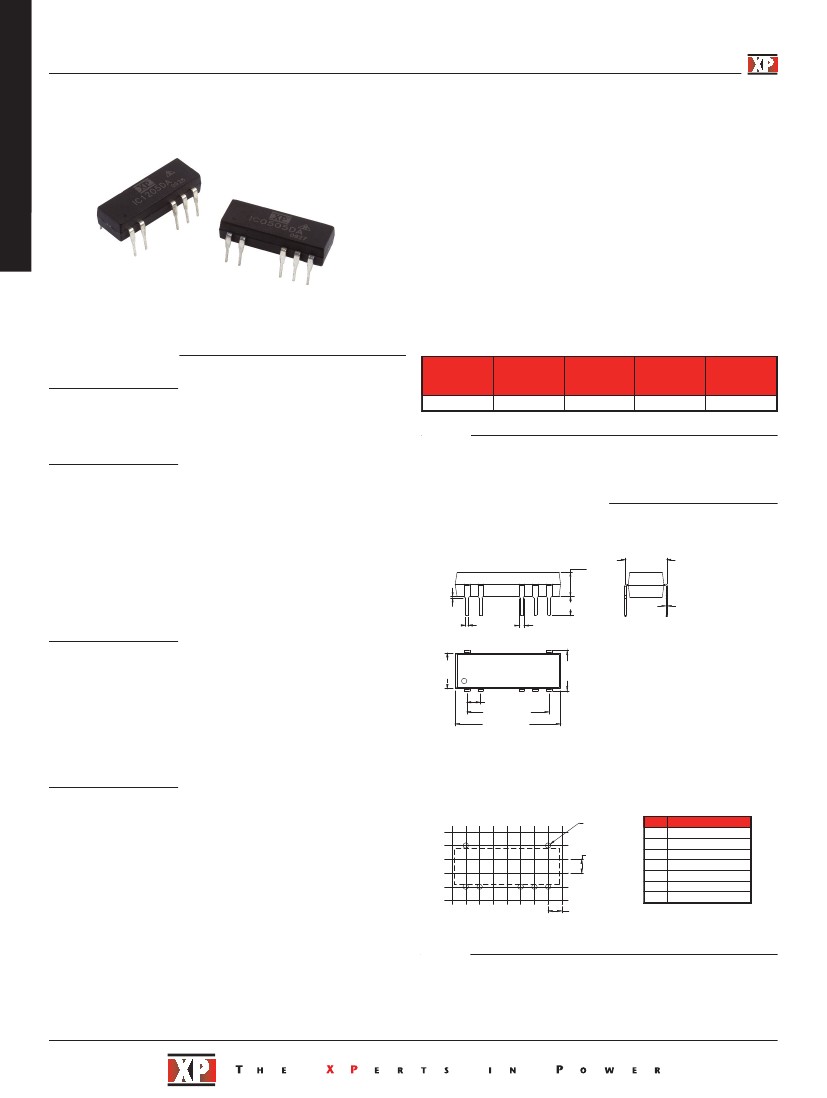

DC-DC
1 Watt
IC Series
•
•
•
•
•
•
•
Single Output
Ultra Slim DIP Package
Industry Standard Pinout
1500 VDC Isolation Standard
MTBF >3.5 MHrs
-40 °C to +85 °C Operation
3 Year Warranty
xppower.com
Specification
Input
Input Voltage Range
Input Reverse Voltage
Protection
• Nominal ±10%
• None
Input
Voltage
5 VDC
Output
Voltage
5.0 V
Output
Current
200 mA
Efficiency
(typ)
74%
Model
Number
IC0505DA
(1)
Notes
-
1. IC0505DA available with 3000 VDC isolation, add suffix ‘ H’ to part number.
Output
Output Voltage
Minimum Load
Line Regulation
Load Regulation
•
•
•
•
See table
10%
1.2%/1%
Δ
Vin
10% to 100% load change,
5 Vout: 12.8% typ, 15% max,
100-110% of nominal at 10% load
75 mV pk-pk 20 MHz bandwidth
0.03%/°C
Continuous, auto recovery
Mechanical Details
Setpoint Accuracy
•
Ripple & Noise
•
Temperature Coefficient
•
Short Circuit Protection
•
Side View
0.17 (4.5)
0.30
(7.6)
General
Efficiency
Isolation Voltage
Isolation Resistance
Isolation Capacitance
Switching Frequency
MTBF
• See table
• 1500 VDC minimum, 3000 VDC optional
(1)
,
tested for 1 minute
• 10
9
Ω
• 25 pF typical
• 100 kHz typical at nominal input, full load
• >3.5 MHrs to MIL-HDBK-217F at 25 °C, GB
0.02
(0.5)
0.14 (3.7)
0.02
(0.5)
14
1 2
0.03 (1.0)
0
0.01 (0.2)
0.260
(6.60)
Top View
5
0.100 (2.54)
0.600 (15.24)
0.768 (19.50)
6
8
7
0.300
(7.62)
Environmental
Operating Temperature
Storage Temperature
Case Temperature
Cooling
Lead Temperature
•
•
•
•
•
-40 °C to +85 °C
-55 °C to +125 °C
105 °C max
Convection-cooled
250 °C, 0.06 in (1.5 mm) from case, 10 s
Recommended footprint
Top view grid: 0.1 x 0.1 in (2.54 x 2.54 mm)
0
ø 0.03 (ø 1.0)
14
1
2
5
6
8
7
0.10 (2.5)
Pin
1
2
5
6
7
8
14
Function
Vin
GND
0V
+Vout
N.C.
N.C.
N.C.
0.10 (2.5)
N.C. Not connected
Notes
1. All dimensions in inches (mm)
2. Tolerance: ±0.010 (±0.25)
3. Weight: 0.003 lbs (1.4 g)
4. Pin tolerance: ±0.004 (±0.10 mm)
06 Dec 17
