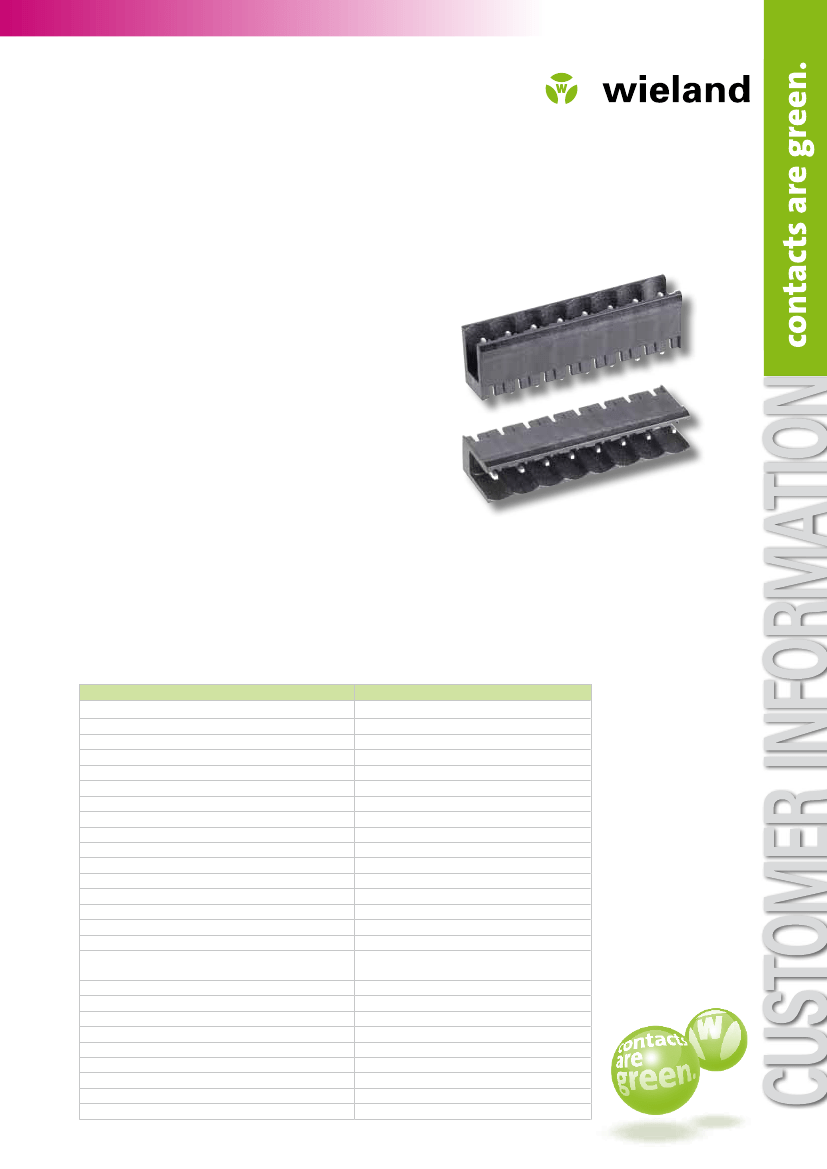

Type 8213S/...GOF THR
PCB pin header with open walls suitable
for the reflow process
Characteristics
q
Pin headers with open walls
q
Stackable without loosing a pole
q
articularly suitable for the through-hole reflow
P
process of SMT technology
q
High temperature stability acc. to EN 61760-1
q
ighly accurate spacing that fits the PC board
H
and mating connector
q
Ready for automatic placement
q
Tape on reel, 2 – 12 pole
q
Straight and angled versions, 2 - 12 pole
q
Standard color black (similar to RAL 9005)
q
Other colors available on request
Advantages
q
Applicable in the lead-free reflow process
q
High CTI value
q
Placement possible on both sides of the PCBs
q
Max 220 pieces per reel
q
No manual or wave soldering
Description
wiecon Type 8213 S/…G/W THR
PC board pin header
Pitch
Number of poles
Box
Tape on reel
Tray
Pieces per reel
Straight
Angular
Rated current
Rated voltage
Overvoltage category III / Pollution degree 3
UL, CSA
Rated peak voltage
Pin dimensions
Pin lengths
Pollution degree
Material
– CTI
– Halogen-free
– RoHS
Temperature range
– Dimensional stability at max. temperature
Flammability according to UL 94
Approvals
250 V (DIN EN 60664-1)
300 V
4 kV
1.0 x 1.0 mm
2.6 mm, single-side placement
1.5 mm, double-side placement
3
PPA
> 600
yes
compliant
- 40° C - + 280° C
+ 280° C
V0
UL, CSA
0143.8 MC 03/10
5.08 mm
2 - 12
2 - 12
available on request
190 pieces
220 pieces
12 A
Headquarters:
Wieland Electric GmbH
Brennerstraße 10 – 14
D-96052 Bamberg
Sales- and
Marketing Center:
Wieland Electric GmbH
Benzstraße 9
D-96052 Bamberg
Phone +49 (951) 93 24-0
Fax
+49 (951) 93 24-198
www.wieland-electric.com
www.gesis.com
info@wieland-electric.com
Technical information

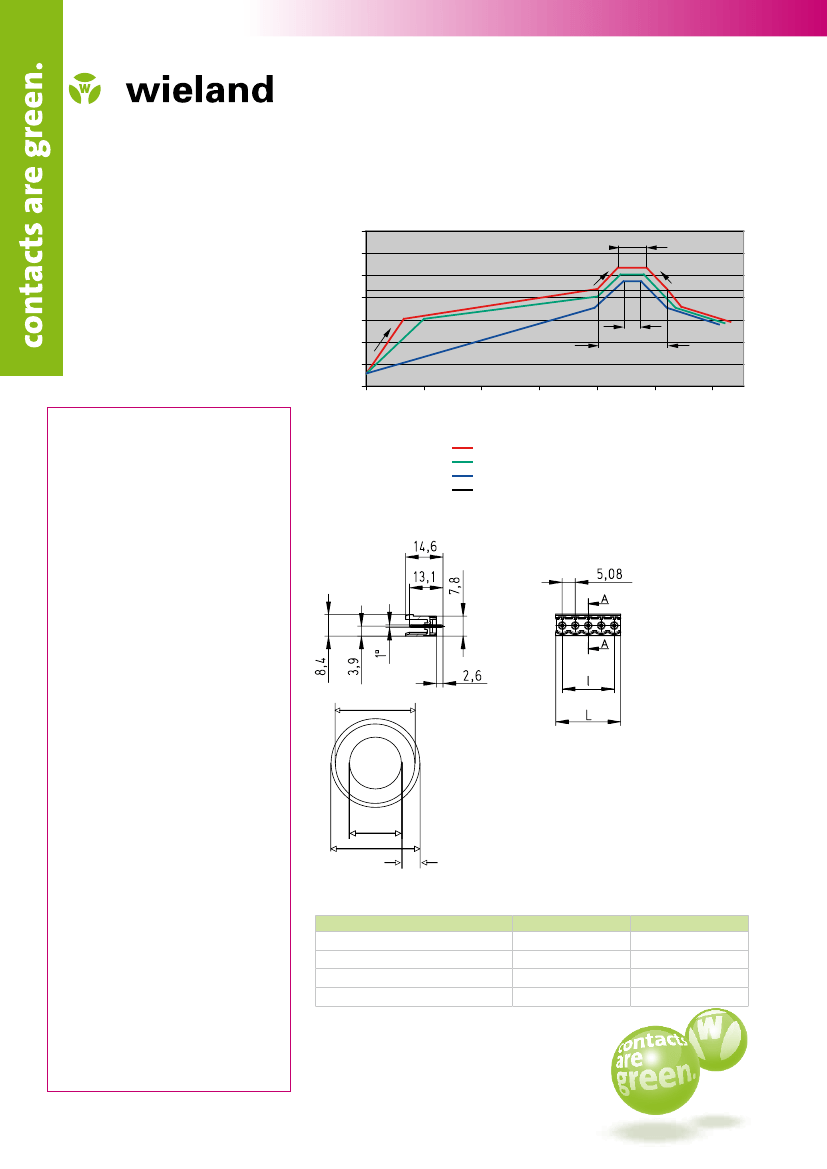

Temperature profile
