WTE
POWER SEMICONDUCTORS
5KP120 – 5KP200CA
Pb
5000W TRANSIENT VOLTAGE SUPPRESSOR
Features
Glass Passivated Die Construction
5000W Peak Pulse Power Dissipation
120V – 200V Standoff Voltage
Uni- and Bi-Directional Versions Available
Excellent Clamping Capability
Fast Response Time
Plastic Case Material has UL Flammability
Classification Rating 94V-O
A
B
A
C
D
Mechanical Data
Case: P-600, Molded Plastic
Terminals: Axial Leads, Solderable per
MIL-STD-750, Method 2026
Polarity: Cathode Band Except Bi-Directional
Marking: Type Number
Weight: 2.10 grams (approx.)
Lead Free: For RoHS / Lead Free Version,
Add “-LF” Suffix to Part Number, See Page 5
Dim
Max
A
25.4
—
B
8.60
9.10
C
1.20
1.30
D
8.60
9.10
All Dimensions in mm
“C” Suffix Designates Bi-directional Devices
“A” Suffix Designates 5% Tolerance Devices
No Suffix Designates 10% Tolerance Devices
P-600
Min
Maximum Ratings and Electrical Characteristics
Characteristic
Peak Pulse Power Dissipation at T
A
= 25°C (Note 1, 2, 5) Figure 3
Peak Forward Surge Current (Note 3)
Peak Pulse Current on 10/1000µS Waveform (Note 1) Figure 1
Steady State Power Dissipation (Note 2, 4)
Typical Thermal Resistance ,Junction to Lead (Note 6)
Typical Thermal Resistance, Junction to Ambient (Note 6)
Operating and Storage Temperature Range
@T
A
=25°C unless otherwise specified
Symbol
P
PPM
I
FSM
I
PPM
P
M(AV)
R
θJL
R
θJA
T
j
, T
STG
Value
5000 Minimum
600
See Table 1
8.0
15
65
-55 to +175
Unit
W
A
A
W
°C/W
°C/W
°C
Note: 1. Non-repetitive current pulse per Figure 1 and derated above T
A
= 25°C per Figure 4.
2. Mounted on 20mm
2
copper pad.
3. 8.3ms single half sine-wave duty cycle = 4 pulses per minutes maximum.
4. Lead temperature at 75°C.
5. Peak pulse power waveform is 10/1000µS.
6. Measured at lead length 3/8” (9.5mm) from body.
5KP120 – 5KP200CA
1 of 5
© 2006 Won-Top Electronics
100,000
I
P
, PEAK PULSE CURRENT (%I
pp
)
t
r
= 10
µ
s
T
j
= 25
°
C
C
j
, CAPACITANCE (pF)
100
Peak Value I
pp
10,000
Measured at
Stand-Off
Voltage V
R
Measured at
Zero Bias
Half Value I
pp
/2
50
1000
t
p
0
10 X 1000 Waveform
as defined by R.E.A.
100
0
1
2
3
1
10
100
200
t, TIME (ms)

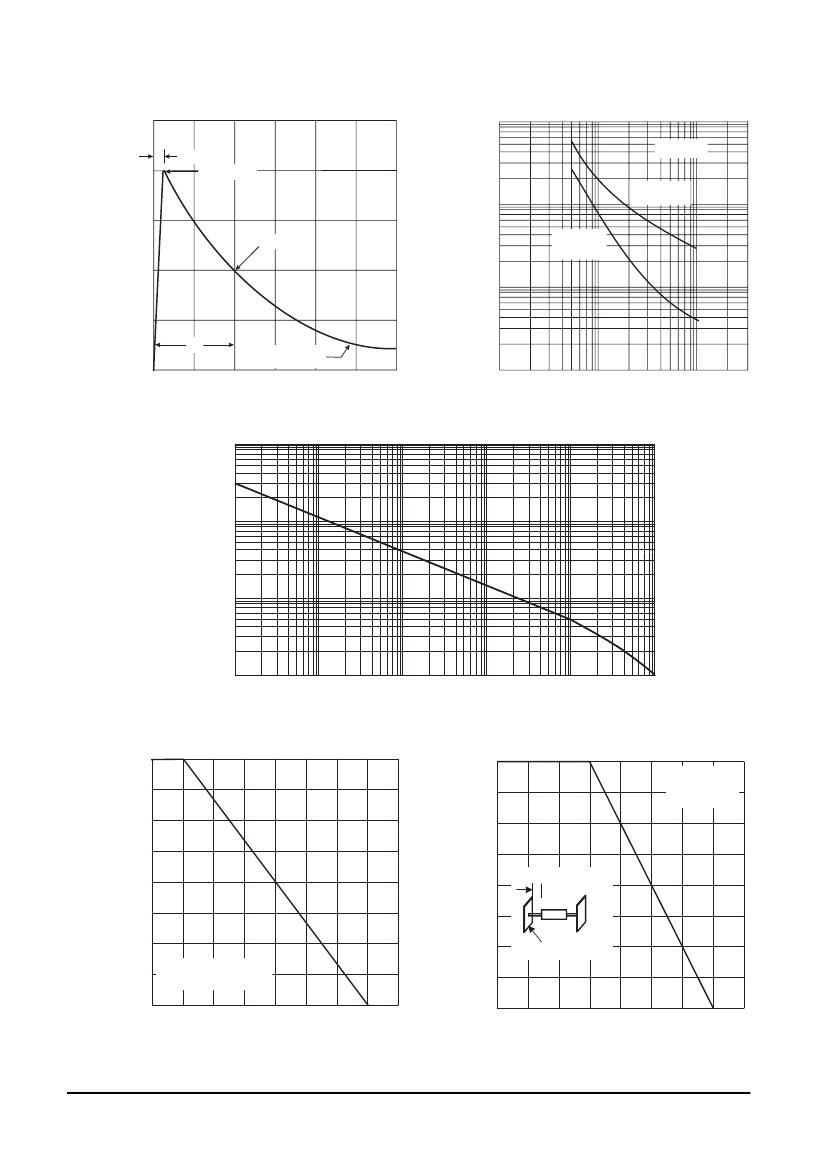

Fig. 1 Pulse Waveform
V
RWM
, REVERSE STANDOFF VOLTAGE (V)
Fig. 2 Typical Junction Capacitance
1000
P
P
, PEAK PULSE POWER (kW)
100
10
1.0
0.1
1.0
10
100
1000
10,000
T
P,
PULSE WIDTH (
µ
s)
Fig. 3 Pulse Derating Curve
P
D
, STEADY STATE POWER DISSIPATION (W)
100
PEAK PULSE DERATING IN % OF
PEAK POWER OR CURRENT
8.0
Single Phase
Half-Wave 60Hz
Resistive or
Inductive Load
75
6.0
50
4.0
L = 9.5 mm
25
10 X 1000 Waveform
as defind by REA
0
0
25
50
75
100
125
150
175
200
T
A
, AMBIENT TEMPERATURE (
°
C)
Fig. 4 Pulse Derating Curve
2.0
20 x 20 x 1 mm Cu
0
0
25
50
75
100
125
150
175
200
T
L
, LEAD TEMPERATURE (
°
C)
Fig. 5 Steady State Power Derating
5KP120 – 5KP200CA
2 of 5
© 2006 Won-Top Electronics
ORDERING INFORMATION
Product No.
5KPxx-T3
5KPxx
1.
2.
3.
Package Type
P-600
P-600
Shipping Quantity
800/Tape & Reel
250 Units/Box
Products listed in
bold
are WTE
Preferred
devices.
Shipping quantity given is for minimum packing quantity only. For minimum
order quantity, please consult the Sales Department.
To order RoHS / Lead Free version, add “-LF” suffix to part number above.
For example, 5KP120-T3-LF.
Won-Top Electronics Co., Ltd (WTE) has checked all information carefully and believes it to be correct and accurate. However, WTE cannot assume any
responsibility for inaccuracies. Furthermore, this information does not give the purchaser of semiconductor devices any license under patent rights to
manufacturer. WTE reserves the right to change any or all information herein without further notice.
WARNING:
DO NOT USE IN LIFE SUPPORT EQUIPMENT. WTE power semiconductor products are not authorized for use as critical components in life
support devices or systems without the express written approval.
Won-Top Electronics Co., Ltd.
No. 44 Yu Kang North 3rd Road, Chine Chen Dist., Kaohsiung, Taiwan
Phone:
886-7-822-5408 or 886-7-822-5410
Fax:
886-7-822-5417
Email:
sales@wontop.com
Internet:
http://www.wontop.com
We power your everyday.
5KP120 – 5KP200CA
5 of 5
© 2006 Won-Top Electronics
